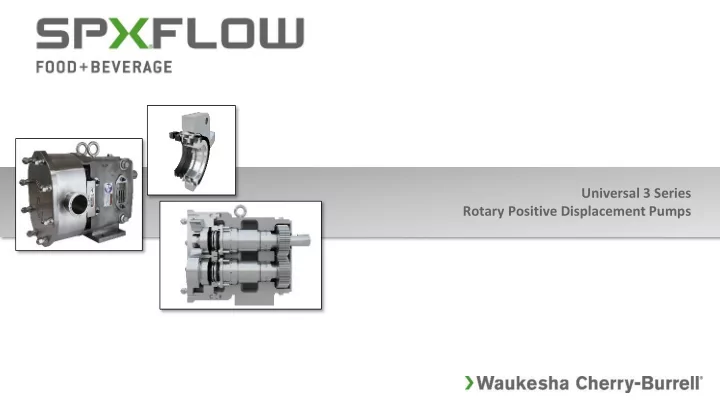

  1. Universal 3 Series Rotary Positive Displacement Pumps

  2. Typical Applications Pharmaceutical / Cosmetics Food and Beverage • Pill Pastes • Soups, Stews, Tomato Paste • Syrups, Extracts, Slurries • Vegetables, Dressings • Face Creams & Lotions • Chocolate, Fats & Oils • Hair Styling Gels & Liquids • Batters, Cream Fillings • Dyes & Alcohols • Brewery, Wort • Soft / Fruit Drinks Chemical / Industrial Dairy • Solvents, Paints • Cream, Milk • Fuels • Cheese Curd & Whey • Resins, Polymers, Sludge • Cottage Cheese • Oil & Lubricants • Yogurt • Soaps 2

  3. External Circumferential Piston Design Arc-shaped rotor wings travel in annular-shaped cylinders machined in the pump body; the resulting long sealing path reduces slip, producing a smooth flow of product without destructive pulses. Rotors cross over against a static hub, which allows tighter tolerances and eliminates timing issues. 3

  4. Differences to Universal 2 Design • Static hubs in the cover, not the body, improving flow and reducing “dead spots” • Shorter shafts, reduces overhung load, improves seal and bearing life • O-ring & Lip seals available • Gasket on front cover, results in higher level of cleanability for products with small particulates • Flat body profile & CIP flats on rotor hubs are standard for all sizes • Stainless steel case only • For most sizes, the U3 pump is a drop-in replacement for the U2 pump 4

  5. U3 Dimension Review • “R” Dimension highlights the dimensional difference between the U2 and U3 pumps • Pumps sizes where the “R” difference is “SAME” in the able are drop -in replacements 5

  6. Product Specifications 6

  7. Universal 3 Key Features Standard 304 Stainless Steel Gear Case Standard 316L Stainless Steel Body and Cover Precision Cut Spur Timing Gears Shorter, Larger Diameter Shafts Made from 17-4PH Field Interchangeable Seal Options • Reduced Overhung load • Seals located with the pump rotor & body • Improved Seal Life • No body modifications required for • Greater Torque Capacity double mechanical seals High Capacity, Double Tapered Roller Bearings; No Adjustment Needed. Preset Assemblies. High Capacity Rear Ball Bearings Standard Stainless Steel Bearing Retainers on Models 6, 15, 18, 30 and 40. Separate Oil Reservoir for Gears Front Bearing Fixed; Rear Bearing Floating. Better control of thermal expansion when 3-way Mounting Gear Case Standard handling hot products 7

  8. Universal 3 Seal Options Double Concentric Single & Double O-Ring Single Mechanical Seal Mechanical Seal Seal Standard seal configuration: silicon Used with flushing fluid to cool, WCB’s traditional general purpose carbide rotary seal face and carbon lubricate, flush away residue. Best seal. Low cost and easy to service. stationary seal face. Alternative arrangement for severe service Suitable for low pressure materials available for abrasive service. applications 100 psi, 7 bar. 8

  9. Universal 3 Rotor Options WCB Universal 2 WCB Universal 3 Process Parameters Viscosity: < 200 cP Standard Clearance Rotors Low Viscosity Rotors Temperature: < 180°F (82°C) Viscosity: > 200 cP Hot Clearance Rotors Standard Clearance Rotors Temperature: < 300°F (149°C) Viscosity: > 200 cP Extra Hot Clearance Rotors Hot Clearance (Expected Q2 2018) Temperature: > 300°F (149°C) 9

  10. Pumps for Life ™ Program Purchase New Universal 3 Pump Trade in old U3 Maintain pump pump for a New with Genuine U3 at a Reman SPX FLOW Price Parts Eliminates the need to stock mixed rotor sizes & Keeps your pump operating at peak performance 10

  11. Questions?
