The standard mode of DSQSS/DLA Standard mode files Input files of - PowerPoint PPT Presentation

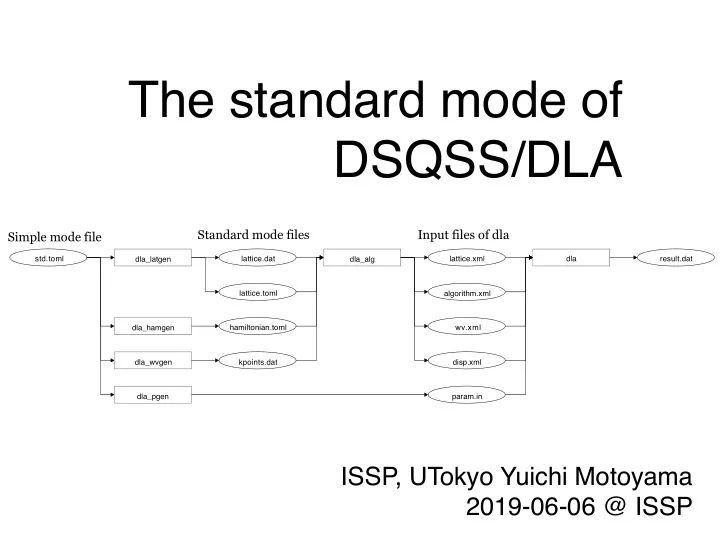

The standard mode of DSQSS/DLA Standard mode files Input files of dla Simple mode file std.toml dla_latgen lattice.dat dla_alg lattice.xml dla result.dat lattice.toml algorithm.xml hamiltonian.toml wv.xml dla_hamgen dla_wvgen


  1. The standard mode of DSQSS/DLA Standard mode files Input files of dla Simple mode file std.toml dla_latgen lattice.dat dla_alg lattice.xml dla result.dat lattice.toml algorithm.xml hamiltonian.toml wv.xml dla_hamgen dla_wvgen kpoints.dat disp.xml dla_pgen param.in ISSP, UTokyo Yuichi Motoyama 2019-06-06 @ ISSP

  2. 2 The standard mode of DSQSS/dla Users can define your model and lattice (or graph) easily by the standard mode • Standard mode files: • hamiltonian.toml • defines local hamiltonian (site hamiltonian, bond hamiltonian, ...) • lattice.toml • Use one of them defines unitcell and lattice vector • lattice.dat • defines all the sites and all the bonds • can define a graph without translational symmetry • kpoints.dat • defines wave vectors •

  3. 3 hamiltonian.toml hamiltonian.toml can be generated from the simple mode input TOML • file by using dla_hamgen If you want to define your model, it is recommended that you first • generate some hamiltonian.toml files of some different simple models to learn. std.toml hamiltonian.toml $ dla_hamgen std.toml name = "S=1/2 XXZ model" [hamiltonian] [[sites]] model = 'spin' type = 0 M = 1 N = 2 Jz = -1 values = [ -0.5, 0.5,] Jxy= -1 h = 0.5 ## omit the rest...

  4. hamiltonian.toml name = "S=1/2 XXZ model” # Name of model # One Site [[sites]] type = 0 # Sitetype (sublattice) N = 2 # The number of local degree of freedom (e.g., N=2 if S=1/2) values = [ -0.5, 0.5,] # Value of local basis (e.g., Sz) # <0|Sz_0|0> = -0.5 # <1|Sz_0|1> = 0.5 # Site term Hsite_0 (e.g., Zeeman term) [[sites.elements]] istate = [ 0,] # initial state fstate = [ 0,] # final state value = 0.25 # <0|Hsite_0|0> = 0.25 [[sites.elements]] istate = [ 1,] fstate = [ 1,] value = -0.25 # <1|Hsite_0|1> = -0.25 # Worm source term [[sites.sources]] istate = [ 0,] fstate = [ 1,] value = 0.5 # <1|G_0|0> = 0.5 [[sites.sources]] istate = [ 1,] fstate = [ 0,] value = 0.5 # <0|G_0|1> = 0.5 ## continued to the next page

  5. <latexit sha1_base64="MJUV9Cuq0aIwGfzKRMDaIQI1lk=">ADInichVHPS9xQEJ7Etmr6w9VeCr1EF5fSUp2IoAiFhV48+mtVMLokcdw+TF5C8nZRw/4DvZcePLW0h9I/ocdeSm9FPAj+A8WjQg/14CQbLVupnfAy3/tmvpk3jBv5IlGIR5rec+v2nd6+fuPuvfsPBkqDQ8tJ2Iw9qnmhH8arpOQLyTVlFA+rUYxOYHr04q7/TKLr7QoTkQol9RuROuB05BiS3iOYqpejO7YSvaUamQql1H84Vhu9QMo0CR8Vip21Y45NmxWRD89JX+Ni2wQTD51lCFrHGJ7ojOXOZ0R3prsZxwya5edW0XirjGOZmXgdWAcpQ2FxY+gI2bEIHjQhAIJirEPDiT8rYEFCBFz65AyFzMSeZygDQZrm5xFnOEwu83/Bt/WClbyPauZ5GqPu/h8YlaMIqH+AlP8Rt+xp94/s9aV4je8sue7ejpag+8PrR4q/qgL2Cl79Ud2gcPlDt+JFTfPpmALpvOZBM8Y5Uw2rdfp09p7e7o4szCaVvA9nvCc7/AIv/KksnXmfZynhX0weFHW32u5DpYnxizG85PlarVYWR8hF4wnuZgirMwhzUuO9vbVh7qj3TP+jf9R/6QSdV1wrNQ+gy/fgCxQC2ZQ=</latexit> <latexit sha1_base64="MJUV9Cuq0aIwGfzKRMDaIQI1lk=">ADInichVHPS9xQEJ7Etmr6w9VeCr1EF5fSUp2IoAiFhV48+mtVMLokcdw+TF5C8nZRw/4DvZcePLW0h9I/ocdeSm9FPAj+A8WjQg/14CQbLVupnfAy3/tmvpk3jBv5IlGIR5rec+v2nd6+fuPuvfsPBkqDQ8tJ2Iw9qnmhH8arpOQLyTVlFA+rUYxOYHr04q7/TKLr7QoTkQol9RuROuB05BiS3iOYqpejO7YSvaUamQql1H84Vhu9QMo0CR8Vip21Y45NmxWRD89JX+Ni2wQTD51lCFrHGJ7ojOXOZ0R3prsZxwya5edW0XirjGOZmXgdWAcpQ2FxY+gI2bEIHjQhAIJirEPDiT8rYEFCBFz65AyFzMSeZygDQZrm5xFnOEwu83/Bt/WClbyPauZ5GqPu/h8YlaMIqH+AlP8Rt+xp94/s9aV4je8sue7ejpag+8PrR4q/qgL2Cl79Ud2gcPlDt+JFTfPpmALpvOZBM8Y5Uw2rdfp09p7e7o4szCaVvA9nvCc7/AIv/KksnXmfZynhX0weFHW32u5DpYnxizG85PlarVYWR8hF4wnuZgirMwhzUuO9vbVh7qj3TP+jf9R/6QSdV1wrNQ+gy/fgCxQC2ZQ=</latexit> <latexit sha1_base64="MJUV9Cuq0aIwGfzKRMDaIQI1lk=">ADInichVHPS9xQEJ7Etmr6w9VeCr1EF5fSUp2IoAiFhV48+mtVMLokcdw+TF5C8nZRw/4DvZcePLW0h9I/ocdeSm9FPAj+A8WjQg/14CQbLVupnfAy3/tmvpk3jBv5IlGIR5rec+v2nd6+fuPuvfsPBkqDQ8tJ2Iw9qnmhH8arpOQLyTVlFA+rUYxOYHr04q7/TKLr7QoTkQol9RuROuB05BiS3iOYqpejO7YSvaUamQql1H84Vhu9QMo0CR8Vip21Y45NmxWRD89JX+Ni2wQTD51lCFrHGJ7ojOXOZ0R3prsZxwya5edW0XirjGOZmXgdWAcpQ2FxY+gI2bEIHjQhAIJirEPDiT8rYEFCBFz65AyFzMSeZygDQZrm5xFnOEwu83/Bt/WClbyPauZ5GqPu/h8YlaMIqH+AlP8Rt+xp94/s9aV4je8sue7ejpag+8PrR4q/qgL2Cl79Ud2gcPlDt+JFTfPpmALpvOZBM8Y5Uw2rdfp09p7e7o4szCaVvA9nvCc7/AIv/KksnXmfZynhX0weFHW32u5DpYnxizG85PlarVYWR8hF4wnuZgirMwhzUuO9vbVh7qj3TP+jf9R/6QSdV1wrNQ+gy/fgCxQC2ZQ=</latexit> <latexit sha1_base64="MJUV9Cuq0aIwGfzKRMDaIQI1lk=">ADInichVHPS9xQEJ7Etmr6w9VeCr1EF5fSUp2IoAiFhV48+mtVMLokcdw+TF5C8nZRw/4DvZcePLW0h9I/ocdeSm9FPAj+A8WjQg/14CQbLVupnfAy3/tmvpk3jBv5IlGIR5rec+v2nd6+fuPuvfsPBkqDQ8tJ2Iw9qnmhH8arpOQLyTVlFA+rUYxOYHr04q7/TKLr7QoTkQol9RuROuB05BiS3iOYqpejO7YSvaUamQql1H84Vhu9QMo0CR8Vip21Y45NmxWRD89JX+Ni2wQTD51lCFrHGJ7ojOXOZ0R3prsZxwya5edW0XirjGOZmXgdWAcpQ2FxY+gI2bEIHjQhAIJirEPDiT8rYEFCBFz65AyFzMSeZygDQZrm5xFnOEwu83/Bt/WClbyPauZ5GqPu/h8YlaMIqH+AlP8Rt+xp94/s9aV4je8sue7ejpag+8PrR4q/qgL2Cl79Ud2gcPlDt+JFTfPpmALpvOZBM8Y5Uw2rdfp09p7e7o4szCaVvA9nvCc7/AIv/KksnXmfZynhX0weFHW32u5DpYnxizG85PlarVYWR8hF4wnuZgirMwhzUuO9vbVh7qj3TP+jf9R/6QSdV1wrNQ+gy/fgCxQC2ZQ=</latexit> <latexit sha1_base64="MJUV9Cuq0aIwGfzKRMDaIQI1lk=">ADInichVHPS9xQEJ7Etmr6w9VeCr1EF5fSUp2IoAiFhV48+mtVMLokcdw+TF5C8nZRw/4DvZcePLW0h9I/ocdeSm9FPAj+A8WjQg/14CQbLVupnfAy3/tmvpk3jBv5IlGIR5rec+v2nd6+fuPuvfsPBkqDQ8tJ2Iw9qnmhH8arpOQLyTVlFA+rUYxOYHr04q7/TKLr7QoTkQol9RuROuB05BiS3iOYqpejO7YSvaUamQql1H84Vhu9QMo0CR8Vip21Y45NmxWRD89JX+Ni2wQTD51lCFrHGJ7ojOXOZ0R3prsZxwya5edW0XirjGOZmXgdWAcpQ2FxY+gI2bEIHjQhAIJirEPDiT8rYEFCBFz65AyFzMSeZygDQZrm5xFnOEwu83/Bt/WClbyPauZ5GqPu/h8YlaMIqH+AlP8Rt+xp94/s9aV4je8sue7ejpag+8PrR4q/qgL2Cl79Ud2gcPlDt+JFTfPpmALpvOZBM8Y5Uw2rdfp09p7e7o4szCaVvA9nvCc7/AIv/KksnXmfZynhX0weFHW32u5DpYnxizG85PlarVYWR8hF4wnuZgirMwhzUuO9vbVh7qj3TP+jf9R/6QSdV1wrNQ+gy/fgCxQC2ZQ=</latexit> hamiltonian.toml ## continued from the previous page # manybody interactions Hint_0 [[interactions]] type = 0 # interaction type (id) nbody = 2 # the number of sites N = [ 2, 2,] # the number of local d.o.f. of sites   # matrix elements 1 / 4 0 0 0 [[interactions.elements]] − 1 / 4 1 / 2 0 0 H int   istate = [ 0, 0,] # initial state =   0 1 / 2 − 1 / 4 0 0 fstate = [ 0, 0,] # final state   value = 0.25 # <0,0|Hint_0|0,0> = 0.25 1 / 4 0 0 0 [[interactions.elements]] istate = [ 0, 1,] fstate = [ 0, 1,] value = -0.25 # <0,1|Hint_0|0,1> = -0.25 [[interactions.elements]] istate = [ 0, 1,] fstate = [ 1, 0,] value = 0.5 # <1,0|Hint_0|0,1> = 0.5 [[interactions.elements]] istate = [ 1, 0,] fstate = [ 1, 0,] value = -0.25 # <1,0|Hint_0|1,0> = -0.25 ## omit the rest

  6. 6 lattice.toml lattice.toml can be generated from the simple mode input TOML file by • using dla_latgen std.toml $ dla_latgen -t lattice.toml std.toml [lattice] lattice = ‘hypercubic' dim = 2 L = [4,4] lattice.toml [parameter] name = "hypercubic" dim = 2 # spatial dimension L = [ 4, 4,] # number of unitcells # boundary conditions bc = [ true, true,] ## omit the rest...

  7. lattice.toml bondid=1 unitcell = siteid=0 bondid=0 [parameter] ## continued from the left name = "hypercubic" dim = 2 # spatial dimension # bonds in the cell L = [ 4, 4,] # number of unitcells [[unitcell.bonds]] bondid = 0 # boundary conditions type = 0 bc = [ true, true,] # an end site of the bond # lattice vectors [unitcell.bonds.source] basis = [[1. 0.] # e_1 siteid = 0 [0. 1.]] # e_2 # opposite end site [unitcell] [unitcell.bonds.target] # sites in the unitcell siteid = 0 [[unitcell.sites]] # relative coord of another cell siteid = 0 offset = [ 1, 0,] type = 0 # sitetype # another bond # fractional coordinate in the cell [[unitcell.bonds]] coord = [ 0.0, 0.0,] bondid = 1 type = 0 ## continued to the right [unitcell.bonds.source] siteid = 0 [unitcell.bonds.target] siteid = 0 offset = [ 0, 1,]

  8. 8 lattice preview by gnuplot dla_latgen can generate a gnuplot file for viewing the 2D lattice • $ dla_latgen -g lattice.plt lattice.toml $ gnuplot lattice.plt

  9. 9 lattice.dat lattice.dat can be generated from the simple mode input TOML file by • using dla_latgen std.toml $ dla_latgen -o lattice.dat std.toml [lattice] lattice = ‘hypercubic' dim = 2 L = [4,4] lattice.dat name hypercubic lattice 2 # dim 4 4 # size (Lx, Ly) ## omit the rest...

  10. lattice.dat 4x4 square lattice name # tag # continued from the left hypercubic # each sites sites # tag lattice # tag 16 # nsites 2 # dim 4 4 # size (Lx, Ly) # id, type, coord... 0 0 0.0 0.0 # boundary conditions 1 0 1.0 0.0 2 0 2.0 0.0 # 0: open, 1:periodic … skip … 1 1 # x, y 15 0 3.0 3.0 # lattice vectors 0 1.0 0.0 # latvec_0 # each N-body interaction interactions 1 0.0 1.0 # latvec_1 32 # nints # direction of bonds # id, type, nbody, sites..., edge_flag, direction directions # tag 0 0 2 0 1 0 0 2 # ndirections 1 0 2 0 4 0 1 2 0 2 1 2 0 0 … skip … # id, coords... 0 1.0 0.0 31 0 2 15 3 1 1 1 0.0 1.0 edge_flag : whether to cross the boundary (1) or not (0) # continued to the right
