The impact of ocean sound speed variability on the uncertainty of geoacoustic parameter estimates N. Ross Chapman and Yong-Min Jiang University of Victoria Victoria BC Canada University of Victoria, Victoria, BC, Canada Work supported by

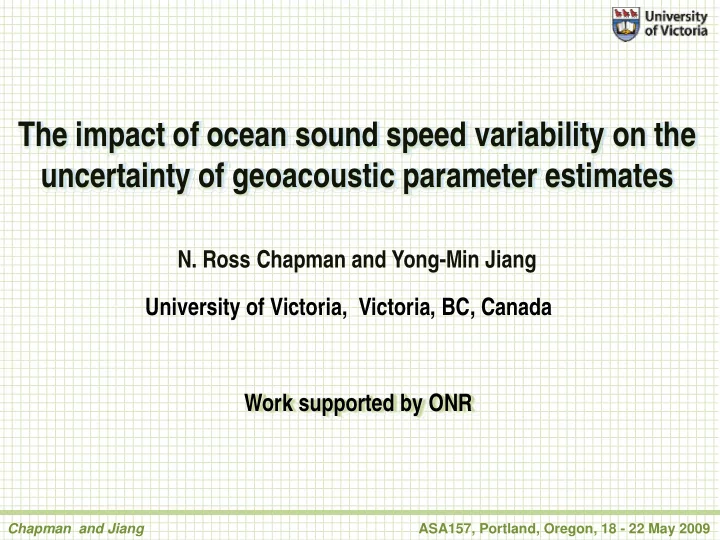

  1. The impact of ocean sound speed variability on the uncertainty of geoacoustic parameter estimates N. Ross Chapman and Yong-Min Jiang University of Victoria Victoria BC Canada University of Victoria, Victoria, BC, Canada Work supported by ONR Chapman and Jiang ASA157, Portland, Oregon, 18 - 22 May 2009

  2. Objective: • Describe a simple technique to account for unknown ocean sound speed profile in matched field inversion sound speed profile in matched-field inversion � Invert for an effective SSP that creates a range independent propagation environment p p g • Method: � Use EOFs to parameterize the SSP � Use EOFs to parameterize the SSP � What information is necessary? � Large data set of SSP over extended space and time � Limited data set in vicinity of experiment in space and time � Li it d d t t i i i it f i t i d ti • Hypothesis is that limited set will be adequate if changes in SSP are not large Chapman and Jiang ASA157, Portland, Oregon, 18 - 22 May 2009

  3. Experimental site: Acoustic array (MPL): Acoustic array (MPL): • VLA1 • 16 sensors, 3.75 m separation • the bottom one is 8.2 m from the bottom one is 8.2 m from the sea floor Source ship stations, distance to VLA1: VLA1: • WP21, 1 km • WP22, 3 km • Wp23 5 km • Wp23, 5 km Water depth: • ~79.0m Signal frequencies (CW tonals): • LF: 53, 103, 203, and 253 Hz • MF: 303, 403 503, 703 and 303, 03 503, 03 953 Hz Chapman and Jiang ASA157, Portland, Oregon, 18 - 22 May 2009

  4. Geoacoustic model • Invert for: • geometric parameters of the experiment and the experiment, and • geoacoustic model parameters • Approach: Bayesian Matched field inversion Geoacoustic model for the SW06 site Chapman and Jiang ASA157, Portland, Oregon, 18 - 22 May 2009

  5. Recap: Is SSP at the source all we need? p SSPs measured at source and VLA1 Ambiguity surface of MFP (source localization) Chapman and Jiang ASA157, Portland, Oregon, 18 - 22 May 2009

  6. SSP data: SSPs measured at source and VLA1 (derived from CTDs) (derived from CTDs) SSPs measured at SHARK, SW31 and SW32 Chapman and Jiang ASA157, Portland, Oregon, 18 - 22 May 2009

  7. Approaches: pp • Limited set from CTDs measured at source ship stations p • change only in the thermocline • requires fewer EOFs (only 4 EOFs) • Full set from oceanographic moorings and CTDs from source ship stations source ship stations • cover whole water column • need more EOFs need more EOFs • how to decide how many EOFs? Chapman and Jiang ASA157, Portland, Oregon, 18 - 22 May 2009

  8. Comparison of the energy fit versus the number p gy of EOFs used: Chapman and Jiang ASA157, Portland, Oregon, 18 - 22 May 2009

  9. Example: 8EOFs for large SSP sample set: Base line profile 1 EOFs 2 EOFs 3 EOFs 0 0 0 0 20 20 20 20 40 40 40 40 60 60 60 60 1480 1500 1520 1540 1480 1500 1520 1540 1480 1500 1520 1540 1480 1500 1520 1540 4 EOFs 5 EOFs 6 EOFs 7 EOFs 0 0 0 0 20 20 20 20 40 40 40 40 60 60 60 60 1480 1500 1520 1540 1480 1500 1520 1540 1480 1500 1520 1540 1480 1500 1520 1540 8 EOFs 9 EOFs 10 EOFs 11 EOFs 0 0 0 0 0 0 0 0 20 20 20 20 40 40 40 40 60 60 60 60 60 60 60 60 1480 1500 1520 1540 1480 1500 1520 1540 1480 1500 1520 1540 1480 1500 1520 1540 Chapman and Jiang ASA157, Portland, Oregon, 18 - 22 May 2009

  10. Comparison of effective SSP for 1 km data Comparison of effective SSP for 1 km data Small SSP data set Large SSP data set Marginal distributions of SSPs Chapman and Jiang ASA157, Portland, Oregon, 18 - 22 May 2009

  11. Inter-parameter correlations for 1 km data – EOF EOFs vs. geometric and geoacoustic parameters t i d ti t Small SSP data set Large SSP data set 2D Marginal distributions of EOFs Chapman and Jiang ASA157, Portland, Oregon, 18 - 22 May 2009

  12. Results – comparison of Bayesian geoacoustic Inversion by using different SSP data set at 1 km Inversion by using different SSP data set at 1 km Small SSP set Large SSP set Large SSP set 1D Marginal distributions of geometric parameters Chapman and Jiang ASA157, Portland, Oregon, 18 - 22 May 2009

  13. Results – comparison of Bayesian geoacoustic Inversion by using different SSP data set at 1 km Inversion by using different SSP data set at 1 km Small SSP set Large SSP set 1D Marginal distributions of geoacoustic parameters Chapman and Jiang ASA157, Portland, Oregon, 18 - 22 May 2009

  14. Results – comparison of Bayesian geoacoustic p y g Inversion using small SSP data set at 1, 3 and 5 km Chapman and Jiang ASA157, Portland, Oregon, 18 - 22 May 2009

  15. Breakdown – 3 km site, small SSP data set 2D Marginal distributions of EOFs with geometric parameters Chapman and Jiang ASA157, Portland, Oregon, 18 - 22 May 2009

  16. Breakdown – 3 km site, large SSP data set 2D Marginal distributions of EOFs with geometric parameters Chapman and Jiang ASA157, Portland, Oregon, 18 - 22 May 2009

  17. Conclusions: • Water column sound speed profile has significant effect on geometric parameters and therefore • affects geoacoustic parameter estimates • has great impact on matched field processing based has great impact on matched field processing based source localization • Geoacoustic parameter estimates using different SSP observations • Geoacoustic parameter estimates using different SSP observations are consistent with each other • for small SSP variations over the propagation path, the most relevant SSPs are more effective • for large SSP variations, single effective SSP may not be adequate q Chapman and Jiang ASA157, Portland, Oregon, 18 - 22 May 2009

  18. Acknowledgments: • Office of Naval Research: for sponsoring the research • William Hodgkiss and Peter Gerstoft from MPL for providing the acoustic data • David Knobles from ARL for providing navigation and source depth data • John Goff from Institute of Geophysics, University of Texas at Austin for providing geophysical chirp seismic reflection data f idi h i l hi i i fl i d • Arthur Newhall from WHOI f for providing oceanographic observation data idi hi b ti d t Chapman and Jiang ASA157, Portland, Oregon, 18 - 22 May 2009
