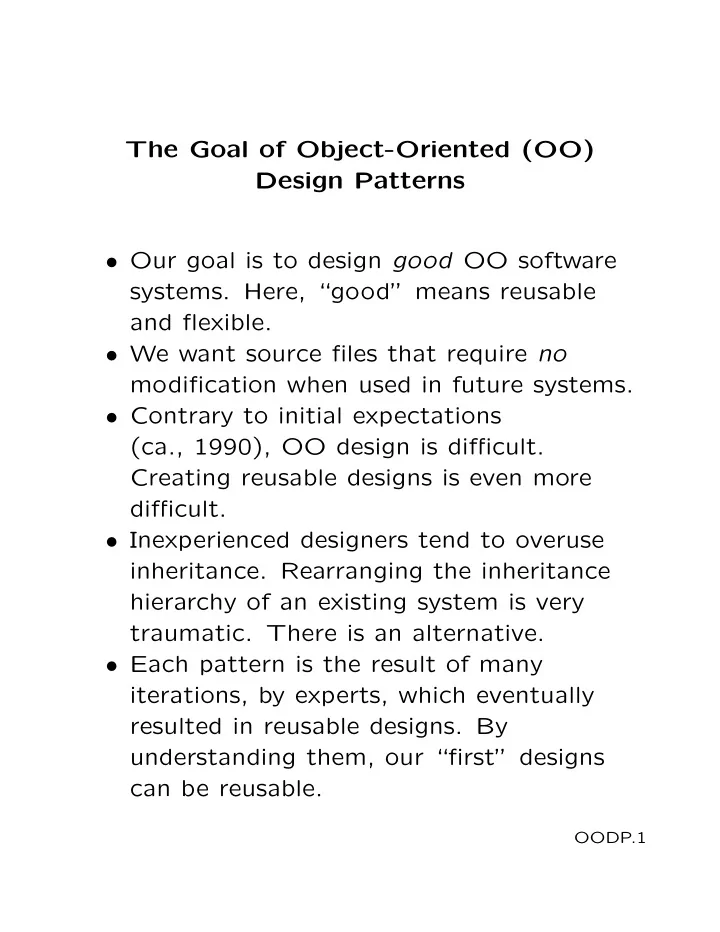

  1. The Goal of Object-Oriented (OO) Design Patterns • Our goal is to design good OO software systems. Here, “good” means reusable and flexible. • We want source files that require no modification when used in future systems. • Contrary to initial expectations (ca., 1990), OO design is difficult. Creating reusable designs is even more difficult. • Inexperienced designers tend to overuse inheritance. Rearranging the inheritance hierarchy of an existing system is very traumatic. There is an alternative. • Each pattern is the result of many iterations, by experts, which eventually resulted in reusable designs. By understanding them, our “first” designs can be reusable. OODP.1

  2. The Risks of Patterns • If you don’t need reusable and flexible designs, don’t use these patterns. They add complexity. • Don’t apply them without careful analysis. • They can complicate a system and reduce performance. • Use them only when the added reusability and flexibility is worth the cost. OODP.2

  3. The Form and Structure of a Pattern • Each pattern has several parts: – Name (and aliases) – Motivation (with examples) – Applicability: how the pattern addresses the problem – Structure: UML diagram – Participants: interfaces, classes, and methods – Collaborations (between participants) – Consequences: pros and cons of using the pattern – Implementation Choices – Sample Code – Known Uses – Related Patterns: similar and dependent patterns OODP.3

  4. Patterns in The BSU CS Curriculum • We offer a senior-level elective, CS 472 (Object-Oriented Design Patterns): Reviews object-oriented design principles, explains the goals and form of design patterns, and examines several well-known patterns. • However, other courses use rudimentary patterns: – CS 121: Java’s Swing API – CS 221: Iterator(257), Adapter(139), and Bridge(151) – CS 354: Interpreter(243) OODP.4

  5. The History of Patterns (1 of 2) • OO design patterns were modeled after Christopher Alexander’s brick-and-mortar construction patterns, 1977: pub/ch1/ca-cover.pdf pub/ch1/ca-face.pdf Each pattern describes a problem that occurs over and over again in our environment, and then describes the core of the solution to that problem, in such a way that you can use this solution a million times over, without ever doing it the same way twice. OODP.5

  6. The History of Patterns (2 of 2) • James Coplien’s Advanced C++ Programming Styles and Idioms , 1992. • Erich Gamma’s Ph.D. dissertation (in German), 1992. He also worked on JUnit and Eclipse. • Erich Gamma, Richard Helm, Ralph Johnson, and John Vlissides wrote the Gang of Four (GoF) book, in 1995: pub/ch1/gof.pdf “... the most popular computer book ever published, with over one million copies in print.” It contains 23 patterns, in 3 categories: – Creational patterns determine how objects are created. – Structural patterns determine how objects look. – Behavioral patterns determine how objects act. OODP.6

  7. How Design Patterns Solve Design Problems (1 of 2) • Patterns help us decompose a system into objects: – An object encapsulates data, and methods that operate on the data. – An object’s data should be private. Only an object’s methods can change it. – OO design methodologies typically produce designs where objects correspond to nouns in the problem statement or real-world entities. But, good designs often end up with objects that have no real-world counterpart (e.g., Adapter). Patterns help us include these objects in our designs, increasing flexibility and reusability. OODP.7

  8. How Design Patterns Solve Design Problems (2 of 2) • They help us determine object granularity: – An object can be tiny or huge. We may need one object of a class, or thousands. – Some patterns describe objects that create objects, compose objects, or implement requests between objects. • They help us specify object interfaces: – A method’s name, argument types, return type, and exceptions compose its signature . – The set of public-method signatures defined by an object is its interface . – A type is a name denoting an interface. OODP.8

  9. The GoF Principles of Object-Oriented Design 1. Program to an interface, not an implementation. This reduces coupling and allows an implementation to be replaced. 2. Favor object composition over class inheritance. Using has-a , rather than is-a , preserves encapsulation and allows classes and class hierarchies to remain small. It leads to more reusable designs, where reuse can occur dynamically, at run time. OODP.9

  10. Delegation • With inheritance, a subclass can defer requests to a superclass, by not overriding a superclass method. • Delegation is the object-composition way of doing this. • A Delegator object can delegate a request to a Delegate object. • Thus, object composition can always replace inheritance for code reuse. • This is very common: pub/ch1/LightSwitch.java Here, an object of class LightSwitch delegates part of the init request to an object of class ToggleButton. OODP.10

  11. The Iterator Pattern(257) (1 of 4) • Aliases: It is also known as Cursor or Enumerator. • Motivation/Applicability: – You want to access an aggregate’s content without exposing representation. – You want concurrent traversals. – You want polymorphic iteration. • Structure: pub/patterns/Iterator.pdf OODP.11

  12. The Iterator Pattern(257) (2 of 4) • Participants: – Iterator: This is the interface for access and traversal. – ConcreteIterator: This implements Iterator for a particular aggregate. It records the current position in an aggregate. – Aggregate: This is the interface for creating an Iterator object. – ConcreteAggregate: This implements the interface for creating an Iterator object. OODP.12

  13. The Iterator Pattern(257) (3 of 4) • Consequences: – It supports different traversals of a single data structure. – It simplifies the Aggregate interface. – It supports concurrent traversal, because each ConcreteIterator maintains state. OODP.13

  14. The Iterator Pattern(257) (4 of 4) • Implementation: – There are external and internal iterators: ∗ With an external iterator, the client performs an action on each element. ∗ With an internal iterator, the client tells the iterator what to do with each element. ∗ External iterators are more flexible, but internal iterators are more convenient. – Robust iterators allow elements to be added or removed during traversal. – Of course, you can provide additional methods (e.g., prev ) or fewer methods (e.g., merge next and isDone ). OODP.14

  15. The Iterator Pattern(257) • This is a simple Java program, demonstrating the pattern: pub/ch2/Iterator.java pub/ch2/BoxIterator.java pub/ch2/Aggregate.java pub/ch2/Box.java OODP.15
