The Fast Fourier Transform - FFT Sound Design and Interactive Music - FFT Learning Objectives Understand the relationship between the Time and Frequency Domain. The Fast Fourier Transform - FFT is a method for switching between these two

slide-1
SLIDE 1

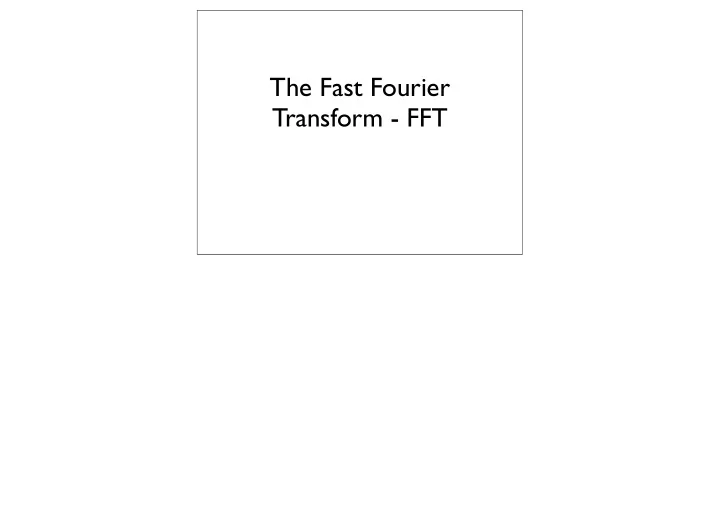

The Fast Fourier Transform - FFT

slide-2
SLIDE 2

Sound Design and Interactive Music - FFT

Learning Objectives

  • Understand the relationship between the Time and Frequency Domain.
  • The Fast Fourier Transform - FFT is a method for switching between these two

domains.

  • Understanding of the FFT to use it in Pure Data.

Structure

  • Basic Concepts
  • Fourier Transform
  • Fast Fourier Transform - overview
  • Practical information of using FFT in Pure Data
slide-3
SLIDE 3

Sound Design and Interactive Music - FFT

Basics

  • Every signal can be represented by a sum sine waves which have a frequency, amplitude

and phase.

  • Simple examples:

Square Wave Sawtooth Wave

Produced by adding all harmonics of a sine wave at decreasing amplitude 1/h - where h = harmonic

  • 4 harmonics
  • 12 harmonics

Produced by adding all odd harmonics of a sine wave at decreasing amplitude 1/h - where h = harmonic

  • 4 harmonics
  • 12 harmonics

Summing sine waves to make signals - exactly the same as when preforming additive synthesis.

slide-4
SLIDE 4

Sound Design and Interactive Music - FFT

Fourier Transform

  • The Fourier Transform - Transforms a Signal from the Time Domain

representation into its Frequency Domain representation. This is also know as Analysis frequency components of the signal are worked out.

  • Inverse Fourier Transform - transforms a Signal from the Frequency

Domain representation back into the Time Domain representation. Also know as re-synthesis as the signal is re-constructed or re-synthesised. Square wave Sawtooth wave

taken from http://www.informit.com/articles/article.aspx?p=1374896&seqNum=7 taken from http://en.wikipedia.org/wiki/File:Sawtooth-td_and_fd.png

slide-5
SLIDE 5

Sound Design and Interactive Music - FFT

Fourier Transform cont.

  • When representing a signal in both the Time and Frequency Domains there is an

important point to conceder. A signal that is limited in one domain

cannot be limited in the other.

  • A signal that is limited in Time - e.g. delta function (impulse) - cannot be

limited in the Frequency. That is to say an impulse (limited in time) contains an infinite number (or all) of frequencies.

  • A signal limited in Frequency - e.g. a sine wave - cannot be limited in
  • Time. That is to say a sine wave of a single frequency must continue on for an infinite

amount of time.

This is important because in the real world nothing is infinite. And this means that possible problems will arise when practically applying the Fourier Transform in the real world. 1) problems when sampling - a band limited signal is required. 2) Impossible to have a signal continue/play forever - analysis will also take forever.

slide-6
SLIDE 6

Sound Design and Interactive Music - FFT

Impulse Example

  • An Ideal impulse has infinite amplitude a time t = 0 and 0 amplitude at all other times.
  • Frequency plot is completely Flat across all frequencies.
  • Plotting an Ideal impulse is impossible.
  • Shown here is the time and frequency plot of a impulse of sample length 2
slide-7
SLIDE 7

Sound Design and Interactive Music - FFT

Sine Wave Example

  • Time Domain Plot of a 200Hz Sine Wave (top) - note signal is present all times -

snapshot of 1 second is shown.

  • Frequency Domain Plot (bottom) - note only frequency is present at 200Hz.

This was made with a matlab script that can be provided.

slide-8
SLIDE 8

Sound Design and Interactive Music - FFT

In the Real World

  • Because the real signals are limited in both domains the Fourier analysis cannot be

perfect.

  • Example is here with the sine wave frequency plot - ideally this should be a single line

but due to errors introduced because the signal is not of infinite time frequencies around 200Hz are plotted with small amplitudes.

slide-9
SLIDE 9

Sound Design and Interactive Music - FFT

Sampling/Nyquist Theorem

  • Sampling Theorem is what enables an analogue signal to be reconstructed from its

digital representation.

  • It allows for conversion of an analogue signal to a digital signal and back again.
  • Switching from a continuous signal to a discrete signal.
  • Sampling takes the value of the analogue signal every T seconds - called the sampling interval
  • The number of samples per second is called the sampling rate - (fs)
  • This gives the sampling rate equation as:

fs = 1 T

  • For perfect reconstruction the signal is required to be band-limited - that is the

signal has a finite set of frequencies it can contain.

  • The range of these frequencies contained within the signal - the signal’s bandwidth -

needs to be equal to or smaller than: fs / 2 - Also known as the Nyquist Frequency

slide-10
SLIDE 10

Sound Design and Interactive Music - FFT

Fast Fourier Transform - FFT

  • Computationally efficient way of carrying out the Fourier Transform in the

Digital Domain (aka Discrete Fourier Transform - DFT)

  • Understanding of the maths that specifies what the FFT is doing and how it is

doing it is not needed in order to use the FFT and preform Fourier analysis and re-synthesis.

  • FFT objects in Pure Data:
  • These are [fft~] to preform analysis and [ifft~] to preform re-synthesis these

produce real and imaginary components of the frequency spectrum.

  • [rfft~] and [rifft~] do the same thing but only use real values of the frequency

spectrum.

I’ll come back to the real and imaginary parts - these are from the maths behind the fourier transform - as sine waves can be represented as a complex number consisting of amplitude and phase or real and imaginary

  • parts. Basically a number that carries 2 bits of information.
slide-11
SLIDE 11

Sound Design and Interactive Music - FFT

FFT - in Pure Data

  • The FFT divides the frequency spectrum up into parts of equal size.
  • The amplitude and phase for each of these parts is then

determined

  • The parts of the frequency spectrum are called bins
  • The size of each frequency bin is determined by the block size
  • Within Pure Data all tasks a processed in blocks. Blocks are groups of

samples

  • Default block size in Pure Data is 64 - (can be changed in a subpatch)
  • Can use [print~] to see snapshot of amplitudes within one DSP block.
  • With default block size a spectrum is divided by 64. Example:

44100 / 64 = 689Hz

  • Each bin therefore has a size of 689Hz
  • The larger the block size the better the frequency resolution -

but this also makes the process more computationally demanding.

  • Using Blocks lightens the processing load
  • each block contains 64 values.
  • Show Pd demo of this
slide-12
SLIDE 12

Sound Design and Interactive Music - FFT

FFT - Analysing Signals

  • Each bin corresponds to a certain frequency within the spectrum. With block

size of 64 and bin size of 689Hz analysing a signal containing only frequency of 689Hz (or a multiple of it) is fine and can be represented by a amplitude value in a single bin.

  • Signals that are not of frequency 689Hz are divided among several multiple

bins.

  • Each time the analysis is carried out the phase of the corresponding

frequency values will change. - THIS IS A PROBLEM!

  • To solve this problem use overlapping windows.

Show Pd demo of the bins with all the crazy values.

slide-13
SLIDE 13

Sound Design and Interactive Music - FFT

FFT - Hanning Window

  • The common window used is called a Hanning window
  • Made in Pure Data in the following way:
  • This stops the amplitudes being so spread out.
  • Windows need to overlap. Easily done by using [block~ 64 4] - but this

means the FFT analysis needs to be in a subpatch

To the right of the slide is demonstration of how to make a Hanning window in Pd Stops the spread of amplitudes - smearing in the frequency domain.

slide-14
SLIDE 14

Sound Design and Interactive Music - FFT

FFT - Re-synthesis

  • Re-synthesis of the signal is done by passing the outputted values from the

[fft~] or [rfft~] into the corresponding inverse abstraction ( [ifft~] or [rifft~] )

  • By altering the values obtained from the analysis before re-synthesis will alter

how the original signal sounds.

  • Things that you can do with FFT include:
  • Filter effects
  • Convolution
  • Compression
  • Spectral Delay
  • As well as using the analysis to create control information and create things

like:

  • Tuners
  • Octave Doublers
  • Pitch Followers

Fiddle~ - FFT implementation

slide-15
SLIDE 15

Sound Design and Interactive Music - FFT

Further sources of Information

  • http://www.pd-tutorial.com/english/ch03s08.html
  • http://footils.org/2007/02/20/beginners-guide-fft-objects-pd/
  • http://academicearth.org/courses/the-fourier-transform-and-its-applications
  • http://www.dsprelated.com/dspbooks/mdft/

First 2 are Pure Data tutorials which i’ve used in creating these slides. 3rd is Stanford lecture course on Fourier Transform - engineering level - MATHS 4th - Julius O. Smith III - Mathematics of DFT - reference book with all the maths and things required.
