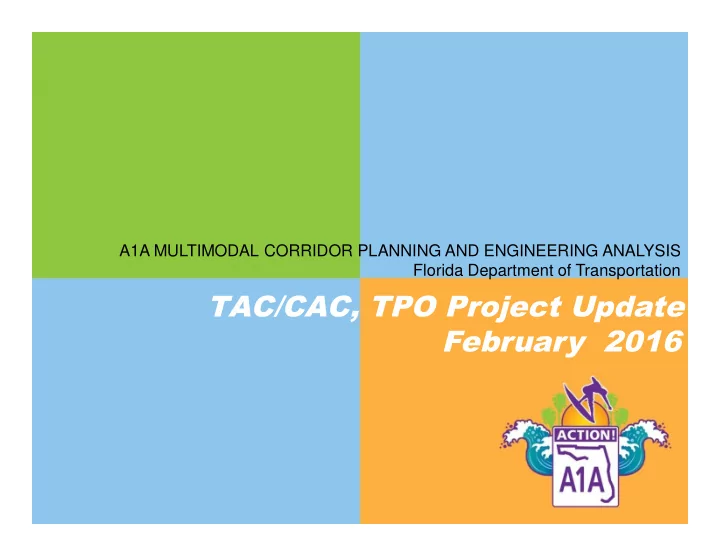

Multimodal Corridor Planning & Engineering Analysis Project A1A MULTIMODAL CORRIDOR PLANNING AND ENGINEERING ANALYSIS Florida Department of Transportation TAC/CAC, TPO Project Update February 2016 PRESENTATION FOOTERT

Multimodal Corridor Planning & Engineering Analysis Project Meeting Agenda – What We Plan To Discuss – Project Background – New Analysis – RRR Projects – Improvement Concepts – Status – Questions and Comments

Multimodal Corridor Planning & Engineering Analysis Project Project Background – Initiated by Space Coast TPO & Action Team – Addresses multimodal transportation along SR A1A – From the Pineda Causeway (SR 404) to SR 528 in Cape Canaveral – Goal: Develop Implementation Plan

Multimodal Corridor Planning & Engineering Analysis Project Project Constraints & Opportunities – Most improvements are within the existing right-of-way • Limited by narrow road and lack of extra space – Several improvements to be implemented by others • Land use changes • Utility improvements • Wayfinding signage

Multimodal Corridor Planning & Engineering Analysis Project Current Steps Project Planning Phase Development Planning Phase - – Engineering Phase for Implementation Visioning Analysis Selected Improvements Existing Conditions Engineering Analysis Prepare Prioritized Depending on the • Data Collection • Identification of Range Project List Project, Next Steps • Previous Studies of Improvements • Conceptual Design could include: • Identify Right-of-Way • Concept Plans Plans • Drainage (based on maps) • Cost Estimates • Refined Cost Analysis • Evaluation Criteria Estimates • Environmental Identification of Needs • Comparative Analysis Public Meeting Analysis • Public Workshop • Transportation Needs • Design Final Presentations • A1A Action Team Assessment • Right-of-Way • Stakeholders, • Stakeholder Mtg . • TPO Interviews • FDOT • Public Charrette

Multimodal Corridor Planning & Engineering Analysis Project Wayfinding – Implementation Guide • Resolutions • Examples • Potential Destinations • Recommended steps – Cities to design & implement – FDOT to review

Multimodal Corridor Planning & Engineering Analysis Project Utilities – Implementation Guide • Recommendations on Phased Approach • Locations • Types of Changes • Potential Destinations • Recommended steps – Cities to design & implement – FDOT to review

Right of Way Multimodal Corridor Planning & – New Information Engineering Analysis Project – Most is similar to previous assumed ROW – Area near the Air Force Base is different

New Pedestrian Analysis Multimodal Corridor Planning & – North end of One-Way Pairs Engineering Analysis Project – Results: Crosswalk included in RRR

Multimodal Corridor Planning & Engineering Analysis Project Recommendations – South to Median, Urban Profile Modify Intersection North Sidewalk – Applications through TPO Modify Intersection Sidewalk • Some sent by Cocoa Beach • Some sent by Cape Canaveral Streetscaping – To be Prioritized / Funded, then Sidewalk RRR Designed Project Path

Patrick Air Force Base Multimodal Corridor Planning & – Right-of-Way is significant concern Engineering Analysis Project – Improvements must be driven by the AFB. NEED SPONSOR Right-of-Way Recommended Path

Multimodal Corridor Planning & Engineering Analysis Project RRR Project Details Rec: Streetscaping – Public Meeting November 19 – Purpose is Resurfacing Rec: Sidewalk – – Construction 2016 One-Way Pairs RRR Project

Multimodal Corridor Planning & Engineering Analysis Project RRR Project Changes Rec: Streetscaping – Based on additional funds from TPO and City Rec: Sidewalk – – Sidewalk – fill in all gaps One-Way Pairs – Bulb outs RRR – No Landscaping - TBD by City Project

Multimodal Corridor Planning & Engineering Analysis Project Recommendations – Streetscaping / Drainage

Multimodal Corridor Planning & Engineering Analysis Project Rec: Streetscaping 60% Plans – Subject To Change Rec: Sidewalk – One-Way Pairs RRR Project 60% Plans – Subject To Change

Multimodal Corridor Planning & Engineering Analysis Project 60% Plans – Subject To Change

Multimodal Corridor Planning & Engineering Analysis Project 60% Plans – Subject To Change

Multimodal Corridor Planning & Engineering Analysis Project Considerations after RRR is accomplished – Consider modifications to – Landscaping & existing curbs? Streetscaping? • More sidewalk space • Significant design complexities – Extend curb and gutter? • Between N 1 st St and N 4 th St? • North beyond N 4 th St? • South beyond existing curb?

Multimodal Corridor Planning & Engineering Analysis Project Recommendation: Sidewalk between Median, Urban Profile Sunflower St and SR 520 Modify Intersection Sidewalk Modify Intersection Sidewalk Streetscaping Sidewalk RRR Project Path West Side – 8’ East Side – Existing (Summer 2015)

Multimodal Corridor Planning & Engineering Analysis Project Recommendation: SR 520 Intersection Median, Urban Profile Modify Intersection Sidewalk Modify Intersection Sidewalk Streetscaping Sidewalk RRR Project Path

Multimodal Corridor Planning & Engineering Analysis Project SR 520 Intersection – Status: Median, Urban Profile Modify Intersection – Too many complexities to add Sidewalk to SR 520 RRR Modify Intersection Sidewalk – Consider as stand alone improvement Streetscaping – Scope for Design is under way Sidewalk RRR Project Path

Multimodal Corridor Planning & Engineering Analysis Project Recommendation: Sidewalk between Median, Urban Profile SR 520 and International / Atlantic Modify Intersection Sidewalk Modify Intersection Sidewalk Streetscaping Sidewalk RRR Project Path West Side – 8’ East Side – 8’

Multimodal Corridor Planning & Engineering Analysis Project Sidewalk - SR 520 to Atlantic Ave – Median, Urban Profile Modify Intersection Status: Sidewalk – Consider as stand alone improvement Modify Intersection Sidewalk – Scope for Design is under way Streetscaping Sidewalk RRR Project Path

Multimodal Corridor Planning & Engineering Analysis Project Median, Urban Profile Modify Intersection Sidewalk Modify Intersection Sidewalk Streetscaping Sidewalk RRR Project Path Recommendation: International / Atlantic Realignment

Multimodal Corridor Planning & Engineering Analysis Project Recommendation: Boulevard from Median, Urban Profile International / Atlantic to George King Modify Intersection Sidewalk Modify Intersection Sidewalk Streetscaping Sidewalk RRR Project Path SW (West Side) – 8’ SW (East Side) – 8’ Median – 22’ or 19.5’ Bike Lane – 4’

Multimodal Corridor Planning & Engineering Analysis Project International Drive and Boulevard Median, Urban Profile Modify Intersection Improvements – Status: Sidewalk – Will require additional coordination, Modify Intersection Sidewalk analysis, and drainage considerations. – Being considered to move into design Streetscaping – Will not require a PD&E Sidewalk RRR Project Path

Multimodal Corridor Planning & Engineering Analysis Project What’s The Status? Median, Urban Profile Modify Intersection – Path in front of PAFB – working on agreement Sidewalk – Sidewalks in One-Way Pairs – in RRR Modify Intersection – Streetscaping Projects Downtown Coca Beach – Sidewalk some elements in RRR Streetscaping – SR 520 - prioritized, scope is complete Sidewalk – International Drive Intersection – prioritized, RRR Project scope is in development – Cape Canaveral median / Urban Profile – prioritized, scope is in development (PD&E not Path needed)

Multimodal Corridor Planning & Engineering Analysis Project Project Contacts – Project Manager: Todd Davis at todd.davis@dot.state.fl.us or at 386- 943-5422 – Planning and Corridor Development Manager: Heather Garcia at heather.garcia@dot.state.fl.us or 386-943-5077 Check out the project website at www.actiona1a.com
