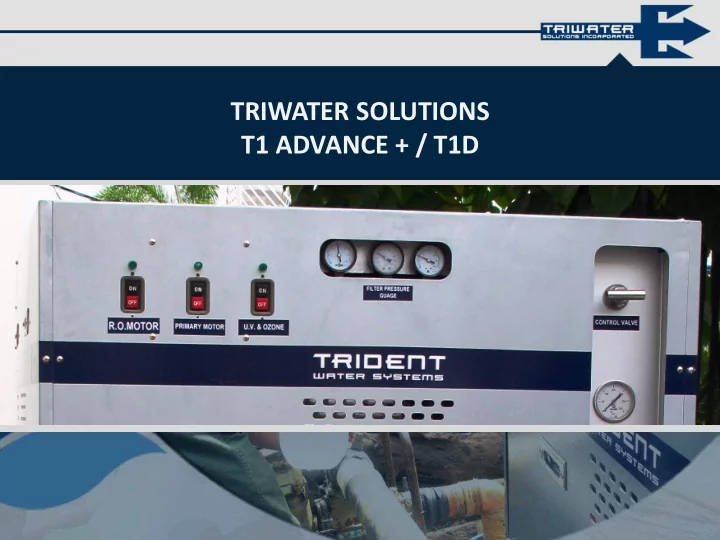

TRIWATER SOLUTIONS T1 ADVANCE + / T1D
ABOUT THE T1 ADVANCE The T1 ADVANCE + from TRIWATER SOLUTIONS INC. was designed for disaster relief and military activities. It was engineered to be a mobile water treatment system designed to produce potable drinking water from multiple sources in harsh environments. The T1 ADVANCE +, is self contained , compact and modular , is a high performance water treatment solution that delivers at reduced costs and maintenance in a small footprint form factor. IDEAL FOR: DISASTER RELIEF MILITARY APPLICATIONS SHORT TERM WATER TREATMENT REQUIREMENTS
WATER TYPES TREATED TAP WATER DEEP WELL RIVERS LAKES FLOOD WATER BRACKISH WATER SEAWATER (T1D)
PATENTED AND ACCREDITED
EFFECTIVITY AND POTABILITY
EFFECTIVITY AND POTABILITY BEFORE AND AFTER TEST RESULT SOURCE WATE: PASIG RIVER
IMPLEMENTATION DIAGRAM T1 ADVANCE + TO BLADDER TO END USER
IMPLEMENTATION DIAGRAM T1 ADVANCE + TO BLADDER TO END USER
IMPLEMENTATION DIAGRAM T1 ADVANCE + TO BLADDER TO END USER
IMPLEMENTATION DIAGRAM T1 ADVANCE + TO BLADDER TO END USER
IMPLEMENTATION DIAGRAM T1 ADVANCE + TO BLADDER TO END USER
COMPARATIVE ANALYSIS FEATURE T1 COMPETITOR MOBILITY CAN BE LIFTED BY FOUR OPERATORS LIFTED BY HEAVY MACHINERY MOUNTED ON THE BACK OF A PICKUP REQUIRES A TRUCK TRUCK OR TRAILER COMPACT SMALL FOOTPRINT CONTAINERIZED EXCLUSIVE PATENTED TECHNOLOGY YES UNKNOWN MANUFACTURED IN THE PHILIPPINES ACCREDITATION DOH UKNOWN DOST DTI SPARE PARTS AND CONSUMABLES AVAILABLE UKNOWN IMPORTED WARRANTEE YES UNKNOWN PRICE FOR UNIT PHP2.4M PHP16M UP
COMPARATIVE ANALYSIS AGAINST OTHER SOURCES FEATURE T1 WATER STATION BOTTLED WATER WATER SOURCE TAP WATER TAP WATER TAP WATER DEEP WELL WATER RIVER WATER LAKE WATER FLOOD WATER MOBILE YES NO YES COMPACT YES NO YES MODULAR YES NO NO EXCLUSIVE TECHNOLOGY YES NO NO VOLUME OF WATER PRODUCED 1000 liters an hour 40 liters an hour Not Applicable AVERAGE COST / GALLON Php 1.50 PhP 8.00 PhP 40.00 WATER QUALITY STANDARDS WHO Standards PNS Standards PNS Standards PNS Standards TESTING AND ACCREDITATION Internationally accredited Local Laboratory Local Laboratory Laboratory Philippine Academe PRODUCT SUPPORT YES NO NO WARRANTEE YES NO NO
PRODUCT DERIVATIVES PRODUCT DERIVATIVES are constantly being developed by TRIWATER SYSTEMS INC. based on the T1 PATENT. Due to its modular nature, the T1 Advance + can be made to treat sea water and scaled up or increase water production and portability.
PRODUCT DERIVATIVES T1D DESALINATION SYSTEM The T1D was developed upon the request of the Philippine Navy. Made to be mobile and portable, it is designed to produce potable water from seawater with 95% or more salinity. • DIMENSIONS: 1200mm (L) x 500mm (W) X 1530mm (H) • POWER CONSUMPTION: 3.4KWH/TON • TREATMENT PROCESS • PROCESS: SAND FILTER – CIL – SECURITY FILTER – RO • CONTROL MODES: MANUAL CONTROL BEFORE PRE TREATMENT, AUTOMATIC REVERSE OSMOSIS • WATER QUALITY • SALINITY RATE: 95% or more • BACTERIAL REMOVAL EFFICIENCY: >99.55 • PRODUCTION CAPACITY: 500liters/hour
PRODUCT DERIVATIVES T1D MICRO DESALINATION SYSTEM The T1D MICRO was developed upon the request of the Philippine Navy. Made to be mobile and portable, it is designed to produce potable water from seawater with 95% or more salinity. • DIMENSIONS: 1200mm (L) x 530mm (W) X 450mm (H) • POWER CONSUMPTION: 3.4KWH • TREATMENT PROCESS • PROCESS: SAND FILTER – CIL – SECURITY FILTER – RO • CONTROL MODES: MANUAL CONTROL BEFORE PRE TREATMENT, AUTOMATIC REVERSE OSMOSIS • WATER QUALITY • SALINITY RATE: 95% or more • BACTERIAL REMOVAL EFFICIENCY: >99.55 • PRODUCTION CAPACITY: 100liters/hour
T1D IN ACTION SATISFACTORY PERFORMANCE BY THE T1D AND REQUEST FOR DONATION PHILIPPINE MARINE CORPS
T1D IN ACTION T1D INSTALLATION AT AIYANAR BEACH AND DIVE RESORT
T1D IN ACTION PRODUCT DEMO PHILIPPINE MARINE CORPS
T1D IN ACTION TEST RESULT PASSES PNS FOR DRINKING WATER
THE DEMAND FOR DESALINATION In 2014 TRIWATER, represented by Joe Bailey Guerrero, inventor and manufacturer of the T1 Advance +, a Philippine made high performing mobile water treatment system, visited multiple islands to assess the viability of implementing a DESALINATION project. The Philippines is an archipelago composed of 7107 islands of which approximately 2000 are inhabited. Of these 2000 inhabited islands, approximately 8% or 160 islands have no access to fresh water. It was observed that most island’s inhabitants are solely dependent on deep well water and rain water collectors. During summer months, islands run the risk of wells and collectors running dry. Water from these sources are used for their daily water requirements for drinking, washing, bathing etc.
THE DEMAND FOR DESALINATION For drinking water, the situation is dire. Island residents are forced to send pump boats to the mainland to purchase potable water. Transport and handling fees increase the cost of by almost 100%. The high cost of potable water force island inhabitants to drink water from questionable sources leading to disease and long term health problems. Due to the lack of fresh water sources on these islands, TRIWATER believes that the implementation of small scale desalination systems is the key to changing and improving the lives of these people. Having an operating small scale desalination plant on these islands producing 12,000 to 25,000 liters of fresh water per day will significantly improve their quality of life.
Contact and other info PATENT REGISTRATION NUMBER 2-2010-000571 For further information, please feel free to contact: JOE BAILEY GUERRERO INVENTOR CLUSTER 1 UNIT RS4 SAN FRANCISCO GARDENS BONI AVENUE MANDALUYONG CITY Telephone: +632-5313008 Mobile: +63917-8447877 Email: jbguerrero@fuelcoventures.com Website: www.tridentwatersystems.com
