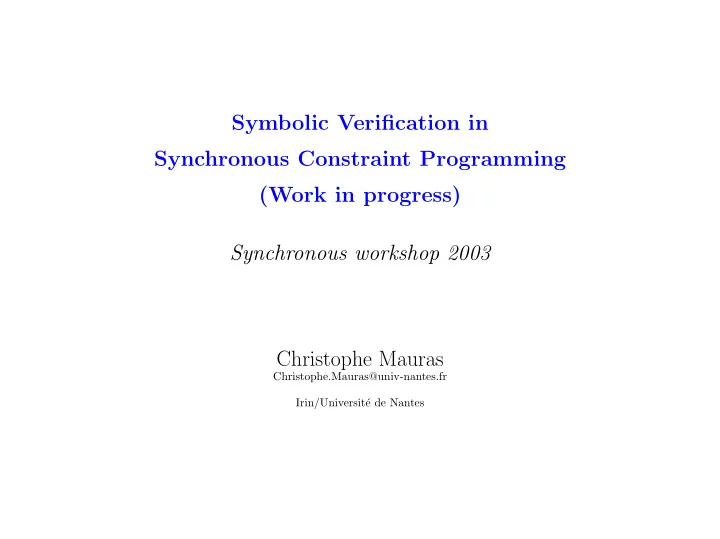

Symbolic Verification in Synchronous Constraint Programming (Work in progress) Synchronous workshop 2003 Christophe Mauras Christophe.Mauras@univ-nantes.fr Irin/Universit´ e de Nantes

Overview – From Symbolic Simulation to Constraint Programming – Synchronous Constraint Programming – From TDCC to verification in CLP

From Symbolic Simulation to Constraint Programming – Early works : Chip (H. Simonis, 1987), Toupie (A. Rauzy, 1994) – Symbolic simulation of synchronous programs (Marseille 1995) – Synchronous programs verification vs static analysis in CLP (JFPLC 1999)

Symbolic simulation with YoYo state x,y : int; initial x=0 and y=0; relation if x=0 then x’=x+1 and y’=y+1 else if y=0 then x-1<= x’ and x’<=x and y’=y else x<= x’ and x’<=x+1 and y-1<= y’ and y’<=y+1 and (x’>=x+1 <=> y’>=y+1) Result : t=0 : x=0 and y=0 t=1 : x=1 and y=1 t=2 : 2x<=y+2 and x>=1 and x>=y t=3 : 2x<=y+3 and x>=y and y>=0 t=4 : 2x<=y+4 and x>=y and y>=0 t=5 : 2x<=y+5 and x>=y and y>=0

Translation in CLP(Q) initial(X,Y):-{X=0,Y=0}. transition(X,Y,NX,NY):-{X=0,-X+NX-1=0,-Y+NY-1=0}. transition(X,Y,NX,NY):-{Y=0,-X+NX+1>=0,X-NX>=0,-Y+NY=0,X=\=0}. transition(X,Y,NX,NY):-{-X+NX>=0,X-NX+1>=0,-Y+NY+1>=0,Y-NY+1>=0, -X+NX-1>=0,-Y+NY-1>=0,X=\=0,Y=\=0}. transition(X,Y,NX,NY):-{-X+NX>=0,X-NX+1>=0,-Y+NY+1>=0,Y-NY+1>=0, X-NX>=0,Y-NY>=0,X=\=0,Y=\=0}. reach(X,Y,T):-{T=0},initial(X,Y). reach(X,Y,T):-{PT-T+1=0},reach(PX,PY,PT),transition(PX,PY,X,Y). out(X,Y):-reach(X,Y,T).

Static Analysis in CLP – STAN, M. Handjieva, LIX, 1996 – Unfolding, forward/backward analysis, polyhedra, widening – Result : out(X,Y) :- X-Y>=0, Y>=0, reach(X,Y,T)

Execution in CLP :- reach(X,Y,T). T = 0,X = 0,Y = 0 ? ; T = 1,X = 1,Y = 1 ? ; T = 2,X = 2,Y = 2 ? ; T = 2,X = 1,{Y=<1},{Y>=0} ? ; T = 3,X = 3,Y = 3 ? ; T = 3,X = 2,{Y=<2},{Y>=1} ? ; T = 3,Y = 0,{X=<1},{X>=0} ? ; T = 3,X = 2,{Y=<2},{Y=\=1},{Y>=1} ? ; ...

Synchronous Constraint Programming – Timed Default Concurrent Constraint (TDCC) Saraswat 1996 – Gentzen constraint system → Boolean expression ∧ Linear constraints – Add pre in constraints and duplicate variables

Timed Default Concurrent Constraint Programming Vijay Saraswat, Vineet Gupta et Radha Jagadeesan References : – CC, a Generic Framework for Domain Specific Languages. – TCC : Programming in Timed Concurrent Constraint Lan- guages, 94. – Foundations of Timed Concurrent Constraint Programming, LICS 94. – TDCC : Timed Default Concurrent Constraint Programming, J. Symb. Comp, 96. – HCC : The Hybrid CC Programming Language-User Manual, 96. – Programming in Hybrid Constraint Languages, 95. – Hybrid CC, Hybrid Automata and Program Verification, 97.

Timed Default CC Agents : – { C } – if C then A – if C else A – new X in A – A, B – hence A Definable combinators : – next A – always A – do A watching C – time A on C

Synchronous Constraint Programming – TDCC with mixed (integer/boolean) constraints (cf Jeannet’s regions) – It’s a constraint system : closed under ∧ and ∃ – Example : { ( x 1 < = 2) ∧ ( x 1 + x 2 > = 3) ∧ ( b 1 ∨ b 2 ∧ b 3) } – Duplicate variables : { x 1 = pre ( x 1) + 1 }

Example {x=0, y=0}, hence (if pre x=0 then {x=pre x+1, y=pre y+1}, if pre x=0 else if pre y=0 then {pre x-1<= x, x<=pre x, y=pre y}, if pre x=0 else if pre y=0 else ({pre x<= x,x<=pre x+1,pre y-1<= y,y<=pre y+1}, if x>=pre x+1 then {y>=pre y+1}, if x>=pre x+1 else {y<=pre y} )

Interpreter for Synchronous Constraints – Merge TDCC interpreter with CLP(B) and CLP(Q) – Both are available in Sictus Prolog – Work in progress . . .

From TDCC to verification in CLP – Model Checking in CLP (A. Podelski, G. Delzanno 99) – Compile TDCC in constraint automata (if deterministic) – Compute reachable state space by computing fixpoint of “di- rect consequence operator”.

Model checking in CLP init <- C(State), p(State) p(State) <- C(State, State’), p(State’) – Predecessor ↔ direct consequence operator T p – Add property notf to the program (observator) – Backward fixpoint computation

Simulation with synchronous constraints p(State) <- C(state), init. p(State’) <- C(State, State’), p(State) – Constraint automata is written in opposite order – Store transitions as constrained facts – Use T p to compute post – Compute forward reachable states from init

Example r(p(X,Y),init,{X=0,Y=0},1). r(p(X1,Y1),p(X,Y), {X=0,X1=X+1,Y1=Y+1},2). r(p(X1,Y1),p(X,Y), {Y=0,X1=X,Y1=Y,X=\=0},3). r(p(X1,Y1),p(X,Y), {Y=0,X1=X-1,Y1=Y,X=\=0},4). r(p(X1,Y1),p(X,Y), {X1=X+1,Y1=Y+1,X=\=0,Y=\=0},5). r(p(X1,Y1),p(X,Y), {X1=X,Y1=Y-1,X=\=0,Y=\=0},6). Result : s(0, p(A,B), {B=0,A=0}, 1, (0,0)). s(1, p(1.0,1.0), {}, 2, (2,1)). s(2, p(2.0,2.0), {}, 3, (5,2)). s(2, p(1.0,0.0), {}, 4, (6,2)). s(3, p(3.0,3.0), {}, 5, (5,3)). s(3, p(2.0,1.0), {}, 6, (6,3)). s(4, p(4.0,4.0), {}, 7, (5,5)). s(4, p(3.0,2.0), {}, 8, (5,6)). s(4, p(2.0,0.0), {}, 9, (6,6)).

Open Problems – Generalize to automata where each state contains a CC pro- gram ? – Is it correct to compute an over-approximation (like convex hull) with defaults ? – Halbwachs’s widening or Podelski’s pseudo-widening ?

Conclusion Much work remains to be done. . .
