Supporting stellar research by observing the sun Dan Kiselman - PowerPoint PPT Presentation

Supporting stellar research by observing the sun Dan Kiselman Host university 2012 National infrastructure Centrum/avdelning/enhet... Astronomy Department IAC SST 0.97 m vacuum Schupmann refractor Adaptive optics CRisp Imaging

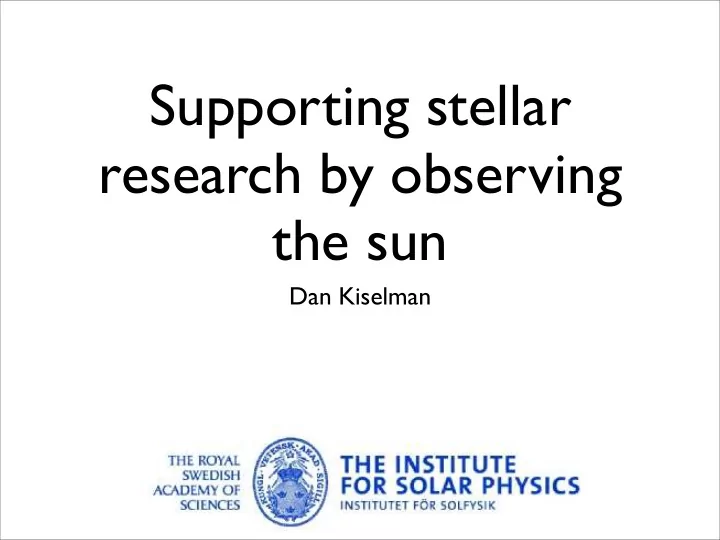

  1. Supporting stellar research by observing the sun Dan Kiselman

  2. Host university 2012 National infrastructure Centrum/avdelning/enhet... Astronomy Department IAC

  3. SST 0.97 m vacuum Schupmann refractor Adaptive optics CRisp Imaging Spectro-Polarimeter (CRISP) TRIPPEL spectrograph

  4. TRIPPEL Spectrograph Tri-Port Polarimetric Echelle Littrow Grating, Slit Prefilter needed! R ∼ 200000 3800 – 10800 Å (in principle) λ window 10-15 Å

  5. SST/TRIPPEL

  6. SST/TRIPPEL: one CCD row

  7. CRISP = CRisp Imaging Spectro-Polarimeter • Double FPI • λ = 5100 Å – 8600 Å • R = 225000 ...... 70000 • Prefilters: Mg I 5173, Fe I 5250, C I 5380, Fe I 5576, Na I 5896, Fe I 6173, Fe I 6302, H α 6563, O I 7773, Ca II 8542

  8. Scanning through Fe I 6301.5 Å with CRISP Stokes I

  9. Scanning through Fe I 6301.5 Å with CRISP Stokes I

  10. Scanning through Fe I 6301.5 Å with CRISP Stokes I

  11. Scanning through Fe I 6301.5 Å with CRISP Stokes I

  12. Scanning through Fe I 6301.5 Å with CRISP Stokes I

  13. Scanning through Fe I 6301.5 Å with CRISP Stokes I

  14. Scanning through Fe I 6301.5 Å with CRISP Stokes I

  15. Scanning through Fe I 6301.5 Å with CRISP Stokes I

  16. Scanning through Fe I 6301.5 Å with CRISP Stokes I

  17. Scanning through Fe I 6301.5 Å with CRISP Stokes I

  18. Scanning through Fe I 6301.5 Å with CRISP Stokes I

  19. Scanning through Fe I 6301.5 Å with CRISP Stokes I

  20. Scanning through Fe I 6301.5 Å with CRISP Stokes I

  21. Scanning through Fe I 6301.5 Å with CRISP Stokes I

  22. One million spectra! Scanning through Fe I 6301.5 Å with CRISP Stokes I

  23. SST/CRISP: Three sample spectra from the scan just showed.

  24. SST/CRISP Equivalent width of Fe I 6301.5 Å

  25. What does the sun offer?

  26. What does the sun offer?

  27. What does the sun offer? A fantastic and colourful lab for radiation+ magnetic fields+ hydrodynamics + ...!

  28. The Rosetta Stone!

  29. SST Simulation

  30. The Chromosphere, SST H- α van Noort & Rouppe van der Voort 2005

  31. Solar Dynamics Observatory: Flare

  32. The sun offers diversity to test your spectral diagnostics. • Centre-to-limb variation • Granulation • Latitude • Activity

  33. What is the importance of atomic excitation by collisions with neutral hydrogen? What is the solar oxygen abundance? SST/TRIPPEL: Pereira, Asplund, Kiselman 2009 Centre-to-limb variation calibrates O+H inelastic collisions 8.68

  34. BG: the sun’s abundance pattern is subtly different from that of solar twins. Is the solar spectrum latitude dependent? SST/TRIPPEL: Kiselman, Pereira Gustafsson, et al. 2011 C I 538.03 nm Na I 616.08 nm Fe I 616.54 nm Ca I 616.64 nm Ca I 616.90 nm 1 . 0 0 . 8 0 . 6 0 . 4 0 . 2 537 . 95 538 . 00 538 . 05 538 . 10 616 . 00 616 . 05 616 . 10 616 . 15 616 . 45 616 . 50 616 . 55 616 . 60 616 . 55 616 . 60 616 . 65 616 . 70 616 . 85 616 . 90 616 . 95 C I 711.14 nm C I 711.32 nm S I 768.61 nm K I 769.90 nm O I 777.19 nm 1 . 0 0 . 8 0 . 6 0 . 4 0 . 2 711 . 05 711 . 10 711 . 15 711 . 20 711 . 25 711 . 30 711 . 35 711 . 40 768 . 55 768 . 60 768 . 65 768 . 70 769 . 85 769 . 90 769 . 95 777 . 10 777 . 15 777 . 20 777 . 25 O I 777.41 nm O I 777.53 nm Al I 783.53 nm Al I 783.61 nm Si I 869.46 nm 1 . 0 0 . 8 0 . 6 0 . 4 0 . 2 777 . 35 777 . 40 777 . 45 777 . 50 777 . 45 777 . 50 777 . 55 777 . 60 783 . 50 783 . 55 783 . 60 783 . 65 783 . 50 783 . 55 783 . 60 783 . 65 869 . 40 869 . 45 869 . 50 869 . 55 Wavelength [nm] Wavelength [nm] Wavelength [nm] Wavelength [nm] Wavelength [nm]

  35. Is the solar spectrum latitude dependent? Is the solar spectrum latitude dependent? 1 . 00 0 . 98 0 . 96 0 . 94 C I 0 . 92 0 . 90 711 . 28 711 . 30 711 . 32 711 . 34 711 . 36 Wavelength [nm] Observe at constant distance from disk centre ( μ = √ 2) but at different latitudes.

  36. Is the solar spectrum latitude dependent? No! Difference in abundance derived by a polar and an equatorial observer.

  37. Interested in observing next year – talk to me soon. Interested in observing this year – talk to me today!
