Structured Sets CS1200, CSE IIT Madras Meghana Nasre April 27, - PowerPoint PPT Presentation

Structured Sets CS1200, CSE IIT Madras Meghana Nasre April 27, 2020 CS1200, CSE IIT Madras Meghana Nasre Structured Sets Structured Sets Relational Structures Properties and closures Equivalence Relations Partially

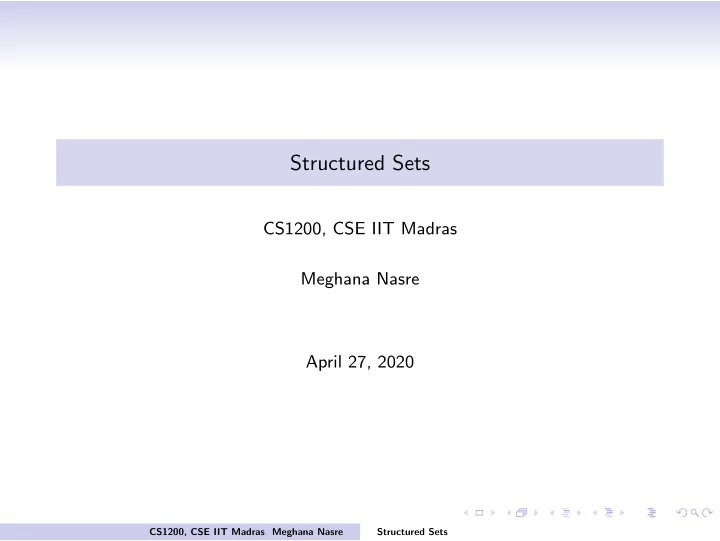

  1. Structured Sets CS1200, CSE IIT Madras Meghana Nasre April 27, 2020 CS1200, CSE IIT Madras Meghana Nasre Structured Sets

  2. Structured Sets • Relational Structures • Properties and closures � • Equivalence Relations � • Partially Ordered Sets (Posets) and Lattices � • Algebraic Structures • Groups and Rings CS1200, CSE IIT Madras Meghana Nasre Structured Sets

  3. Algebraic Structures: Recap Set A with a binary operator ∗ • If ∗ is closed and associative, and an identity element e exists, and every element b ∈ A has an inverse then ( A , ∗ ) is a group. CS1200, CSE IIT Madras Meghana Nasre Structured Sets

  4. Algebraic Structures: Recap Set A with a binary operator ∗ • If ∗ is closed and associative, and an identity element e exists, and every element b ∈ A has an inverse then ( A , ∗ ) is a group. • If B ⊆ A and ( B , ∗ ) forms a group, then B is a sub-group of ( A , ∗ ). CS1200, CSE IIT Madras Meghana Nasre Structured Sets

  5. Algebraic Structures: Recap Set A with a binary operator ∗ • If ∗ is closed and associative, and an identity element e exists, and every element b ∈ A has an inverse then ( A , ∗ ) is a group. • If B ⊆ A and ( B , ∗ ) forms a group, then B is a sub-group of ( A , ∗ ). • Generator of a group and cyclic groups. CS1200, CSE IIT Madras Meghana Nasre Structured Sets

  6. Algebraic Structures: Recap Set A with a binary operator ∗ • If ∗ is closed and associative, and an identity element e exists, and every element b ∈ A has an inverse then ( A , ∗ ) is a group. • If B ⊆ A and ( B , ∗ ) forms a group, then B is a sub-group of ( A , ∗ ). • Generator of a group and cyclic groups. Example group that is not cyclic. * a b c d a a b c d b b a d c c c d a b d d c b a CS1200, CSE IIT Madras Meghana Nasre Structured Sets

  7. Algebraic Structures: Recap Set A with a binary operator ∗ • If ∗ is closed and associative, and an identity element e exists, and every element b ∈ A has an inverse then ( A , ∗ ) is a group. • If B ⊆ A and ( B , ∗ ) forms a group, then B is a sub-group of ( A , ∗ ). • Generator of a group and cyclic groups. Example group that is not cyclic. * a b c d a a b c d b b a d c c c d a b d d c b a • Lagrange’s Theorem: The order of any subgroup of a finite group divides the order of the group. CS1200, CSE IIT Madras Meghana Nasre Structured Sets

  8. Cosets of a subset Let ( A , ∗ ) be a group and H be any subset of A . For any element c ∈ A , the left coset of H w.r.t. c is defined as: H c = { c ∗ b | b ∈ H } Example: CS1200, CSE IIT Madras Meghana Nasre Structured Sets

  9. Cosets of a subset Let ( A , ∗ ) be a group and H be any subset of A . For any element c ∈ A , the left coset of H w.r.t. c is defined as: H c = { c ∗ b | b ∈ H } Example: Z 6 = { 0 , 1 , 2 , 3 , 4 , 5 } ( Z 6 , ⊕ 6 ) is a group. CS1200, CSE IIT Madras Meghana Nasre Structured Sets

  10. Cosets of a subset Let ( A , ∗ ) be a group and H be any subset of A . For any element c ∈ A , the left coset of H w.r.t. c is defined as: H c = { c ∗ b | b ∈ H } Example: Z 6 = { 0 , 1 , 2 , 3 , 4 , 5 } ( Z 6 , ⊕ 6 ) is a group. Consider the subset H = { 0 , 1 , 5 } . CS1200, CSE IIT Madras Meghana Nasre Structured Sets

  11. Cosets of a subset Let ( A , ∗ ) be a group and H be any subset of A . For any element c ∈ A , the left coset of H w.r.t. c is defined as: H c = { c ∗ b | b ∈ H } Example: Z 6 = { 0 , 1 , 2 , 3 , 4 , 5 } ( Z 6 , ⊕ 6 ) is a group. Consider the subset H = { 0 , 1 , 5 } . H 1 = { 1 , 2 , 0 } H 2 = { 2 , 3 , 1 } H 3 = { 3 , 4 , 2 } CS1200, CSE IIT Madras Meghana Nasre Structured Sets

  12. Cosets of a subset Let ( A , ∗ ) be a group and H be any subset of A . For any element c ∈ A , the left coset of H w.r.t. c is defined as: H c = { c ∗ b | b ∈ H } Example: Z 6 = { 0 , 1 , 2 , 3 , 4 , 5 } ( Z 6 , ⊕ 6 ) is a group. Consider the subset H = { 0 , 1 , 5 } . H 1 = { 1 , 2 , 0 } H 2 = { 2 , 3 , 1 } H 3 = { 3 , 4 , 2 } Now let us consider a set B = { 0 , 2 , 4 } . CS1200, CSE IIT Madras Meghana Nasre Structured Sets

  13. Cosets of a subset Let ( A , ∗ ) be a group and H be any subset of A . For any element c ∈ A , the left coset of H w.r.t. c is defined as: H c = { c ∗ b | b ∈ H } Example: Z 6 = { 0 , 1 , 2 , 3 , 4 , 5 } ( Z 6 , ⊕ 6 ) is a group. Consider the subset H = { 0 , 1 , 5 } . H 1 = { 1 , 2 , 0 } H 2 = { 2 , 3 , 1 } H 3 = { 3 , 4 , 2 } Now let us consider a set B = { 0 , 2 , 4 } . B 1 = { 1 , 3 , 5 } B 2 = { 2 , 4 , 0 } B 3 = { 3 , 5 , 1 } CS1200, CSE IIT Madras Meghana Nasre Structured Sets

  14. Cosets of a subset Let ( A , ∗ ) be a group and H be any subset of A . For any element c ∈ A , the left coset of H w.r.t. c is defined as: H c = { c ∗ b | b ∈ H } Example: Z 6 = { 0 , 1 , 2 , 3 , 4 , 5 } ( Z 6 , ⊕ 6 ) is a group. Consider the subset H = { 0 , 1 , 5 } . H 1 = { 1 , 2 , 0 } H 2 = { 2 , 3 , 1 } H 3 = { 3 , 4 , 2 } Now let us consider a set B = { 0 , 2 , 4 } . B 1 = { 1 , 3 , 5 } B 2 = { 2 , 4 , 0 } B 3 = { 3 , 5 , 1 } CS1200, CSE IIT Madras Meghana Nasre Structured Sets

  15. Cosets of a subset Let ( A , ∗ ) be a group and H be any subset of A . For any element c ∈ A , the left coset of H w.r.t. c is defined as: H c = { c ∗ b | b ∈ H } Example: Z 6 = { 0 , 1 , 2 , 3 , 4 , 5 } ( Z 6 , ⊕ 6 ) is a group. Consider the subset H = { 0 , 1 , 5 } . H 1 = { 1 , 2 , 0 } H 2 = { 2 , 3 , 1 } H 3 = { 3 , 4 , 2 } Now let us consider a set B = { 0 , 2 , 4 } . B 1 = { 1 , 3 , 5 } B 2 = { 2 , 4 , 0 } B 3 = { 3 , 5 , 1 } Observe the difference between the cosets obtained when the subset forms a subgroup CS1200, CSE IIT Madras Meghana Nasre Structured Sets

  16. Cosets of a subset Let ( A , ∗ ) be a group and H be any subset of A . For any element c ∈ A , the left coset of H w.r.t. c is defined as: H c = { c ∗ b | b ∈ H } Example: Z 6 = { 0 , 1 , 2 , 3 , 4 , 5 } ( Z 6 , ⊕ 6 ) is a group. Consider the subset H = { 0 , 1 , 5 } . H 1 = { 1 , 2 , 0 } H 2 = { 2 , 3 , 1 } H 3 = { 3 , 4 , 2 } Now let us consider a set B = { 0 , 2 , 4 } . B 1 = { 1 , 3 , 5 } B 2 = { 2 , 4 , 0 } B 3 = { 3 , 5 , 1 } Observe the difference between the cosets obtained when the subset forms a subgroup (recall B , ⊕ 6 ) is a group, CS1200, CSE IIT Madras Meghana Nasre Structured Sets

  17. Cosets of a subset Let ( A , ∗ ) be a group and H be any subset of A . For any element c ∈ A , the left coset of H w.r.t. c is defined as: H c = { c ∗ b | b ∈ H } Example: Z 6 = { 0 , 1 , 2 , 3 , 4 , 5 } ( Z 6 , ⊕ 6 ) is a group. Consider the subset H = { 0 , 1 , 5 } . H 1 = { 1 , 2 , 0 } H 2 = { 2 , 3 , 1 } H 3 = { 3 , 4 , 2 } Now let us consider a set B = { 0 , 2 , 4 } . B 1 = { 1 , 3 , 5 } B 2 = { 2 , 4 , 0 } B 3 = { 3 , 5 , 1 } Observe the difference between the cosets obtained when the subset forms a subgroup (recall B , ⊕ 6 ) is a group, whereas ( H , ⊕ 6 ) is not a group. CS1200, CSE IIT Madras Meghana Nasre Structured Sets

  18. Cosets of a subset Let ( A , ∗ ) be a group and H be any subset of A . For any element c ∈ A , the left coset of H w.r.t. c is defined as: H c = { c ∗ b | b ∈ H } CS1200, CSE IIT Madras Meghana Nasre Structured Sets

  19. Cosets of a subset Let ( A , ∗ ) be a group and H be any subset of A . For any element c ∈ A , the left coset of H w.r.t. c is defined as: H c = { c ∗ b | b ∈ H } Claim: If ( H , ∗ ) is a subgroup of ( A , ∗ ) then for any c ∈ A and d ∈ A , either H c = H d or H c ∩ H d = ∅ . CS1200, CSE IIT Madras Meghana Nasre Structured Sets

  20. Cosets of a subset Let ( A , ∗ ) be a group and H be any subset of A . For any element c ∈ A , the left coset of H w.r.t. c is defined as: H c = { c ∗ b | b ∈ H } Claim: If ( H , ∗ ) is a subgroup of ( A , ∗ ) then for any c ∈ A and d ∈ A , either H c = H d or H c ∩ H d = ∅ . Proof: Let H c ∩ H d � = ∅ . Let f ∈ H c ∩ H d . CS1200, CSE IIT Madras Meghana Nasre Structured Sets

  21. Cosets of a subset Let ( A , ∗ ) be a group and H be any subset of A . For any element c ∈ A , the left coset of H w.r.t. c is defined as: H c = { c ∗ b | b ∈ H } Claim: If ( H , ∗ ) is a subgroup of ( A , ∗ ) then for any c ∈ A and d ∈ A , either H c = H d or H c ∩ H d = ∅ . Proof: Let H c ∩ H d � = ∅ . Let f ∈ H c ∩ H d . Thus there exists h 1 and h 2 in H such that f = c ∗ h 1 = d ∗ h 2 . CS1200, CSE IIT Madras Meghana Nasre Structured Sets

  22. Cosets of a subset Let ( A , ∗ ) be a group and H be any subset of A . For any element c ∈ A , the left coset of H w.r.t. c is defined as: H c = { c ∗ b | b ∈ H } Claim: If ( H , ∗ ) is a subgroup of ( A , ∗ ) then for any c ∈ A and d ∈ A , either H c = H d or H c ∩ H d = ∅ . Proof: Let H c ∩ H d � = ∅ . Let f ∈ H c ∩ H d . Thus there exists h 1 and h 2 in H such that f = c ∗ h 1 = d ∗ h 2 . Since ( H , ∗ ) is a group, inverse exists for every element, in particular h 1 . Therefore c = d ∗ h 2 ∗ h − 1 1 . CS1200, CSE IIT Madras Meghana Nasre Structured Sets
