Statistical Theory of Random (and Chaotic) lasers A. Douglas Stone - PowerPoint PPT Presentation

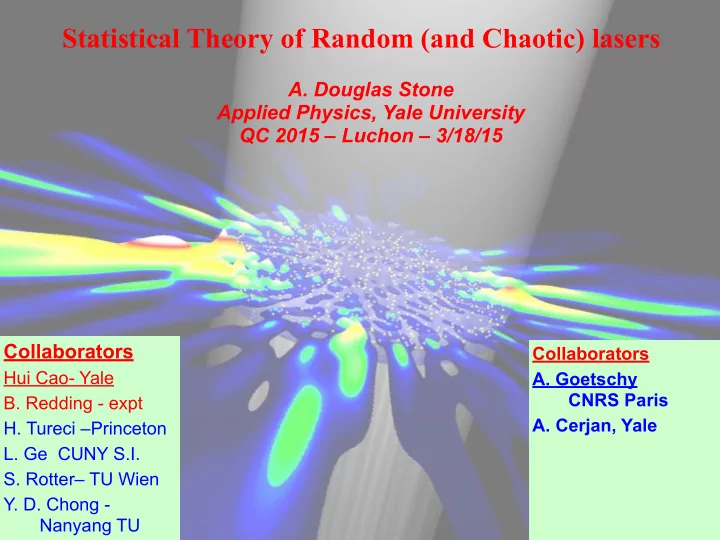

Statistical Theory of Random (and Chaotic) lasers A. Douglas Stone Applied Physics, Yale University QC 2015 Luchon 3/18/15 Collaborators Collaborators Hui Cao- Yale A. Goetschy CNRS Paris B. Redding - expt A. Cerjan, Yale H.


  1. Statistical Theory of Random (and Chaotic) lasers A. Douglas Stone Applied Physics, Yale University
 QC 2015 – Luchon – 3/18/15 Collaborators Collaborators Hui Cao- Yale A. Goetschy
 CNRS Paris B. Redding - expt A. Cerjan, Yale H. Tureci –Princeton L. Ge CUNY S.I. S. Rotter– TU Wien Y. D. Chong - Nanyang TU

  2. RMT in Optics/E&M ❑ Analysis of multiple scattering problems (including wave chaos) => Extremal eigenvalue problems for non-hermitian or non-unitary matrices
 ❑ Random/QC lasing: Non-unitary (non-linear) S-matrix
 - Realistic technological application for theory
 ❑ Control of transmission/absorption/focusing in diffusive scattering media (another talk)
 Open Channels, correlations: DMPK (1984,1987),Imry (1986),Kane (1988)
 SLM-based Focusing thru opaque white media: Mosk et al. PRL 2007
 “Hidden Black”, Y.D. Chong and ADS, PRL 107 , 163901, 2011
 “Filtered Random Matrices”, A. Goetschy and ADS, PRL 111 , 063901 (2013);
 effect of incomplete “channel” control => Free probability theory
 “Control of Total Transmission”, Popoff, Cao et al. PRL 112 , 133903 (2014): <T> = 5% => T max = 18%

  3. Pioneering Random Lasers Lawandy, Balachandran, Gomes & Sauvain, Nature 368 , 436 (1994)
 (following early ideas from Letokhov)

  4. ZnO Nanorods and Powders Average particle diameter ~ 100 nm Also confirmed by photon statistics HC et al, Appl. Phys. Lett. 73 , 3656 (1998); Phys. Rev. Lett. 82 , 2278 (1999)

  5. Why Interesting? Not due to Anderson Localized High Q modes – Diffusive regime N T = g = 1/f γ Thouless # N 1 = δν >> DRL has f << 1 T Passive cavity scattering spectrum δν shows no isolated resonances – not within standard laser theory γ 20 10 ν Resonances are strongly 15 10 overlapping spatially and spectrally. 10 10 430 440 450 460

  6. Modes are pseudo-random in space – not based on periodic orbits Max Min Laser Field Amplitude Vanneste, Sebbah & H. Cao, Phys. Tureci, Ge, Rotter, ADS, Science Rev. Lett. 98 ,143902 (2007). 320 , 643 (2008)
 SALT-based calculations

  7. Similar to Wave-chaotic Lasers “Ray and Wave Chaos in Asymmetric Resonant Optical Cavities”,
 J. U. Nöckel, A. D. Stone, Nature, 385, 45 (1997).
 Open wave-chaotic systems KAM Transition Hard Chaos to ray chaos

  8. Theory for lasers with complex geometry Chaotic-ARC microdisk microtoroid Photonic Crystal Lasers

  9. Universal: Lasers as scattering systems Non-hermitian Eq.
 Flux not conserved Χ g is complex => n(r) complex, n 2 <0 (amplifying) Non-unitary non-linear scattering problem, χ g = χ g (E) CAVITY, ε c (x) GAIN,
 α β χ g ~ pump

  10. Threshold lasing modes TLM, ω µ =ck µ TLM Laser: lasing mode β m=7 goes out, nothing in ⇒ Poles of the S-matrix Passive cavity: n =( ε c ) 1/2 , S unitary, poles complex. Simple example: 1D uniform dielectric cavity: complex sine inside, purely pump outgoing outside k out mirror Now add gain TLM stabilized by medium + non-linearity! pump,
 n = n c + Δ n g Pump harder => multimode lasing

  11. Semiclassical lasing theory + SALT no spont emission
 no laser linewidth Cavity arbitrary ε =1 ε c (x, ω ) Any cavity, gain medium, N-levels, M ind. gain transitions, non-uniform pumping Simplest case:2-level atoms ω a Not studying dynamical chaos Look for non-linear steady-state, with purely outgoing BC Maxwell-Bloch equations Haken(1963), Lamb (1963) – the standard model

  12. ❑ dD/dt ≈ 0, in steady-state => SALT Eqs ❑ γ perp << Δ , γ par => good approx for microlasers
 Non-linear coupled time-independent wave equations with outgoing BC

  13.


 Saline Solution ❑ Specialized TLM/TCF (non-hermitian biorthogonal) basis set method(Tureci,ADS,Ge,Rotter,Chong)
 Lasing Map TCF basis ❑ Solve by iterative method (rapidly convergent).
 ❑ SALT for DRL: approx sum by a single term, soln in terms of evalues of Green fcn for this non-herm eq. η n (k µ ) = η 1 - i η 2 gain Freq shift

  14. Why SALT it is good for you ❑ General theory of CW steady-state lasing, partially analytic and analytic approx => physical insight
 ❑ Computationally tractable, no time integration
 ❑ Cavities/modes of arbitrary complexity and openness. ❑ Non-linear hole-burning interactions to infinite order
 ❑ How well does it work? (it has an approximation)


  15. Test: SALT and FDTD agree for 1D random laser 5 mode lasing

  16. ❑ Other FDTD tests of SALT: 2D PCSEL and 3D PC defect mode laser, coupled cavities; also multiple transitions, and injected signals ❑ No FDTD on 2D RLs (yet), SALT studies: Im{ ω m } R Re{ ω m } Γ = D/R 2 Δ Many modes with similar thresholds as kR gets large

  17. SALT for 2D random laser “Strong interactions in multimode random lasers”,
 H. Tureci, L. Ge, S. Rotter, ADS; Science, 320,643 (2008) Also, L. Ge, PhD thesis (diffusive regime), and A. Cerjan and A. Goetschy (in preparation) – focus on diffusive results Ge Thesis

  18. Diffusive Random Laser
 4 mode lasing Note: decreasing power slope

  19. Non-linear interactions
 Modal gain Many modes never turn on All modes lasing without interactions

  20. Analytic Theory for DRL Goetschy, Cerjan, ADS, in preparation

  21. Lasing threshold

  22. Statistical averages Single pole
 approx to SALT: µ -> m, u µ -> R m Constrained linear Eq. for modal intensities Self- averaging
 gaussian approx Approx real

  23. Modal interactions Express all properties of Predicts monotonically interest in terms of P(Im{ Λ }) decreasing modal slopes Im( Λ ) w/o int Re( Λ ) Eventually saturates with pump

  24. Need prob dist of Im{ Λ } ~ Γ

  25. Two limits Gain width: Γ ω a

  26. Results In 2D kl = 20 600 ~ g 2/5 300 kR = 100

  27. Total Intensity Useful for unresolved random laser emission

  28. Results: Scaling parameter is:

  29. Comparison of total intensities

  30. Savior A Killer App for Random Lasers:
 Exploiting spatial incoherence

  31. Spatial Coherence Young’s double slit experiment If wavefronts at different points have a stable phase relationship there will be interference fringes ⇒ Always true of single mode lasing ⇒ Not true of multimode

  32. Controlling Spatial Coherence in RL by Varying Pump Volume 1 MFP=500 µm d=215 µm γ = 0.61 .5 100 µm 0 600 610 620 1 MFP=500 µm d=290 µm γ = 0.19 .5 100 µm 0 600 610 620 1 MFP=500 µm d=390 µm γ = .036 .5 100 µm 0 600 610 620

  33. Imaging applications of RL? Optical coherence tomography (OCT) Sample L 1 L 2 Prof. Michael Choma, MD. PhD, Yale Medicine Light Mirror source Detector L 2 = L 1 Brandon Redding,
 Res. Scientist (Cao Group)

  34. Spatial cross talk Object Came- ra Coherent illumination 2 2 I E E E = = + 1 2 Came- ra 2 2 E E 2 E E cos( ) = + + θ 1 2 1 2 Incoherent illumination Came- I I I = + ra 1 2 Much reduced artifacts

  35. Full-Field OCT Moneron, Boccara, & Dubois, Opt. Lett. 30 , 1351 (2005)

  36. Ideal Illumination Source for Imaging Lasers Random Lasers Photon Degeneracy/ High Spectral Radiance Superluminescent Diodes Thermal white light Pinhole filtered white light Low Light emitting diodes Low High Spatial Coherence

  37. Speckle-free Laser Imaging IP AF S Iris Lens Obj Source Obj CCD He:Ne
 Random
 Laser Laser Redding, Choma & HC, Nature Photonics 6, 355 (2012)

  38. On-chip Electrically-Pumped Semiconductor Random laser Development of a New Light Source for Massive Parallel Confocal Microscopy and Optical Coherence Tomography

  39. Do we really want to use a random laser? No – a simpler chaotic shape is easier to fabricate Fabricated on chip AlGaAs - GaAs QW structure. B. Redding, A. Cerjan, X. Huang, ADS, M. L. Lee, M. A. Choma, H. Cao, PNAS, in press

  40. What Specific D-Shape is best?
 Want max number of lasing modes at lowest power level – perfect for SALT r 0 = 0.7R r 0 = 0.5R Effect comes from: 1) Flat dist of passive cavity Q r 0 = 0.5R r 0 = 0.3R 2) Weaker mode comp for more
 uniform chaotic states
 Which is best?

  41. D-laser characterization

  42. Results? Success!

  43. Ideal illumination Source for Imaging Lasers Random Lasers Chaotic Lasers Photon Degeneracy/ High Spectral Radiance Superluminescent Diodes Thermal white light Pinhole filtered white light Low Light emitting diodes Low High Spatial Coherence

  44. Thanks! Li Yidong Hui Hakan Stefan Alex Brandon Arthur
