Software Design See Alan Cooper, The Essentials of User Interface - PowerPoint PPT Presentation

Software Design See Alan Cooper, The Essentials of User Interface Design who designs the software? Implentation model users model worse better Implementation is view of software developer, users view is mental model, software

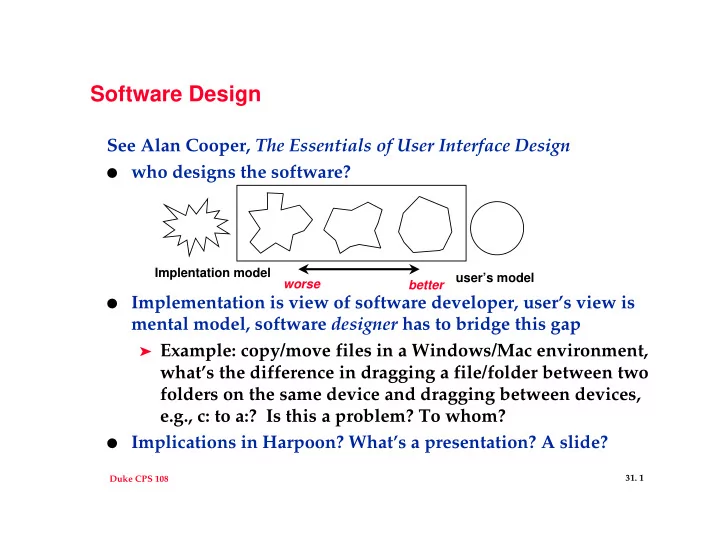

  1. Software Design See Alan Cooper, The Essentials of User Interface Design ● who designs the software? Implentation model user’s model worse better ● Implementation is view of software developer, user’s view is mental model, software designer has to bridge this gap ➤ Example: copy/move files in a Windows/Mac environment, what’s the difference in dragging a file/folder between two folders on the same device and dragging between devices, e.g., c: to a:? Is this a problem? To whom? ● Implications in Harpoon? What’s a presentation? A slide? 31. 1 Duke CPS 108

  2. You’re comfortable with technology and mathematics ● “Show me all the first year students who live in Pegram and in Brown” ➤ what does “and” mean here? Does the average user understand Boolean? Does the average programmer understand Boolean? Recursion? Threads? Queues? ● How you solve a problem in your program isn’t (necessarily) how the user solves the problem, keep these distinctions clear ● “Saying that someone is ‘computer literate’ is really a euphemism meaning he has been indoctrinated and trained in the irrational and counter-intuitive way that file systems work, and once you have been properly subverted into thinking like a computer nerd, the obvious ridiculousness of the way the file system presents itself to the user doesn’t seem so foolish.” 31. 2 Duke CPS 108

  3. What’s familiar isn’t necessarily what’s best Hierarchical/cascading menus ● Which of these ➤ what’s the purpose slider interfaces ➤ are they good? (“not user is best? Why? friendly, but very software.dot.dweeb friendly”) What’s in the File menu? Why? ● ➤ Graphics in menus? What about redundancies, e.g., ● menu and shortcut and toolbar Is this a good dialog? ➤ users become more expert Copying ➤ pedagogic vector (the program should instruct) What about ‘OK’, ‘Apply’, ‘Cancel’ ● ➤ what do these mean? 31. 3 Duke CPS 108

  4. Issues in Harpoon Outline/Text widget ● What should the outline/text widget do? What should it be called? ➤ What does user want? ➤ What can programmer do? ➤ How can these be reconciled? ● What are alternatives? ➤ Complete rich-text widget? ➤ Bulleted lines (what’s a bullet, what’s a line)? ➤ What about adding new lines/bullets? ➤ What about font selection? ● Other issues? ➤ 31. 4 Duke CPS 108

  5. Views and Styles ● What are the potential different views in harpoon ➤ where do you look for ideas? • Existing programs • Your own ideas • focus group/users? ➤ Slide show, creation view, hand-out view, other views? ● What about styles? ➤ Standard presentations, clone a slide and change info ➤ different kinds of slides within a presentation ➤ different kinds of paragraphs/bullet lists within a slide ➤ how to chose, how to create 31. 5 Duke CPS 108

  6. Undo/redo and other issues ● Facilitate undo/redo using the Command pattern with encapsulated state for undo/redo ➤ facilitates multiple levels of undo/redo, not just one ➤ each command encapsulates an action, supports execute() and unexecute() [see Pixmap] ➤ How is a move undone, what’s the state? ➤ How is a drawing undone, what’s the state? ● Is every command undoable? How can you inform the user what cannot be undone --- pop up a dialog box on every undoable command (“warning, this command is undoable, cancel or proceed”) 31. 6 Duke CPS 108
