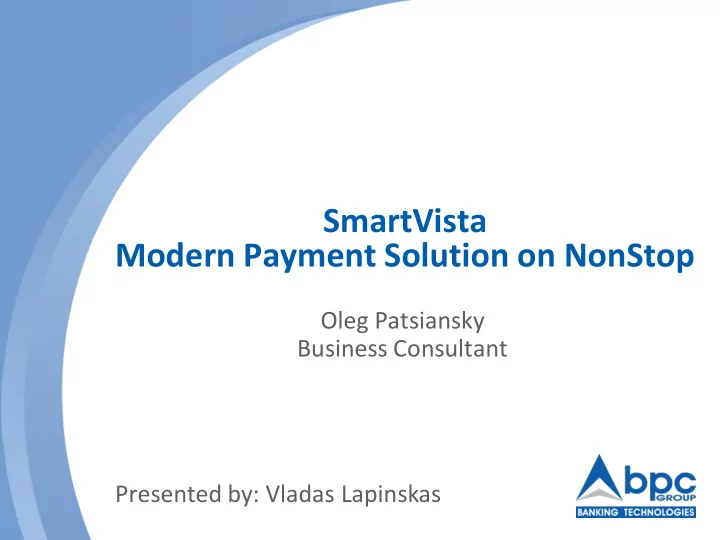

SmartVista Modern Payment Solution on NonStop Oleg Patsiansky Business Consultant Presented by: Vladas Lapinskas
Company Snapshot Founded in 1995 Developer and distributor of SmartVista, comprehensive suite of solutions covering every aspect of electronic payments processing – Market tested solution – Deployed at 90 clients in 28 countries – ISO 9001:2000 certified Rapidly growing client base consisting of leading local banks as well as major international financial institutions 2
Key benefits Developed using Open Source based standards Cross platform solution High Availability, Scalability and Reliability Three tier logical architecture Compliance with international standards 3
SmartVista functional components Authorization Management Production Internet • Authorization • Full functional card • Payment • Card Management personalization solution gateway • Switching & Routing • Merchant Management • Magnetic stripe and EMV • 3D secure • On-line fees and limits • Clearing & Settlement compliant chip cards • MPI • ATM Monitoring • Exceptions Processing • Interaction with various CMS • ACS • POS Management • Fraud Monitoring & Analytics • Various personalization and • On-line Fraud Prevention • General Reporting cryptographic equipment • International Payment • Credit services • PIN generation and printing Scheme Interfaces • Loyalty programs • EMV script distribution • Fees, Rates, MSC and Limits Builds from individual components to complete integrated solutions • In-house card processing • Personalization center • National payment network • Issuer solution • TPP/MSP solution • Payment gateway • Acquirer solution • Switch solution • Payment services hub • Merchant processing • Agent organization • Billing system 4
Porting Project Goals Port SmartVista FrontEnd switching component on HP Integrity NonStop platform Keep NonStop version of SmartVista FrontEnd as close as possible to common UNIX version Use proprietary NonStop features if required Develop source code translation procedures to keep NonStop version up-to-date Suggest a NonStop-based hardware environment 5
Porting Target – SmartVista FrontEnd Interface Tier Authorization Switch Card & Merchant Management Interface Component Integration Tier Communication Component Dynamic Link Interface Communication Integration Component Communication Protocol Component Kernel Business Logic Tier ATM Scenario Builder ATM Formatters Component Loyalty Management Dynamic Link Interface Card Merchant Authorization Formatters Management Management Formatter Kernel Component Component Component Kernel POS Management Chip Cards Billing HSM Component Auth Engine Component Card Production Management Dynamic Link Interface Dynamic Link Interface Component Component Specific HSM Authorization HSM Authorization Interface Procedure MagStripe Kernel Engine Kernel l Cards Database Tier Database 6
Prerequisites Stateless components Multiple instances for every process type (similar to NonStop Server Class concept) Single-threaded processes Message prioritizing GUI is not a critical component 7
NonStop Infrastructure Example ATM /Terminals Users Host connections Firewall Firewall Firewall Replication by RDF or DC SITE DR SITE Goldengate/Shadowbase Ethernet Ethernet Ethernet Ethernet HP MSR30-20 HP MSR30-20 HP NonStop HP NonStop NS2204 NS2204 SmartVista Front Thales payShield SmartVista Front End Thales payShield End Switch 9000 9000 Switch Active In Hot or Active state Thales payShield Thales payShield 9000 9000 Ethernet Ethernet HP MSR30-20 HP MSR30-20 HP BladeSystem c3000/7000 HP BladeSystem c3000/7000 HP BladeSystem c3000/7000 HP BladeSystem c3000/7000 BL460c 4 cores: SV GUI Active HP 8/24 SAN BL460c 4 cores: SV GUI Passive HP 8/24 SAN BL460c 4 cores: SV GUI Passive BL460c 4 cores: SV GUI Passive switch switch HP StorageWorks MSA P2000FC HP StorageWorks MSA P2000FC HP HP Ready Clean Attention Error Cancel Enter StorageWorks 1/8 G2 Tape Ready Clean Attention Error Cancel Enter StorageWorks 1/8 G2 Tape Autoloader Autoloader Previous Next Previous Next HP MSL2024 LTO-5 3000 FC HP MSL2024 LTO-5 3000 FC Tape Library Tape Library 8
Hardware Infrastructure Features Both Active-Passive and Active-Active modes ready Less hardware compared to all-UNIX environment Uses native RDF feature for replication Expand option available for distributed database No SAN and hardware mirroring required up to middle-size requirement Hardware scalable both vertically and horizontally with no additional options required 9
Target Implementation Environments Pure Switching installations Horizontally scaled environments Active-Active installations with non-equal nodes Where RPO = 0 is a must Retention of the Nonstop platform is of priority 10
Project Goals Reached SmartVista FrontEnd ported on HP Integrity NonStop platform NonStop version of SmartVista FrontEnd inherits all the functionality of UNIX version Runs on top of proprietary layers of NonStop Automatic procedures available for source code translation from UNIX version Suggested NonStop based hardware environment 11
Important To Know Functionality (including operational) identical to common UNIX-based solution OSS used instead of Guardian Pathway TS/MP for internal messaging Orchestrator pattern for transaction flow control Combines specific Nonstop features with Open System approach and vision SmartVista BackOffice (non-24x7component) runs on UNIX 12
Technical Environment Platforms OS RDBMS Other soft IBM Power Systems HP HPUX 11 Oracle 9i, 10gR2, C compiler IBM AIX 5.3, 6.1 11gR1, 11gR2 ( GCC, CC ) (System p, System i) RedHat Linux 5 SQL/MX and DB9/10 Perl HP Proliant Systems SuSe Linux 11 Shell (ML, DL, BL … all OEL Linux 5 Oracle Client x86) Sun Solaris 10 TACL and OSS shell HP Integrity rx Systems IBM I (i5/OS) SUN SPARC Systems (M, HP Nonstop OS J06 T … all x86) (OSS) Stratus ftServer x86_64 systems VMWare EX HP Integrity Nonstop SmartVista remains an Open System application on Nonstop 13
Benefit from NonStop Advantages and Technologies SQL/MX™ as an embedded relational database Granular field access and isolation levels in SQL/MX IPCLIM™ for network management TS/MP™ for messaging TMF™ for a business transaction commit cycle Expand™ for database clustering 14
HP Labs Feedbacks “This is one of the easiest UNIX porting cases we’ve ever participated in” “The architecture of the solution meets the requirements of NonStop with only minor changes” “You already have fault tolerance and resilience features that don’t need to be changed when ported to NonStop” “The solution is highly scalable by design” “It’s exciting to have a modern payment solution on NonStop” 15
Why NonStop Banking and processors NonStop Install base of over 400 for Tier 1 banks worldwide NonStop customers have great confidence in the HW HP has done well to enhance with open systems technology and performance Customers reluctant to give up NonStop benefits 16
Why SmartVista on NonStop Easier option to change application only on NonStop Proven solution with 99.998 % availability on Unix Built with fault tolerant principles Over 90 clients Large customers 17
SmartVista NonStop – Strategic Initiative Provide a viable and solid alternative to Legacy Based solutions with an end-to-end value proposition NonStop solution for Switching, Authorisation and Fraud Prevention Unix solution for back-office, EOD, card management, Reports, Merchant Management, Settlement/Reconciliation, Disputes/Chargeback Minimize migration risk 18
Thank you! 19
