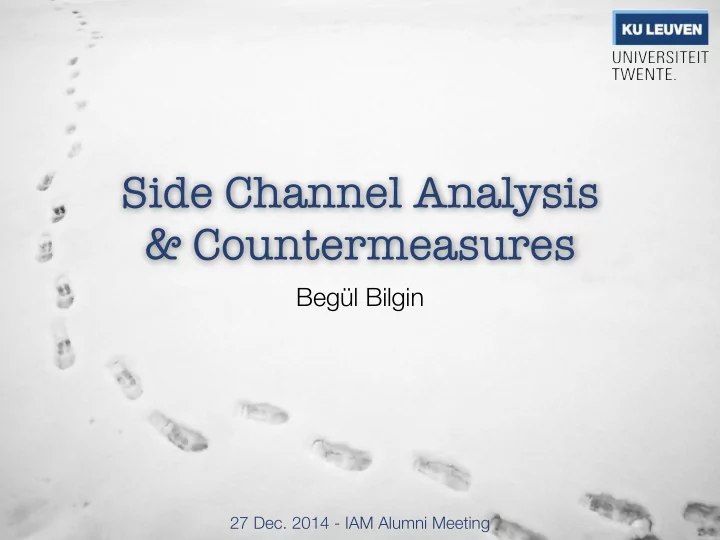

Side Channel Analysis & Countermeasures Begl Bilgin 27 Dec. - PowerPoint PPT Presentation

Differential Power Analysis key 1 =00 pt S(pt 1 ⊕ key 1 )&1 1234… 1 abcd… 0 8aef… 0 0354... 1 7791… 1 c80d… 0 7e9e... 1 11 [courtesy: B.Gierlichs]

Differential Power Analysis key 1 =00 pt S(pt 1 ⊕ key 1 )&1 1234… 1 abcd… 0 8aef… 0 0354... 1 7791… 1 c80d… 0 7e9e... 1 Take means 11 [courtesy: B.Gierlichs]

Differential Power Analysis key 1 =00 pt S(pt 1 ⊕ key 1 )&1 1234… 1 abcd… 0 8aef… 0 0354... 1 7791… 1 c80d… 0 7e9e... 1 Take means Take difference 11 [courtesy: B.Gierlichs]

Differential Power Analysis pt 1234… abcd… 8aef… 0354... 7791… c80d… 7e9e... 12 [courtesy: B.Gierlichs]

Differential Power Analysis key 1 =2b pt S(pt 1 ⊕ key 1 )&1 1234… 0 abcd… 1 8aef… 0 0354... 0 7791… 0 c80d… 1 7e9e... 1 12 [courtesy: B.Gierlichs]

Differential Power Analysis key 1 =2b pt S(pt 1 ⊕ key 1 )&1 1234… 0 abcd… 1 8aef… 0 0354... 0 7791… 0 c80d… 1 7e9e... 1 Take means 12 [courtesy: B.Gierlichs]

Differential Power Analysis key 1 =2b pt S(pt 1 ⊕ key 1 )&1 1234… 0 abcd… 1 8aef… 0 0354... 0 7791… 0 c80d… 1 7e9e... 1 Take means Take difference 12 [courtesy: B.Gierlichs]

Differential Power Analysis key 1 =2b pt S(pt 1 ⊕ key 1 )&1 1234… 0 abcd… 1 s n a e M f 8aef… 0 o e c n e r e f f i 0354... 0 D 7791… 0 c80d… 1 7e9e... 1 Take means Take difference 12 [courtesy: B.Gierlichs]

Differential Power Analysis Correlation Power Analysis pt 1234… abcd… 8aef… 0354... 7791… c80d… 7e9e... 13

Differential Power Analysis Correlation Power Analysis key 1 =00 pt S(pt 1 ⊕ key 1 ) 1234… 82 abcd… 62 8aef… 7e 0354... 7b 7791… f6 c80d… e8 7e9e... f3 13

Differential Power Analysis Correlation Power Analysis key 1 =00 pt S(pt 1 ⊕ key 1 ) 1234… 82 abcd… 62 8aef… 7e 0354... 7b 7791… f6 c80d… e8 7e9e... f3 Corr. 13

Differential Power Analysis Correlation Power Analysis key 1 =00 pt S(pt 1 ⊕ key 1 ) 1234… 82 abcd… 62 8aef… 7e 0354... 7b 7791… f6 c80d… e8 7e9e... f3 13

Differential Power Analysis Correlation Power Analysis key 1 =00 key 1 =2b pt S(pt 1 ⊕ key 1 ) S(pt 1 ⊕ key 1 ) 1234… 82 12 abcd… 62 cd 8aef… 7e 32 0354... 7b 34 7791… f6 4a c80d… e8 11 7e9e... f3 fc 13

Differential Power Analysis Correlation Power Analysis key 1 =00 key 1 =2b pt S(pt 1 ⊕ key 1 ) S(pt 1 ⊕ key 1 ) 1234… HW(82) HW(12) abcd… HW(62) HW(cd) 8aef… HW(7e) HW(32) 0354... HW(7b) HW(34) 7791… HW(f6) HW(4a) c80d… HW(e8) HW(11) 7e9e... HW(f3) HW(fc) 13

Differential Power Analysis Correlation Power Analysis key 1 =00 key 1 =2b pt S(pt 1 ⊕ key 1 ) S(pt 1 ⊕ key 1 ) 1234… HW(82) HW(12) abcd… HW(62) HW(cd) 8aef… HW(7e) HW(32) 0354... HW(7b) HW(34) 7791… HW(f6) HW(4a) c80d… HW(e8) HW(11) 7e9e... HW(f3) HW(fc) Better leakage model → better attack 13

Differential Power Analysis (Notes & Assumptions) 14

Differential Power Analysis (Notes & Assumptions) • Knowledge about the algorithm 14

Differential Power Analysis (Notes & Assumptions) • Knowledge about the algorithm • Timing of the intermediate value computation 14

Differential Power Analysis (Notes & Assumptions) • Knowledge about the algorithm • Timing of the intermediate value computation • Perfectly aligned traces 14

Differential Power Analysis (Notes & Assumptions) • Knowledge about the algorithm • Timing of the intermediate value computation • Perfectly aligned traces • No countermeasures 14

Differential Power Analysis (Notes & Assumptions) • Knowledge about the algorithm • Timing of the intermediate value computation • Perfectly aligned traces • No countermeasures • # of traces increase with noise 14

Countermeasures Against DPA 15

Countermeasures 16

Countermeasures • Limit number of encryptions per key 16

Countermeasures • Limit number of encryptions per key - Distribution of key is difficult 16

Countermeasures • Limit number of encryptions per key - Distribution of key is difficult - Leakage resilient algorithms 16

Countermeasures • Limit number of encryptions per key - Distribution of key is difficult - Leakage resilient algorithms - Performance drop 16

Countermeasures • Limit number of encryptions per key - Distribution of key is difficult - Leakage resilient algorithms - Performance drop • Decrease Signal-to-Noise Ratio (SNR) 16

Countermeasures • Limit number of encryptions per key - Distribution of key is difficult - Leakage resilient algorithms - Performance drop • Decrease Signal-to-Noise Ratio (SNR) - Decreasing signal (~constant power imp., special cells) 16

Countermeasures • Limit number of encryptions per key - Distribution of key is difficult - Leakage resilient algorithms - Performance drop • Decrease Signal-to-Noise Ratio (SNR) - Decreasing signal (~constant power imp., special cells) - Increasing noise (dummy operations, shuffling) 16

Countermeasures • Limit number of encryptions per key - Distribution of key is difficult - Leakage resilient algorithms - Performance drop • Decrease Signal-to-Noise Ratio (SNR) - Decreasing signal (~constant power imp., special cells) - Increasing noise (dummy operations, shuffling) • Breaking the correlation 16

Countermeasures • Limit number of encryptions per key - Distribution of key is difficult - Leakage resilient algorithms - Performance drop • Decrease Signal-to-Noise Ratio (SNR) - Decreasing signal (~constant power imp., special cells) - Increasing noise (dummy operations, shuffling) • Breaking the correlation - Masking 16

Boolean Masking S (x ,y ,z , ... ) (a ,b ,c , ... ) 17

Boolean Masking 18

Boolean Masking (x 1 ,y 1 ,z 1 , ... ) 18

Boolean Masking (x 1 ,y 1 ,z 1 , ... ) ⊕ (x 2 ,y 2 ,z 2 , ... ) = (x, y, z , ... ) 18

Boolean Masking S 1 (x 1 ,y 1 ,z 1 , ... ) (a 1 ,b 1 ,c 1 , ... ) ⊕ ⊕ S 2 (x 2 ,y 2 ,z 2 , ... ) (a 2 ,b 2 ,c 2 , ... ) = (x, y, z , ... ) 18

Boolean Masking S 1 (x 1 ,y 1 ,z 1 , ... ) (a 1 ,b 1 ,c 1 , ... ) ⊕ ⊕ S 2 (x 2 ,y 2 ,z 2 , ... ) (a 2 ,b 2 ,c 2 , ... ) = = (x, y, z , ... ) (a, b, c , ... ) 18

Boolean Masking S 1 (x 1 ,y 1 ,z 1 , ... ) (a 1 ,b 1 ,c 1 , ... ) ⊕ ⊕ S 2 (x 2 ,y 2 ,z 2 , ... ) (a 2 ,b 2 ,c 2 , ... ) = = (x, y, z , ... ) (a, b, c , ... ) Random input/output shares ➡ Random intermediate values 18

Boolean Masking S 1 (x 1 ,y 1 ,z 1 , ... ) (a 1 ,b 1 ,c 1 , ... ) ⊕ ⊕ S 2 (x 2 ,y 2 ,z 2 , ... ) (a 2 ,b 2 ,c 2 , ... ) = = (x, y, z , ... ) (a, b, c , ... ) Random input/output shares ➡ Random intermediate values unshared shares mean var 0,0=0 0 0 1,5 1,5 1,5 1,5 1,1=3 0,1=1 1 1 1,5 1,5 0.5 0.5 1,0=2 18
