Shaping Industrial applications with 5G technology Erik Josefsson - PowerPoint PPT Presentation

Shaping Industrial applications with 5G technology Erik Josefsson - Vice President and Head of Advanced Industries Ericsson Internal | 2018-02-21 5G enabling digitalization and transformation 35 billion devices 1G 2G 3G 4G 5G

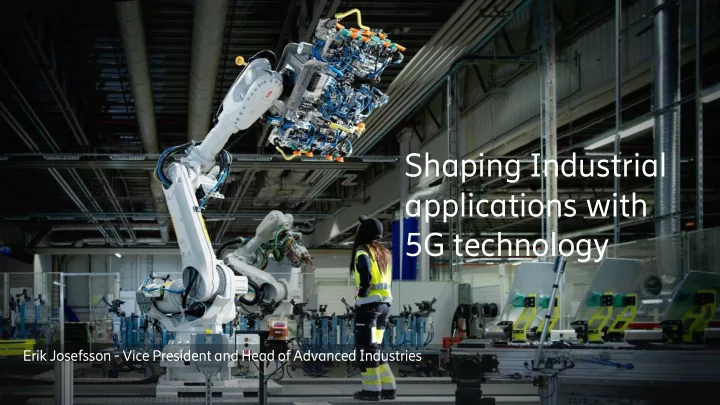

  1. Shaping Industrial applications with 5G technology Erik Josefsson - Vice President and Head of Advanced Industries Ericsson Internal | 2018-02-21

  2. §§ 5G – enabling digitalization and transformation 35 billion devices 1G 2G 3G 4G 5G 10M Industrial & Manufacturing locations 3.3M Warehouses mobility going video & data 54k Mines digital mobile broadband 48k Power Generation stations 6 billion people 1 billion places 1990 2000 2010 2023 Telephony… mobile broadband… …a digital infrastructure Ericsson Internal | 2018-02-21 Commercial in confidence |  Ericsson AB 2017 | 2017-01-18 | Page 2

  3. Consumers have gone wireless – factories have just started 1887 Ericsson Internal | 2018-02-21

  4. Inflexible — CABLES Production Stable Secure Simple Network — Unlicensed Restrictions (Wifi, LoRA, ZigBee, Bluetooth)

  5. Data highways -difference of wireless roads — Licensed - 4G/5G — Unlicensed – Wifi, Bluetooth, LoRa …

  6. Spectrum use and allocartion 5G 4G hotspot / dense urban 3G High bands High capacity 2G (24 GHz – 52 GHz ) Mid bands (3 GHz – 6 GHz) outside-in coverage Moderate capacity Wide area / Low bands (0-3 GHz) 2017 2018 2019 2020 2021 2022 Ericsson Internal | 2018-02-21

  7. Ericsson Internal | 2018-02-21

  8. 6 super powers of 5G that make it future proof 5G 20 / 10 Gbps 1 ms 99.999% 500 km/h dm 2.5 Mn / sq mi Availability Peak rate down Low Latency Reliability Mobility Position Device Peak rate up Security * accuracy density 4G 1 / 0.2 Gbps 10 ms 99.99X% 350 km/h >10m 250 k / sq mi Ericsson Internal | 2018-02-21

  9. Start with 4G. Evolve to 5G Massive Broadband Critical Industrial Automation IoT IoT IoT IoT Advanced Asset PLC data Inventory Collaborative AGV HA collision AR/ VR Remote Automation & sensors collection management robotics avoidance guidance instruction control Control 4G (3GPP Rel13..) , 5G (3GPP Rel15..) 4G (3GPP Rel 13..), 5G (3GPP Rel 15..) 5G (3GPP Rel 15, Rel 16..) 5G (3GPP Rel 16..) • NB-IoT + Cat-M1 High data rates • Low to High data rates • • Industrial protocols over ethernet • Low cost, simple devices Low latency • URLLC • • TSN (Time Sensitive Networking) • Low data rates Extended coverage • Extremely low latency • • High accuracy positioning • initial use cases… • Ultra reliability Tailored features for e.g. AGV, Drones,..) • • Complex use case Radio Latency latency 10 1 100 ~50 ms ms ms ms Ericsson Internal | 2018-02-21

  10. Industry 4.0 at Ericsson Scania Ericsson SKF ABB Boliden ÅF Smart Production lab 5G Test Factory 5G Enabled Manufacturing 5G Industry 4.0 Lab Industrial Mining 5G/LTE Industry 4.0 transformation Center Connected Industry Volvo CE & Telia Industry 4.0 Lab Remote control industrial Ambra Sibur Petrochemical & MTS Connected Mine Connected production plant Honeywell & GE Port Qingdao / China Unicom 5GI2 5G smart harbour Ericsson 5G Smart factory Robotec / China Mobile Smart manufacturing US Smart Production lab eGo & Vodafone Ericsson Manufacturing Automotive production Automation/Robotics Telefonica China Mobile 40+ Industry 4.0 private Network NB IoT and Predictive Daimler / Mercedes Benz Ericsson Manufacturing Smart Factory with Telefonica VR / AR tests Industry 4.0 Volvo Trucks Telstra References 5GEM 2 Connected Mine 20+ installations Bosch 20+proof point Osram & DT Audi Comau Coordinated Industry Com. Industry Connect testing Campus Network Connected Production Smart Manufacturing Low latency & high reliability Ericsson Internal | 2018-02-21

  11. Scania Smart Factory Lab The Solution Industry Connect as a test platform, where industrial equipment integrations have Case: Sc Scania been performed The Challenge: The Result: To investigate the potential for 4G and 5G • 4G connected screwdrivers technology in the manufacturing • 4G connected UWB tags of commercial vehicles – specifically 4G connected robots • heavy trucks and buses flexible production Partners • Atlas Copco • HD wireless HMS • Ericsson Internal | 2018-02-21

  12. Tailored 4G/5G mobile network for The Solution First campus network at OSRAM in factory needs Schwabmünchen Campus network based on a dual slice approach, combining public and private LTE connectivity, enhanced Case: OSRAM with a local edge cloud deployment The Result The Challenge High reliability, even if public layer • Defining one central factory infrastructure fails system that digitally connects all machines and Use case testing started January • planning processes in real-time, for maximum 2019 on AGVs efficiency. Data traffic is kept local on campus site for low latency and high security Partners • Deutsche Telekom OSRAM • Ericsson Internal | 2018-02-21

  13. 5G monitored manufacturing Solution Real-time monitoring and control of the production process (1ms), of bladed disks The world's first enabled through 5G New Radio Case: BLISK Correlation The challenge Lack real time control of 15-20 hours milling process on high value product component blade Results ts integrated disks • 27M€ per factory, annual savings Ensuring maximum quality 16 M worldwide metric tons* of • avoiding costly and energy- CO2 annual savings heavy rework Partners Partners: MTU Aero Engines • • Fraunhofer IPT Ericsson Internal | 2018-02-21

  14. Comau Factory of the Future The So Soluti ution on Dedicated 4G & 5G network for factory Customer: Comau automation/control virtualized in cloud/preventive maintenance/AGVs The Resul ult An industrial robotic cell operating over 4G and The Challen enge 5G with virtual PLC demonstrated (PoC) in For industrial robots connected via dedicated Comau's plant, including latency-critical cellular network, and controlled in the cloud: functionalities at mS level. - Replace Ethernet cables with 5G - Increase floorplan flexibility to introduce new services - Move computing nodes in cloud to reduce Ericsson radio cell installation costs (remote virtual PLC) and change business model Statio n PLC Robot Robot Connected sensors Connected sensors Object “5G is an enabling driver for the digital transformation Robot Robot contro contro within the Industry 4.0 environment, specifically for ller ller low latency, bandwidth and plug & play connectivity of factory equipment.” Partners Comau • Maurizio Cremonini, Comau Head of Marketing and Digital Initiatives Platform. TIM (Telecom Italia) • Ericsson Internal | 2018-02-21

  15. Smart Mining Case: Ambra Mining The Solution Ericsson radio solution for 4G and later 5G wireless solution The Challenge The Result Connected mining needs state-of-the-art End-to-end connected 4G/5G wireless connectivity underground mining solution for 8 mines and 90 km of tunnels Challenge with coverage and stability of current solutions. Simplify network deployments replace up to 60 Wi-Fi access points with a single Ericsson solution Partners • Ambra Solutions • Agnico Eagle Ericsson Internal | 2018-02-21

  16. Partners:: Ericsson Internal | 2018-02-21

  17. Future wireless automation The Solution Global partnership to accelerate industrial digital transformation Case: ABB The Challenge Ericsson and ABB share the same vision of wireless industrial automation. Both companies want to automate and connect their sites and products, and offer solutions. The Result Global partnership based on 4 pillars 1) Research 5G lab 2) Connect own factories 3) New business opportunities 4) Communication with joint industrial value Partners All five ABB business lines • Ericsson Internal | 2018-02-21

  18. Private 4G/5G Network Industry Connect Fast, secure wireless connectivity for Industry 4.0 Easy Turnkey Reliable Path to 5G Ericsson Internal | 2018-02-21

  19. P r o f i n e t o v e r I n d u s t r y C o n n e c t Demo setup – I n c o- c r e a t i o n w i t h A d v a n t e c h a n d M i t subishi Q u e c tel Q u e c tel EM-06 E EM-06 E UNO 2848G UNO 2848G I n d u s t r y C o n n e c t M i t s u b i s h i FR-A800 Series Variable Frequency Drive M i t s u b i s h i P L C iQ - R Series Ericsson Internal | 2018-02-21

  20. Release the full potential with 5G 1887 Ericsson Internal | 2018-02-21
