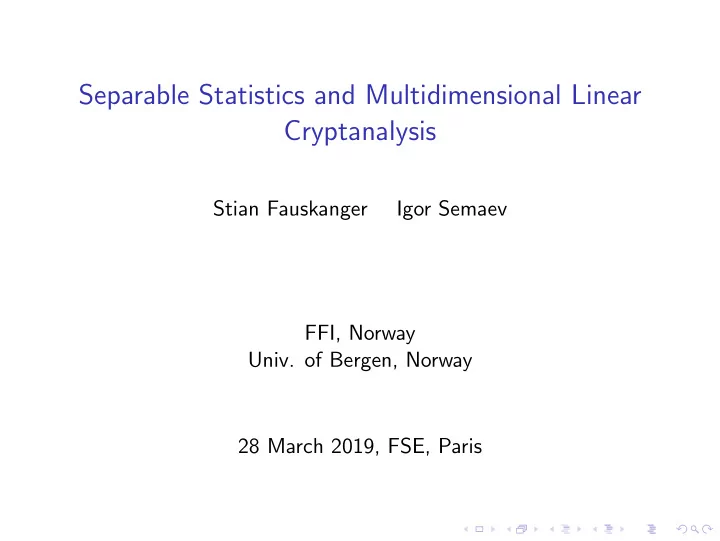

Separable Statistics and Multidimensional Linear Cryptanalysis Stian Fauskanger Igor Semaev FFI, Norway Univ. of Bergen, Norway 28 March 2019, FSE, Paris

Briefly ◮ Matsui’s Linear Cryptanalysis is based on the distribution of x 1 ⊕ . . . ⊕ x s ⊕ y 1 ⊕ . . . ⊕ y t , where X = x 1 , . . . , x s some plain-text bits and Y = y 1 , . . . , y t some cipher-text bits in Algorithm1 ◮ In Algorithm2 the bits X are inputs to the second round, and Y to the last round ◮ Starting point in our work : method for computing joint distribution of ( X , Y ) = ( x 1 , . . . , x s , y 1 , . . . , y t ) ◮ The distributions (both Matsui’s and our’s) are approximate ◮ They depend on small sets of the cipher key-bits or linear combinations ◮ Algorithm2-like cryptanalysis is then applied

Outline ◮ Matsui’s Algorithm2 and LLR statistic ◮ New Statistic Construction ◮ Optimisation Problem and Search Algorithm ◮ Implementation for 16-round DES ◮ Multidimensional Distributions in Feistel Ciphers ◮ Conclusions

Outline ◮ Matsui’s Algorithm2 and LLR statistic ◮ ◮ ◮ ◮ ◮

Round Cipher Cryptanalysis with Algorithm2 PL-TEXT Key X key Y Key CH-TEXT

Logarithmic Likelihood Ratio(LLR) Statistic ◮ To distinguish two distributions with densities P ( x ) , Q ( x ) ◮ By independent observations ν 1 , .., ν n ◮ Most powerful test(Neyman-Pearson lemma): ◮ Accept P ( x ) if n ln P ( ν i ) � Q ( ν i ) > threshold i =1 ◮ Left hand side function is called LLR statistic

Algorithm2 Cryptanalisis with LLR statistic ◮ Distribution of ( X , Y ) depends on key-bits key ◮ Observation on ( X , Y ) depends on key-bits Key ◮ LLR statistic depends on key ∪ Key ◮ Distinguish correct and incorrect key ∪ Key with LLR statistic ◮ by computing 2 | key ∪ Key | values of LLR ◮ For large ( X , Y ) the number of the key-bits involved | key ∪ Key | may be too large ◮ Not efficient

New Statistic ◮ Instead of 2 | key ∪ Key | computations of LLR-values ◮ Our work : << 2 | key ∪ Key | ( ≈ 10 3 times faster in DES) ◮ By using a new statistic ◮ Which reflects the structure of the round function ◮ That has a price to pay, but trade-off is positive

Outline ◮ ◮ New Statistic Construction ◮ ◮ ◮ ◮

LLRs for Projections ◮ ( h 1 , .., h m ) some subvectors (projections) of ( X , Y ) such that ◮ Distribution and Observation for h i depend on a lower number of the key-bits key i ∪ Key i ◮ LLR i is a LLR-statistic for h i ◮ Vector ( LLR 1 , .., LLR m ) asymptotically distributed ◮ m -variate N ( n µ, nC ) if key ∪ Key is correct ◮ Close to N ( − n µ, nC ) if key ∪ Key is incorrect ◮ Mean vector µ , covariance matrix C , number of plain-texts n

LLR for Two Normal Distributions ◮ LLR statistic S to distinguish two normal distributions N ( n µ, nC ) and N ( − n µ, nC ) ◮ S degenerates to linear: ◮ S ( key ∪ Key , ν ) = � m i =1 S i ( key i ∪ Key i , ν i ), ◮ where S i = ω i LLR i weighted LLR statistic for h i ◮ ν observation on ( X , Y ) and ν i observation on h i ◮ S is separable ◮ For polynomial distributions the theory of separable statistics was developed by Ivchenko, Medvedev,.. in 1970-s

Distribution ◮ S distributed 1-variate N ( u , u ) if key ∪ Key correct ◮ Close to N ( − u , u ) if incorrect ◮ for an explicit positive u

Cryptanalysis ◮ Find key ∪ Key s.t. S ( key ∪ Key , ν ) > threshold ◮ without brute forcing key ∪ Key ◮ Can be done as ◮ S ( key ∪ Key , ν ) = � m i =1 S i ( key i ∪ Key i , ν i ) ◮ and | key i ∪ Key i | is much smaller than | key ∪ Key | ◮ | key ∪ Key | = 54 and | key i ∪ Key i | ≈ 20 in DES ◮ By solving efficiently an optimisation problem with a Search Algorithm

Outline ◮ ◮ ◮ Optimisation Problem and Search Algorithm ◮ ◮ ◮

Optimisation Problem Example S 1 0.1 0.2 0.3 0.1 x 1 ⊕ x 3 0 0 1 1 x 2 0 1 0 1 S 2 0.5 0.1 x 1 ⊕ x 2 0 1 0.4 0.5 0.7 0.1 S 3 0 0 1 1 x 1 x 2 ⊕ x 3 0 1 0 1 find binary x 1 , x 2 , x 3 s.t. S ( x 1 , x 2 , x 3 ) = S 1 ( x 1 ⊕ x 3 , x 2 ) + S 2 ( x 1 ⊕ x 2 ) + S 3 ( x 1 , x 2 ⊕ x 3 ) > 1 . 3 Threshold is 1 . 3, solution 111

Search Tree root 0 0 1 x 1 X x 1 ,x 2 11 10 X 111 x 1 ,x 2 ,x 3 110 X ◮ One walks over a search tree and checks if the inequality S 1 ( x 1 ⊕ x 3 , x 2 ) + S 2 ( x 1 ⊕ x 2 ) + S 3 ( x 1 , x 2 ⊕ x 3 ) > 1 . 3 ◮ feasible under current fixation ◮ Cut if not feasible. Continue if feasible ◮ One is to check 6 linear inequalities. Brute force takes 8 ◮ Same way one solves m � S ( key ∪ Key , ν ) = S i ( key i ∪ Key i , ν i ) > threshold i =1

Success Probability& Number of ( key ∪ Key )-candidates ◮ Search tree output is ( key ∪ Key )-candidates for the final brute force ◮ The distribution of S ( key ∪ Key , ν ) is known ◮ So one can compute success probability and ◮ The number of wrong solutions, that is ( key ∪ Key )-candidates

Outline ◮ ◮ ◮ ◮ Implementation for 16-round DES ◮ ◮

Two 14-bit vectors ◮ DES K ( X 0 , X 1 ) = ( X 17 , X 16 ) ◮ Matsui’s best linear approximation X 2 { 24 , 18 , 7 } ⊕ X 15 { 15 } ⊕ X 16 { 24 , 18 , 7 , 29 } ◮ We use two 14-bit vectors X 2 [24 , 18 , 7 , 29] , X 15 [16 , 15 , .., 11] , X 16 [24 , 18 , 7 , 29] X 1 [24 , 18 , 7 , 29] , X 2 [16 , 15 , .., 11] , X 15 [24 , 18 , 7 , 29] ◮ Considered independent as they incorporate different bits ◮ Computing their distributions took a few seconds

Projections ◮ 28 projections X 2 [24 , 18 , 7 , 29] , X 15 [ i , j ] , X 16 [24 , 18 , 7 , 29] X 1 [24 , 18 , 7 , 29] , X 2 [ i , j ] , X 15 [24 , 18 , 7 , 29] ◮ For each projection LLR depends on ( ≤ 21) key-bits ◮ 54 key-bits overall ◮ Two separable statistics for two independent bunches of the projections ◮ Search Algorithm combines ( ≤ 21)-bit values to find 54-bit candidates ◮ Those candidates are brute forced

One Particular Projection ◮ projection h 1 : X 2 [24 , 18 , 7 , 29] , X 15 [16 , 15] , X 16 [24 , 18 , 7 , 29] ◮ key 1 ∪ Key 1 incorporates 20 unknowns x 63 , x 61 , x 60 , x 53 , x 46 , x 42 , x 39 , x 36 , x 31 , x 30 , x 27 , x 26 , x 25 , x 22 , x 21 , x 12 , x 10 , x 7 , x 5 , x 57 + x 51 + x 50 + x 19 + x 18 + x 15 + x 14 x i key-bits of 56-bit DES key ◮ 2 20 values of S 1 = ω 1 LLR 1 ◮ Similar for other 27 projections

Key-variables Order for the Search Tree ◮ One needs key ∪ Key ordered to run a tree search ◮ x 2 appears in 14(maximal number) of key i ∪ Key i , etc x 2 , x 19 , x 60 , x 34 , x 10 , x 17 , x 59 , x 36 , x 42 , x 27 , x 25 , x 52 , x 11 , x 33 , x 51 , x 9 , x 23 , x 28 , x 5 , x 55 , x 46 , x 22 , x 62 , x 15 , x 37 , x 47 , x 7 , x 54 , x 39 , x 31 , x 29 , x 20 , x 61 , x 63 , x 30 , x 38 , x 26 , x 50 , x 1 , x 57 , x 18 , x 14 , x 35 , x 44 , x 3 , x 21 , x 41 , x 13 , x 4 , x 45 , x 53 , x 6 , x 12 , x 43

Search Tree Algorithm Run ◮ We fixe desirable success rate 0 . 83 ◮ solve equation n = | keys to brute force | in n ◮ got n = 2 41 . 8 ◮ The number of tree nodes is shown, log 2 scale ◮ | ( key ∪ Key )-candidates | = 2 39 . 8 , | keys to brute force | = 2 41 . 8 ◮ Number of nodes is 2 45 . 5 << 2 54 . Constructing the nodes is faster (in bit operations) than final brute force ◮ Improves Matsui’s result on DES( n = 2 43 , 0 . 85)

Outline ◮ ◮ ◮ ◮ ◮ Multidimensional Distributions in Feistel Ciphers ◮

r-Round DES ◮ DES K ( X ) = Y , where X random, E any event ◮ We want to compute Pr ( E ) in r -round DES. Let’s formalise ◮ X 0 , X 1 , . . . , X r +1 random independently generated 32-bit blocks. Event C defines DES: X i − 1 ⊕ X i +1 = F i ( X i , K i ) , i = 1 , . . . , r ◮ K 1 , . . . , K r fixed round keys. We need Pr ( E|C ) = Pr ( EC ) Pr ( C ) = 2 32 r Pr ( EC ) ◮ infeasible as C depends on all key-bits

Relax C ◮ One chooses a larger event C α (that is C implies C α ) X i − 1 [ α i ] ⊕ X i +1 [ α i ] = F i ( X i , K i )[ α i ] , i = 1 , . . . , r ◮ where α = ( α 1 , . . . , α r ). Then Pr ( C α ) = 2 − � r i =1 | α i | ◮ Let’s accept Pr ( E|C ) ≈ Pr ( E|C α ) = Pr ( EC α ) � r i =1 | α i | Pr ( EC α ) Pr ( C α ) = 2 ◮ C α depends on a lower number of the key-bits. Now feasible and may be computed exactly

Regular Trails ◮ To compute the distribution of Z = X 0 [ α 1 ] , X 1 [ α 2 ∪ β 1 ] , X r [ α r − 1 ∪ β r ] , X r +1 [ α r ] ◮ One chooses event C α , where α = ( α 1 , . . . , α r ), and the trail X i [ β i ] , F i [ α i ] , i = 1 , . . . , r ◮ The trail is called regular if γ i ∩ ( α i − 1 ∪ α i +1 ) ⊆ β i ⊆ γ i , i = 1 , . . . , r where X i [ γ i ] input bits relevant to F i [ α i ] ◮ For a regular trail Pr ( Z = A |C α ) is computed with a convolution-type formula, only depends on α i
