SEA HORSE 2,5 HP SEA HORSE 2,5 HP SEA HORSE 2,5 HP SEA HORSE 2,5 - PowerPoint PPT Presentation

Jan 15, 2024 •465 likes •649 views

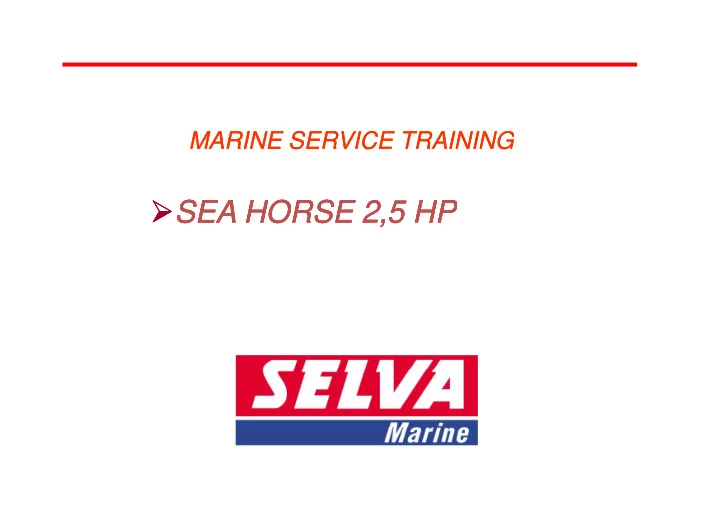

MARINE SERVICE TRAINING MARINE SERVICE TRAINING MARINE SERVICE TRAINING MARINE SERVICE TRAINING SEA HORSE 2,5 HP SEA HORSE 2,5 HP SEA HORSE 2,5 HP SEA HORSE 2,5 HP Power Hp 2,5 Power Kw 1,84 Max RPM 5500/6000 Motor type 4 stroke

MARINE SERVICE TRAINING MARINE SERVICE TRAINING MARINE SERVICE TRAINING MARINE SERVICE TRAINING  SEA HORSE 2,5 HP  SEA HORSE 2,5 HP SEA HORSE 2,5 HP SEA HORSE 2,5 HP
Power Hp 2,5 Power Kw 1,84 Max RPM 5500/6000 Motor type 4 stroke OHV Displacement c.c. 55 Bore x Stroke (mm) 47 x 32 Nr. cylinders 1 Induction 1 carburettor Fuel Unleaded petrol Fuel tank (lt.) Built-in 1,4 lt. Oil tank (lt.) Built-in 0,7 lt. Lubrication Automatical oil injection into the carburettor Ignition I.D.I. Ignition timing Fixed Starting Manual Engine air cooled Cooling Exhaust system water cooled Exhaust Under Water Trim adjustment Manual (4 positions to be selected by pin location) T Transmission ratio i i ti 13/30 13/30 Propeller type 2-bladed Weight basic version (Kg) 15
STARTER WITH EASY START SYSTEM: PULL AND LAEVE PULL AND LAEVE THE ROPE UNTIL THE ENGINE STARTS THROTTLE FIXING THROTTLE FIXING EXHAUST SCREW MANIFOLD
FUEL TANK: FUEL TANK: UNLEADED PETROL OIL TANK: OIL TANK: 2 STROKE SYSNTETHIC OIL ‐ TCW3
POWER BLOCK DIAPRHAM AIR COOLING CARBURETTOR GRATING WITH INTEGRATED WITH INTEGRATED FUEL PUMP FUEL PRIMER SYSTEM INTAKE MANIFOLD INTAKE MANIFOLD
POWER BLOCK AIR COOLED
OIL PUMP GEAR OIL PUMP GEAR SPARK PLUG: Champion: RZ7C h NGK: CMR 7H
OILP PUMP DRIVING OIL OUTPUT TO THE SHAFT SHAFT CARBURETTOR CARBURETTOR OIL PUMP OIL INLET FROM THE OIL TANK OIL TANK
FUEL INTAKE MANIFOLD TO THE CILYNDER HEAD
TRANSMISSION VALVE DRIVING SYSTEM MIXING OUTPUT PORT TO THE PORT TO THE CILYNDER HEAD INTAKE HOLE INTO THE CILYNDER HEAD
INTAKE / EXHAUST CAMMES INTAKE MANIFOLD
MAGNETO FLYWHEEL WITH AIR COOLIMG SYSTEM FLYWHEEL – IGNITION COIL IGNITION COIL ‐ IDI GAP: 0,3 mm FIXED TIMING 32°
SHAFT COUPLING FLANGE
FRICTION BELL FRICTION BELL
CENTRIFUGAL FRICTION FRICTION
COOLING WATER PASSAGE FOR THE EXHAUST SYSTEM FUEL LEVEL CHECKING OPENING CH CKING OP NING
OIL LEVEL CHECKING EXHAUST VALVE OPENING OPENING CLEARENCE: 0,15 mm INTAKE VALVE CLEARENCE: 0,10 mm
