Role of Electrochemical Reactions in the Degradation Mechanisms of AlGaN/GaN HEMTs Feng Gao 1,2 , Bin Lu 2 , Carl V. Thompson 1 , Jess del Alamo 2 , Toms Palacios 2 1. Department of Materials Science and Engineering, Massachusetts Institute

slide-1
SLIDE 1

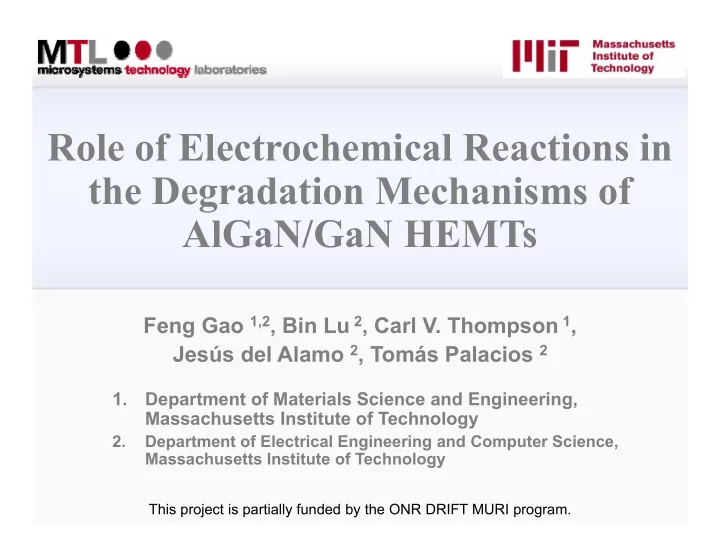

Role of Electrochemical Reactions in the Degradation Mechanisms of AlGaN/GaN HEMTs

1. Department of Materials Science and Engineering, Massachusetts Institute of Technology

2. Department of Electrical Engineering and Computer Science, Massachusetts Institute of Technology

Feng Gao 1,2, Bin Lu 2, Carl V. Thompson 1, Jesús del Alamo 2, Tomás Palacios 2

This project is partially funded by the ONR DRIFT MURI program.

slide-2
SLIDE 2

fenggao@mit.edu

Introduction

Wireless Base Station Automotive Electronics

  • Excellent for High Power RF & Power Electronics Applications

Energy Conversion

2

  • AlGaN/GaN HEMTs unique properties

Wide bandgap  Ecritical >3MV/cm Polarization  2DEG density >1013/cm2 High electron mobility: >1500 cm2/V.s High electron peak velocity: 2.1x107cm/s

2DEG

Ec Ev Ef GaN AlGaN

slide-3
SLIDE 3
  • Device reliability is one of the greatest obstacles for AlGaN/GaN

HEMTs: various degradation modes

fenggao@mit.edu

Motivation

― Reliability Bottleneck

3

[Meneghesso et. al., IEEE Transactions on Device and Materials Reliability, vol.8, no.2, p.332, 2008]

slide-4
SLIDE 4

fenggao@mit.edu

Motivation

― Overview of Reliability Phenomena

  • J. Joh et al., IEEE Electron Dev. Lett., vol. 29, no. 4, 2008.
  • Permanent Degradation
  • U. Chowdhury et al., IEEE Electron
  • Dev. Lett, vol. 29, no.10, 2008.

Surface Pitting

  • P. Makaram et al., Appl. Phys. Lett.,

96, 233509, 2010.

Electrical Degradation

4

slide-5
SLIDE 5
  • Inverse Piezoelectric Effects
  • J. Joh et al., IEDM 2007. IEEE

International, 2007, pp. 385–388.

Motivation

― Overview of Reliability Mechanisms

  • Physical mechanism in permanent degradation
  • Defect Percolation
  • Mass-Transport
  • M. Meneghini et al., Appl. Phys. Lett.,
  • vol. 100, no. 3, p. 033505, 2012.
  • F. Gao et al., Appl. Phys. Lett., vol. 99, no. 22, pp. 223506, 2011.

fenggao@mit.edu

5

slide-6
SLIDE 6

 Water-Assisted Electrochemical Mass Transport in Permanent Degradation  Electrochemical Reaction Mechanism:

  • Holes generation
  • Water Diffusion

fenggao@mit.edu

Goals of This Work

6

slide-7
SLIDE 7

fenggao@mit.edu

AlGaN/GaN HEMTs Under Study

  • Device provided by industrial collaborator

7

slide-8
SLIDE 8

Experimental Setup

― High Vacuum and High Temperature Probe Station

Key features:

  • Vacuum chamber of 1 × 10-7 Torr.
  • Thermal chuck up to 600 °C.
  • Four probes for electrical contact.
  • Two gas lines that can supply the chamber with air, O2, N2, Ar, He and H2.

fenggao@mit.edu

Acknowledgement to Prof. Harry L. Tuller 8

slide-9
SLIDE 9

Impact of Atmosphere on Surface Pitting

― Ambient and Vacuum Control-Group

Surface pitting caused by OFF-state electrical stress is significantly reduced in vacuum.

Stressed in ambient air Stressed in vacuum of 1×10-7 Torr

  • Off-state stress test: Vds = 43 V, Vgs = -7 V for 3000s in darkness at RT

SEM Top View AFM Depth Profile TEM Cross Section fenggao@mit.edu

  • F. Gao et al., IEEE Trans. Electron Devices, vol. 61, no.2, 2014

9

slide-10
SLIDE 10

Role of Oxygen in Surface Pitting

― Ambient and Vacuum Control-Group

Stressed in ambient air Stressed in vacuum of 1×10-7 Torr

Higher concentration of oxygen (O) is found inside the surface pits for AlGaN/GaN HEMTs stressed in ambient air.

fenggao@mit.edu

  • F. Gao et al., IEEE Trans. Electron Devices, vol. 61, no.2, 2014

10

TEM TEM EDX

slide-11
SLIDE 11

Influence of Ambient Air

fenggao@mit.edu

  • F. Gao et al., IEEE Trans. Electron Devices, vol. 61, no.2, 2014

11

  • Ambient air  more pits with deeper depther
  • Ambient air  increase of oxygen in pitting area

What gas in the ambient air causes:

  • surface pitting?
  • increasing of oxygen concentration in

pitting area? Ambient air has N2, O2, H2O, CO2

Off-state stress

slide-12
SLIDE 12

Impact of Moisture on Surface Pitting

― Wet and Dry Control-Group

Stressed in water- saturated gas (Ar)

SEM Top View TEM Cross Section

Stressed in dry gas (Ar)

wet/dry Ar; wet/dry O2 ; wet/dry N2 ; wet/dry CO2 ; wet/dry Air

Water has a major impact on surface pitting & source of O in pitting area

fenggao@mit.edu

  • F. Gao et al., IEEE Trans. Electron Devices, vol. 61, no.2, 2014

12

slide-13
SLIDE 13

Mass Transport

― Ga, Al migration

TEM EDX Mapping Unstressed

  • TEM EDX mapping: Ga and Al found in the gate region

fenggao@mit.edu

  • F. Gao et al., IEEE Trans. Electron Devices, vol. 61, no.2, 2014

Stressed in ambient for 3000s

13

Al Al

Stressed in vacuum for 3000s

slide-14
SLIDE 14

Permanent Electrical Degradation

― By Off-State Stress

  • Off-state stress: Vgs = -7V, Vds = 43V, 3000s at RT in dark
  • 1min UV illumination & 12hr at rest after Off-state to

recover trapping transient

  • Idss and Ig measured at Vgs = 0, Vds =5V

fenggao@mit.edu

  • F. Gao et al., IEEE Trans. Electron Devices, vol. 61, no.2, 2014

14

Stressed in ambient Stressed in vacuum

slide-15
SLIDE 15

15

Permanent Electrical Degradation

― Surface Pitting Time Evolution

fenggao@mit.edu

Stressed in ambient

slide-16
SLIDE 16

Permanent Electrical Degradation

― Id Degradation Time Evolution

Drain current degradation evolves with the growth of the surface pits over stress time.

fenggao@mit.edu

  • Time Evolution of Drain Current Degradation:

Id measured at Vgs = 0 and Vds = 5 V

  • F. Gao et al., IEEE Trans. Electron Devices, vol. 61, no.2, 2014

16

slide-17
SLIDE 17

 H2O  surface pitting and source of oxygen in pitting area  Ga, Al migration accompanies surface pitting  Surface pitting & Ga, Al migration  permanent electrical degadation

fenggao@mit.edu

Summary 1

17

Al

What is the physical mechanism behind the impact of H2O on the surface pitting ?

slide-18
SLIDE 18

Water-assisted Electrochemical Reactions

― Corrosion in AlGaN/GaN HEMTs

 Reduction of water:  Anodic oxidation of AlGaN: 2H2O + 2e- = 2OH- + H2 2Alx Ga1-xN + 6h+ = 2xAl3+ + 2(1-x)Ga3+ +N2 2xAl3+ + 2(1-x)Ga3+ + 6OH- = xAl2O3 + (1-x)Ga2O3 + 3H2O  Complete Reduction-oxidation (redox) electrochemical reactions: 2Alx Ga1-xN + 3H2O = xAl2O3 + (1-x)Ga2O3 + N2 + H2 An electrochemical cell formed at the drain edge

  • f the gate.

e-

h+

H2O OH-

fenggao@mit.edu

  • F. Gao et al., IEEE Trans. Electron Devices, vol. 61, no.2, 2014

18

slide-19
SLIDE 19

GaN Gate

AlGaN

Water-assisted Electrochemical Reactions

― Ga, Al out diffusion

h+ h+ h+ h+ Ga 3+ Al 3+ Al Ga

fenggao@mit.edu

  • F. Gao et al., IEEE Trans. Electron Devices, vol. 61, no.2, 2014

19

Stressed in ambient for 3000s

Al

  • 1. Holes are generated and accumulated at the AlGaN surface.
  • 2. Ambient water diffuse through the SiNx passivation and reach the AlGaN surface.

 Two necessary conditions:

slide-20
SLIDE 20

Source of Holes

― Photo-Generated Holes

fenggao@mit.edu

  • F. Gao et al., IEEE Trans. Electron Devices, vol. 61, no.2, 2014
  • Stressed under 254-nm UV illumination in ambient air at Vds = 43 V

Vgs = -7 V for 3000s at RT

SEM Top View TEM Cross Section

Increasing surface pitting

20

slide-21
SLIDE 21

Source of Holes

― Impact Ionization vs Inter-band Tunneling

Lateral impact ionization

g i h

j E E j    ) exp(

max

fenggao@mit.edu

  • F. Gao et al., IEEE Trans. Electron Devices, vol. 61, no.2, 2014

21

Vertical inter-band tunneling

) exp(

max 2 max

E E E j

t h

  

Keldysh, Soviet Phys. JETP, vol. 33, no.4, p763, 1958

slide-22
SLIDE 22
  • Silvaco simulation of Electric Field in AlGaN Layer

Source of Holes

― Quantitative Analysis: E-field

fenggao@mit.edu

  • F. Gao et al., IEEE Trans. Electron Devices, vol. 61, no.2, 2014

22

Emax

slide-23
SLIDE 23

Source of Holes

― Quantitative Analysis: jh

fenggao@mit.edu

  • F. Gao et al., IEEE Trans. Electron Devices, vol. 61, no.2, 2014

23

d Mt q N d j

A h

   3

2Alx Ga1-xN + 6h+ = 2xAl3+ + 2(1-x)Ga3+ +N2

  • Relationship of Surface Pits and Holes

+

Average pits depth measured by AFM

Jh vs Emax

slide-24
SLIDE 24
  • Data match with inter-band tunneling equation

Source of Holes

― Surface Pitting and Holes

fenggao@mit.edu

  • F. Gao et al., IEEE Trans. Electron Devices, vol. 61, no.2, 2014

24

  • Data do not match with impact ionization equation

Inter-band tunneling Impact ionization Too small

slide-25
SLIDE 25

Traps assist inter-band tunneling

  • Traps assist inter-band tunneling causing a lower Et

Source of Holes

― Trap-assited inter-band Tunneling

fenggao@mit.edu

  • F. Gao et al., IEEE Trans. Electron Devices, vol. 61, no.2, 2014

25

slide-26
SLIDE 26

Trap Assisted Inter-Band Tunneling

― TCAD Simulations

Vertical Cut at Gate-Drain Edge

fenggao@mit.edu

Metal Gate

3nm GaN Cap

14nm Al0.28Ga0.72N Barrier

GaN Buffer

Passivation Nitride

Hole Concentration

  • TCAD simulation of trap-assisted inter-band tunneling

Donor trap states w. Ec – Et = 0.45eV, Nt = 5x1018 /cm3 Vds = 43 V, Vgs = -7 V

Acknowledgement to our collaborators: Hiu-Yung (Hugh) Wong, Ph.D et al at Synopsys, Inc. 26

slide-27
SLIDE 27

Mt M d WVTR

O H 2

2 3  

Water Vapor Transmission Rate (WVTR) of PECVD SiN ≈ 0.05-0.1 g/m2/day 2Alx Ga1-xN + 3H2O = xAl2O3 + (1-x)Ga2O3 + N2 + H2 Estimated WVTR is consistent with the reported value for PECVD SiN (0.01-0.1 g/m2/day) in literature [1-2].

Stressed in wet air Stressed in dry air Stressed in ambient air Stressed in vacuum

Degradation of SiN Passivation Defects are created in SiN during off-state stress to accelerate water diffusion.

Last Question: Diffusion of Water

― Water Vapor Transmission Rate

[1] A.S. da Silva Sobrinho, et al. J. Vac. Sci.

  • Technol. A, vol. 16, no. 6, pp. 3190-3198, 1998.

[2] D.S. Wuu, et al. Surf. Coat. Technol., vol. 198, no.1-3, pp. 114-117, 2004.

fenggao@mit.edu

  • F. Gao et al., IEEE Trans. Electron Devices, vol. 61, no.2, 2014

27

slide-28
SLIDE 28

fenggao@mit.edu

Conclusion

Mechanisms of Permanent Degradation

A Water-assisted Field-induced Electrochemical Process

  • Cause surface pitting & Ga, Al migration
  • Cause permanent Id drop

2Alx Ga1-xN + 3H2O = xAl2O3 + (1-x)Ga2O3 + N2 + H2

28

Traps assist inter-band tunneling

slide-29
SLIDE 29

fenggao@mit.edu

God made the bulk; surfaces were invented by the devil.

― Wolfgang Pauli

29

slide-30
SLIDE 30

Is There Impact Ionization ?

Lateral impact ionization

fenggao@mit.edu

  • F. Gao et al., IEEE Trans. Electron Devices, vol. 61, no.2, 2014

30

  • Holes are swept to the source-edge of the gate
slide-31
SLIDE 31

Why is there still pits in devices stressed in vacuum ?

In-situ XPS Analysis Water desorption requires vacuum annealing with T > 200 oC

fenggao@mit.edu

slide-32
SLIDE 32

32

fenggao@mit.edu

  • F. Gao et al., IEEE Trans. Electron Devices, vol. 61, no.2, 2014

Source of Holes

― Quantitative Analysis:Pits Formation vs Vds

Stressed in Air 1000s Vgd = 10V to 60V
