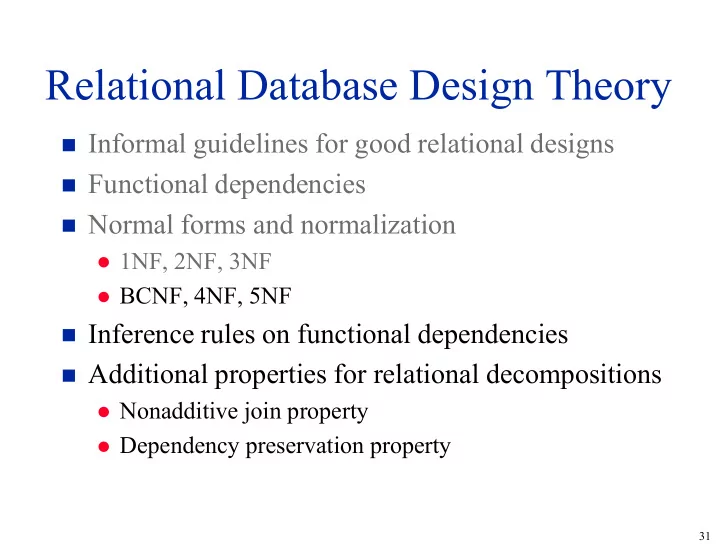

Relational Database Design Theory � Informal guidelines for good relational designs � Functional dependencies � Normal forms and normalization � 1NF, 2NF, 3NF � BCNF, 4NF, 5NF � Inference rules on functional dependencies � Additional properties for relational decompositions � Nonadditive join property � Dependency preservation property 31

2NF, 3NF � 2NF � 3NF 32

33

34

35

Boyce'Codd Normal Form � BCNF � Difference from 3NF: � 3NF allows A to be a key attribute � 3NF allows A to be a key attribute � Every relation in BCNF is also in 3NF � Most relation schemas that are in 3NF are also in BCNF but not all: 36

37

38

1NF, 2NF, 3NF, BCNF Test on any non' Violations normalization trivial X � A 1NF Multi'valued attributes New relation for each multi'valued attributes 2NF a) X is a super key 1) partial key '> non'key New relation for the or attribute partial key and its b) X is not a key b) X is not a key (partial FD) (partial FD) dependent attributes dependent attributes or c) A is a key attribute 3NF a) X is a super key 1) or Above and or 2) Non'key attribute '> non' New relation for the c) A is a key attribute key attribute non'key attribute and its (transitive FD) dependent attributes BCNF a) X is a super key 1) or Above and 2) or New relation for the 3) non'key '> key attribute non'key attribute and its dependent attributes 39

Relational Database Design Theory � Informal guidelines for good relational designs � Functional dependencies � Normal forms and normalization � 1NF, 2NF, 3NF � BCNF, 4NF, 5NF � Functional dependencies and keys � Additional properties for relational decompositions � Nonadditive join property � Dependency preservation property 40

Keys and Functional Dependencies � �������� � No two distinct tuples in any state � of � can have the same value for SK � Functional dependency: SK � R � ��� � ��� � Superkey of R; and it is minimal (removing any attribute � from � leaves a set of attributes that is not a superkey any more) � Functional dependency: K � R, and for any A in K, K' {A} � R does not hold � Given a set of functional dependencies, can we find the keys of R? 41

Inference Rules for FDs � Armstrong’s inference rules (complete) � Reflexivity rule: if � ⊆ � then � → � � Augmentation rule: if � → � then �� → �� � Transitivity rule: if � → � and � → � then � → � Transitivity rule: if � → � and � → � then � → � � Other rules � Decomposition Rule: if � → �� then: � → � and � → � � Union or Additive Rule: if � → � and � → � then: � → �� � Pseudfotransitive Rule: if � → � and �� → � then: �� → � 42

Inference Rules for FDs � Specify a set of FDs that can be easily determined from attribute semantics � Infer additional FDs using inference rules � The closure of a FD set F � The closure of a FD set F � the set of all FDs that include F as well as all FDs that can be inferred from F 43

Closure of attribute set � The closure of attribute set X under FD set F, denoted as X+ � The set of attributes that are functionally determined by X based on F � How can we computationally find X+ � How can we determine a set of attributes X is a key? 44

Example � SSN + � Dnumber + � Dnumber + � {SSN, Dnumber} + � {SSN, Dnumber, Ename} + 46

Example � SSN + = {SSN, Ename, Bdate, Address, Dnumber, Dname, Dmgr_ssn} Dmgr_ssn} � Dnumber + = {Dnumber, Dname, Dmgr_ssn} � {SSN, Dnumber} + = {SSN, Ename, Bdate, Address, Dnumber, Dname, Dmgr_ssn} � {SSN, Dnumber, Ename} + = {SSN, Ename, Bdate, Address, Dnumber, Dname, Dmgr_ssn} � Which of these attribute sets are superkeys? Keys? 47

Finding Keys based on Attribute Closure � If X + = R, then X is a superkey � If X + = R, and (X'{A}) + != R, then X is a key � How do we find all keys given a FD set F? � How do we find all keys given a FD set F? � How do we find one key given a FD set F? 48

Example � Initialization � K = {SSN, Ename, Bdate, Address, Dnumber, Dname, Dmgr_ssn} � K = {SSN, Ename, Bdate, Address, Dnumber, Dname, Dmgr_ssn} � Decrease one attribute at a time � … � K = {SSN, Dnumber } 50

Relational Database Design Theory � Informal guidelines for good relational designs � Functional dependencies � Normal forms and normalization � 1NF, 2NF, 3NF � BCNF, 4NF, 5NF � Functional dependencies and keys � Additional properties for relational decompositions � ����������� ������������� � Dependency preservation property 51

Dependency Preservation Property � Informally, given a decomposition D of R and a FD set F on R, each FD in F either appear directly in D or could be inferred � Claim 1. it is always possible to find a dependency' preserving decomposition D with respect to F such preserving decomposition D with respect to F such that each relation Ri in D is in 3NF 52

Non'additive Join Property � A decomposition D = {R1, R2, ..., Rm} of R has the ������������������������������������ with respect to the set of FDs F on R if, for ����� legal relation state r, the following holds, where * is the natural join of all the relations in D: * ( π R1 (r), ..., π Rm (r)) = r π π � lossless for “loss of information”, i.e. “ ������������ �������������������� ” � How to test whether a decomposition satisfies the lossless join property? 53

Successive Lossless Join Decomposition � ��������������������������������������� ��� ���������������������������� � If a decomposition D = {R1, R2, ..., Rm} of R has the lossless (non'additive) join property with respect to F � and if a decomposition Di = {Q1, Q2, ..., Qk} of Ri has the lossless (non'additive) join property with respect to the projection of F � then the decomposition D2 = {R1, R2, ..., Ri'1, Q1, Q2, ..., Qk, Ri+1, ..., Rm} of R has the non'additive join property with respect to F. 60

Normalization with BCNF and Lossless Join Property

In Practice � Relational design from ER model or existing tables/reports � Normalization for 3NF or BCNF with lossless join property property � Sometimes normal forms are violated deliberately to achieve better performance (less join operations) 62
