04/06/19 ICTP CARIBBEAN SCHOOL ON MATERIALS FOR CLEAN ENERGY Cartagena, Colombia, May 30 June 05, 2019 Water splitting on hematite surfaces: insights from density-functional theory Ralph Gebauer Tuesday, June 4 th , 2019 Hydrogen

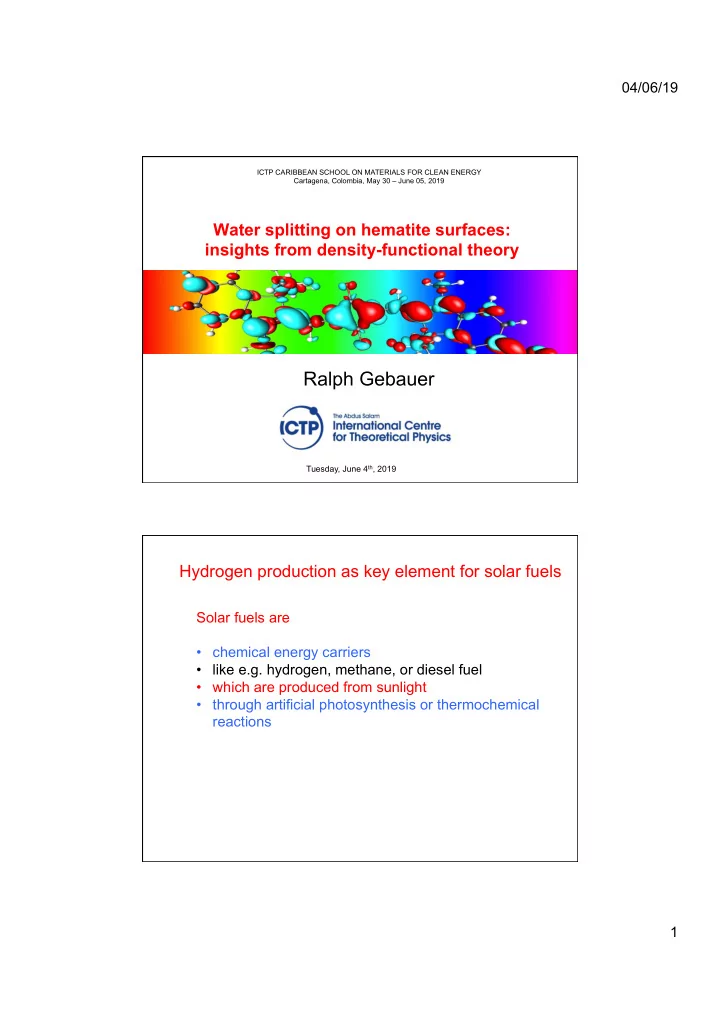

  1. 04/06/19 ICTP CARIBBEAN SCHOOL ON MATERIALS FOR CLEAN ENERGY Cartagena, Colombia, May 30 – June 05, 2019 Water splitting on hematite surfaces: insights from density-functional theory Ralph Gebauer Tuesday, June 4 th , 2019 Hydrogen production as key element for solar fuels Solar fuels are • chemical energy carriers • like e.g. hydrogen, methane, or diesel fuel • which are produced from sunlight • through artificial photosynthesis or thermochemical reactions 1

  2. 04/06/19 Artificial photosynthesis: using light to make fuels Solar fuels are a very timely topic: From: R.F. Service, Science 349, 1158 (2015) 2

  3. 04/06/19 Solar fuels: which role in a renewable-energy landscape? Providing a sustainable alternative to fossil fuels for mobility (road, air, etc.) is an important motivation Filling up your car ... energy content of diesel fuel: 43.2 MJ/kg density: 0.745 kg/L è 32.2 MJ/L at the filling station: 50L in 2.5 min energy “current”: 10.7 MJ/s = 10.7 MW 3

  4. 04/06/19 Artificial photosynthesis: using light to make fuels Figure from: Lewis and Nocera, PNAS 103 103 , 15729 (2006) 4

  5. 04/06/19 Electrochemistry: a quick overview Galvanic cell Cu 2+ (aq) + Zn(s)  Cu(s) + Zn 2+ (aq) Cu 2+ (aq) + 2e -  Cu(s) Cathode (Red): Anode (Ox): Zn(s)  Zn 2+ (aq) + 2e - Zn is oxidized Cu is reduced (e - donated to Cu ) (e - removed from Zn ) 5

  6. 04/06/19 Electrochemistry: a quick overview Galvanic cell Cu 2+ (aq) + Zn(s)  Cu(s) + Zn 2+ (aq) Cathode (Red): Cu 2+ (aq) + 2e -  Cu(s) Zn(s)  Zn 2+ (aq) + 2e - Anode (Ox): E 0 : standard reduction potential Cu 2+ (aq) + 2e -  Cu(s) E 0 = 0.34 V Zn 2+ (aq) + 2e -  Zn(s) E 0 = -0.76 V E 0 = 0.34 - (-0.76) = 1.10 V -nFE 0 = ∆ G 0 Higher E 0 : reduction Lower E 0 : oxidation Normal (Standard) Hydrogen Electrode (NHE) E 0 E 0 (M + + e -  M) NHE =0 M + + e -  M 2H + + 2e -  2H 2 6

  7. 04/06/19 Electrochemistry: a quick overview Higher E 0 : reduction ORR/OER O 2 + 4H + + 4e -  2H 2 O E 0 = 1.23 V Lower E 0 : oxidation 2H + + 2e -  H 2 E 0 = 0.00 V -nFE 0 = ∆ G 0 Electrochemistry: a quick overview Higher E 0 : reduction ORR/OER O 2 + 4H + + 4e -  2H 2 O E 0 = 1.23 V Lower E 0 : oxidation 2H + + 2e -  H 2 E 0 = 0.00 V -nFE 0 = ∆ G 0 O 2 + 4H + + 4e -  2H 2 O ORR H 2  2H + + 2e - O 2 + 2H 2  2H 2 O ∆ G 0 = -4.92 eV E 0 = 1.23 V PEM Fuel cells 7

  8. 04/06/19 Electrochemistry: a quick overview Higher E 0 : reduction ORR/OER O 2 + 4H + + 4e -  2H 2 O E 0 = 1.23 V Lower E 0 : oxidation 2H + + 2e -  H 2 E 0 = 0.00 V -nFE 0 = ∆ G 0 O 2 + 4H + + 4e -  2H 2 O ORR 2H 2 O  O 2 + 4H + + 4e - OER  2H + + 2e - 2H + + 2e -  H 2 H 2 2H 2 O  O 2 + 2H 2 ∆ G 0 = 4.92 eV O 2 + 2H 2  2H 2 O ∆ G 0 = -4.92 eV E 0 = -1.23 V E 0 = 1.23 V Electrolysis PEM Fuel cells Artificial photosynthesis: using light to make fuels Goal : storing solar energy through water splitting Electrolyzer PV module 8

  9. 04/06/19 Artificial photosynthesis: using light to make fuels Goal : storing solar energy through water splitting Integrated photo-catalyst Electrolyzer 2H + + 2e - H 2 h ν PV module O 2 + 4H + + 4e - 2H 2 O 9

  10. 04/06/19 Energy level alignment Higher E 0 : reduction Lower E 0 : oxidation -nFE 0 = ∆ G 0 E 0 (V) e - E 0 (CB) < E 0 (H + /H 2 ) 2H + + 2e -  H 2 0.00 E g 2H 2 O  O 2 + 4H + + 4e - 1.23 E 0 (VB) > E 0 (H 2 O/O 2 ) h + 10

  11. 04/06/19 Higher E 0 : reduction Energy level alignment Lower E 0 : oxidation -nFE 0 = ∆ G 0 4H + E 0 (V) 2H 2 + 4e - e - E 0 (CB) < E 0 (H + /H 2 ) 2H + + 2e -  H 2 0.00 E g 2H 2 O  O 2 + 4H + + 4e - 1.23 E 0 (VB) > E 0 (H 2 O/O 2 ) h + 4e - O 2 + 4H + 2H 2 O N Ø rskov's approach: Computational NHE 11

  12. 04/06/19 N Ø rskov's approach: Computational NHE Zero bias: At V=0 relative to the NHE we have: E 0 NHE = ∆ G 0 NHE = 0 ⇒ 2H + (aq) + 2 e - ↔ H 2 (g) ⇒ G 0 (H + + e - ) = G 0 (1/2 H 2 ) Therefore, using NHE as reference, we can compute the chemical potential of the (H + + e - ) pair from the chemical potential of gas phase H 2 No We do need to estimate  (H + ) +  (e - ) separately N Ø rskov's approach: Computational NHE Example: Suppose we want to compute the free energy change ∆ G w.r.t. NHE at V=0 for the following half cell reaction: M-OH 2  M-OH + H + + e - ∆ G H H H O O -(H + + e - ) M M ∆ G(V=0) G(M-OH) G(M-OH 2 ) M-OH 2 M-OH ∆ G = G(M-OH) +  (H + ) +  (e - ) - G(M-OH 2 ) = G(M-OH 2 ) + 1/2  (H 2 ) - G(M-OH) E 0 = - ∆ G 0 /F 12

  13. 04/06/19 N Ø rskov's approach: Computational NHE Finite V : V=0  (H + )+  (e - ) = 1/2  (H 2 ) V ≠ 0  (e - )   (e - ) – eV  (H + )+  (e - ) = 1/2  (H 2 ) – eV All other effects of the bias V are neglected in this approach N Ø rskov's approach: Computational NHE Example: V ≠ 0 M-OH 2  M-OH + H + + e - H H H O O -(H + + e - ) M M V ≠ 0 G(M-OH) G(M-OH 2 ) ∆ G(V) = G(M-OH) +  (H + ) +  (e - ) - G(M-OH 2 ) = G(M-OH 2 ) + 1/2  (H 2 ) - eV – G(M-OH) = ∆ G(V=0) - eV 13

  14. 04/06/19 N Ø rskov's approach: Computational NHE Example: V ≠ 0 M-OH 2  M-OH + H + + e - H H H ∆ G O O -(H + + e - ) M M V ≠ 0 - eV G(M-OH) G(M-OH 2 ) ∆ G(V) ∆ G(V) = G(M-OH) +  (H + ) +  (e - ) - G(M-OH 2 ) M-OH 2 M-OH = G(M-OH 2 ) + 1/2  (H 2 ) - eV – G(M-OH) = ∆ G(V=0) - eV The relative energies of the intermediates depend linearly on the bias V N Ø rskov's approach: Computational NHE Finite pH : pH=0  (H + )+  (e - ) = 1/2  (H 2 )  (H + )   (H + ) – 2.303 kT × pH pH ≠ 0  (H + )+  (e - ) = 1/2  (H 2 ) – 2.303 kT × pH 14

  15. 04/06/19 N Ø rskov's approach: Computational NHE Free energies : the free energy changes at V=0 and pH=0 are computed according to: ∆ G ≃ ∆ E + ∆ ZPE – T ∆ S Where: ● ∆ E is the reaction energy ( DFT calculation ) ● ∆ ZPE is the change in zero-point-energy ( normal mode analysis ) ● ∆ S is the change in entropy ( from thermochemical tables ) Solvent: the effect of one monolayer of water has been included (O* interacts negligibly with water while OH* makes hydrogen bonds) Double layer: the field in the double layer (~1V/3Å) couples weakly to the dipole moments of the adsorbed species (~0.05 eÅ), giving rise to effects of the order of 0.01 eV N Ø rskov's approach: Computational NHE Limits: only (H + + e - ) pairs (PCET). No ET nor PT steps Limits : no dynamical (configurational entropy) effects due to the solvent rearrangement upon the formation of new intermediates are neglected. This is probably a good approximation for (H + + e - ) steps, since the overall charge of the system is constant. Limits : thermodynamics only. No kinetics. 15

  16. 04/06/19 Splitting water: what it takes 16

  17. 04/06/19 Computational model of hemaite (0001)-slab The four PCET steps on ideal surfaces and with O-vacancy (H + +e − ) +H 2 O C Y 3 X 3 ideal 4.5 O-vacancy O ∗ H OO ∗ 2.97 3 2.94 2.95 G(eV) → (H + +e − ) (H + +e − )+O 2 → U b =0 V 1.5 X 1 Y 2 B D 3.38 0 2.98 U b =1.79 V → -1.5 → U b =2.05 V -3 2.91 X 2 Y 1 C D A B d 0 =2.97 H O ∗ () ∗ (H + +e − ) +H 2 O A (a) (b) 17

  18. 04/06/19 ... and with N-doping: C +H 2 O (H + +e − ) 4.5 O ∗ H OO ∗ U b =0.00 V 3 (H + +e − ) (H + +e − )+O 2 1.5 G(eV) B D 0 -1.5 -3 U b =1.86 V C D A B (H + +e − ) +H 2 O A H O ∗ () ∗ ... and with N-doping: C (H + +e − ) +H 2 O 4.5 O ∗ H OO ∗ U b =0.00 V 3 (H + +e − ) (H + +e − )+O 2 1.5 G(eV) B D 0 -1.5 -3 U b =1.86 V C D A B (H + +e − ) +H 2 O A H O ∗ () ∗ 18

  19. 04/06/19 Role of surface states: covering with Ga layers Role of surface states: covering with Ga layers 19

  20. 04/06/19 Role of surface states: covering with Ga layers Which level of theory for hematite? Functional: PBE0 with X % of HF exchange 20

  21. 04/06/19 Which level of theory for hematite? 10% HF exchange 50% HF exchange What about holes and polarons in hematite? 10% HF exchange 50% HF exchange 21

  22. 04/06/19 What about holes and polarons in hematite? 10% HF exchange 50% HF exchange Trying to answer this problem by going towards higher levels of theory 22

  23. 04/06/19 Trying to answer this problem by going towards higher levels of theory Conclusions Solar hydrogen as an important ingredient for clean energy solutions OER very challenging: 4-electron process “Computational hydrogen electrode” as a useful tool for simulations Hematite interesting material for OER, but many issues are still open ACS Catal. 2017 , 7, 1793–1804, Phys. Rev. Mat. 2017 , 1, 035404 ACS Catal. 2015 , 5, 715–721, J. Chem. Phys. 2016 , 144, 094701, Chemphyschem 2014 , 15, 2930–5, J. Chem. Phys. 2014 , 140, 064703. 23

  24. 04/06/19 Simone Piccinin (CNR) THANKS! Nicola Seriani (ICTP) Kanchan Ulman (ICTP) Nandhakumar Velankanni (ICTP) Manh-Tuong Nguyen (PNNL) Narjes Ansari (ICTP) 24
