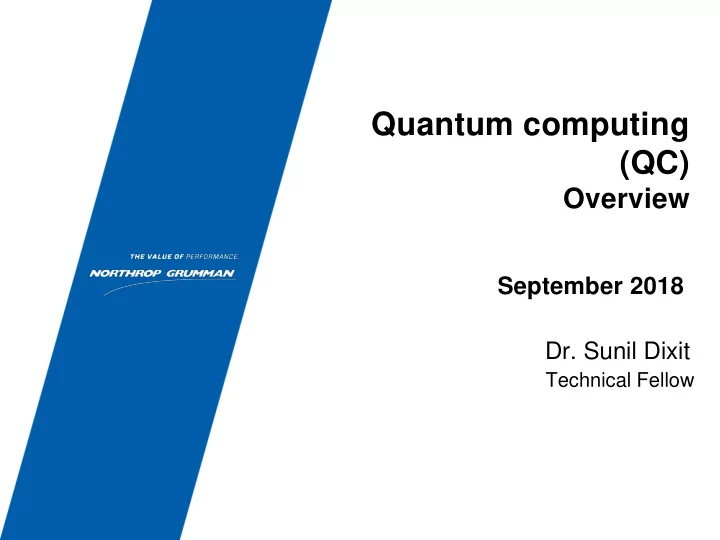

Quantum computing (QC) Overview September 2018 Dr. Sunil Dixit Technical Fellow

Why is QC Important? 2

Classical Realm 3

Classical Physics Assumptions • The universe is a giant machine • All nonuniform motion and action have cause – Uniform motion does not have cause (principle of inertia) • If the state of motion is known now then all past and future states are accurately predictable because the universe is predictable • Light is a wave described completely by Maxwell’s electromagnetic equations • Waves and particles are distinct • A measurement can be accurately made and errors corrected caused by the measurement tool 4 4

Single Slit – Classical Marbles 5 5

Double Slits – Classical Marbles 6 6

Single Slit – Classical Waves 7 7

Double Slit – Classical Waves 8 8

Quantum Realm 9

Single Slit – Quantum Electrons 10 10

Double Slits – Quantum Electrons 11 11

Double Slit – Shoot One Electron At A Time 12 12

Double Slits – Quantum Electrons With Observer (Measure At One Slit) 13 13

Computational Capacity in the Universe Provides upper bounds computational • • Maximum possible elementary quantum logic capacity performed by all matter since the operations: Universe began • With gravitational degrees of freedom Provides lower bounds of a quantum • taken into account computer required to simulate the entire t  120 10 Universe required operations and bits 2 t If the entire Universe performs a p •  10 computation , these numbers give the 10 years is the age of the universe t numbers of operations and bits in that     5 44 with / 5.391 10 sec t Gh c computation p is Planck time (the time scale at which gravitational effects are the same order as the quantum effects) • With registered quantum fields alone: t  90 10 3/4 t p *Seth Lloyd, “Computational Capacity of the Universe”, Phys. Rev. Letters, 88 (23), 2002 14 14 https://en.wikipedia.org/wiki/Observable_universe

Quantum Computing Principles 15

Quantum Principles Important For QC • Mathematics – Primarily Linear Algebra See Backup Slides – Mathematical Notation – the Dirac Notation • Superposition • Information Representation • Uncertainty Principle • Entanglement • 6 Postulates of Quantum Mechanics 16 16

Quantum Superposition & Uncertainty Principle h    E t 2 17 17

Quantum Information Representation • Physical Representation (Superposition and Entanglement) – Electrons Spin Up / Spin Down Quantum Dots Optical Lattices – Nuclear Spins Trapped Ions • Nuclear Magnetic Resonance – Polarization of Light / Photons – Optical Lattices – Semiconductor Quantum DOT – Semiconductor Josephson Junctions – Ion Traps – Others • Classical Representation – BIT (0,1) • Quantum Representation BLOCH representation of a qubit – Quantum BIT (qubit)            ˆ ˆ ˆ , , sin cos ,sin sin ,cos r r r r BLOCH x y z 18

Quantum Entanglement Electrons 19 19

Quantum Entanglement Photons 20 20

Quantum Entanglement (continued)       • Start with 2-qubits: | 0 |1 | 0 |1 and 0 1 0 1 – Both are their basis states • How do we entangle them mathematically? – Take the tensor product between the states            | 0 |1 | 0 |1 0 1 0 1             | 00 | 01 |10 |11 0 0 0 1 1 0 1 1 • 2-qubits in arbitrary states cannot be decomposed into their separate qubit   1    state. As an example, one of the Bell state , cannot be | | 00 |11 2 separated into its individual qubit state • Einstein called entanglement as “spooky action at a distance,” as it appeared to violate the speed limit of information transmission in theory of relativity (i.e., “c” the velocity of light) 21 21

Qubit & Nuclear Spin Nuclear Magnetic Resonance 22 22

6 Postulates of QM deferred to backup slides 23

Basic Classical & Quantum Computer Operations & Flowchart Of Quantum Control Control of quantum operations Classical Quantum Computer Processor (Master) (Slave) Results of Measurements Input x Output y n-bit n-bit string string • Classically  measurements only Quantum Mechanics y reveal n-bits of Exponential Superposition information May Repeat • Probability of 100-bit string y is |α y | 2 ; new “Quantification Classical Measure Manipulate ” - n qubits in Classical | y  | x  state post Input Apply Gates state Output measurement is | y  transformed via superposition May Repeat Quantum computer image from: Nature 519, 66 – 69 (05 March 2015) 24 doi:10.1038/nature14270

Physical Quantum Computer D-Wave IBM 1000? D-Wave Markets 1000 IBM 5 Qubit Microsoft qubit computers for $10M - $15M 25 25

Quantum Computing Models 26

Models of Quantum Computing Model Description QC Circuits / Gates Adiabatic QC (Vary Hamiltonians slowly from initial to final state) ˆ    s = (1/T) (1 ) H s H sH initial final Topological QC (World lines of particles positioned in a plane with time flowing downwards) Computational power of Anyons Measurement Based QC (Cluster States, Tomography) (local measurement is the only operation needed) 27

Quantum Circuits & Gates 28

Quantum Circuits Quantum Circuits Error Corrections Gate Graphical Mathematical Form Comments   1000 CNOT gate is a generalized XOR gate: its action     0100 on a bipartite state |A,B> is |A, B A>, where   CNOT   0001 is addition modulo 2 (an XOR operation)    0010             1 0 0 0 Swaps states: , ,   0 0 1 0   SWAP   0 1 0 0    0 0 0 1     H-gate (square root NOT gate) is an 1 1 1 1      idempotent operator: H 2 = I. It transforms the   Hadamard  x z  1 1  2 2 computational basis into equal superpositions.   Quantum NOT is identical to σ x => leaves |0> X Y Z , , invariant and changes the sign of |1>. Pauli X, Y, Z        0 1 0 1 0 i Rotations about the X, Y, Z axis    ,   ,    1 0   0   0 1  i    Applies a phase shift to the target qubit. 1 0    T-Gate i   4 | 00 remains same e 8   i   0 4  e i  4 |11 target qubit phase shift e Measurement collapses the superposed       1 0 0 0 quantum states Measurement      ,   0 0   0 1    Wire = single qubit Qubit Wire with n qubits n Qubits Double wire = single bit Classical bit {H, T, and CNOT} are called the “Standard Set.” Others in charts below 29 29

Properties of Quantum Circuits • Are not acyclic (no loops) • No FANIN. This implies that the circuit is not reversible; does not obey unitary operation • No FANOUT. Cannot copy the qubit’s state during the computational phase – No-Cloning Theorem • No copies of qubits in superposition (produces a multipartite entangled state)                        | | | | | 0 |1 | 0 |1 | 0 |1 ; NOT ALLOWED                         | 0 |1 | 0 |1 | 0 |1 | 000 |111 | ;       Entangled 3qubits | | 30 30

IBM 5-Qubit Quantum Computer Using Toffoli Gates – Freely Available Quantum Computing 5Q SQRT(Toffoli) State Timeline for IBM 17-qubit computer is unknown 3Q Toffoli State Uses QASM (IBM Q) Assembler or QISKit SDK (Python code) discussed later, for producing the QC circuit results https://quantumexperience.ng.bluemix.net/qx/editor 31 31
