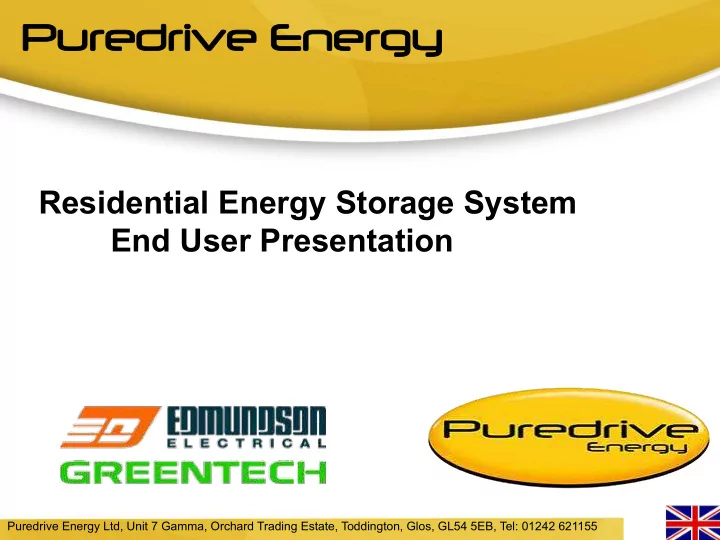

Puredrive Energy Puredrive Energy Residential Energy Storage System End User Presentation Puredrive Energy Ltd, Unit 7 Gamma, Orchard Trading Estate, Toddington, Glos, GL54 5EB, Tel: 01242 621155
Residential Energy Storage System. Introduction • The PureDrive Energy Battery system, is specifically designed for the UK domestic battery storage system. • It is a leader in the market when it comes to maximising self absorption of your PV system, increasing self absorption from 30% up to 85%. • One of its key features is its ease installation – everything is included in one box, - battery, control system. • It’s a British product, - designed developed assembled and distributed in the UK. Service and support is from our local office.
‘Key Features’ Storage Installed Capacity 4.8kW Usable capacity 4 kW UPS Capacity 1 - 4.8 kW 6000 Cycles Ba7 Temperature Sensor Y Inverter Input voltage range (V DC) 38 -66 V Output 230Vc (50Hz) 2500 Power (W) Output Cont @ 25C Peak Power (W) 6000 Max efficiency 95% 15 Zero load power - max (W) Charger • Compatible with any PV system AC Input 187 - 265 VAC, 45 - 65 Hz Charge Voltage - absorpNon (VDC) 57.6 • 4.8 kW Lithium technology Battery System. Charge Voltage - float (VDC) 55.2 52.8 Storage Mode (VDC) • System Output power 3kW Charge Current (A) 35 Interface Panel • System Battery charge 1.8kW Yes • Battery 6000 cycles Access real Nme data locally on storage box Yes LCD Display Screen • Battery 10 year warranty. Online monitoring on SR portal Yes Yes • All components in one box, protected by durable Free updates available & Remote opNmisaNon General metal casing. (740mm x 740mm x 310) 850 x 600 x 320 Dimensions (mm) Weight 79kg • High quality Local Display unit. OperaNng temperatures - 10 to 55C Yes 2nd AC output for UPS - • Connection to the internet for online monitoring. Warranty 5 / 10 Years • Free portal connection for installer and homeowner. CerNficates CE EN 60335-1, EN 60335-2, IEC 62109-1 EN55014-1, EN61000-3,
‘Key Features’ - Det ail Increase self-consumption of your PV from 30% up to 80% The Pure Storage system, is designed to retrofit into your existing PV solar system and increase self-consumption. On average owners of PV panels will only consume 30% of PV solar generated energy, the rest being exported back to the grid. Pure Storage is designed to maximise self-consumption up to 85%, enabling greater independence from energy companies and rising energy bills. Protect critical circuits in case of power cut The Pure Storage system is capable of providing UPS for selected critical circuits in case of a power cut to your home, including lighting, fridge computers. During a power cut the Pure Storage system will automatically switch into UPS mode and utilises the batteries stored energy. Monitor PV & storage performance of your system and enhance savings The Pure Storage 5 box unit has a local monitor and also includes access to our portal which is free. The portal enables remote monitoring and can be accessed via your computer, laptop or mobile phone. The system helps the home owner optimise self-consumption and reduce energy bills. Easy to install - ‘plug and play’ The battery, electrical circuits and energy manager are conveniently located in a single box, which helps with a simple and trouble free installation. Once a convenient location has been established the pure storage system is simply connected to your existing electrical distribution system. - One cable is required to connect the unit to your distribution board - CT clamps are used to measure PV generation and measure import and export energy to your home - If you chose the battery back-up system for critical circuits in case of power cuts then one cable between the critical circuits and the pure core 5 is required - Install the portal to your PC and mobile devices to enable remote monitoring
‘Key Benefits’ MARKET LEADER: SECURITY: SECURITY: Increase self absorption of Reduce threat of rising Increase independence your PV from 30% up to 85%. energy costs. from the electricity grid. SUPPORT: ENVIRONMENT: It’s a British product, - designed Significantly reduce developed assembled and distributed electrical carbon footprint in the UK. Service and support is from up to 70% with PV. our local office. SIMPLICITY: One of its key features is it’s SAFETY: ease installation – everything is Critical circuit enables you to included in one box, - battery, maintain power for critical REDUCED BILLS. control system. Simple plug and circuits (lights, fridge) if there Reduce energy bills. play. is a power cut.
‘On line Portal’ • PureDrive provides free an online portal, which enables remote monitoring. • The Energy Storage System can be accessed via your computer, laptop or mobile phone. • The portal is designed to support the home owner optimise self-consumption and further reduce energy bills.
About PureDrive Energy. • Pure Drive Energy Ltd, family with Puredrive Battery Ltd, • Pure Drive Batteries -10 years of experience in the development, deployment and placement of battery technologies. • Extensive experience in lead acid batteries through to the latest Lithium Ion batteries. • Puredrive Energy’s unique (in house designed) battery is at the heart of all its products. • Puredrive Energy Ltd is a British company that designs, develops, builds and distributes its own battery storage systems. • Current focus is on the Domestic storage market. • With UK design and assembly of its products it is ideally placed to exploit its established supply chain to maximum effect. Making delivery and distribution, in volume, to its UK market place speedy and simple. • The Puredrive Energy range of products has been born out of over 10 years of market and customer experience. Consistently delivering richly featured products which meet the main needs of its customer’s requirements. Puredrive Energy Ltd, Unit 7 Gamma, Orchard Trading Estate, Toddington, Glos, GL54 5EB, Tel: 01242 621155
