Preparing for the Maximum of Solar Cycle 24 Joseph Kunches Space - PowerPoint PPT Presentation

Preparing for the Maximum of Solar Cycle 24 Joseph Kunches Space Weather Prediction Center National Centers for Environmental Prediction National Oceanic and Atmospheric Administration Boulder, Colorado USA October 28, 2008 NAV 08/ILA 37,

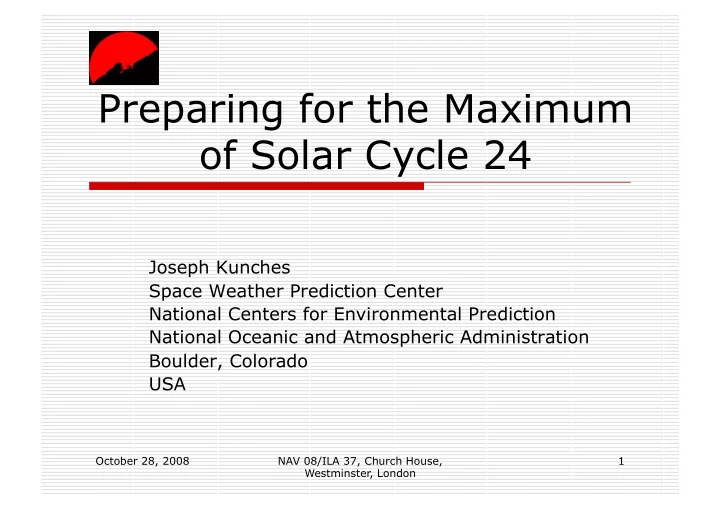

  1. Preparing for the Maximum of Solar Cycle 24 Joseph Kunches Space Weather Prediction Center National Centers for Environmental Prediction National Oceanic and Atmospheric Administration Boulder, Colorado USA October 28, 2008 NAV 08/ILA 37, Church House, 1 Westminster, London

  2. Outline  The problem – space weather  The question – Cycle 24: How strong?  The issues  Science  Users  The outlook October 28, 2008 NAV 08/ILA 37, Church House, 2 Westminster, London

  3. How Does Space Weather Affect Navigation Systems?  Geomagnetic Storms  Solar Radiation Storms  Radio Blackouts October 28, 2008 NAV 08/ILA 37, Church House, 3 Westminster, London

  4. Eruptive Sun to Affected Earth October 28, 2008 NAV 08/ILA 37, Church House, 4 Westminster, London

  5. Cycle 24 – Just Beginning, Growing October 28, 2008 NAV 08/ILA 37, Church House, 5 Westminster, London

  6. Do No Spots = Weak Cycle 24? October 28, 2008 NAV 08/ILA 37, Church House, 6 Westminster, London

  7. October 28, 2008 NAV 08/ILA 37, Church House, 7 Westminster, London

  8. Cycle 24 Predictions 4th Generation Pesnell Climatology and Recent Climatology Spectral and Neural Network Precursor Physics Based October 28, 2008 NAV 08/ILA 37, Church House, 8 Westminster, London

  9. April 2007 Prediction  Solar Minimum will be in March, 2008  Cycle 24 will be small  R i = 90  August, 2012 or  Cycle 24 will be large  R i = 140  October, 2011  The panel is split October 28, 2008 NAV 08/ILA 37, Church House, 9 Westminster, London

  10. Why is the Panel Split?  The Sun recycles its magnetic fields in 1 solar cycle?  The Sun recycles its magnetic fields in 2-3 solar cycles? October 28, 2008 NAV 08/ILA 37, Church House, 10 Westminster, London

  11. What Would Break the Deadlock?  Would small cycle proponents concede? What they said approx. one year ago   If the polar field strength increases → increased Cycle 24  If geomagnetic activity increases → increased Cycle 24 October 28, 2008 NAV 08/ILA 37, Church House, 11 Westminster, London

  12. And in the other direction….  Would big cycle proponents concede?  What they said approx. one year ago  A clear demonstration of how polar fields can produce sunspots at latitudes below 30º just a few years later  The already historically weak meridional flow may weaken by yet another factor of two and produce a small cycle 24  No evidence of new cycle spots by mid-2008 October 28, 2008 NAV 08/ILA 37, Church House, 12 Westminster, London

  13. Space Weather Effects  Issues include:  High latitude users (aviation, maritime, geophysical)  Middle latitude radio impacts  Evolving (during solar minimum) technologies  GIOVE A & B, GPS L2C  FAA ADS-B October 28, 2008 NAV 08/ILA 37, Church House, 13 Westminster, London

  14. In 2008, the Department of Homeland Security was named Executive Agent for development of a national backup for critical systems used in position, navigation and timing. Enhanced LORAN (eLORAN) has been identified as the primary candidate for this backup. Solar flares, radiation storms, and geomagnetic storms all impact the performance of LORAN October 28, 2008 NAV 08/ILA 37, Church House, 14 Westminster, London

  15. Navigation at High Latitudes  Global warming causes polar ice melt  Less ice means more sea lanes  GPS coverage poor at high latitudes  eLoran primary there?  (Space weather hot spot!) October 28, 2008 NAV 08/ILA 37, Church House, 15 Westminster, London

  16. Off Shore Oil Exploration October 28, 2008 NAV 08/ILA 37, Church House, 16 Westminster, London

  17. Nowcast of Atmospheric Ionizing Radiation for Aviation Safety (NAIRAS) Earth System Models Predictions/Forecasts Decision Support Value & Benefits Systems, Assessments, to Society Management Actions Radiation Dose Rates: Improvements in the decision- making, decisions, and actions AIR (parametric) Ionizing Radiation First-ever, data-driven, real-time NAIRAS decision support tool HZETRN (physics-based) Nowcast prediction of biologically harmful for NOAA/SEC space weather radiation exposure levels at 3-D Dose Equivalent forecasts, warnings, and commercial airline altitudes advisories Near-Earth Space Environment 3-D Differential Flux Quantitative and qualitative NAIRAS available at NOAA/ • Badhwar/O’Neill GCR Model benefits from the improved ADD experimental aviation- • Empirical Cutoff Rigidity decisions related weather forecasts, observations, and analysis ( IGRF+T05) Comprehensive database of NAIRAS Distributed radiation dose rates to formulate Network System • Physics-based Cutoff Rigidity recommended annual and career High-Performance Specific analyses to support (LFM/CMIT+SEP-trajectory) limits to ionizing radiation Computer Systems the decision making exposure Server Interface Predict real-time radiation Comprehensive database of exposure at commercial airline radiation dose rates for airlines to Operational and Archival altitudes (includes background assess cost/risk of polar routes Earth Observations Databases GCR and SEP events) Real-time prediction of Provide accumulated radiation radiation exposure levels to Near-Earth Space Environment exposures for representative enable optimal balance Differential Particle Flux set of domestic, international, NASA/ACE between airline cost and air and polar routes HZE Particles (Z=5-26) traveler health risk during NASA/HEAO-3 Light-Ions (Z=1-4) solar storm (SEP) events NOAA/GOES Neutrons Specific Decisions / Actions Improve understanding of biological effects of Pions and Muons Limit aircrew flight hours to Assimilated Atmospheric atmospheric ionizing radiation within recommended annual Electromagnetic and career limits on aircrew and passengers Atmospheric Depth (NCAR/NCEP) Cascasde Particles through collaboration of Alter route and/or altitude epidemiological studies by during SEP events NIOSH Ground-Based Observations, Neutron Count Monitors October 28, 2008 NAV 08/ILA 37, Church House, 18 Parameters & Products Westminster, London

  18. repeat of previous cycle Owens Valley Radio noise level Solar Array on GPS frequency Photo by Gary Palmer

  19. Solar Radio Burst Of December 6, 2006: Observed by the Global GPS Network Global GPS Network Applications • Ultra-precise positioning (10-20 cm) GUAM • Global coverage: Land, Air, Space GLPS • Used by satellites in orbit Positioning Fails Positioning fails Galapagos: Sunlit during SRB GUAM: Nighttime during SRB 20

  20. Solar Radio Bursts on GPS October 28, 2008 NAV 08/ILA 37, Church House, 21 Westminster, London

  21. International Space Environment Service (ISES) Regional Warning Centers October 28, 2008 NAV 08/ILA 37, Church House, 22 Westminster, London

  22. WMO Initiative  The Potential Role of WMO in Space Weather  A REPORT ON THE POTENTIAL SCOPE, COST AND BENEFIT OF A WMO ACTIVITY IN SUPPORT OF INTERNATIONAL COORDINATION OF SPACE WEATHER SERVICES, PREPARED FOR THE SIXTIETH EXECUTIVE COUNCIL October 28, 2008 NAV 08/ILA 37, Church House, 23 Westminster, London

  23. Conclusion  The problem – space weather looms  The question – Cycle 24: How strong? TBD  The issues  Science -- shaky  Users -- needy  The outlook  Activity picking up; get space weather services from ISES October 28, 2008 NAV 08/ILA 37, Church House, 24 Westminster, London
