pixel trigger in cms
play

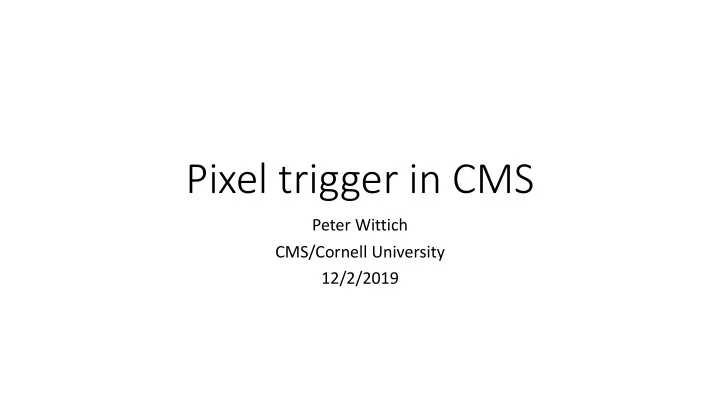

Pixel trigger in CMS Peter Wittich CMS/Cornell University - PowerPoint PPT Presentation

Oct 22, 2022 •513 likes •603 views

Pixel trigger in CMS Peter Wittich CMS/Cornell University 12/2/2019 Trigger in CMS for Phase 2: track trigger Big change for CMS in Phase 2: add information from solid state tracking detector to the hardware trigger Phase 2 CMS tracker

  1. Pixel trigger in CMS Peter Wittich CMS/Cornell University 12/2/2019

  2. Trigger in CMS for Phase 2: track trigger • Big change for CMS in Phase 2: add information from solid state tracking detector to the hardware trigger • Phase 2 CMS tracker is a mixed pixel/strip detector 2S • Outer tracker: Pixel-Strip (PS) and Strip-Strip (2S) modules • Inner tracker: conventional pixel detector PS Pixel triggers -- Peter Wittich 2

  3. Track trigger uses OT • Physics goals: • Better turn-on curves for muons, other high pt tracks • Associate jets with vertices • Better MET turn-on (PUPPI clean-up of stray energy to pile-up) • Requirements: • Low-ish PT threshold (2 or 3 GeV/c) • Good z0 determination (1 mm) • High efficiency • No specification on d0 resolution • Initial studies all assumed d0=0 to improve pt resolution Pixel triggers -- Peter Wittich 3

  4. PT modules • Front-end data reduction via special modules that make PT cut • Factor of 10 reduction • Enables L1TT with outer tracker • Data rate still 20-40 Tbps Pixel triggers -- Peter Wittich 4

  5. Physics goals of run 4: • Higgs physics, new physics searches, forward physics • No explicit goal to do B physics • Many new physics models predict displaced tracks • Seems like a good place for a pixel trigger Pixel triggers -- Peter Wittich 5

  6. Could CMS pursue a pixel trigger? • Idea has been floated several times, mainly studied by one group of proponents • Use cases: • electron tracking. Offline electron tracking uses the innermost pixel layers in looking for the track of the electron before it has radiated. Emulate with an ecal-seeded tracking pass (ROI-based) • B tagging. OT distance from beam line means not enough d0 resolution for ctau ~ b lifetime • Note that very long lived tracks (few mm – 5 cm ctau) can be reco’d by OT • Technical issues? • Large number of readout channels means likely only possible as a ROI-seeded trigger • Latency window would be very tight but possibly doable doi:10.1088/1748-0221/10/10/C10001 https://doi.org/10.22323/1.282.0243 Pixel triggers -- Peter Wittich 6

  7. CMS decided against pursuing this • We had recently (18 months ago) come up with an idea of how to pursue this from a technical perspective • Special joint FIFO-RAM object (destructive read) • Seeded by L1T (3-4 us after collision) • Re-examined idea of electron tracking improvements • Concluded that it wasn’t obvious you couldn’t get the same performance gains with a special OT-only tracking pass • Idea was abandoned again • Nota bene: sunk due to lack of a compelling physics case Pixel triggers -- Peter Wittich 7

Recommend

Introduction to pixel track isolation The purpose of track isolation algorithm is an additional

Introduction to pixel track isolation The purpose of track isolation algorithm is an additional

Introduction to pixel track isolation The purpose of track isolation algorithm is an additional improvement of level-1 pixel trigger performance. Procedure of pixel track isolation Reconstructed pixel tracks using kinematic parameters

669 views • 27 slides
A track finding algorithm based on A track finding algorithm based on pixel detector for the

A track finding algorithm based on A track finding algorithm based on pixel detector for the

A track finding algorithm based on A track finding algorithm based on pixel detector for the ATLAS pixel detector for the ATLAS second level trigger second level trigger Andrea Bar at ella Mauro Dameri - Paolo Moret t ini Fabrizio

352 views • 16 slides
Pixel Presentation What is Pixel Pixel is an education and training institution with a specific

Pixel Presentation What is Pixel Pixel is an education and training institution with a specific

Pixel Presentation What is Pixel Pixel is an education and training institution with a specific expertise in International cooperation and project management Where is Pixel Pixel Quality and Accreditations Pixel has received the following

1.37k views • 67 slides
Pixel Art What is pixel art? Pixel art is a digital art form that is created in raster in its

Pixel Art What is pixel art? Pixel art is a digital art form that is created in raster in its

VA 402 class presentation by Berrin Sun Supervised by Ekmel Ertan Pixel Art What is pixel art? Pixel art is a digital art form that is created in raster in its original size, and that is edited in pixel level. Types isometric non-isometric

590 views • 40 slides
Trigger and DAQ at LHC Trigger and DAQ at LHC C.Schwick Contents Contents INTRODUCTION The

Trigger and DAQ at LHC Trigger and DAQ at LHC C.Schwick Contents Contents INTRODUCTION The

Trigger and DAQ at LHC Trigger and DAQ at LHC C.Schwick Contents Contents INTRODUCTION The context: LHC & experiments PART1: Trigger at LHC Requirements & Concepts Muon and Calorimeter triggers (CMS and ATLAS) Specific solutions

972 views • 66 slides
Trigger and DAQ at LHC Trigger and DAQ at LHC C.Schwick Contents Contents INTRODUCTION The

Trigger and DAQ at LHC Trigger and DAQ at LHC C.Schwick Contents Contents INTRODUCTION The

Trigger and DAQ at LHC Trigger and DAQ at LHC C.Schwick Contents Contents INTRODUCTION The context: LHC & experiments PART1: Trigger at LHC Requirements & Concepts Muon and Calorimeter triggers (CMS and ATLAS) Specific solutions

1.19k views • 90 slides
Development of the CMS Phase-1 Pixel Online Monitoring System and the Evolution of Pixel Leakage

Development of the CMS Phase-1 Pixel Online Monitoring System and the Evolution of Pixel Leakage

Development of the CMS Phase-1 Pixel Online Monitoring System and the Evolution of Pixel Leakage Current Fengwangdong Zhang On behalf of CMS Pixel Collaboration The 9th International Workshop on Semiconductor Pixel Detectors for Particles and

564 views • 39 slides
DAQ/Trigger status and planned developments Sergey Boyarinov Mar 5, 2019 DAQ/Trigger Hardware

DAQ/Trigger status and planned developments Sergey Boyarinov Mar 5, 2019 DAQ/Trigger Hardware

DAQ/Trigger status and planned developments Sergey Boyarinov Mar 5, 2019 DAQ/Trigger Hardware VXS (24) Global Trigger Crate VXS (1) FADCs (scalers) from fast detectors PMTs CLUSTERS (ECAL, PCAL, FTOF, CTOF, SSPs VTPs SEGMENTS HTCC,

594 views • 18 slides
results PHYSIOTHERAPY What Is Trigger Point Dry Needling? How Is TDN Different From Trigger Point

results PHYSIOTHERAPY What Is Trigger Point Dry Needling? How Is TDN Different From Trigger Point

T rigger P oinT D ry n eeDling results PHYSIOTHERAPY What Is Trigger Point Dry Needling? How Is TDN Different From Trigger Point Injection? Trigger point dry needling (TDN) is a specifjc treatment technique TDN does not deliver any medications.

493 views • 3 slides
Mu2e Grounding and Shielding Review: Trigger & DAQ R. Rivera Trigger & DAQ L2 Manager

Mu2e Grounding and Shielding Review: Trigger & DAQ R. Rivera Trigger & DAQ L2 Manager

Mu2e Grounding and Shielding Review: Trigger & DAQ R. Rivera Trigger & DAQ L2 Manager 5/10/16 Introduction and Scope Trigger and Data Acquisition (TDAQ) - Provides necessary components for the collection of digitized data from the

549 views • 9 slides
Triggers (MySQL Version) CREATE TRIGGER <trigger name> {BEFORE | AFTER} CS 235: {INSERT |

Triggers (MySQL Version) CREATE TRIGGER <trigger name> {BEFORE | AFTER} CS 235: {INSERT |

Triggers (MySQL Version) CREATE TRIGGER <trigger name> {BEFORE | AFTER} CS 235: {INSERT | UPDATE | DELETE} Introduction to Databases ON <table name> FOR EACH ROW Svetlozar Nestorov <SQL statements> Lecture Notes #14

366 views • 5 slides
The pixel hybrid photon detectors The pixel hybrid photon detectors f or the LHCb LHCb- RI CH

The pixel hybrid photon detectors The pixel hybrid photon detectors f or the LHCb LHCb- RI CH

Pixel 2000 Pixel 2000 I nt ernat ional Workshop on Semiconduct or Pixel Det ect ors f or Part icles and X-Rays J une 5-8, 2000 Port o Ant ico, Genova, I t aly The pixel hybrid photon detectors The pixel hybrid photon detectors f or the LHCb

503 views • 17 slides
Physical Study of the BES Trigger System Da-Peng JIN Trigger Group IHEP, Beijing, China

Physical Study of the BES Trigger System Da-Peng JIN Trigger Group IHEP, Beijing, China

Physical Study of the BES Trigger System Da-Peng JIN Trigger Group IHEP, Beijing, China jindp@mail.ihep.ac.cn Outline Brief introduction to the BES Trigger simulation schemes Simulations of the MDC (Main Drift Chamber)

656 views • 49 slides

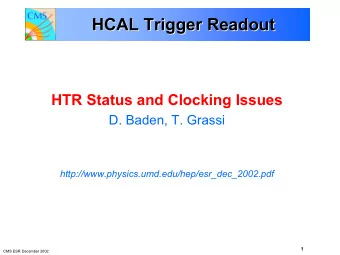

HCAL Trigger Readout HCAL Trigger Readout HCAL Trigger Readout HTR Status and Clocking Issues
