Periodic Thresholds and Rotations of Relations Jonathan Hahn - PowerPoint PPT Presentation

Periodic Thresholds and Rotations of Relations Jonathan Hahn February 2015 1 / 29 18 O content of the last 2Ma 2 / 29 Huybers Discrete Model V t = V t 1 + t and if V t T t terminate at + b c = T t t Upon

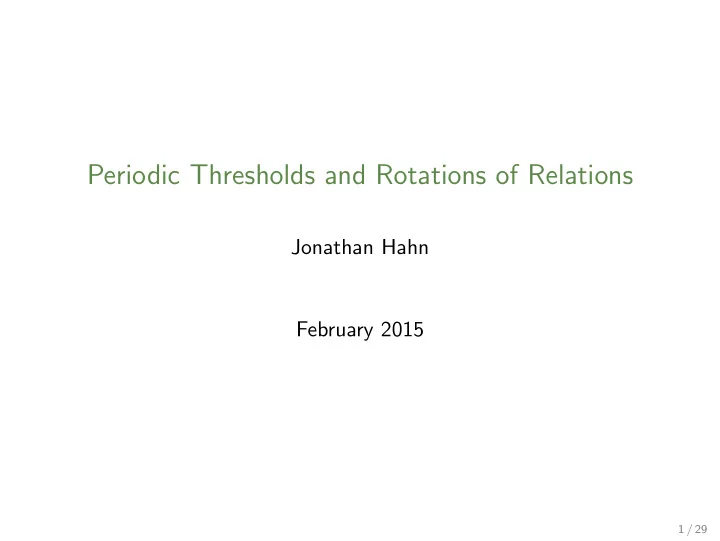

  1. Periodic Thresholds and Rotations of Relations Jonathan Hahn February 2015 1 / 29

  2. δ 18 O content of the last 2Ma 2 / 29

  3. Huybers’ Discrete Model V t = V t − 1 + η t and if V t ≥ T t terminate at + b − c θ ′ = T t t Upon termination, linearly reset V to 0 over 10 Ka V : ice volume : deglaciation threshold T θ ′ : scaled obliquity η : ice volume growth rate 3 / 29

  4. A deterministic run of the model Huybers, P. Glacial variability over the last two million years: an extended depth-derived agemodel, continuous obliquity pacing, and the Pleistocene progression. Quaternary Science Reviews . 2007. 4 / 29

  5. Discrete model with combined forcing Huybers, P. Combined obliquity and precession pacing of late Pleistocene deglaciations. Nature . 2011. 5 / 29

  6. Huybers, P. and Wunsch, C. Obliquity pacing of the late Pleistocene glacial terminations. Nature . 2005. 6 / 29

  7. Idealized Model Discrete model: V t i = V t i − 1 + η t i ∆ t and if V t i ≥ T t i terminate = at i + b + c sin(2 π t i ) T t i ∆ t = t i − t i − 1 Continuous model: let ∆ t → 0. Let V t 0 ( t ) be the volume with initial condition V t 0 ( t 0 ) = 0. 7 / 29

  8. Numerical Simulations 8 / 29

  9. Numerical Simulations 9 / 29

  10. Another model: Neuron Potentials dv = S 0 dt v ( t + ) = 0 if v ( t ) = T t = θ 0 + λ sin( ω t + φ ) T t : electric potential v T : firing threshold J. P. Keener, F. C. Hoppensteadt, and J. Rinzel. Integrate-and-fire models of nerve membrane response to oscillatory input. SIAM Journal on Applied Mathematics, 41:503, 1981. 10 / 29

  11. Reduction to a Periodic Map Suppose the threshold T is periodic: T ( x + 1) = T ( x ). Let g : R → R be the section map sending a termination time t to the next termination time. g ( t ) = min { t ′ > t : V t ( t ′ ) = 0 } Then g is also periodic: g ( t + 1) = g ( t ). 11 / 29

  12. Reduction to a Periodic Map The map g can be smooth, continuous, or discontinuous. 12 / 29

  13. Circle Maps A function f : S 1 → S 1 is a circle map. Let π : R → S 1 be defined as π ( x ) = e 2 π ix A lift of a circle map is a map F : R → R such that π ◦ F = f ◦ π 13 / 29

  14. Circle Maps • There are infinitely many lifts of any circle map f . • If f is continuous, any two continuous lifts differ by an integer. • We say a continuous circle map f is orientation preserving if a lift F has the property F ( x ) ≤ F ( y ) if x < y . 14 / 29

  15. Rotation Number Choose a basepoint x ∈ S 1 and x ′ ∈ R with π ( x ′ ) = x . Then for f with lift F define F n ( x ′ ) − x ′ ρ ( x , f ) = ρ ( x ′ , F ) = lim n n →∞ 15 / 29

  16. Rotation Number Choose a basepoint x ∈ S 1 and x ′ ∈ R with π ( x ′ ) = x . Then for f with lift F define F n ( x ′ ) − x ′ ρ ( x , f ) = ρ ( x ′ , F ) = lim n n →∞ ”Average” amount of rotation from one iteration of f 15 / 29

  17. Rotation Number Define the rotation set ρ ( f ) = { ρ ( x , f ) : x ∈ S 1 } 16 / 29

  18. Rotation Number Define the rotation set ρ ( f ) = { ρ ( x , f ) : x ∈ S 1 } • If f is a diffeomorphism and orientation-preserving, ρ ( f ) exists uniquely. (Poincar´ e) 16 / 29

  19. Rotation Number Define the rotation set ρ ( f ) = { ρ ( x , f ) : x ∈ S 1 } • If f is a diffeomorphism and orientation-preserving, ρ ( f ) exists uniquely. (Poincar´ e) • If f is degree one and continuous, ρ ( f ) is an interval [ ρ 1 ( f ) , ρ 2 ( f )]. (Ito, 1981) 16 / 29

  20. Average Displacement Set K n ( F ) = F n − id ( R ) = F n − id ([0 , 1]) n n � K ( F ) = K n ( F ) n ∈ N 17 / 29

  21. Rotation Number • For a degree one, continuous circle map f with lift F , There exists point x ∈ R with F q ( x ) = x + p p / q ∈ ρ ( f ) ⇔ 18 / 29

  22. Rotation Number • For a degree one, continuous circle map f with lift F , There exists point x ∈ R with F q ( x ) = x + p p / q ∈ ρ ( f ) ⇔ • K ( F ) = ρ ( F ) 18 / 29

  23. Standard family of circle maps f ( x ) = x + b + ω 2 π sin(2 π x ) mod 1 19 / 29

  24. Standard family of circle maps 20 / 29

  25. Discontinuous Rotations What holds true for discontinuous rotations? 21 / 29

  26. Discontinuous Rotations What holds true for discontinuous rotations? • Existence and uniqueness if f is orientation preserving. (Brette, 2003; Kozaykin, 2005) • If there exists point z with f q ( z ) = z , p / q ∈ ρ ( f ) 21 / 29

  27. Discontinuous Rotations • p / q ∈ ρ ( f ) does not imply the existence of a periodic point: f ( x ) = (1 / 2) x + 1 / 2 22 / 29

  28. Discontinuous Rotations • p / q ∈ ρ ( f ) does not imply the existence of a periodic point: f ( x ) = (1 / 2) x + 1 / 2 • BUT, if p / q ∈ ρ ( f ), orbits will tend towards a (possibly missing) periodic orbit. 22 / 29

  29. Relations on S 1 A relation on S 1 is a subset of S 1 × S 1 . The analogue of an iteration is an orbit of a relation f : { ... x − 1 , x 0 , x 1 , x 2 , ... } such that ( x i , x i +1 ) ∈ f . Rotation set is: x n − x 0 � � ρ ( f ) = ρ ( F ) = lim , ( x 0 , x 1 , x 2 , ... ) is an orbit of F n n →∞ 23 / 29

  30. Closed, Connected Relations What holds true for rotation numbers of closed, connected relations? 24 / 29

  31. Closed, Connected Relations What holds true for rotation numbers of closed, connected relations? • Connected relations might not stay connected upon iteration! 24 / 29

  32. Closed, Connected Relations What holds true for rotation numbers of closed, connected relations? • Connected relations might not stay connected upon iteration! 24 / 29

  33. Closed, Connected Relations What holds true for rotation numbers of closed, connected relations? • Connected relations might not stay connected upon iteration! 24 / 29

  34. Closed, Connected Relations • The rotation set is not always a closed interval. 25 / 29

  35. Closed, Connected Relations • The rotation set is not always a closed interval. • Consider a relation consisting of two lines: x + α , and 1 − α x . 25 / 29

  36. Closed, Connected Relations There is one orbit starting at 0 that moves up by 1 every time, with rotation number 1. All other orbits move at most 1 + α after 2 moves, with rotation number in [ α, (1 + α ) / 2]. 26 / 29

  37. Closed, Connected Relations Can these two types of orbits mix? 27 / 29

  38. Closed, Connected Relations Can these two types of orbits mix? m 1 α 27 / 29

  39. Closed, Connected Relations Can these two types of orbits mix? m 1 α n 1 − α ( m 1 α ) 27 / 29

  40. Closed, Connected Relations Can these two types of orbits mix? m 1 α n 1 − α ( m 1 α ) n 1 − α ( m 1 α ) + m 2 α 27 / 29

  41. Closed, Connected Relations Can these two types of orbits mix? m 1 α n 1 − α ( m 1 α ) n 1 − α ( m 1 α ) + m 2 α n 2 − α ( n 1 − α ( m 1 α ) + m 2 α ) 27 / 29

  42. Closed, Connected Relations Can these two types of orbits mix? m 1 α n 1 − α ( m 1 α ) n 1 − α ( m 1 α ) + m 2 α n 2 − α ( n 1 − α ( m 1 α ) + m 2 α ) n 2 − α ( n 1 − α ( m 1 α ) + m 2 α ) ... = N ? 27 / 29

  43. Closed, Connected Relations Can these two types of orbits mix? m 1 α n 1 − α ( m 1 α ) n 1 − α ( m 1 α ) + m 2 α n 2 − α ( n 1 − α ( m 1 α ) + m 2 α ) n 2 − α ( n 1 − α ( m 1 α ) + m 2 α ) ... = N ? This is a polynomial in α with integer coefficients. If α is transcendental, the equation can not be satisfied. 27 / 29

  44. What do we know? Orientation-preserving ⇒ unique rotation number Rational rotation number ⇔ periodic point 28 / 29

  45. Conjectures Conjecture: If connectedness is preserved, the rotation set is a closed interval, and ρ ( F ) = K ( F ). • (need to modify Ito’s proof that rotation sets are closed) Conjecture: ρ ( F ) = K ( F ) Conjecture: rotation set for backwards (inverse) iterations will be the same. 29 / 29
