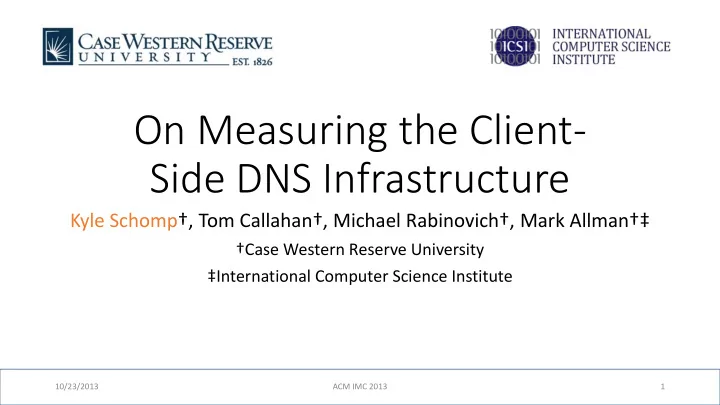

On Measuring the Client- Side DNS Infrastructure Kyle Schomp , Tom - PowerPoint PPT Presentation

Jul 28, 2023 •412 likes •1.07k views

On Measuring the Client- Side DNS Infrastructure Kyle Schomp , Tom Callahan, Michael Rabinovich , Mark Allman Case Western Reserve University International Computer Science Institute 10/23/2013 ACM IMC 2013 1 Motivation

  1. On Measuring the Client- Side DNS Infrastructure Kyle Schomp †, Tom Callahan†, Michael Rabinovich †, Mark Allman†‡ †Case Western Reserve University ‡International Computer Science Institute 10/23/2013 ACM IMC 2013 1

  2. Motivation • DNS provides the mapping between human friendly names and machine friendly addresses • amazon.com -> 1.2.3.4 • DNS resolution path is both complex and hidden • Multiple layers of resolvers • Controlled by different organizations • No clear attribution if something goes wrong 10/23/2013 ACM IMC 2013 2

  3. Our Contribution • Methodologies for discovering the client-side DNS infrastructure • Measurement techniques for teasing apart behavior of various actors • Application of our methodologies and techniques to assess behavior • How long are records retained in caches • How time-to-live (TTL) values a modified by resolvers We have also used our methodologies to study security properties of DNS. This is a separate work that is not discussed today. 10/23/2013 ACM IMC 2013 3

  4. Discovery Methodology • We randomly sample IP addresses from the Internet • To each sampled IP address, we send DNS requests looking for open resolvers • We also deploy an authoritative DNS server • Our DNS request probes target our own domain • We can collect both the ingress and egress servers of the client-side DNS infrastructure 10/23/2013 ACM IMC 2013 4

  5. The Client-Side DNS Infrastructure • Origins are either end user devices or our measurement points • 95% of ODNS are FDNS • 78% of ODNS are likely residential Structure of the client-side DNS infrastructure network devices observed in our datasets. 10/23/2013 ACM IMC 2013 5

  6. The Client-Side DNS Infrastructure • Origins are either end user devices or our measurement points • 95% of ODNS are FDNS • 78% of ODNS are likely residential Structure of the client-side DNS infrastructure network devices observed in our datasets. 10/23/2013 ACM IMC 2013 5

  7. The Client-Side DNS Infrastructure • Origins are either end user devices or our measurement points • 95% of ODNS are FDNS • 78% of ODNS are likely residential Structure of the client-side DNS infrastructure network devices observed in our datasets. 10/23/2013 ACM IMC 2013 5

  8. The Client-Side DNS Infrastructure • Origins are either end user devices or our measurement points • 95% of ODNS are FDNS • 78% of ODNS are likely residential Structure of the client-side DNS infrastructure network devices observed in our datasets. 10/23/2013 ACM IMC 2013 5

  9. The Client-Side DNS Infrastructure • Origins are either end user devices or our measurement points • 95% of ODNS are FDNS • 78% of ODNS are likely residential Structure of the client-side DNS infrastructure network devices observed in our datasets. 10/23/2013 ACM IMC 2013 5

  10. RDNS Discovery • 2/3 of RDNS in our datasets are closed • Do not respond to direct probes • Must be discovered through FDNS • Two techniques for RDNS discovery • Multiple DNS requests to each FDNS • CNAME “chains” from our ADNS 10/23/2013 ACM IMC 2013 6

  11. RDNS Discovery (cont.) • Multiple DNS requests to each FDNS RDNS 1 Origin FDNS RDNS 2 RDNS 3 10/23/2013 ACM IMC 2013 7

  12. RDNS Discovery (cont.) • Multiple DNS requests to each FDNS RDNS 1 ex1.dnsresearch.us ? Origin FDNS RDNS 2 RDNS 3 10/23/2013 ACM IMC 2013 7

  13. RDNS Discovery (cont.) • Multiple DNS requests to each FDNS RDNS 1 ex1.dnsresearch.us ? ex2.dnsresearch.us ? ex2.dnsresearch.us ? Origin FDNS RDNS 2 RDNS 3 10/23/2013 ACM IMC 2013 7

  14. RDNS Discovery (cont.) • Multiple DNS requests to each FDNS RDNS 1 ex1.dnsresearch.us ? ex2.dnsresearch.us ? ex2.dnsresearch.us ? Origin FDNS RDNS 2 ex3.dnsresearch.us ? RDNS 3 10/23/2013 ACM IMC 2013 7

  15. RDNS Discovery (cont.) • CNAME chains from our ADNS ADNS RDNS 1 RDNS 2 RDNS 3 10/23/2013 ACM IMC 2013 8

  16. RDNS Discovery (cont.) • CNAME chains from our ADNS ADNS RDNS 1 RDNS 2 RDNS 3 10/23/2013 ACM IMC 2013 8

  17. RDNS Discovery (cont.) • CNAME chains from our ADNS ADNS RDNS 1 RDNS 2 RDNS 3 10/23/2013 ACM IMC 2013 8

  18. RDNS Discovery (cont.) • CNAME chains from our ADNS ADNS RDNS 1 RDNS 2 RDNS 3 10/23/2013 ACM IMC 2013 8

  19. RDNS Discovery (cont.) • CNAME chains from our ADNS ADNS RDNS 1 RDNS 2 RDNS 3 10/23/2013 ACM IMC 2013 8

  20. RDNS Discovery (cont.) • CNAME chains from our ADNS ADNS RDNS 1 RDNS 2 RDNS 3 10/23/2013 ACM IMC 2013 8

  21. Measurement Principles • Non-Interference with Normal Operation • Probe for our own domain only • Limit probing rate • ODNS Short Lifetime • Experiment during discovery • Random bindings • Two requests for the same domain will receive different bindings with high probability 10/23/2013 ACM IMC 2013 9

  22. Measuring FDNS (Cache Injection) • Records filter through upstream resolvers before arriving at FDNS 1. ex.dnsresearch.us ? Origin FDNS RDNS 10/23/2013 ACM IMC 2013 10

  23. Measuring FDNS (Cache Injection) • Records filter through upstream resolvers before arriving at FDNS 1. ex.dnsresearch.us ? 2. ex.dnsresearch.us ? Origin FDNS RDNS 10/23/2013 ACM IMC 2013 10

  24. Measuring FDNS (Cache Injection) • Records filter through upstream resolvers before arriving at FDNS 1. ex.dnsresearch.us ? 2. ex.dnsresearch.us ? 3. ex.dnsresearch.us = Y Origin FDNS RDNS Y 10/23/2013 ACM IMC 2013 10

  25. Measuring FDNS (Cache Injection) • Records filter through upstream resolvers before arriving at FDNS 1. ex.dnsresearch.us ? 2. ex.dnsresearch.us ? 3. ex.dnsresearch.us = Y 4. ex.dnsresearch.us = Y Origin FDNS RDNS Y Y 10/23/2013 ACM IMC 2013 10

  26. Measuring FDNS (Cache Injection) • Records filter through upstream resolvers before arriving at FDNS 1. ex.dnsresearch.us ? 2. ex.dnsresearch.us ? 2. ex.dnsresearch.us = X Origin FDNS RDNS 10/23/2013 ACM IMC 2013 10

  27. Measuring FDNS (Cache Injection) • Records filter through upstream resolvers before arriving at FDNS 1. ex.dnsresearch.us ? 2. ex.dnsresearch.us ? 2. ex.dnsresearch.us = X Origin FDNS RDNS 3. ex.dnsresearch.us = X X 10/23/2013 ACM IMC 2013 10

  28. Measuring FDNS (Cache Injection) • Records filter through upstream resolvers before arriving at FDNS 1. ex.dnsresearch.us ? Origin FDNS RDNS X 10/23/2013 ACM IMC 2013 10

  29. Measuring FDNS (Cache Injection) • Records filter through upstream resolvers before arriving at FDNS 1. ex.dnsresearch.us ? 2. ex.dnsresearch.us = X Origin FDNS RDNS X • 7-9% of FDNS vulnerable to cache injection 10/23/2013 ACM IMC 2013 10

  30. Measuring RDNS • Probing an RDNS can be blocked by FDNS caching 1. ex.dnsresearch.us ? 2. ex.dnsresearch.us ? Origin FDNS RDNS 10/23/2013 ACM IMC 2013 11

  31. Measuring RDNS • Probing an RDNS can be blocked by FDNS caching 1. ex.dnsresearch.us ? 2. ex.dnsresearch.us ? 3. ex.dnsresearch.us = Y 4. ex.dnsresearch.us = Y Origin FDNS RDNS Y Y 10/23/2013 ACM IMC 2013 11

  32. Measuring RDNS • Probing an RDNS can be blocked by FDNS caching 1. ex.dnsresearch.us ? Origin FDNS RDNS Y Y 10/23/2013 ACM IMC 2013 11

  33. Measuring RDNS • Probing an RDNS can be blocked by FDNS caching 1. ex.dnsresearch.us ? 2. ex.dnsresearch.us = Y Origin FDNS RDNS Y Y 10/23/2013 ACM IMC 2013 11

  34. Measuring RDNS (Coordinated Probing) FDNS 1 Origin RDNS FDNS 2 10/23/2013 ACM IMC 2013 12

  35. Measuring RDNS (Coordinated Probing) FDNS 1 Origin RDNS Y FDNS 2 10/23/2013 ACM IMC 2013 12

  36. Measuring RDNS (Coordinated Probing) FDNS 1 Origin RDNS Y FDNS 2 10/23/2013 ACM IMC 2013 12

  37. ODNS Population • There are approximately 32 million ODNS • Estimation from sampling • Agrees with full scans from openresolverproject.org • Previous 2010 study found 15 million ODNS • The number of ODNS has doubled within 3 years 10/23/2013 ACM IMC 2013 13

  38. FDNS / RDNS Relationship RDNS are used by many FDNS FDNS use “pools” of RDNS resolvers 10/23/2013 ACM IMC 2013 14

  39. FDNS / RDNS Relationship (cont.) MaxMinds GeoIP database RTT to RDNS - ICMP ping to FDNS 10/23/2013 ACM IMC 2013 15

  40. Measuring RDNS RTT FDNS s Origin RDNS FDNS 10/23/2013 ACM IMC 2013 16

  41. Measuring RDNS RTT FDNS s Origin RDNS Y FDNS 10/23/2013 ACM IMC 2013 16

  42. Measuring RDNS RTT FDNS s t 1 Origin RDNS Y t 2 FDNS 10/23/2013 ACM IMC 2013 16

  43. Measuring RDNS RTT FDNS s t 1 Origin RDNS Y t 2 FDNS • t 2 – t 1 = RDNS RTT 10/23/2013 ACM IMC 2013 16

  44. Caching Behavior • Caching has an important impact on scalability, performance, security • Example: DNS-based traffic engineering is complicated by caching • A single cached DNS record binds an unknown load to the selected server • DNS offers a time-to-live (TTL) value to limit the duration of records in cache • Many studies have observed that the TTL rule is violated • Violations caused by: • Resolvers maintaining records in their cache beyond TTL • Resolvers modifying the TTL returned to clients 10/23/2013 ACM IMC 2013 17
