On-demand radio imaging On-demand radio imaging access to - PowerPoint PPT Presentation

On-demand radio imaging On-demand radio imaging access to calibrated data for all astronomers access to calibrated data for all astronomers Anita Richards and members of MERLIN, RadioNet and AstroGrid teams. 'Old' radio archive access

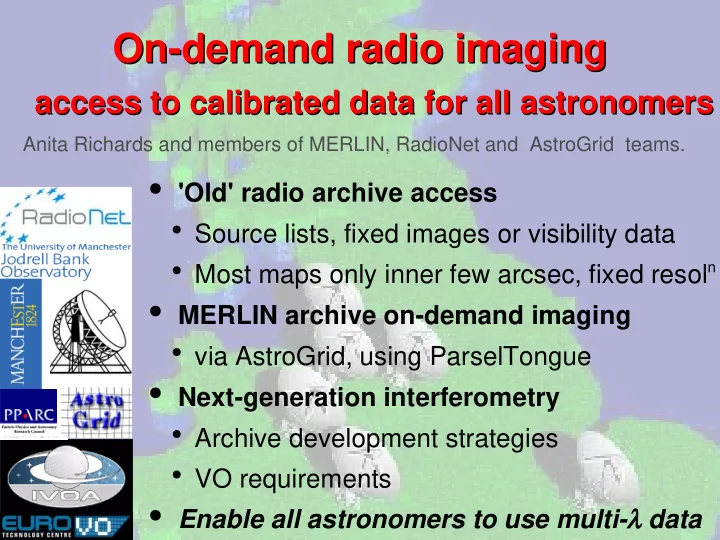

  1. On-demand radio imaging On-demand radio imaging access to calibrated data for all astronomers access to calibrated data for all astronomers Anita Richards and members of MERLIN, RadioNet and AstroGrid teams. ● 'Old' radio archive access ● Source lists, fixed images or visibility data ● Most maps only inner few arcsec, fixed resol n ● MERLIN archive on-demand imaging ● via AstroGrid, using ParselTongue ● Next-generation interferometry ● Archive development strategies ● VO requirements ● Enable all astronomers to use multi- λ data

  2. Flexible data products Flexible data products ✸ GB – TB raw data per ✸ Field of view e.g. 8', image experiment (mins - weeks) pixels 10 mas ✺ Visibility data ✺ Map out regions of interest, usually not all 10 9 pixels ✪ Cal sources. antennas etc. ✺ Domain-specific software ✺ Most PI results too varied ✸ No unique product to archive ✸ Pipeline data for VOs ✺ Resolution v. sensitivity ✺ Quick Look static images tradeoff by baseline ✺ Flexible products to order weighting ✺ 3D/polarisation cubes, ✺ Raw data option rarely wanted if alternatives! spectra, time series...

  3. Interferometry Calibrated, visibility binned visibility amplitude v. amplitudes baseline length Data examples Data examples

  4. Quick-look Interferometry image visibility amplitude v. baseline length Data examples Data examples

  5. Data cube First Moment Interferometry visibility amplitude v. baseline length Data examples Data examples

  6. ✸ Non-expert IR from warm dust in IR from warm dust in remnant AGB shell remnant AGB shell access pre- (IRAS, ISO, 2MASS) (IRAS, ISO, 2MASS) 2006 ✺ Ready-made FITS images ✪ Aladin Non-thermal nebular Non-thermal nebular ✺ Catalogues: radiocontinuum radiocontinuum ✪ SpecFind Hot stellar emission Hot stellar emission (various - Vollmer (various - Vollmer FUSE, IUE FUSE, IUE catalogue) catalogue)

  7. MERLIN 2005 MERLIN 2005 Web forms: static images Web forms: static images Calibrated visibility data Calibrated visibility data ✸ Visibilities live on disc, calibrated ✸ Sample products ✸ User version of pipeline ✺ Still need AIPS

  8. What's wrong with that? What's wrong with that? ✸ Dedicated web site fine for PIs of major projects ✪ Able to use domain-specific projects ✪ Even PIs look at pipeline calibration/images first! ✺ Not really friendly for non-experts ✺ Not convenient for multi-wavelength ✺ Can't be used easily in workflows ✸ Need VO access ✺ Single interface to many archives ✺ Standard metadata ✺ Static quick-look products ✺ Flexible data products ✸ 2003-4 ATCA prototype imager used VO model

  9. 2006 2006 AstroGrid Workbench AstroGrid Workbench MERLINImager MERLINImager Simple inputs Name/ Pos (Size Resln Freq Date)

  10. User Aladin, TopCat Download MySpace AstroGrid Workbench Task Launcher Registry MERLINImager Position, size, 2006 2006 ν , resol n , date AstroGrid Task AstroGrid Task CEA RadioNet package RadioNet package JBO server MERLINImager Python (perl/dbi) MERLINImager SIAP VOTable ParselTongue Select AIPS data FITS images, Image best 5 logs, to public (calibration, fov) HTML area

  11. ✸ Matching Interoperability (Plastic) Interoperability (Plastic) resolution ✺ Spectral index image 18 cm 6 cm HST 110,160, 220 Steep spectrum – SE not AGN

  12. Coming Coming soon: soon: + + M+VLA M+VLA HDF(N) HDF(N) Starburst with cutouts AGN cutouts AGN core 1” 10 µ Jy contours + + X-ray + selected AGN2 Starburst Starburst 1 < z < 2.5

  13. Next Generation Interferometers Next Generation Interferometers ✸ 'B2E' obs-to-archive ✸ e -MERLIN, eVBLI, EVLA integrated data path ATCA/LBA, LOFAR, ✺ Metadata retrieval GMRT, ALMA, SKA etc ✺ Committed to VO access ✺ Flexible remote ✺ Software development processing of products ✪ RadioNet – ParselTongue ✸ VO components in (Python over e.g. AIPS) archive management? ✪ NRAO – CASA (aips++ based, Python scripting). ✺ Cornish, GMRT, MMB ✪ ESO – XML binary and and other surveys metadata storage

  14. Char DM Markarian 273 @ 18 cm Char DM Markarian 273 @ 18 cm General Spatial Temporal Spectral Observable frame/units ICRF, deg MJD MHz Jy/beam 13.123456 Location 50613.5 1658 undef +55.987654 12.92, +55.58 50613.0 0.0002 0.5 Bounds 1650 1665 13.32, +56.38 50614.0 (or function) 13.123456 (on-source Support +55.987654 scan listing 1650 1665 undef 0.4 URL) f (support, (bandpass Sensitivity undef 1 1ary beam) LUT URL) Filling Factor 1 0.7 0.93 undef 50 100 0” . 2 2”.0 Resolution 5 m 1000 kHz 0” . 2 2”.0 µ Jy/beam 0” . 04 0”.0625 Sampling 16 s 1000 kHz undef 0” . 04 0”.0625

  15. Development Development ✸ Expand/apply VO standards ✺ Spatial frequencies, polarization... ✺ Tools for radio data (Jy/beam, 3+D cubes...) ✺ Authentication ✸ Expand data products/services available ✺ Robustness ✺ Visibility data, spectra, time series ✺ Single-dish data ✺ Image cutouts for Deep Fields ✺ Solve queuing/overload and other problems ✸ Impliment at other sites/other radio datasets

  16. AstroGrid/RadioNet workshop  Radio data management 1400 5 Dec–1600 8 Dec  Workshop for data providers/large surveys etc.  Data flow using archives and pipelines  ParselTongue, Common Proposal Tool etc.  Archive management  Data delivery  Publishing data to VOs  Use and development of VO tools & standards  Science use 0900 4 Dec – 1300 5 Dec Oxford w/c 4 December 2006 Oxford w/c 4 December 2006 radiovo @ jb.man.ac.uk RadioNet/AstroGrid www's radiovo @ jb.man.ac.uk RadioNet/AstroGrid www's
