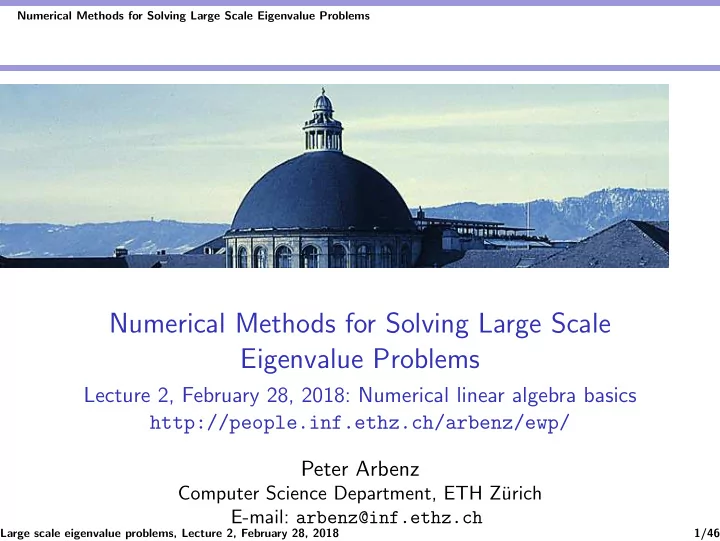

Numerical Methods for Solving Large Scale Eigenvalue Problems Numerical Methods for Solving Large Scale Eigenvalue Problems Lecture 2, February 28, 2018: Numerical linear algebra basics http://people.inf.ethz.ch/arbenz/ewp/ Peter Arbenz Computer Science Department, ETH Z¨ urich E-mail: arbenz@inf.ethz.ch Large scale eigenvalue problems, Lecture 2, February 28, 2018 1/46

Numerical Methods for Solving Large Scale Eigenvalue Problems Survey on lecture 1. Introduction 2. Numerical linear algebra basics ◮ Definitions ◮ Similarity transformations ◮ Schur decompositions ◮ SVD 3. Newtons method for linear and nonlinear eigenvalue problems 4. The QR Algorithm for dense eigenvalue problems 5. Vector iteration (power method) and subspace iterations 6. Krylov subspaces methods ◮ Arnoldi and Lanczos algorithms ◮ Krylov-Schur methods 7. Davidson/Jacobi-Davidson methods 8. Rayleigh quotient minimization for symmetric systems 9. Locally-optimal block preconditioned conjugate gradient (LOBPCG) method Large scale eigenvalue problems, Lecture 2, February 28, 2018 2/46

Numerical Methods for Solving Large Scale Eigenvalue Problems Survey on lecture ◮ Basics ◮ Notation ◮ Statement of the problem ◮ Similarity transformations ◮ Schur decomposition ◮ The real Schur decomposition ◮ Hermitian matrices ◮ Jordan normal form ◮ Projections ◮ The singular value decomposition (SVD) Large scale eigenvalue problems, Lecture 2, February 28, 2018 3/46

Numerical Methods for Solving Large Scale Eigenvalue Problems Survey on lecture Literature G. H. Golub and C. F. van Loan. Matrix Computations , 4th edition. Johns Hopkins University Press. Baltimore, 2012. R. A. Horn and C. R. Johnson, Matrix Analysis , Cambridge University Press, Cambridge, 1985. Y. Saad, Numerical Methods for Large Eigenvalue Problems , SIAM, Philadelphia, PA, 2011. E. Anderson et al. LAPACK Users Guide, 3rd edition. SIAM, Philadelphia, 1999. http://www.netlib.org/lapack/ Large scale eigenvalue problems, Lecture 2, February 28, 2018 4/46

Numerical Methods for Solving Large Scale Eigenvalue Problems Basics Notation Notations R : The field of real numbers C : The field of complex numbers R n : The space of vectors of n real components C n : The space of vectors of n complex components Scalars : lowercase letters, a, b, c . . . , and α, β, γ . . . . Vectors : boldface lowercase letters, a , b , c , . . . .   x 1 x 2   x ∈ R n ⇐   ⇒ x =  , x i ∈ R . .  .  .  x n We often make statements that hold for real or complex vectors. → x ∈ F n . − Large scale eigenvalue problems, Lecture 2, February 28, 2018 5/46

Numerical Methods for Solving Large Scale Eigenvalue Problems Basics Notation ◮ The inner product of two n -vectors in C : n � y i = y ∗ x , ( x , y ) = x i ¯ i =1 ◮ y ∗ = (¯ y 1 , ¯ y 2 , . . . , ¯ y n ): conjugate transposition of complex vectors. ◮ x and y are orthogonal, x ⊥ y , if x ∗ y = 0. ◮ Norm in F , (Euclidean norm or 2-norm) � n � 1 / 2 � � | x i | 2 � x � = ( x , x ) = . i =1 Large scale eigenvalue problems, Lecture 2, February 28, 2018 6/46

Numerical Methods for Solving Large Scale Eigenvalue Problems Basics Notation ◮  a 11 a 12 . . . a 1 n  a 21 a 22 . . . a 2 n A ∈ F m × n ⇐   ⇒ A =  , a ij ∈ F .  . . .  . . .   . . .  a m 1 a m 2 . . . a mn  ¯ a 11 a 21 ¯ . . . a m 1 ¯  a 12 ¯ a 22 ¯ . . . a m 2 ¯ ⇒ A ∗ = A ∗ ∈ F n × m ⇐    . . .  . . .   . . .   a 1 n ¯ a 2 n ¯ . . . a nm ¯ is the Hermitian transpose of A . For square matrices: ◮ A ∈ F n × n is called Hermitian ⇐ ⇒ A ∗ = A . ◮ Real Hermitian matrix is called symmetric. ◮ U ∈ F n × n is called unitary ⇐ ⇒ U − 1 = U ∗ . ◮ Real unitary matrices are called orthogonal. ◮ A ∈ F n × n is called normal ⇐ ⇒ A ∗ A = AA ∗ . Both, Hermitian and unitary matrices are normal. Large scale eigenvalue problems, Lecture 2, February 28, 2018 7/46

Numerical Methods for Solving Large Scale Eigenvalue Problems Basics Notation ◮ Norm of a matrix (matrix norm induced by vector norm): � A x � � A � := max � x � = max � x � =1 � A x � . x � = 0 ◮ The condition number of a nonsingular matrix: κ ( A ) = � A �� A − 1 � . U unitary = ⇒ � U x � = � x � for all x = ⇒ κ ( U ) = 1. Large scale eigenvalue problems, Lecture 2, February 28, 2018 8/46

Numerical Methods for Solving Large Scale Eigenvalue Problems Basics Statement of the problem The (standard) eigenvalue problem: Given a square matrix A ∈ F n × n . Find scalars λ ∈ C and vectors x ∈ C n , x � = 0 , such that A x = λ x , (1) i.e., such that ( A − λ I ) x = 0 (2) has a nontrivial (nonzero) solution. We are looking for numbers λ such that A − λ I is singular . The pair ( λ, x ) be a solution of (1) or (2). ◮ λ is called an eigenvalue of A , ◮ x is called an eigenvector corresponding to λ Large scale eigenvalue problems, Lecture 2, February 28, 2018 9/46

Numerical Methods for Solving Large Scale Eigenvalue Problems Basics Statement of the problem ◮ ( λ, x ) is called eigenpair of A . ◮ The set σ ( A ) of all eigenvalues of A is called spectrum of A . ◮ The set of all eigenvectors corresponding to an eigenvalue λ together with the vector 0 form a linear subspace of C n called the eigenspace of λ . ◮ The eigenspace of λ is the null space of λ I − A : N ( λ I − A ). ◮ The dimension of N ( λ I − A ) is called geometric multiplicity g ( λ ) of λ . ◮ An eigenvalue λ is a root of the characteristic polynomial χ ( λ ) := det( λ I − A ) = λ n + a n − 1 λ n − 1 + · · · + a 0 . The multiplicity of λ as a root of χ is called the algebraic multiplicity m ( λ ) of λ . A ∈ F n × n . 1 ≤ g ( λ ) ≤ m ( λ ) ≤ n , λ ∈ σ ( A ) , Large scale eigenvalue problems, Lecture 2, February 28, 2018 10/46

Numerical Methods for Solving Large Scale Eigenvalue Problems Basics Statement of the problem ◮ y is called left eigenvector corresponding to λ y ∗ A = λ y ∗ ◮ Left eigenvector of A is a right eigenvector of A ∗ , corresponding to the eigenvalue ¯ λ , A ∗ y = ¯ λ y . ◮ A is an upper triangular matrix,   a 11 a 12 . . . a 1 n a 22 . . . a 2 n     A =  , a ik = 0 for i > k . . ...  .  .  a nn n � ⇐ ⇒ det( λ I − A ) = ( λ − a ii ) . i =1 Large scale eigenvalue problems, Lecture 2, February 28, 2018 11/46

Numerical Methods for Solving Large Scale Eigenvalue Problems Basics Statement of the problem (Generalized) eigenvalue problem Given two square matrices A , B ∈ F n × n . Find scalars λ ∈ C and vectors x ∈ C , x � = 0 , such that A x = λ B x , (3) or, equivalently, such that ( A − λ B ) x = 0 (4) has a nontrivial solution. The pair ( λ, x ) is a solution of (3) or (4). ◮ λ is called an eigenvalue of A relative to B , ◮ x is called an eigenvector of A relative to B corresponding to λ . ◮ ( λ, x ) is called an eigenpair of A relative to B , ◮ The set σ ( A ; B ) of all eigenvalues of (3) is called the spectrum of A relative to B . Large scale eigenvalue problems, Lecture 2, February 28, 2018 12/46

Numerical Methods for Solving Large Scale Eigenvalue Problems Basics Similarity transformations Similarity transformations Matrix A is similar to a matrix C , A ∼ C , ⇐ ⇒ there is a nonsingular matrix S such that S − 1 AS = C . (5) The mapping A → S − 1 AS is called a similarity transformation. Theorem Similar matrices have equal eigenvalues with equal multiplicities. If ( λ, x ) is an eigenpair of A and C = S − 1 AS then ( λ, S − 1 x ) is an eigenpair of C. Large scale eigenvalue problems, Lecture 2, February 28, 2018 13/46

Numerical Methods for Solving Large Scale Eigenvalue Problems Basics Similarity transformations Similarity transformations (cont.) Proof : C = S − 1 AS = ⇒ CS − 1 x = S − 1 ASS − 1 x = λ S − 1 x A x = λ x and Hence A and C have equal eigenvalues and their geometric multiplicity is not changed by the similarity transformation. det( λ I − C ) = det( λ S − 1 S − S − 1 AS ) = det( S − 1 ( λ I − A ) S ) = det( S − 1 ) det( λ I − A ) det( S ) = det( λ I − A ) the characteristic polynomials of A and C are equal and hence also the algebraic eigenvalue multiplicities are equal. Large scale eigenvalue problems, Lecture 2, February 28, 2018 14/46
