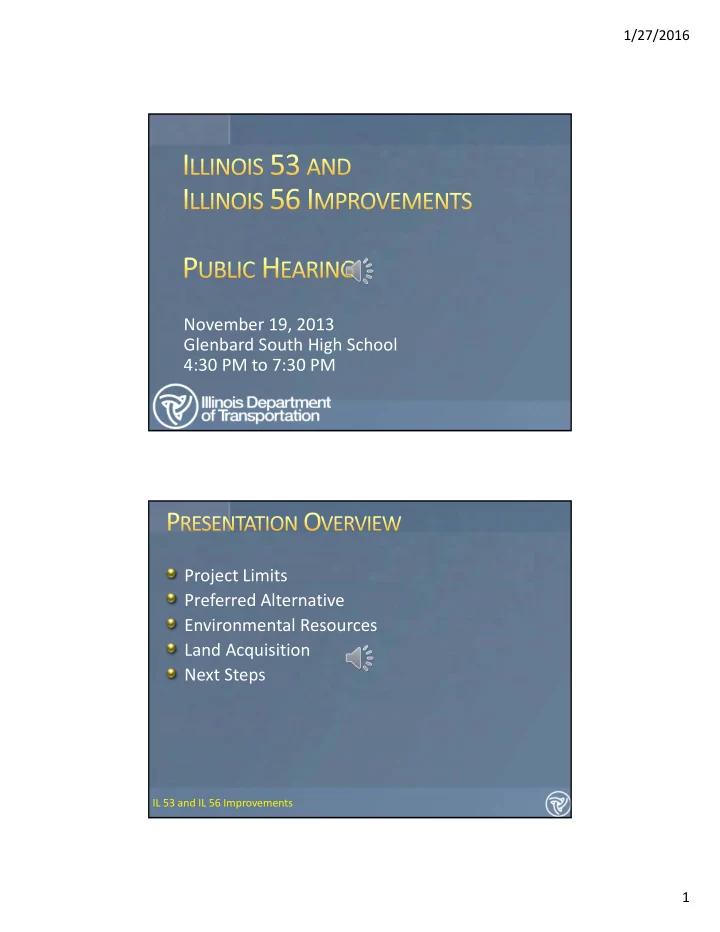

1/27/2016 November 19, 2013 Glenbard South High School 4:30 PM to 7:30 PM Project Limits Preferred Alternative Environmental Resources Land Acquisition Next Steps IL 53 and IL 56 Improvements 1

1/27/2016 GLEN ELLYN LOMBARD DOWNERS GROVE DuPage County IL 53 and IL 56 Improvements IL 53 and IL 56 Improvements 2

1/27/2016 Improves Roadway Safety Alleviates Roadway Flooding Enhances Lane Continuity Accommodates Capacity Demands Enhances Pedestrian and Bicyclist Facilities IL 53 and IL 56 Improvements Public Meeting – 2006 Noise and Drainage Forum ‐ 2007 Local Agency Coordination Park Districts, Villages, Township, County, Morton Arboretum, Forest Preserve District, County Sheriff, Fire Departments Working Groups and Agencies Valley View / Butterfield FHWA East Associations Environmental Groups Committee 53 IDNR Army Corps of Engineers IL 53 and IL 56 Improvements 3

1/27/2016 IL 53 and IL 56 Improvements Looking East IL 53 and IL 56 Improvements 4

1/27/2016 Looking North IL 53 and IL 56 Improvements DuPage County IL 53 and IL 56 Improvements 5

1/27/2016 IL 53 and IL 56 Improvements IL 53 and IL 56 Improvements 6

1/27/2016 Wetlands Impacting 11 Wetland Sites Approximately 5.8 acres Trees Coordinate with FPD to Minimize Impacts Tree Replacement 1:1 According to IDOT Policy IL 53 and IL 56 Improvements Hidden Lake Forest Preserve Section 4(f) Evaluation Approximately 6.3 Acres for Permanent or Temporary Easements No Impacts to Recreational Facilities IL 53 and IL 56 Improvements 7

1/27/2016 IL 53 and IL 56 Improvements Noise Wall Reasonable & Feasible Locations IL 53 and IL 56 Improvements 8

1/27/2016 Route 53 & Route 56 Intersection Route 53 Shifted Alignment Storm Water Detention and Water Quality Features IL 53 and IL 56 Improvements Fee Simple Acquisition of All Rights and Interest 10.34 Acres Permanent Easement Ownership Retained by Property Owner Maintenance Access 6.8 Acres Temporary Easement Ownership Retained by Property Owner Used for Grading During Construction Only 9.06 Acres IL 53 and IL 56 Improvements 9

1/27/2016 14 Residences in Floodplain Uniform Relocation Assistance and Real Estate Property Acquisition Act as Amended IDOT Land Acquisition Representatives Present Tonight IL 53 and IL 56 Improvements Phase II • Preliminary • Contract Plan • Construction Engineering and Preparation and Land • IL 56 (Funded*) Environmental Study Acquisition • IL 53 (Unfunded) • Design Approval Spring • 18 – 24 Months 2014 Phase III Phase I *Included in IDOT’s FY 2014 ‐ 2019 Multi ‐ Modal Transportation Improvement Program IL 53 and IL 56 Improvements 10

1/27/2016 Cost Estimate IL 56 / IL 53 Included in FY2014 ‐ 2019 Proposed Intersection with IL 56 Multi ‐ Modal Transportation Improvement Program = $21,000,000 IL 53 = $12,000,000 Not in the Program IL 53 and IL 56 Improvements Ask Questions View Exhibits Provide Comments Submit Tonight on a Comment Form Verbal Comments by Court Reporter Send Comments By Mail Submit Comments By Email to IL53 ‐ 56@transystems.com Due by December 11, 2013 IL 53 and IL 56 Improvements 11
