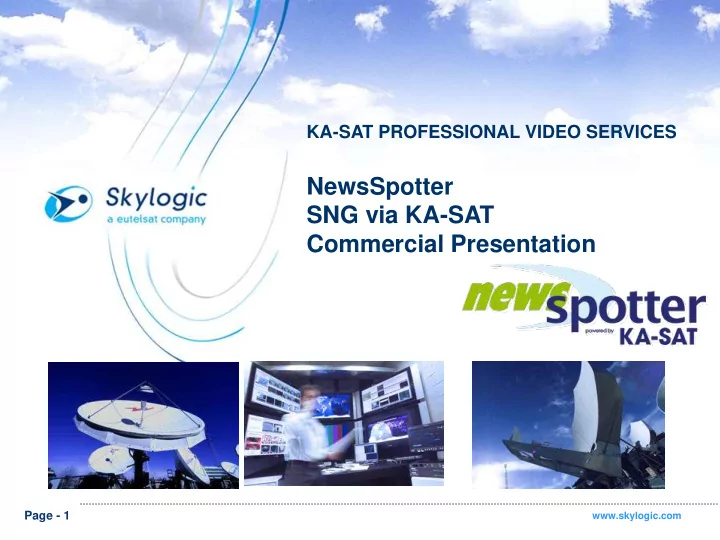

KA-SAT PROFESSIONAL VIDEO SERVICES NewsSpotter SNG via KA-SAT Commercial Presentation Page - 1 www.skylogic.com
What is NewsSpotter ? NewsSpotter via KA-SAT is a product for Ka-Band News and Data Contribution on the field • Innovative – Light and Small – IP ready • Performant • Affordable Page - 2 www.skylogic.com
Agenda • Introduction to KA-SAT • Why is the SNG via KASAT so innovative? • Contribution via KA-SAT: How does the SNG work? • Video User Terminals for SNG via KA-SAT • Products and Prices • FAQ Page - 3 www.skylogic.com
Introduction to KA-SAT Page - 4 www.skylogic.com
The Eutelsat “KA - SAT” Satellite • Launched End of December 2010 • Operational in May 2011 • Orbital position: 9°E • Frequency band: Ka Page - 5 www.skylogic.com
Multispot Ka-Band Coverage • Coverage: 82 beams • Full European Coverage • Total capacity: 70 Gbps (up to 475Mbps per Spot) Page - 6 www.skylogic.com
The KA-SAT main Target KA-SAT @ 9 ° East • An integrated system for the provision of Broadband Internet Connectivity to residential users via bidirectional affrodable User Terminals Tooway™ Kit Page - 7 www.skylogic.com
Multispot Ka-Band Coverage 82 Beams 4 Colours = 4 Freq/Pol Slots repeated all over coverage Frequencies are reused 20 times • Coverage: 82 beams • Full European Coverage • Total capacity: 70 Gbps (up to 475Mbps per Spot) Page - 8 www.skylogic.com
A closer look to a Beam Each Single Beam is fed via KA-SAT with ~250 MHz of Bandwidth (called also “FWD” Capacity) 19,7 – 20,2 GHz FWD ~250 MHz Page - 9 www.skylogic.com
A closer look to a Beam Each Single Beam is fed via KA-SAT with ~250 MHz of Bandwidth (called also “FWD” Capacity) Terminals within a Beam RTN have available ~250 MHz of “ RTN ” Capacity for 29,5 – 30 GHz ~250 MHz transmitting back to KA- SAT There are 82 Beams from KA-SAT. As each one is fed with ~250 MHz of bandwidth, it comes that KA-SAT Satellite must be fed with 82 x 250 MHz ~ 20 GHz (!) Page - 10 www.skylogic.com
How is it possible to Feed KA-SAT with 20 GHz of Info? • It is possible only reusing more than one time the same Slot of Frequency (example: 10 times the same slot of 2 GHz) Page - 11 www.skylogic.com
Dedicated Ground Infrastructure 8 “Gateways” (9m + 500 Watt Earth Stations) Operated by the Italian Subsidiary Skylogic Fiber ring fully redunded (20 GB + 20 GB) KA-SAT Backbone is accessible via Network POPs Page - 12 www.skylogic.com
KA-SAT terrestrial network: GWs and POPs page 13 Page - 13 www.skylogic.com
KA-SAT terrestrial network: POPs Country Carrier house Carrier house address IT Skylogic Via Centallo 72, 10156 Turin IT Skylogic SA Ille, Cagliari FR Telehouse 2 Boulevard Voltaire, 75011 Paris FR Telehouse 1 Rue des Leuneurs 38, 75002 Paris ES Interxion Calle Albasanz 71 28037, Madrid UK Telecity Harbour Exchange 6&7 London DE Interxion FRA4 Weismullerstraße 19 60314 Frankfurt DE Interxion FRA5 Hanauer Landstraße 308a 60314 Frankfurt page 14 Page - 14 www.skylogic.com
Example: Beams served by Arganda GW page 15 Page - 15 www.skylogic.com
Frequencies Used by the System « FWD » • User Terminals within Beams 19,7 – 20,2 GHz 18,2 – 19,7 GHz « RTN » 28 - 29,5 GHz 29,5 – 30 GHz User Terminals within Beams Page - 16 www.skylogic.com
News Gathering via Satellite and the IP Revolution: why is KA-SAT so innovative for SNG? Page - 17 www.skylogic.com
OU Data Gathering: Ka Advantages • 1st Consideration: EFP (Electronic Field Production) equipment are becoming cheaper and cheaper (they have become already, actually…) ~35-80 k € ~3-8 k € Page - 18 www.skylogic.com
OU Data Gathering: Ka Advantages • 2nd Consideration: The EFP/ENG WorkFlow has moved from Tape to Memory-Card with - again - significant reductions in cost and a seamless integration into IP networks Page - 19 www.skylogic.com
OU Data Gathering: Ka Advantages • Result: EFP production requires today a very limited investment and is seamlessly integrated into IP Networks; EFP systems can today be deployed in large volumes by Broadcasters due to their improved affordability Light + + + = Cheap + IP • So, Broadcasters are looking for Cheap and Light systems, providing IP connectivity, as an ideal complement of today’s EFP System for News Gathering Page - 20 www.skylogic.com
The Concept to its extremes... ( + ) • The Ideal Complement of the “Extremely Light” Digital Workflow • An highly portable, light, compact terminal, IP native, performant for LIVE Video and FILE Push Page - 21 www.skylogic.com
Characteristics of NewsSpotter • easy to transport (backpack possible) Light • easy to manage Performant • perfect for most applications (also HD) (up to 20 Mbit) High • perfect for Occasional Use Availability IP • perfect integration into IP workflows Perfect for OU Newsgathering Page - 22 www.skylogic.com
Contribution Via KA-SAT: How does it work? Page - 23 www.skylogic.com
In a nutshell … • NewsSpotter uses professional grade SB2 Terminals for performing Video Contribution from “ Crews on Field ” to Broadcaster ’ s MCR Page - 24 www.skylogic.com
How to Operate Contribution via KA-SAT (1) • Require “Professional Grade” Terminals • Via IP over Satellite and Fiber Backbone – Fully Bidirectional • Automatically Routed • Uses Only MANAGED Network Inter PoP Backbone Page - 25 www.skylogic.com
How to Operate Contribution via KA-SAT (2) • Require “Professional Grade” Terminals • Via IP over Satellite and Fiber Backbone – Fully Bidirectional • Automatically Routed • Uses Only MANAGED Network Inter PoP Backbone PoP Page - 26 www.skylogic.com
Typical Services – Typical Services required to go through a contribution link: Video Contribution (RTN); return Confidence Signal (FWD); Interphono (Bidir.); Web Browsing IP Stack IP Stack LIVE Video LIVE Video Contribution Encoder Video Mixer LIVE Confidence Monitoring LIVE Return Video Return Video PoP Intercomm Intercomm Push (to local storage) FTP/Push + Internet Internet Page - 27 www.skylogic.com
Principles of Operation of IP Streaming Streaming towards the IP Public address of « Customer doorstep » LIVE Video Encoder UDP Video IP traffic within such boundaries will travel over DEDICATED fiber+satellite trunks where the rate will be controlled and committed Inter GW Backbone Regional Decoder UDP Video PoP IP Public address of « Customer doorstep » Customer Premises Page - 28 www.skylogic.com
Flexibility given by IP Routing! Multiple Streaming LIVE Video Encoder UDP Video Encoder UDP Video Encoder UDP Video Inter GW Backbone Regional Decoder UDP Video PoP Decoder Three UDP UDP Video streams in Decoder Parallel! UDP Video Customer Premises Page - 29 www.skylogic.com
Flexibility given by IP Routing! Encoder UDP Video More Customers with the same Encoder VAN!!! UDP Video Regional PoP Regional PoP Decoder UDP Video Decoder UDP Video Customer Premises Customer Premises Page - 30 www.skylogic.com
from the Consumer Tooway™ Terminal to the Professional SNG Terminal Page - 31 www.skylogic.com
A very Cheap User Terminal • Simple Installation • Compact (75 cm) • Cheap (340 EURO ) IDU ODU Just one 75 Ohm antenna cable! Page - 32 www.skylogic.com
A small Step to a “PRO” Terminal • Simple Installation Add Motorisation + • Compact (75 cm) Autoacquire • Cheap ( 4 40 EURO ) Use a « PRO » grade Terminal IDU ODU Reuse the TRIA Just one 75 Ohm antenna cable! Page - 33 www.skylogic.com
The ideal “PRO” Terminal • Light (~10 kg backpack ~ 35 kg roofmount) • Very Cheap (~1 5 k Euro) • Quick Setup (~ 2 minutes + Autopoint) Page - 34 www.skylogic.com
SNG “Light”: the ideal range • Eutelsat has driven the development of Terminals: RFI published in July 2010 • Ideal Range of Terminals foresees three product lines Fly-Away Vehicular Rooftop Mount Example of Fly-Away mount Example of Rooftop vehicular mount Manual Motor+Autopoint Motor+Autopoint ~ 10 kg Small/Light Robust/Ruggedised ~ 1 5 k € ~ 1 5 k € ~ 25/4 5 k € Page - 35 www.skylogic.com
Dawson Motorized (+Autopoint Apr 2012) Page - 36 www.skylogic.com
Dawson Motorized (+Autopoint by mid 2012) Page - 37 www.skylogic.com
Dawson Motorized (+Autopoint mid 2012) Page - 38 www.skylogic.com
Cobham Vehicular Mount Page - 39 www.skylogic.com
AVL Motorized + Autopoint (Prototype) Page - 40 www.skylogic.com
ViaSat Fly Away Page - 41 www.skylogic.com
Cobham Fly-Away Page - 42 www.skylogic.com
Traditional “Fixed” Terminals • Fixed Tooway ODUs (75 and 120 cm) can also be used for NewsSpotter Occasional Use Page - 43 www.skylogic.com
The Outdoor Unit - TRIA IF Tx/Rx • 3 Watt (Consumer) • 4 Watt (Pro) « TRIA » (Transmit-Receive Integrated Assembly) Page - 44 www.skylogic.com
