MySQL GTID Implementation, Maintenance, and Best Practices Brian - PowerPoint PPT Presentation

MySQL GTID Implementation, Maintenance, and Best Practices Brian Cain (Dropbox) Gillian Gunson (GitHub) Mark Filipi (SurveyMonkey) Agenda Intros Concepts Replication overview GTID Intro Implementation Maintenance

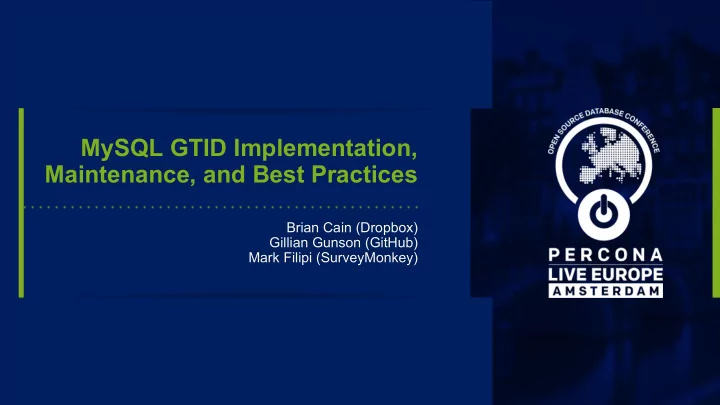

  1. MySQL GTID Implementation, Maintenance, and Best Practices Brian Cain (Dropbox) Gillian Gunson (GitHub) Mark Filipi (SurveyMonkey)

  2. Agenda Intros ❏ Concepts ❏ Replication overview ❏ GTID Intro ❏ Implementation ❏ Maintenance ❏ New 5.7 Features and Advanced Concepts ❏ 2

  3. About Mark • Works at SurveyMonkey • From Kansas • Formerly of PalominoDB and Garmin and preschool 3

  4. About Gillian • Senior Infrastructure Engineer at GitHub • From Vancouver, BC, Canada • Formerly of Okta, PalominoDB, Oracle, Disney 4

  5. About Brian • Database Engineer, MySQL SRE at Dropbox • From Seattle • Formerly of PalominoDB, Zappos, EMusic, etc • Also from Kansas 5

  6. Tutorial Setup (Hour 2) Collect a DigitalOcean droplet host access card from the front ❏ Connect to wireless and ssh to the droplet host (server1) ❏ Confirm you can ssh to server2 and server3 from server1 ❏ Confirm replication is running ❏ server1 server2 master replica server3 replica 6

  7. Concepts Traditional replication primer and introduction to GTID 7

  8. Traditional MySQL replication primer Standard topologies ❏ SHOW MASTER STATUS ❏ SHOW SLAVE STATUS ❏ 8

  9. Standard topologies server1 server2 server1 server2 master replica master relay server3 server3 replica replica 9

  10. SHOW MASTER STATUS markf@db-wfcore03-ro [(none)]> show master status; +------------------+-----------+--------------+------------------+ | File | Position | Binlog_Do_DB | Binlog_Ignore_DB | +------------------+-----------+--------------+------------------+ | mysql-bin.000695 | 264631170 | | | +------------------+-----------+--------------+------------------+ 1 row in set (0.08 sec) 10

  11. SHOW SLAVE STATUS markf@db-wfcore03-ro [(none)]> show slave status\G *************************** 1. row *************************** Slave_IO_State: Waiting for master to send event Master_Host: 10.10.23.17 Master_User: repl Master_Port: 3306 Connect_Retry: 60 Master_Log_File: mysql-bin.000751 Read_Master_Log_Pos: 67329044 Relay_Log_File: mysqld-relay-bin.000403 Relay_Log_Pos: 67329189 Relay_Master_Log_File: mysql-bin.000751 Slave_IO_Running: Yes Slave_SQL_Running: Yes Replicate_Do_DB: Replicate_Ignore_DB: Replicate_Do_Table: Replicate_Ignore_Table: Replicate_Wild_Do_Table: Replicate_Wild_Ignore_Table: Last_Errno: 0 Last_Error: Skip_Counter: 0 Exec_Master_Log_Pos: 67329044 Relay_Log_Space: 67329388 Until_Condition: None Until_Log_File: Until_Log_Pos: 0 Master_SSL_Allowed: No Master_SSL_CA_File: Master_SSL_CA_Path: Master_SSL_Cert: Master_SSL_Cipher: Master_SSL_Key: Seconds_Behind_Master: 0 Master_SSL_Verify_Server_Cert: No Last_IO_Errno: 0 11 Last_IO_Error: Last_SQL_Errno: 0 Last_SQL_Error: 1 row in set (0.08 sec)

  12. SHOW SLAVE STATUS Master information and running status Slave_IO_State: Waiting for master to send event Master_Host: 10.10.23.17 Master_User: repl Master_Port: 3306 Slave_IO_Running: Yes Slave_SQL_Running: Yes Seconds_Behind_Master: 0 Displays state of replication IO thread - whether logs are being pulled from the master. 12

  13. SHOW SLAVE STATUS Master information and running status Slave_IO_State: Waiting for master to send event Master_Host: 10.10.23.17 Master_User: repl Master_Port: 3306 Slave_IO_Running: Yes Slave_SQL_Running: Yes Seconds_Behind_Master: 0 Configured host database 13

  14. SHOW SLAVE STATUS Master information and running status Slave_IO_State: Waiting for master to send event Master_Host: 10.10.23.17 Master_User: repl Master_Port: 3306 Slave_IO_Running: Yes Slave_SQL_Running: Yes Seconds_Behind_Master: 0 MySQL user configured for replication 14

  15. SHOW SLAVE STATUS Master information and running status Slave_IO_State: Waiting for master to send event Master_Host: 10.10.23.17 Master_User: repl Master_Port: 3306 Slave_IO_Running: Yes Slave_SQL_Running: Yes Seconds_Behind_Master: 0 DB port being connected to (default) 15

  16. SHOW SLAVE STATUS Master information and running status Slave_IO_State: Waiting for master to send event Master_Host: 10.10.23.17 Master_User: repl Master_Port: 3306 Slave_IO_Running: Yes Slave_SQL_Running: Yes Seconds_Behind_Master: 0 Two replication threads, one reading from master, other executing SQL on replica. 16

  17. SHOW SLAVE STATUS Master information and running status Slave_IO_State: Waiting for master to send event Master_Host: 10.10.23.17 Master_User: repl Master_Port: 3306 Slave_IO_Running: Yes Slave_SQL_Running: Yes Seconds_Behind_Master: 0 Seconds between timestamp in binlog, and time on replica 17

  18. SHOW SLAVE STATUS Log file information Master_Log_File: mysql-bin.000751 Read_Master_Log_Pos: 67329044 Relay_Log_File: mysqld-relay-bin.000403 Relay_Log_Pos: 67329189 Relay_Master_Log_File: mysql-bin.000751 Exec_Master_Log_Pos: 67329044 Relay_Log_Space: 67329388 Binary log file on master, and position it’s read to 18

  19. SHOW SLAVE STATUS Log file information Master_Log_File: mysql-bin.000751 Read_Master_Log_Pos: 67329044 Relay_Log_File: mysqld-relay-bin.000403 Relay_Log_Pos: 67329189 Relay_Master_Log_File: mysql-bin.000751 Exec_Master_Log_Pos: 67329044 Relay_Log_Space: 67329388 Position in relay log on replica 19

  20. SHOW SLAVE STATUS Log file information Master_Log_File: mysql-bin.000751 Read_Master_Log_Pos: 67329044 Relay_Log_File: mysqld-relay-bin.000403 Relay_Log_Pos: 67329189 Relay_Master_Log_File: mysql-bin.000751 Exec_Master_Log_Pos: 67329044 Relay_Log_Space: 67329388 Position in binary log that SQL thread has executed on replica 20

  21. SHOW SLAVE STATUS SSL information Master_SSL_Allowed: No Master_SSL_CA_File: Master_SSL_CA_Path: Master_SSL_Cert: Master_SSL_Cipher: Master_SSL_Key: 21

  22. SHOW SLAVE STATUS Filtering information Until_Condition: None Replicate_Do_DB: Replicate_Ignore_DB: Replicate_Do_Table: Replicate_Ignore_Table: Replicate_Wild_Do_Table: Replicate_Wild_Ignore_Table: Filtered replication settings -- Use with caution 22

  23. Defining GTID Global Transaction IDentifier - source_id:transaction_id - e200c55b-7832-11e5-9d51-00259082ca78:1 - source_id - normally the server_uuid of the master - transaction_id - sequential integer (starts at 1) representing the order a transaction - was committed on the source 23

  24. Binary Log Contents Standard replication # at 2637016 #160307 15:05:42 server id 3031 end_log_pos 2637016 Table_map: `C0070735`.`FormStats` mapped to number 139874072 #160307 15:05:42 server id 3031 end_log_pos 2637088 Update_rows: table id 139874072 flags: STMT_END_F BINLOG ' RgneVhPXCwAAOAAAANg8KAAABhPVggAAAEACUMwMDcwMzczNQAJm9ybVN0YXRzAAQDDAMDAAA= RgneVhjXCwAASAAAACA9KAAABhPVggAAAEABP//8AdPAACwPPLvVIAACgBAAAMAAAA8AdPAACw PPLvVRIAACkBAAAMAAAA '/*!*/; ### UPDATE C0070735.FormStats ### WHERE ### @1=20231 ### @2=2016-03-07 15:00:00 ### @3=296 ### @4=12 ### SET ### @1=20231 ### @2=2016-03-07 15:00:00 ### @3=297 ### @4=12 # at 2637088 #160307 15:05:42 server id 3031 end_log_pos 2637115 Xid = 2004736153 24 COMMIT/*!*/;

  25. Binary Log Contents GTID Enabled #160323 14:37:48 server id 168433453 end_log_pos 41956 CRC32 0xee79822d GTID [commit=yes] SET @@SESSION.GTID_NEXT= '81b0bb5e-f004-11e5-aaa3-b8ca3a676681:100'/*!*/; # at 41956 #160323 14:37:48 server id 168433453 end_log_pos 42033 CRC32 0xdac047b0 Query thread_id=4611 exec_time=0 error_code=0 SET TIMESTAMP=1458769068/*!*/; BEGIN /*!*/; # at 42033 #160323 14:37:48 server id 168433453 end_log_pos 42094 CRC32 0xd3c70a01 Table_map: `C01840587`.`FormStats` mapped to number 74 # at 42094 #160323 14:37:48 server id 168433453 end_log_pos 42166 CRC32 0xa031417e Update_rows: table id 74 flags: STMT_END_F BINLOG ' rAzzVhMtFwoKPQAAAG6kAAAAAEoAAAAAAUMwMTg0MDU4NwAJRm9ybVN0YXRzAAQDEgMDAQAAAQrH0w== rAzzVh8tFwoKSAAAALakAAAAAEoAAA///wBAAAAJmY7uAAAgAAAAIAAADwBAAAAJmY7uAAAwAAAAIAAAB+QTGg '/*!*/; ### UPDATE `C01840587`.`FormStats` ### WHERE ### @1=4 ### @2='2016-03-23 14:00:00' 25 ### @3=2

  26. SHOW SLAVE STATUS NEW GTID Information Master_UUID: 81b0bb5e-f004-11e5-aaa3-b8ca3a676681 Retrieved_Gtid_Set: 81b0bb5e-f004-11e5-aaa3-b8ca3a676681:1-51 Executed_Gtid_Set: 81b0bb5e-f004-11e5-aaa3-b8ca3a676681:1-51 26

  27. GTID Sets & Related Variables Rather than just a single transaction_id, an interval is given - A range of transactions - e200c55b-7832-11e5-9d51-00259082ca78:1-1234 - Two ranges with a gap - e200c55b-7832-11e5-9d51-00259082ca78:1-1234,1236-1240 - Commonly used variables related to GTID - - server_uuid - enforce_gtid_consistency - gtid_mode - gtid_next 27

  28. GTID vs Binlog Position Traditional replication coordinates - - MASTER_LOG_FILE - MASTER_LOG_POS GTID replication coordinates - - MASTER_AUTO_POSITION 28

  29. Enabling GTIDs in Oracle MySQL 5.6 Guarantee master and replica(s) are in sync by enabling read_only on the master and - allow replication to catch up Shutdown the master and replica(s) - Add the following to my.cnf - - enforce-gtid-consistency - gtid-mode = ON - skip-slave-start - log-slave-updates - read-only = 1 - Start the master and replica(s) Start replication - CHANGE MASTER TO MASTER_HOST=’server1’, MASTER_AUTO_POSITION=1; START SLAVE; Disable read_only on the master and remove read-only from the my.cnf - 29
