Modulated plane wave methods for Helmholtz problems in heterogeneous - PowerPoint PPT Presentation

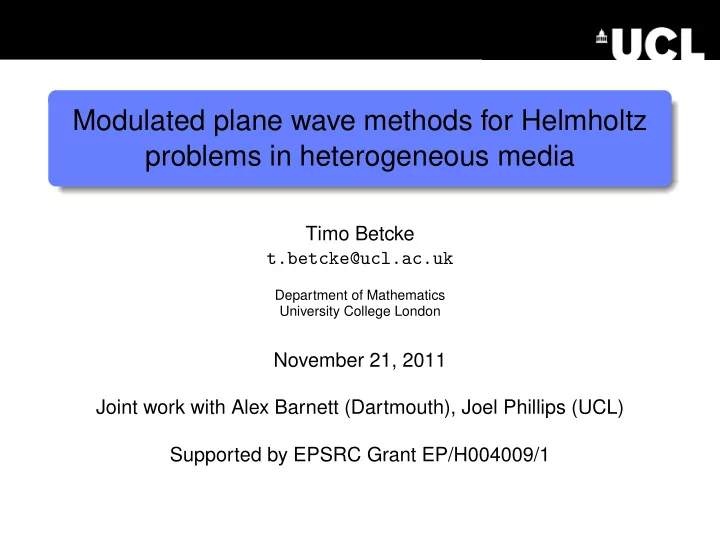

Modulated plane wave methods for Helmholtz problems in heterogeneous media Timo Betcke t.betcke@ucl.ac.uk Department of Mathematics University College London November 21, 2011 Joint work with Alex Barnett (Dartmouth), Joel Phillips (UCL)


  1. Modulated plane wave methods for Helmholtz problems in heterogeneous media Timo Betcke t.betcke@ucl.ac.uk Department of Mathematics University College London November 21, 2011 Joint work with Alex Barnett (Dartmouth), Joel Phillips (UCL) Supported by EPSRC Grant EP/H004009/1

  2. Helmholtz Problems • Trefftz methods for homogeneous media � ω � 2 • Polynomially modulated plane ∆ u + u = 0 c ( x ) waves in inhomogeneous media ω k = c • Combination with high-frequency methods

  3. From low to high k • Low k : Standard boundary and finite elements. Almost anything works. • k → ∞ : Raytracing, geometric theory of diffraction, fast eikonal solvers [Engquist/Runborg ’03]. • Midfrequency regime: • Speeding up the linear algebra: FMM [Cheng et. al. ’06, Engquist/Ying ’07], Novel preconditioners Engquist/Ying ’11], • Nonstandard basis functions: PUFEM [Babuska/Melenk ’97], UWVF [Cessenat/Despres ’98, Huttunen/Monk/Kaipio ’02], MPS/MFS [Barnett/B. ’10], Plane Wave DG Methods [Gittelson et. al ’09]

  4. The Trefftz framework Elliptic PDE: Lu = 0 ( L := − ∆ − k 2 ). � Ω := K i : Decomposition of domain Ω into elements Ω i . i n α ( i ) � Local approximation spaces V i := { j φ j : L φ j = 0 in K i } . j = 1 • Local vs. global methods • Choices of basis functions • Assembly of discrete problem

  5. Trefftz basis functions Plane Waves φ j = e ikd j · x , � d j � = 1 � cos θ j � , θ j = 2 π ( j − 1 ) d j = sin θ j N Fourier-Bessel functions φ j ( r , θ ) = J j ( kr ) e ij θ j = − n , . . . , n

  6. Trefftz basis functions . . . Fundamental Solutions φ j ( x ) = H ( 1 ) 0 ( k | x − y j | ) y j : Source points • Plane waves can be chosen according to raytracing directions • Bessel functions have similar approximation properties as polynomials • Fundamental solutions good for approximating far-field and circular wavefronts • Differences in numerical stability between these bases [B. ’08, Barnett/B. ’08]

  7. Approximation properties � 1 Vekua operator (2d version): V j [ φ ]( x ) = φ ( x ) + M j ( x , t ) φ ( tx ) dt 0 √ k | x | M 1 ( x , t ) = − √ 1 − t J 1 ( k | x | 1 − t ) 2 k | x | � M 2 ( x , t ) = − i √ √ J 1 ( ik | x | t ( 1 − t )) 2 t 1 − t Properties: 1 V 1 [ V 2 [ φ ]] = V 2 [ V 1 [ φ ]] = φ . 2 If φ is harmonic, then ∆ V 1 [ φ ] + k 2 V 1 [ φ ] = 0 . 3 If ∆ u + k 2 u = 0, then ∆ V 2 [ u ] = 0 [Eisenstat ’74, Still ’89, Melenk ’99, B. ’07, Moiola/Hiptmair/Perugia ’11]

  8. Approximation properties . . . Generalized harmonic polynomials n � a j r | j | e ij φ P ( r , θ ) = j = − n n � | l | � 2 � e ij θ J | j | ( kr ) V 1 [ P ]( r , θ ) = a j | j | ! k j = − n n n � α j e id j · x � ≤ � V 1 �� φ − P � + � V 1 [ P ] − � α j e id j · x � � u − j = 1 j = 1 • Approximation error between plane waves and Fourier-Bessel fct • Polynomial approximation of harmonic functions Exponential estimates via analytic continuation: [Still ’89, B. ’07] Wavenumber explicit hp -estimates: [Moiola/Hiptmair/Perugia ’11]

  9. Assembly of discrete problems Least-Squares Method Define Functional � � | [ ∇ v ] ( x ) | 2 ds + k 2 | [ v ] | 2 ds J ( v ) = Γ i ∩ Γ j i < j + least-squares for boundary conditions Discrete Solution: ˆ v := arg min v ∈V J ( v ) [Stojek ’98, Monk/Wang ’99, Barnett/B. ’10]

  10. Scattering from a snowflake 1 0.5 0 −0.5 −0.2 0 0.2 0.4 0.6 0.8 1 1.2 k 50 100 200 500 Time with single core Matlab code: time 8s 15s 44s 7m Least-Squares residual: ≈ 10 − 8 Exponential convergence in number of basis functions [Barnett/B. ’10]

  11. A multiply connected domain k = 100, 30 seconds for setup and solution. Residual ≈ 2 × 10 − 5

  12. A general plane wave DG framework [Gittelson/Hiptmair/Perugia ’09] − ∆ u − k 2 u = 0 Integrate by parts on element K with test function v : � � � ∇ u ∇ vdV − k 2 uvdV − ∇ u · nvdS = 0 ∂ K K K Further integration by parts yields: � � � ( − ∆ v − k 2 v ) udV + u · ∇ v · ndS − ∇ u · nvdS = 0 K ∂ K ∂ K • Zero for Trefftz basis functions • Replace by numerical fluxes

  13. An example • Around 1.5 wavelengths per element • 1600 elements • 30 plane wave directions in each element • 48000 unknowns Error estimates: � u − u ( h ) � L 2 (Ω) = O ( h m + 1 ) 2 m + 1 directions (2D), ( m + 1 ) 2 directions (3D) • Framework for general Helmholtz problems • Reduction of number of unknowns compared to standard finite elements • Preconditioning difficult

  14. Pro’s and Con’s of Trefftz methods Advantages • Highly effective up to mid-frequency regime if analytic information available [Barnett/B. ’08, Barnett/B. ’10] • Degrees of freedom recuded by constant factor compared with standard low-order FEM Disadvantages • Preconditioning difficult. Conditioning is severe problem [Huttunen/Monk/Kaipio ’02] • Restricted to homogeneous media problems • No experience whether Trefftz can beat optimized high order spectral methods • Boundary elements often better choice for waves in homogeneous media ( → BEM++ software project in development) Can we make plane wave methods fit for high-frequency problems in inhomogeneous media?

  15. Polynomially modulated plane waves Problem: Standard plane wave methods not suitable for problems with varying speed of sound Higher order convergence only for solutions of − ∆ u − k 2 u = 0. Assume c ( x ) slowly varying on element K : c | K ≈ c K n K � p j ( x ) e i ω c K d j · x u ( x ) ≈ j = 1 Adapted DG formulation � � 1 � � ∇ u ·∇ vdx − ω 2 c ( x ) 2 uvdx + (ˆ u − u ) ∇ v · nds − ik σ · nvds = 0 ˆ K K ∂ K ∂ K

  16. A waveguide Waveguide c ( x )

  17. Results � u − u ( h ) � L 2 p dofs/element � u � L 2 1 30 5.7 2 60 2.3E-2 3 100 1.2E-3 ω = 10 10 directions per element

  18. Wave travelling through a quadratic bubble • ω = 40 • 15 plane waves per element in homogeneous part • 15 modulated plane waves with degree 2 pol. in inhomogeneous part • Up to two wavelengths per element inside bubble ( 2 − r 2 ) − 1 , � r ≤ 1 c ( x ) = 1 , r > 1 Can we choose directions in a better way?

  19. Elements from high-frequency asymptotics ∞ � High-frequency ansatz: u ( x ) = e i ωφ ( x ) a j ( x )( i ω ) − j . j = 0 φ : Solution of eikonal equation 1 |∇ φ ( x ) | = c ( x ) A : Solution of transport equation 2 ∇ φ ( x ) · ∇ A ( x ) + ∆ φ ( x ) A ( x ) = 0 Survey about high-frequency asymptotics [Engquist/Runborg ’03]

  20. Finite wavenumber solutions Substitute u = A ( x ) e i ωφ ( x ) into Helmholtz equation � � 1 |∇ φ | 2 − 1 ω ∆ A + 2 i ∇ A · ∇ φ + iA ∆ φ − ω A = 0 c 2 Use standard polynomial approximation for A A oscillatory if • Phase approximation is bad • u has multiple phase components Amplitude FEM [Giladi/Keller ’01] Use as preconditioner [Haber/MachLachlan ’11]

  21. Detecting wave directions • Numerical microlocal analysis [Benamou/Collino/Runborg ’04] (need to know solution) • Raytracing, fast eikonal solvers • Scattering from unit square • Each element has at most two dominant directions

  22. Subtracting out directions Can we subtract out dominant wave directions? Assume that in element K we have n α j e ikd j · x + ˜ � u ( x ) = u j = 1 u : exact solution d j : dominant directions obtained from raytracing ˜ u : error u + k 2 ˜ Have ∆˜ u = 0, → ˜ u oscillates with same wavelength as u Approximating ˜ u not easier than approximating u !

  23. Modulated plane waves Assume diam ( K ) = h . u ( x ) = A ( x ) e ik φ ( x ) exact solution 1 Direction d , such that ∇ φ ( x 0 ) = c ( x 0 ) d Approximate p ( x ) e i c ( x 0 ) d · x ω A ( x ) e i ωφ ( x ) ≈ � � d i ω φ ( x ) − c ( x 0 ) · x p ( x ) ≈ A ( x ) e 2 ( x − x 0 ) T ∇ 2 φ ( x 0 )( x − x 0 ) T ) + h.o.t CA ( x ) e i ω ( 1 = If d � = ∇ φ ( x 0 ) have oscillations on the scale of � h 2 2 �∇ 2 φ ( x 0 ) � , sin ∠ ( d , ∇ φ ) � ω max c ( x 0 ) Even for homogeneous problems are modulated plane waves useful!

  24. GTD Correction Geometric optics approximation only valid for λ → 0. For finite wavelengths need GTD correction [Keller ’62]: u D ≈ c e ikr r 1 / 2 Add diffraction terms to basis n K M p j ( x ) e ikd j · x + p ℓ ( x ) H ( 1 ) � � u ( x ) ≈ 0 ( k | x − y ℓ | ) j = 1 ℓ = 1

  25. GTD corrected basis for the square • Basis fct. with pol. of degree 3 • In each element at most 2 pw + diffraction terms • Approx 1.5 wavelengths per element • k = 40

  26. An inhomogeneous test case 3 2 [ ( x + 1 3 ) 2 − ( y + 1 3 ) 2 ] u ( x , y ) = e i ω √ 2 Have ∆ u + ω 2 ( 3 x + 1 ) 2 + ( 3 y + 1 ) 2 � � u = 0 2 • ω = 40 • wavenumber grows from k = 20 to k = 80 across domain

  27. Performance with plane waves 7 pw directions, L 2 error decreases quadratically [Gittelson/Hiptmair/Perugia ’09]

  28. Convergence with exact gradient directions

  29. Convergence with perturbed gradient directions
