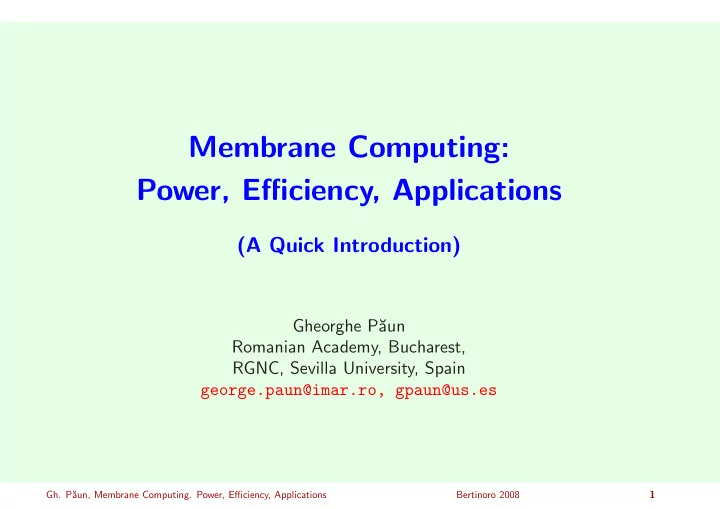

SLIDE 1

Membrane Computing: Power, Efficiency, Applications

(A Quick Introduction)

Gheorghe P˘ aun Romanian Academy, Bucharest, RGNC, Sevilla University, Spain george.paun@imar.ro, gpaun@us.es

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 1

SLIDE 2

Summary:

generalities
the basic idea
examples
classes of P systems
types of results
types of applications

– applications in biology – modeling/simulating ecosystems – Nishida’s membrane algorithms – MC and economics; numerical P systems

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 2

SLIDE 3

Goal: abstracting computing models/ideas from the structure and functioning of living cells (and from their organization in tissues,

rgans, organisms)

hence not producing models for biologists (although, this is now a tendency) result:

distributed, parallel computing model
compartmentalization by means of membranes
basic data structure: multisets (but also strings; recently, numerical variables)
Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 3

SLIDE 4

WHY? – the cell exists! (challenge for mathematics) – biology needs new models (discrete, algorithmic; system biology, the whole cell modelling/simulating) – computer science can learn (e.g., parallelism, coordination, data structure, architecture, operations, strategies) – computing in vitro/in vivo (“the cell is the smallest computer”) – distributed extension of molecular computing – a posteriori: power, efficiency (“solving” NP-complete problems) – a posteriori: applications in biology, computer graphics, linguistics, economics, etc. – nice mathematical/computer science problems

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 4

SLIDE 5

References:

Gh.

P˘ aun, Computing with Membranes. Journal of Computer and System Sciences, 61, 1 (2000), 108–143, and Turku Center for Computer Science- TUCS Report No 208, 1998 (www.tucs.fi) ISI: “fast breaking paper”, “emerging research front in CS” (2003) http://esi-topics.com

Gh. P˘

aun, Membrane Computing. An Introduction, Springer, 2002

G. Ciobanu, Gh.

P˘ aun, M.J. P´ erez-Jim´ enez, eds., Applications of Membrane Computing, Springer, 2006

forthcoming Handbook of Membrane Computing, OUP
Website: http://ppage.psystems.eu

(Yearly events: BWMC (February), WMC (summer), TAPS/WAPS (fall))

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 5

SLIDE 6

SOFTWARE AND APPLICATIONS: http://www.dcs.shef.ac.uk/∼marian/PSimulatorWeb/P Systems applications.htm www.cbmc.it – PSim2.X simulator Verona (Vincenzo Manca: vincenzo.manca@univr.it) Sheffield (Marian Gheorghe: M.Gheorghe@dcs.shef.ac.uk) Sevilla (Mario P´ erez-Jim´ enez: marper@us.es) Milano (Giancarlo Mauri: mauri@disco.unimib.it) Nottingham, Trento, Nagoya, Leiden, Vienna, Evry, Ia¸ si

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 6

SLIDE 7

FRAMEWORK: Natural computing

Cell DNA (molecules) Evolution Brain Neural computing Evolutionary computing DNA(molecular) computing Membrane computing Electronic media (in silico) Bio-media (in vitro, in vivo?)

✲ ✲ ✲ ✲ ❍❍❍❍❍❍❍ ❍ ❥ ✲ ❳❳❳❳❳❳❳❳❳❳❳❳ ③ ✏✏✏✏✏✏✏✏✏✏✏ ✏ ✶ ✡ ✡ ✡ ✡ ✡ ✡ ✣ ✄ ✄ ✄ ✄ ✄ ✄ ✄ ✄ ✄ ✄ ✄ ✄ ✄ ✄✄ ✗

? ? Biology (in vivo/vitro) Models (in info) Implementation

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 7

SLIDE 8

FRAMEWORK: Natural computing

Cell DNA (molecules) Evolution Brain Neural computing Evolutionary computing DNA(molecular) computing Membrane computing Electronic media (in silico) Bio-media (in vitro, in vivo?)

✲ ✲ ✲ ✲ ✲ ❍❍❍❍❍❍❍ ❍ ❥ ✲ ❳❳❳❳❳❳❳❳❳❳❳❳ ③ ✏✏✏✏✏✏✏✏✏✏✏ ✏ ✶ ✡ ✡ ✡ ✡ ✡ ✡ ✣ ✄ ✄ ✄ ✄ ✄ ✄ ✄ ✄ ✄ ✄ ✄ ✄ ✄ ✄✄ ✗

? ? Biology (in vivo/vitro) Models (in info) Implementation

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 8

SLIDE 9

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 9

SLIDE 10

WHAT IS A CELL? (for a mathematician)

membranes, separating “inside” from “outside” (hence protected compartments,

“reactors”)

chemicals in solution (hence multisets)
biochemistry (hence parallelism, nondeterminism, decentralization)
enzymatic activity/control
selective passage of chemicals across membranes
etc.
Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 10

SLIDE 11

Importance of membranes for biology:. . . MARCUS: Life = DNA software + membrane hardware

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 11

SLIDE 12

THE BASIC IDEA

✬ ✫ ✩ ✪ ✬ ✫ ✩ ✪ ★ ✧ ✥ ✦ ✬ ✫ ✩ ✪ ✬ ✫ ✩ ✪ ✬ ✫ ✩ ✪

1 2 3 4 5 6

✚ ✚ ✚ ❂

skin membrane

✟ ✟ ✟ ✟ ✟ ✟ ✟ ✟ ✙

elementary membrane environment

✘ ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✾

region

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 12

SLIDE 13

✬ ✫ ✩ ✪ ✬ ✫ ✩ ✪ ✬ ✫ ✩ ✪ ✬ ✫ ✩ ✪ ✬ ✫ ✩ ✪ ✬ ✫ ✩ ✪

1 2 3 4 5 6 a b b b c c b b b b a a t t

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 13

SLIDE 14

✬ ✫ ✩ ✪ ✬ ✫ ✩ ✪ ✬ ✫ ✩ ✪ ✬ ✫ ✩ ✪ ✬ ✫ ✩ ✪ ✬ ✫ ✩ ✪

1 2 3 4 5 6 a b b b c c b b b b a a t t ab → ddoutein5 ca → cb d → ain4bout t → t t → t′δ

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 14

SLIDE 15

Functioning (basic ingredients):

nondeterministic choice of rules and objects
maximal parallelism
transition, computation, halting
internal output, external output, traces
Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 15

SLIDE 16

EXAMPLES

✬ ✫ ✩ ✪ ✬ ✫ ✩ ✪

1 2 c a → b1b2 cb1 → cb′

1

b2 → b2ein|b1 Computing system: n − → n2 (catalyst, promoter, determinism, internal output) Input (in membrane 1): an Output (in membrane 2): en2

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 16

SLIDE 17

✬ ✫ ✩ ✪ ✬ ✫ ✩ ✪

1 2 c a → b1b2 cb1 → cb′

1

b2 → b2e cb1 → cb′

1δ

b1 → b1 e → eout The same function (n − → n2), with catalyst, dissolution, nondeterminism, external

utput
Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 17

SLIDE 18

✬ ✫ ✩ ✪ ✬ ✫ ✩ ✪ ✬ ✫ ✩ ✪ ✬ ✫ ✩ ✪

1 2 3 4

a f a → ab′ a → b′δ f → ff b′ → b b → bein4 ff → f > f → aδ

af 1 ab′ff . . . . . . m ≥ 0 ab′mf 2m m + 1 b′m+1f 2m+1 δ m + 2 bm+1f 2m m + 3 bm+1f 2m−1 em+1

in4

. . . . . . . . . 2m + 1 bm+1f 2 em+1

in4

2m + 2 bm+1f em+1

in4

2m + 3 bm+1aδ em+1

in4

m + 1 times HALT! Generative mode : {n2 | n ≥ 1}

❩❩❩❩❩ ❩ ⑦ ✑ ✑ ✑ ✑ ✑ ✑ ✰

(m + 1) × (m + 1) N(Π) = {n2 | n ≥ 1}

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 18

SLIDE 19

SIMULATING A REGISTER MACHINE M = (m, B, l0, lh, R)

✬ ✫ ✩ ✪

1 l0 E = {ar | 1 ≤ r ≤ m} ∪ {l, l′, l′′, l′′′, liv | l ∈ B} (l1, out; arl2, in) (l1, out; arl3, in)

for l1 : (add(r), l2, l3)

(l1, out; l′

1l′′ 1, in)

(l′

1ar, out; l′′′ 1 , in)

(l′′

1, out; liv 1 , in)

(livl′′′

1 , out; l2, in)

(livl′

1, out; l3, in)

           for l1 : (sub(r), l2, l3) (lh, out) Symport/antiport rules (of weight 2)

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 19

SLIDE 20

Types of rules: u → v with targets in v (possibly conditional: promoters or inhibitors) particular cases: ca → cu (catalytic) a → u (non-cooperative) (ab, in), (ab, out) – symport (in general, (x, in), (x, out)) (a, in; b, out) – antiport (in general, (u, in; v, out)) u]iv → u′]iv′ – boundary (Manca, Bernardini) ab → atar1btar2 – communication (Sosik) ab → atar1btar2ccome a → atar

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 20

SLIDE 21

a[ ]i → [b]i go in [a]i → b[ ]i go out [a]i → b membrane dissolution a → [b]i membrane creation [a]i → [b]j[c]k membrane division [a]i[b]j → [c]k membrane merging [a]i[ ]j → [[b]i]j endocytosis [[a]i]j → [b]i[ ]j exocytosis [u]i → [ ]i[u]@j gemmation [Q]i → [O − Q]j[Q]k separation and others

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 21

SLIDE 22

Basic classes of cell-like P systems: multiset rewriting P systems: Π = (O, µ, w1, . . . , wm, R1, . . . , Rm, io),

O = alphabet of objects
µ = (labeled) membrane structure of degree m (represented by a string of

matching parentheses)

wi = strings/multisets over O
Ri = sets of evolution rules

typical form ab → (a, here)(c, in2)(c, out)

io = the output membrane

Symport/antiport P systems: Π = (O, µ, w1, . . . , wm, E, R1, . . . , Rm, io), as above, with E ⊆ O the set of objects which appear in the environment in arbitrarily many copies

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 22

SLIDE 23

A bird eye view to the MC jungle:

cell-like, tissue-like, neural-like (spiking neural) systems
symbols, strings, arrays, numerical variables, etc.
multisets, sets, fuzzy
multiset rewriting, symport/antiport, membrane evolving, combinations
controls: priority, promoters, inhibitors, δ, τ, activators, etc.
maximal, bounded, minimal parallelism, sequential/asynchronous, time-, clock-

free

generating, accepting, computing/translating, dynamical system
computing power, computing efficiency, others
implementations/simulations
applications:

biology/medicine, economics, optimization, computer graphics, linguistics, computer science, cryptography, etc.

etc. (e.g., brane-membrane bridge, quantum-like)
Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 23

SLIDE 24

Results:

characterization of Turing computability (RE, NRE, PsRE)

Examples: by catalytic P systems (2 catalysts) [Sosik, Freund, Kari, Oswald] by (small) symport/antiport P systems [many] by spiking neural P systems [many]

polynomial solutions to NP-complete problems (by using an exponential workspace

created in a “biological way”: membrane division, membrane creation, string replication, etc) [Sevilla team], [Madras team], [Obtulowicz], [Alhazov, Pan] etc even characterizations of PSPACE

other types of mathematical results (normal forms, hierarchies, determinism versus

nondeterminism, complexity) [Ibarra group]

connections with ambient calculus, Petri nets, X-machines, quantum computing,

lambda calculus, brane calculus, etc [many]

simulations and implementations
applications
Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 24

SLIDE 25

Open problems, research topics: Many: see the P page

borderlines: universality/non-universality, efficiency/non-efficiency

(local problems: the power of 1 catalyst, the role of polarizations, dissolution, etc. general problems: uniform versus semi-uniform, deterministic-confluent, pre- computed resources)

semantics (events, causality, etc.)
neural-like systems (more biology, complexity, applications, etc.)
user friendly, flexible, and efficient (!) software for bio-applications
MC and economics
implementations (electronics, bio-lab)
finding a killer-app
Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 25

SLIDE 26

SAQ:

computing beyond Turing? (no, but ...acceleration)
what kind of implementation? (none, but ...Adelaide, Madrid, Technion-Haifa)
why so many variants?
why so powerful? (RE = CS + erasing)
Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 26

SLIDE 27

Applications:

biology, medicine, ecosystems (continuous versus discrete mathematics) [Sevilla,

Verona, Milano, Sheffield, etc.]

computer

science (computer graphics, sorting/ranking, 2D languages, cryptography, general model of distributed-parallel computing) [many]

linguistics (modeling framework, parsing) [Tarragona]
optimization (membrane algorithms [Nishida, 2004], [many])
economics ([Warsaw group], [R. P˘

aun], [Vienna group])

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 27

SLIDE 28

A typical application in biology/medicine: M.J. P´ erez–Jim´ enez, F.J. Romero–Campero: A Study of the Robustness of the EGFR Signalling Cascade Using Continuous Membrane Systems. In Mechanisms, Symbols, and Models Underlying Cognition. First International Work-Conference on the Interplay between Natural and Artificial Computation, IWINAC 2005 (J. Mira, J.R. Alvarez, eds.), LNCS 3561, Springer, Berlin, 2005, 268–278.

60 proteins, 160 reactions/rules
reaction rates from literature
results as in experiments
Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 28

SLIDE 29

Typical outputs:

10 20 30 40 50 60 0.00 0.04 0.08 0.12 0.16 0.20 0.24 0.28 0.32 time (s) Concentration (nM) 100nM 200nM 300nM

The EGF receptor activation by auto-phosphorylation (with a rapid decay after a high peak in the first 5 seconds)

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 29

SLIDE 30

20 40 60 80 100 120 140 160 180 1 2 3 4 5 time (s) Concentration (nM) 100nM 200nM 300nM

The evolution of the kinase MEK (proving a surprising robustness of the signalling cascade)

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 30

SLIDE 31

Other bio-applications:

photosynthesis [Nishida, 2002]
Brusselator [Suzuki, Verona, Milano]
quorum sensing in bacteria [Nottingham, Sheffield, Sevilla]
circadian cycles [Verona]
apoptosis [Ruston-Louisiana]
signaling pathways in yeast [Milano]
HIV infection [Edinburgh]
peripheral proteins [Trento]
others [Milano, Ia¸

si, Bucharest, Sevilla, Verona, etc.]

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 31

SLIDE 32

Modeling ecosystems

Y. Suzuki, H. Tanaka, Artificial life and P systems, WMC1, Curtea de Arge¸

s, 2000 (herbivorous, carnivorous, volatiles) Lotka-Voltera model (predator-prey) [Verona, Milano]

M. Cardona, M.A. Colomer, M.J. Perez-Jimenez, S. Danuy, A. Margalida,

A P system modeling an ecosystem related to the bearded vulture, 6BWMC

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 32

SLIDE 33

”Our model consists in the following probabilistic P system of degree 2 with two electrical charges: Π = (Γ, µ, M0, M1, R) where:

In the alphabet Γ we represent the six species of the ecosystem (index i is

associated with the species and index j is associated with their age, and the symbols X, Y and Z represent the same animal but in different state); it also contains the auxiliary symbols B and C. Γ = {Xij, Yij, Zij : 1 ≤ i ≤ 7, 0 ≤ j ≤ ki,5} ∪ { B, C}

In the membrane structure we represent two regions, the skin (where animals

reproduce) and an inner membrane (where animals feed and die): µ = [ [ ]1 ]0 (neutral polarization will be omitted)

In M0 and M1 we specify the initial number of objects present in each regions

(encoding the initial population and the initial food).

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 33

SLIDE 34

– M0 = {X

qij ij : 1 ≤ i ≤ 7, 0 ≤ j ≤ ki,}, where the multiplicity qij indicates the

number of animals, of species i whose age is j that are initially present in the ecosystem. – M1 = {C B18000}, where the object B represent 0.5 kg of bones, and 9000 kg is the external contribution of bones to the P system corresponding to the 33% of feeding that come from animals do not modeled in the P system.

The set R of evolution rules consists of:

– Reproduction-rules Adult males: r0 ≡ [Xij

1−ki,14

− − − → Yij]0, 1 ≤ i ≤ 7, 0 ≤ j ≤ ki,4 Adult females that reproduce: r1 ≡ [Xij

ki,5ki,14

− − − → YijYi0]0, 1 ≤ i ≤ 7, ki,2 ≤ j < ki,3 Adult females that do not reproduce: r2 ≡ [Xij

(1−ki,5)ki,14

− − − → Yij]0, 1 ≤ i ≤ 7, ki,2 ≤ j < ki,3

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 34

SLIDE 35

Young animals that do not reproduce: r3 ≡ [Xij → Yij]0, 1 ≤ i ≤ 7, ki,3 ≤ j < ki,2 – Young animals mortality rules: Those which survive: r4 ≡ Yij[ ]1

1−ki,7−ki,8

− − − → [Zij]1 : 1 ≤ i ≤ 7, 0 ≤ j < ki,1 Those which die and leaving bones: r5 ≡ Yij[ ]1

ki,8

− − − →[Bki,12]1 : 1 ≤ i ≤ 7, 0 ≤ j < ki,1

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 35

SLIDE 36

Those which die and do not leave bones: r6 ≡ Yij[ ]1

ki,7

− − − →[ ]1 : 1 ≤ i ≤ 7, 0 ≤ j < ki,1 – Adult animals mortality rules: Those which survive: r7 ≡ Yij[ ]1

1−ki,9−ki,10

− − − → [Zij]1 : 1 ≤ i ≤ 7, ki,1 ≤ j < ki,4 Those which die leaving bones: r8 ≡ Yij[ ]1

ki,10

− − − →[Bki,13]1 : 1 ≤ i ≤ 7, ki,1 ≤ j < ki,4 Those which die and do not leave bones: r9 ≡ Yij[ ]1

ki,9

− − − →[ ]1 : 1 ≤ i ≤ 7, ki,1 ≤ j < k1,4 Animals that die at an average life expectancy: r10 ≡ Yij[ ]1 → [Bki,13·ki,11]1 : 1 ≤ i ≤ 7, j = ki,4 – Feeding rules: r11 ≡ [ZijBki,16]1 → Xij+1[ ]+

1 : 1 ≤ i ≤ 7, 0 ≤ j ≤ ki,4

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 36

SLIDE 37

– Rules of mortality due to lack of food, and the elimination from the system of bones that are not eaten by the Bearded Vulture: Elimination of remaining bones: r12 ≡ [B]+

1 → [ ]1

External contribution that represent the bones: r13 ≡ [C]+

1 → [CB18000]1

Adult animals that die because they have not enough food: r14 ≡ [Zij]+

1 → [Bki,13·ki,11]1 : 1 ≤ i ≤ 7, ki,1 ≤ j ≤ ki,4

Young animals that die because they have not enough food: r15 ≡ [Zij]+

1 → [Bki,12·ki,11]1 : 1 ≤ i ≤ 7, j < ki,1

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 37

SLIDE 38

Figure 1 gives a schematic view of how the P system works. Figure 1: Schema

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 38

SLIDE 39

Table 1: Number of animals, at the moment, in the Pyrenean Catalan Species Number Bearded Vulture 74 Chamois 12000 Red deer female 4400 Red deer male 1100 Fallow deer 900 Roe deer 10000 Sheep 200000

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 39

SLIDE 40

(Some) Results:

Bearded Vulture

20 40 60 80 100 120 140 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Year Number animals Mortaliy- Feeding- Reproductivity Reproductivity- Mortality- Feeding

Chamois

10000 20000 30000 40000 50000 60000 70000

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Year Number animals Mortaliy- Feeding- Reproductivity Reproductivity- Mortality- Feeding

Fallow Deer

500 1000 1500 2000 2500 3000 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Years Number animals Mortaliy- Feeding- Reproductivity Reproductivity- Mortality- Feeding

Roe Deer

20000 40000 60000 80000 100000 120000 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Years Number animals Mortaliy- Feeding- Reproductivity Reproductivity- Mortality- Feeding

Sheep

180000 185000 190000 195000 200000 205000 1 2 3 4 5 6 7 8 9 10 1112 13 1415 16 1718 19 20

Years Number animals

Mortaliy- Feeding- Reproductivity Reproductivity- Mortality- Feeding

Red Deer

1000 2000 3000 4000 5000 6000 7000 8000 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Years Number animals Mortaliy- Feeding- Reproductivity (Female) Reproductivity- Mortality- Feeding (Male) Mortaliy- Feeding- Reproductivity (Female) Reproductivity- Mortality- Feeding (Male)

Figure 2: Robustness of the ecosystem

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 40

SLIDE 41

Nishida’s membrane algorithms:

candidate solutions in regions, processed locally (local sub-algorithms)
better solutions go down
static membrane structure – dynamical membrane structure
two-phases algorithms

Excellent solutions for Travelling Salesman Problem (benchmark instances)

rapid convergence
good average and worst solutions (hence reliable method)
in most cases, better solutions than simulated annealing

Still, many problems remains: check for other problems, compare with sub- algorithms, more membrane computing features, parallel implementations (no free lunch theorem) Recent: L. Huang, N. Wang, J. Tao; G. Ciobanu, D. Zaharie; A. Leporati, D. Pagani;

M. Gheorghe et al. (quantum-membrane-algorithms)
Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 41

SLIDE 42

Applications in economics:

J. Bartosik, W. Korczynski, etc (accounting, human resource management, etc)
Gh. P˘

aun, R. P˘ aun (general interpretation, paired rules: ([u → v]i; [u′ → v′]j)

Gh. P˘

aun, R. P˘ aun: Numerical P systems

R. P˘

aun: Modelling producer-retailer transactions

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 42

SLIDE 43

✬ ✫ ✩ ✪

S bn1

1 , bn2 2 , . . . , bnk k

cm1

1 , cm2 2 , . . . , cml l

C Source of raw materials (a) Producers (d) Retailers (match d with ¯ d) Consumption ( ¯ d)

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 43

SLIDE 44

Examples of rules:

1. S → SaN±rg[prob(rg)] (no money)
2. biupS(t)

i

a → diupS(t)

S

(producers pay for a)

3. C → C ¯

dM±rg′upC(t)(M±rg′)

C

[prob(rg′)] (the general consumer introduces both needs and money)

4. cj ¯

du

psj(t) C

→ ¯ djv

psj(t) j

(orders and money pass to retailers)

5. di ¯

djvppi(t)

j

→ bicjuppi(t)

i

[Rscorei,j(t)] (one copy of d is purchased by Rj from Pi, paying for it the price pi(t) set by Pi)

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 44

SLIDE 45

Still more interesting: investments ux

i → bi – by producer i

vy

j → cj – by retailer j

maybe in a bounded amount fiux

i → bi

gjvy

j → cj

with z copies of each fi and gj introduced in the initial configuration

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 45

SLIDE 46

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 46

SLIDE 47

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 47

SLIDE 48

What about future? (at the edge of science-fiction)

hard to predict the future...
...but the progresses should not be underestimated
natural computing will pay-off (directly, or through by-products)
e.g., through nano-technology
Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 48

SLIDE 49

Every attempt to employ mathematical methods in the study of biological questions must be considered profoundly irrational and contrary to the spirit of biology. If mathematical analysis should ever hold a prominent place in biology - an aberration which is happily almost impossible - it would

ccasion a rapid and widespread degeneration of that science.

Auguste Comte (full name: Isidore Marie Auguste Franois Xavier Comte; January 17, 1798 - September 5, 1857): Pilosophie Positive, 1830

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 49

SLIDE 50

Dreams:

efficiency (through massive parallelism, nondeterminism)
robust computers/algorithms
adaptable, evolvable, learning, self-healing hardware/software
nano-robots (for medicine)
computing beyond Turing (stronger consequences than P = NP)
Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 50

SLIDE 51

Do we dream too much?

nature has different goals (and resources: time, materials, energy), is redundant,

cruel

theoretical limits:

– Conrad theorems (programmability/universality, efficiency, learnability are contradictory) – Gandy principles for computing mechanisms (preventing the possibility to go beyond Turing)

for modeling/simulating intelligence and life, maybe something essentially new is

necessary (Mc Carthy, Brooks, etc.)

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 51

SLIDE 52

Thank you!

...and please do not forget: http://ppage.psystems.eu (with mirrors in China: http://bmc.hust.edu.cn/psystems, http://bmchust.3322.org/psystems)

Gh. P˘

aun, Membrane Computing. Power, Efficiency, Applications Bertinoro 2008 52
