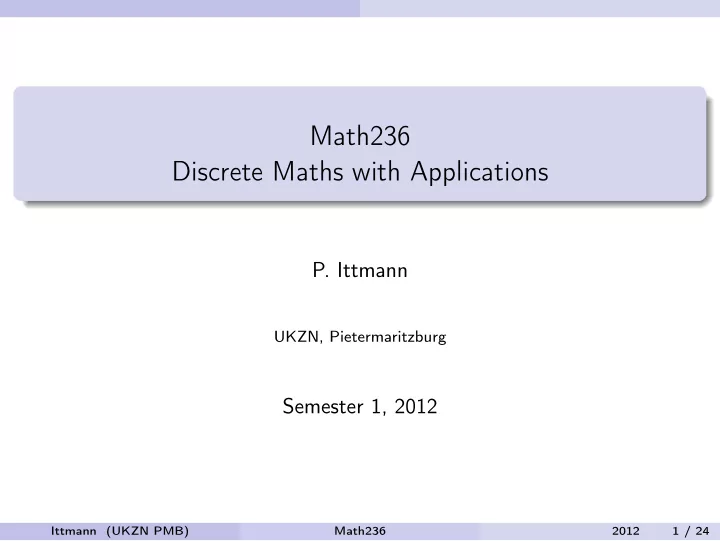

Math236 Discrete Maths with Applications P. Ittmann UKZN, Pietermaritzburg Semester 1, 2012 Ittmann (UKZN PMB) Math236 2012 1 / 24 Edge weights Sometimes it is desirable to have graphs in which edges have different lengths For example,


  1. Math236 Discrete Maths with Applications P. Ittmann UKZN, Pietermaritzburg Semester 1, 2012 Ittmann (UKZN PMB) Math236 2012 1 / 24

  2. Edge weights Sometimes it is desirable to have graphs in which edges have different lengths For example, in a map with cities as vertices and highways as edges Consider the following problem A traveller wishes to drive from Soweto in Gauteng to Graskop in the Eastern Transvaal Given that the traveller has a map of South Africa that shows the distance between particular pairs of cities or towns How does the traveller determine the shortest possible? Ittmann (UKZN PMB) Math236 2012 2 / 24

  3. Edge weights (cont.) Definition A weighted graph is a graph in which every edge e has a positive, real number w ( e ) assigned to it We call w ( e ) the weight of e or the length of e Example Consider the following graph v 1 v 2 1 v 3 1 G: 5 7 3 v 4 v 5 In this case, w ( v 1 v 4 ) = 5, w ( v 3 v 5 ) = 7 Ittmann (UKZN PMB) Math236 2012 3 / 24

  4. Edge weights (cont.) Definition Let G be a graph with vertex set { v 1 , v 2 , . . . , v n } The weight matrix of G is the n × n matrix W = ( w i j ) where  w ( v i v j ) if v i and v j are adjacent   w i j = ∞ if v i and v j are not adjacent  0 if i = j  Ittmann (UKZN PMB) Math236 2012 4 / 24

  5. Edge weights (cont.) Applying this definition of W to the example above, we get  0 ∞ 1 5 ∞  ∞ 0 ∞ ∞ ∞ 1     W = 1 ∞ 0 3 7     5 ∞ 3 0 ∞   ∞ 1 7 ∞ 0 Let G be a weighted graph and let P be a path in G The length of P is the sum of the weights of the edges in P We denote this by l ( p ) Ittmann (UKZN PMB) Math236 2012 5 / 24

  6. Edge weights (cont.) Example Revisiting this example: v 1 v 2 1 v 3 1 G: 5 7 3 v 4 v 5 Let P = v 1 v 4 v 3 v 5 v 2 Then, l ( P ) = 5 + 3 + 7 + 1 = 16 Ittmann (UKZN PMB) Math236 2012 6 / 24

  7. Distance and shortest paths Definition Let G be a connected weighted graph and let a , b ∈ V ( G ) The distance between a and b is the length of the shortest a − b path in G We use the notation d G ( a , b ) Ittmann (UKZN PMB) Math236 2012 7 / 24

  8. Distance and shortest paths (cont.) Example From the example: v 1 v 2 1 v 3 1 G: 5 7 3 v 5 v 4 So, d G ( v 1 , v 3 ) = 1 d G ( v 1 , v 4 ) = 4 d G ( v 3 , v 4 ) = 1 Ittmann (UKZN PMB) Math236 2012 8 / 24

  9. Distance and shortest paths (cont.) Theorem Let P = v 1 v 2 . . . v k be a shortest path from v 1 to v k Then for each i ∈ { 2 , 3 , . . . , k − 1 } The section v 1 v 2 . . . v i is a shortest v 1 − v i path in G, and 1 v 1 is closer to v i than v k (that is, d G ( v 1 , v i ) < d G ( v 1 , v k ) 2 Ittmann (UKZN PMB) Math236 2012 9 / 24

  10. Distance and shortest paths (cont.) Proof. We prove (1.) first Suppose to the contrary that there exists a shorted v 1 − v i path P ′ P v k v 1 v i We can replace the section v 1 v 2 . . . v i of P by P ′ This yields a shorter path from v 1 to v k This contradicts the choice of P as the shortest v 1 − v k path Ittmann (UKZN PMB) Math236 2012 10 / 24

  11. Distance and shortest paths (cont.) Proof. We now prove (2.) We show that d ( v 1 , v i ) < d ( v 1 , v k ) By the proof of 1. above, d ( v 1 , v i ) = l ( v 1 v 2 . . . v i ) < l ( v 1 v 2 . . . v k ) = d ( v 1 , v k ) Ittmann (UKZN PMB) Math236 2012 11 / 24

  12. Dijkstra’s Algorithm Consider the following problem Suppose we are given a connected graph G and a vertex u in G How do we find for each vertex v ∈ V ( G ) − { u } , The distance between u and v A shortest u − v path in G One way to solve this problem is to use Djikstra’s Algorithm Ittmann (UKZN PMB) Math236 2012 12 / 24

  13. Dijkstra’s Algorithm (cont.) Djikstra’s algorithm works on the following idea In the first step , we find a vertex closest to u , call it u 1 A shortest u − u 1 path can only consist of a single edge u 1 u To find u 1 and compute d ( u , u 1 ) we do the following Look up the weight w ( uv ) for all v ∈ V ( G ) − { u } Choose u 1 such that w ( uu 1 ) is minimum Set d ( u , u 1 ) = w ( uu 1 ) Ittmann (UKZN PMB) Math236 2012 13 / 24

  14. Dijkstra’s Algorithm (cont.) Example Consider the following graph v 4 3 t 1 x u 2 9 1 r 2 y Here w ( uv ) = 3, w ( ux ) = 1 and w ( uy ) = 9 The minimum weight is w ( ux ) Hence u 1 = x is the vertex closest to u We conclude that d ( u , u 1 ) = d ( u , x ) = 1 Ittmann (UKZN PMB) Math236 2012 14 / 24

  15. Dijkstra’s Algorithm (cont.) In the second step , we find a vertex second closest to u and call it u 2 A shortest u − u 2 path is of the form uu 2 or uu 1 u 2 u 1 u 1 u u 2 u u 2 Ittmann (UKZN PMB) Math236 2012 15 / 24

  16. Dijkstra’s Algorithm (cont.) To find u 2 and compute d ( u , u 2 ) we do the following for all v ∈ V ( G ) − { u , u 1 } : Look up w ( uv ) and d ( u , u 1 ) + w ( u 1 v ) Choose u 2 such that min { w ( uu 2 ) , d ( u , u 1 ) + w ( u 1 u 2 ) } is minimum Set d ( u , u 2 ) = min { w ( uu 2 ) , d ( u , u 1 ) + w ( u 1 u 2 ) } Ittmann (UKZN PMB) Math236 2012 16 / 24

  17. Dijkstra’s Algorithm (cont.) Example Revisiting the following graph v 4 3 t 1 x u 2 9 1 r 2 y Here w ( uv ) = 3, w ( uy ) = 9 Also, d ( u , u 1 ) + w ( u 1 y ) = 2 The minimum is d ( u , u 1 ) + w ( u 1 y ) = 2 Hence u 2 = y is the vertex second closest to u and d ( u , u 2 ) = d ( u , u 1 ) + w ( u 1 y ) = 2 Ittmann (UKZN PMB) Math236 2012 17 / 24

  18. Dijkstra’s Algorithm (cont.) In the third step , we find a vertex third closest to u and call it u 3 A shortest u − u 3 path is of the form uu 3 or uu 1 u 3 or u · · · u 2 u 3 u 1 u 1 u 2 u 3 u 2 u 3 u u u u 3 Ittmann (UKZN PMB) Math236 2012 18 / 24

  19. Dijkstra’s Algorithm (cont.) To find u 3 and compute d ( u , u 3 ) we do the following for all v ∈ V ( G ) − { u , u 1 , u 2 } : Look up w ( uv ) and d ( u , u 1 ) + w ( u 1 v ) and d ( u , u 2 ) + w ( u 2 v ) Choose u 3 such that min { w ( uu 3 ) , d ( u , u 1 ) + w ( u 1 u 3 ) , d ( u , u 2 ) + w ( u 2 u 3 ) } is minimum Set d ( u , u 2 ) = min { w ( uu 3 ) , d ( u , u 1 ) + w ( u 1 u 3 ) , d ( u , u 2 ) + w ( u 2 u 3 ) } Ittmann (UKZN PMB) Math236 2012 19 / 24

  20. Dijkstra’s Algorithm (cont.) Example v 4 3 t 1 x u 2 9 1 r 2 y Here w ( uv ) = 3 Also, d ( u , u 2 ) + w ( u 2 r ) = 4 The minimum is w ( uv ) = 3 Hence u 3 = v is the vertex third closest to u and d ( u , u 3 ) = 3 Ittmann (UKZN PMB) Math236 2012 20 / 24

  21. Dijkstra’s Algorithm (cont.) In the k th step , we find a vertex k th closest to u and call it u k A shortest u − u k path is of the form uu k or uu 1 u k or u · · · u 2 u k u · · · u 3 u k · · · u · · · u k − 1 u k u k-1 u k u 1 u 2 u k u k u k u u u u Ittmann (UKZN PMB) Math236 2012 21 / 24

  22. Dijkstra’s Algorithm (cont.) To find u k and compute d ( u , u k ) we do the following for all v ∈ V ( G ) − { u , u 1 , u 2 , u 3 , . . . , u k − 1 } : Look up w ( uv ) and d ( u , u 1 ) + w ( u 1 v ) and d ( u , u 2 ) + w ( u 2 v ) and ... d ( u , u k − 1 ) + w ( u k − 1 v ) Choose u k such that min { w ( uu 3 ) , d ( u , u 1 ) + w ( u 1 u 3 ) , . . . , d ( u , u k − 1 ) + w ( u k − 1 u k ) } is minimum Set d ( u , u 2 ) = min { w ( uu 3 ) , d ( u , u 1 ) + w ( u 1 u 3 ) , . . . , d ( u , u k − 1 ) + w ( u k − 1 u k ) } Ittmann (UKZN PMB) Math236 2012 22 / 24

  23. Dijkstra’s Algorithm (cont.) Example v 4 3 t 1 x u 2 9 1 r 2 y To find u 4 , note the following d ( u , u 2 ) + w ( u 2 r ) = 4 and d ( u , u 3 ) + w ( v , t ) = 7 The minimum is d ( u , u 2 ) + w ( u 2 r ) = 4 Hence u 4 = r is the vertex fourth closest to u and d ( u , u 4 ) = 4 Ittmann (UKZN PMB) Math236 2012 23 / 24

  24. Dijkstra’s Algorithm (cont.) Example v 4 3 t 1 x u 2 9 1 r 2 y To find u 5 , note the following d ( u , u 3 ) + w ( u 3 t ) = 7 and d ( u , u 4 ) + w ( u 4 , t ) = 6 The minimum is d ( u , u 4 ) + w ( u 4 , t ) = 6 Hence u 5 = t is the vertex fifth closest to u and d ( u , u 5 ) = 6 Ittmann (UKZN PMB) Math236 2012 24 / 24
