mark b snyder ph d p e pavement engineering and research
play

Mark B. Snyder, Ph.D., P.E., Pavement Engineering and Research - PowerPoint PPT Presentation

Mark B. Snyder, Ph.D., P.E., Pavement Engineering and Research Consultants, LLC (PERC) Bridgeville, Pennsylvania ACPA Mid-Year Meeting Workshop June 13, 2017 A Hallmark of good concrete pavements 50-year-old (and TH10 near St, Cloud,

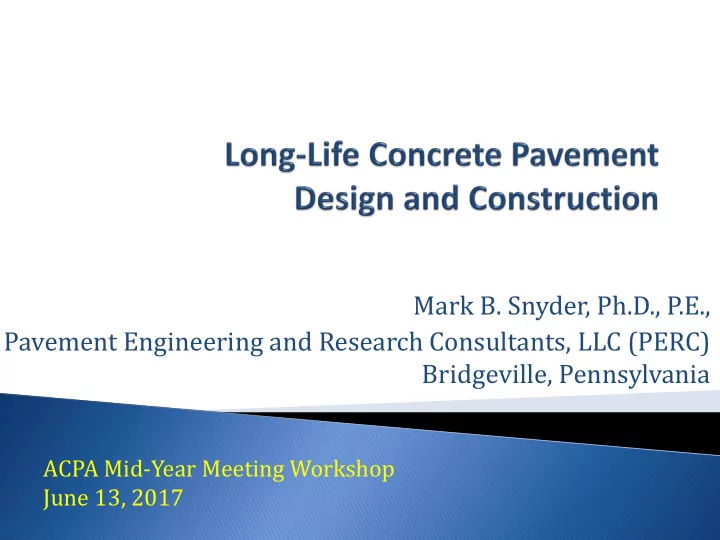

  1. Mark B. Snyder, Ph.D., P.E., Pavement Engineering and Research Consultants, LLC (PERC) Bridgeville, Pennsylvania ACPA Mid-Year Meeting Workshop June 13, 2017

  2.  A Hallmark of good concrete pavements  50-year-old (and TH10 near St, Cloud, MN; 9” PCC Constructed 1952 older) PCC pavements are common ◦ CA, TX, NY, IA, MN, ON Belknap Place San Antonio, TX 1914 Construction

  3.  Service life of original PCC surface = 50+ years (SHRP2 Definition)  No premature failures or materials-related distress  Reduced potential for cracking, faulting, spalling, etc.  Maintain desirable ride and surface texture characteristics with minimal M&R Design and Build it Right & Stay Out As Long As Possible

  4.  A combination of materials, mix design, structural design, and construction activities selected and implemented to ensure acceptable long-term pavement performance. It’s A System!

  5.  Concrete durability problems ◦ “D” -cracking, ASR, freeze-thaw damage, deicing chemical attack, etc.  Joint failures ◦ Dowel corrosion or misalignment ◦ Faulting and Spalling ◦ Mid-panel crack deterioration  Construction issues ◦ Foundation settlement, sawing errors, over-finishing, etc.  Fatigue failures are rare …

  6.  Address each potential failure mechanism in design and/or construction specifications.

  7.  Address each potential failure mechanism in design and/or construction specifications ◦ Structural (layer materials and thicknesses, panel dimensions, dowel size and spacing, etc.) ◦ Materials  Concrete (mix proportions, air void system, permeability, aggregate durability, etc.)  Steel (corrosion protection)  Foundation (drainage, erosion-resistance, etc.) ◦ Construction (compaction, curing techniques/materials and timing, sawing, surface texture design/construction, dowel alignment, etc.)

  8. 80 Std Design 70 Expected Performance LIfe, Years 60 50 40 30 20 10 0 Slab Dowel Concrete Concrete Construction Foundation Drainage Thickness Corrosion Aggregate Matrix Dur. Parameters Support Parameters Resist Dur.

  9. • Match performance potential for design components (strengthen “weak links”) • “Cafeteria” approach may not produce LLCP LLCP requirements are project-specific!

  10. 80 Std Design Improved Design and Construction Specs 70 Improved Materials Expected Performance Life, Years Improved Des, Matls & Const 60 50 40 30 20 10 0 Slab Dowel Concrete Concrete Construction Foundation Drainage Thickness Corrosion Aggregate Matrix Dur. Parameters Support Parameters Resist Dur.

  11.  Increased Slab Thickness ◦ Old “rule of thumb”: 1 add’l inch PCC doubles ESAL capacity ◦ But … PCC thickness may not be controlling design life!  PavementME analyses indicate no added structural benefit above 13 – 13.5 inch pavement thickness for current design loads  Control Panel Dimensions ◦ Curl/warp stresses increase with panel size ◦ Old “rules of thumb”:  Max panel dimension = 18-24*thickness  Max aspect ratio (L/W or W/L) = 1.5

  12. Slab sizes and thicknesses for same top stress (350 psi) Thickness: 6.3 inches PCC Thickness: 10 inches PCC Slabs: 5.9 ft x 5.9 ft Slabs: 14.8 ft x 11.8 Source: TCPavements

  13.  DURABILITY ◦ Concrete aggregate (quality and grading) ◦ Cement paste (reduced permeability)  w/(c+p)  Use of SCMs  Increased air content  Corrosion-resistant dowel bars

  14.  Must be highly durable ◦ DF > 90 (AASHTO T161 Proc A) ◦ ASTM C1260 dilation < 0.8 percent  Angular, rough-textured, abrasion-resistant ◦ Improved interlock, enhanced paste bond, durable in construction Photo Credits: PCA  Graded (with fine aggregate) to minimize paste content ◦ Reduced permeability and shrinkage  Low absorption, low CTE preferred ◦ e.g., basalt, granite, some limestones, etc.

  15.  Resistant to AAR (ASTM C1260 dilation < 0.8%)  Graded (with coarse aggregate) to minimize paste content ◦ Reduced permeability, shrinkage  >30 percent siliceous sand for microtexture  Low absorption preferred Photo Credit: PCA

  16.  Maximum 500 lb/c.y. cementitious content (with properly - graded aggregate blend) ◦ Volumetric stability ◦ Reduced potential for chemical attack Source: Peter Taylor/National Concrete Pavement Technology Center  Fly ash to reduce permeability and water bleeding, increase long-term strength ◦ Typically 15 – 25 percent replacement of cement ◦ Class F for ASR mitigation  Consider GGBFS for ASR mitigation, early strength gain

  17.  Reduce allowable w/(c+p) for higher strength, lower permeability ◦ PennDOT: 0.40 target, 0.42 max ◦ MnDOT: 0.40 max with incentives down to 0.37  Use Supplemental Cementitious Materials (SCMs) to densify paste ◦ Higher strength ◦ Reduced permeability Source: Portland Cement Association

  18. Ho How SCMs w SCMs Wor ork Cement Ceme nt C-S-H + + = = more C-S-H CH CH Wate ter + SCM + + SCM + Wate ter (w/c = 0.365, RCP: @ 28 days) 9000 8000 7000 RCP (Coulombs) 6000 5000 4000 3000 2000 1000 0 Class F Class C1 Class C2 GGBFS All fly ash 25% replacement, GGBFS 35% Source: National Concrete Pavement Technology Center

  19.  Increase plastic air content ◦ Standard: 6.5% +/- 1.5% ◦ HPCP: 8.5% +/- 1.5%.  Require 28-day RCP of <2500 coulombs.  W/(C + P) < 0.40 (incentive to 0.35)  Require minimum 30 percent siliceous fine aggregate (microtexture/friction)  Optimize total aggregate grading ◦ “ Shilstone ” approach ◦ 0.45 Power gradation ◦ 8-18 /7-18 grading bands

  20.  Must be highly corrosion-resistant  Structural design must provide: ◦ Good load transfer ◦ Sufficiently low bearing stress ◦ Sufficiently low overall and differential deflection  Many possibilities: ◦ 316L stainless steel (solid, clad, sleeved or tubes) ◦ Zinc alloy-clad or – sleeved steel ◦ FRP-clad steel ◦ Low carbon, high-chrome composite ◦ Special epoxy-coated steel ◦ FRP (requires larger bars and/or closer spacing for equivalent behavior)

  21.  Minnesota’s program includes all areas of construction  Program applies to the entire industry (agency, contractors and consultants alike)

  22. Photo credit: PCA  Certification of batching equipment  Pre-qualification of contractor  INSPECT, INSPECT, INSPECT ◦ Flexural strength ◦ Air Content ◦ Unit Weight ◦ Water/cementitious ratio ◦ Thickness ◦ Smoothness ◦ Dowel alignment Photo credit: ACPA ◦ Field operations

  23.  Certified batch plants and operators ◦ Stockpile moisture management  Adequate number of trucks to ensure concrete is fed to paver at consistent and useful rate. ◦ Avoid paver stops/starts.  Control delivery time, mix temperature.  Never allow retempering!

  24. Don’t Add Excess Water Adding 1 gal. of water to 1 yd 3 of concrete: Increases slump 1 in. • Decreases compressive strength by 200 psi • Wastes the effect of 1/4 sack of cement • Increases shrinkage by 10% • Increases permeability by up to 50% • Increases risk of air void • problems Cons Constr truc uction tion

  25. Microwave Oven Testing of Water Content in Freshly Mixed Concrete – AASHTO T 318

  26.  Need proper and timely curing with effective process  PAMS curing compounds were developed to be used in applications requiring extremely durable concrete ◦ Originally developed to replace the old chlorinated rubber curing compounds, which are no longer manufactured  Offers better water retention than current resin and wax technologies (Minnesota Study: up to 5x more effective!)  Offers improved sealing characteristics for additional protection  Concrete cured with PAMS has increased abrasion resistance, hardness, resistance to de-icing chemicals Source: W.R. Meadows

  27. ◦ Timeliness is essential ◦ Consider use of HIPERPAVIII) Photo credit: PCA ◦ Proper depth (consider section thickness variance)

  28.  Benefits: ◦ Significant extension of service life ◦ Reduction of maintenance/rehabilitation frequency ◦ Reduced LCC  Initial Costs ◦ 3 – 16 percent of paving costs ◦ Much lower percentage of project costs (considering R.O.W., noise walls, adjacenet structures, traffic control, etc.)

  29.  Total project cost ~ $18.4M  Total paving cost ~ $3.7M (20.1% of project cost)  Incremental cost of HPCP ~ $610,000 ◦ 16.5 percent of paving costs ◦ Only 3.4 percent of project costs!  Mn/DOT economic analysis: ◦ LCCA of HPCP = 5% lower than conventional concrete pavement ◦ This doesn’t include user cost savings – potentially huge!

  30.  LLCP design and construction can be accomplished with the knowledge and tools that we already have!  Structural design for desired traffic loading over performance period  Materials design for durability (resistance to exposure)  All design components must meet performance requirements (no “weak links”)  QA/QC is essential (more intense effort required)  Examples: MN, WI, PA, CA (and more …)

Recommend


More recommend
