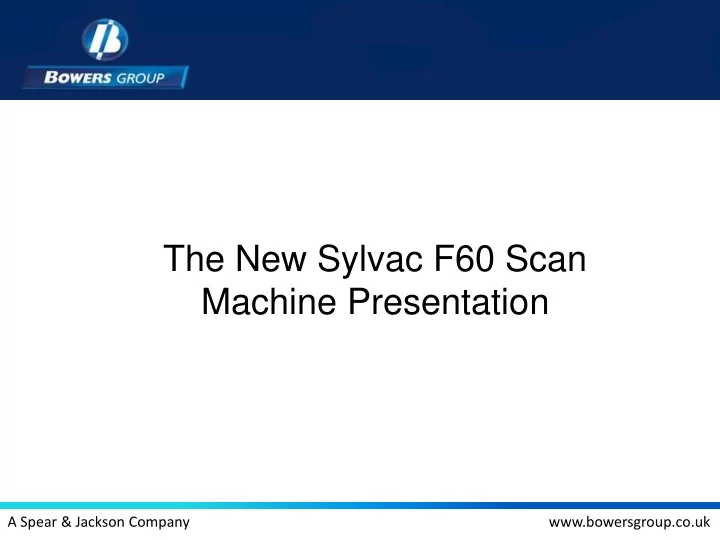

The New Sylvac F60 Scan Machine Presentation A Spear & Jackson Company www.bowersgroup.co.uk Sylvac Scan Simple and fast non-contact inspection system for turned parts Application DIAMETERS RUN-OUT DISTANCES CONCENTRICITY ANGLES

  1. The New Sylvac F60 Scan Machine Presentation A Spear & Jackson Company www.bowersgroup.co.uk

  2. Sylvac Scan Simple and fast non-contact inspection system for turned parts

  3. Application DIAMETERS RUN-OUT DISTANCES CONCENTRICITY ANGLES ROUNDNESS RADII CYLINDRICITY THREADS STRAIGHTNESS FORM DEVIATION ACROSS FLATS … …

  4. Applications

  5. New Sylvac F60 Scan

  6. F60 Closer Look Quick action Status LED / tailstock with Pass / Fail / counter Warn balance New New optics optics illuminator receiver & sensor Rotary headstock Light with quick curtain release extractor Reflex: Part recognition Integrated & Auto calibration measure master

  7. F60 Specification Sylvac-Scan F60/T Diameter Length Measuring range 60mm 300mm Holding capacity 120mm 315mm Max error µm < 1 + D/100 < 3 + L/200 Repeatability µm <0.5 <2.0 Tilting (Threads) 30° (T models only) Measuring speed 100 mm/s Rotation speed 1rps Max part weight 10kg

  8. F60 – What’s New • New design • New optics and camera • New easy to use tailstock with quick release tooling • New rotary headstock with quick release tooling • New Integrated calibration master in waterproof protective housing • New mechanics, completely new, slide, chassis, counter balance • New door & light curtain • New temperature sensors to monitor environmental changes • New LED status light

  9. New Software The new software “Reflex - Scan 2” (RS2) is effectively a merge of RS1 and Pro - Measure with a new look and some great new features.

  10. Cycle Time Example of cycle time, as a full 2D image is acquired, no matter if there are 2 • static features to measure or 200! It would take the same amount of time as we are only governed by the scan speed of 100m/s. • Scenario: Same part, programmed the same way with fine scan increment and similar zone sizing, for 25 static features (diameter and lengths). With part recognition!!

  11. Automeasure Load the part, click the button, the main features are measured and displayed

  12. Complete The Programme Simply complete the automatic program by removing or adding elements and input nominal and tolerances to get classified results

  13. Exclusive Thread Tilting Motorised tilting system: SYLVAC SCAN F60T 0-30 ° Tilting of the slide to get the true projected image of the thread profile

  14. Exclusive Thread Tilting Facilitates measurement for many types of threads: • V-form parallel • Taper / pipe (Pro only)* • Worm* • Ball-screw* • Bone-screw* (custom) • Pretty much any thread….

  15. Exclusive Thread Tilting Enables measurement of more thread features: • Major diameter • Minor diameter* • Pitch/Effective diameter • Pitch • Flank Angles • Root radius* • Crest radius* • Taper* • Lead error* • Run out* • Circularity* • Functional diameter*

  16. Exclusive Thread Tilting Tilt angle at 0 ° Tilt angle at 14.5 ° , specified on drawing

  17. Thread Applications

  18. More Information If you would like more information on the new Sylvac F60 Scan System or see a demonstration, please contact Bowers Group Sales. Tel: 08708 50 90 50 Email: sales@bowersgroup.co.uk Web: www.bowersgroup.co.uk
