Light, Camera and Shading CS 543 / ECE 549 Saurabh Gupta Spring - PowerPoint PPT Presentation

Light, Camera and Shading CS 543 / ECE 549 Saurabh Gupta Spring 2020, UIUC http://saurabhg.web.illinois.edu/teaching/ece549/sp2020/ Many slides adapted from S. Seitz, L. Lazebnik, D. Hoiem, D. Forsyth Recap - + 1 1 = 1

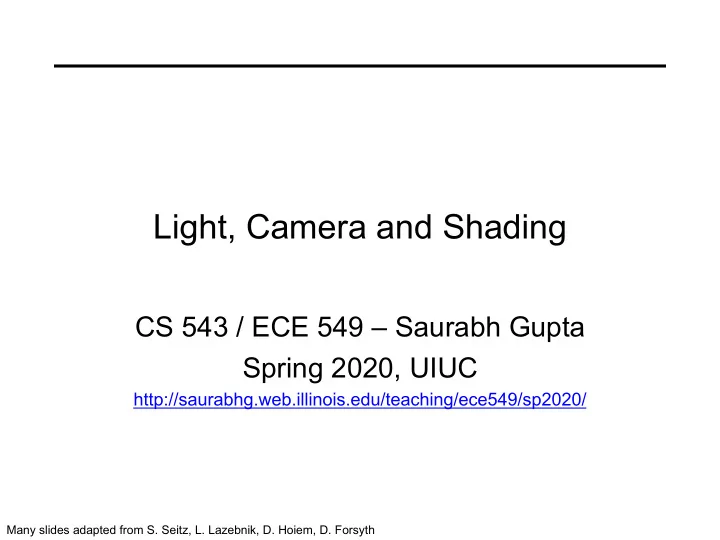

  1. Light, Camera and Shading CS 543 / ECE 549 – Saurabh Gupta Spring 2020, UIUC http://saurabhg.web.illinois.edu/teaching/ece549/sp2020/ Many slides adapted from S. Seitz, L. Lazebnik, D. Hoiem, D. Forsyth

  2. Recap 𝐸 - + 1 1 𝐸 = 1 𝑔 𝑒 𝜒 = 𝑢𝑏𝑜 &' 2𝑔

  3. Recap

  4. Recap é ù 2 æ ö p d ç ÷ = ê a ú 4 E cos L ç ÷ 4 f ê ú è ø ë û

  5. Recap transparent sub-surface reflection phosphoresence fluoroscence

  6. Overview • Lambertian reflection model • Shape from shading • Color

  7. Most surfaces have both Specularity = spot where specular reflection dominates (typically reflects light source) Typically, specular component is small Slide from D. Hoiem Photo: northcountryhardwoodfloors.com

  8. Specular reflection Picture source Slide from L. Lazebnik

  9. When light hits a typical surface • Some light is absorbed absorption • Some light is reflected diffusely – Independent of viewing direction diffuse reflection • Some light is reflected specularly – Light bounces off (like a mirror), specular depends on viewing direction reflection Θ Θ Slide from D. Hoiem

  10. Bidirectional Reflectance Distribution Function (BRDF) • How bright a surface appears when viewed from one direction when light falls on it from another • Definition: ratio of the radiance in the emitted direction to irradiance in the incident direction Source: Steve Seitz

  11. Lambertian reflectance model Some light is absorbed (function of albedo 𝜍 ) Remaining light is scattered, equally in all directions. Examples: soft cloth, concrete, matte paints light light source source diffuse reflection 𝜍 absorption (1 − 𝜍) Slide from D. Hoiem

  12. Intensity and Surface Orientation Intensity depends on illumination angle because less light comes in at oblique angles. 𝜍 = albedo 𝑻 = directional source 𝑶 = surface normal I = reflected intensity 𝐽 𝑦 = 𝜍 𝑦 𝑻 ⋅ 𝑶(𝑦) Slide: Forsyth

  13. Photometric stereo (shape from shading) • Can we reconstruct the shape of an object based on shading cues? Slide from L. Lazebnik

  14. Photometric stereo Assume: • A Lambertian object • A local shading model (each point on a surface receives light only from sources visible at that point) • A set of known light source directions • A set of pictures of an object, obtained in exactly the same camera/object configuration but using different sources • Orthographic projection Goal: reconstruct object shape and albedo S 2 S n S 1 ??? F&P 2 nd ed., sec. 2.2.4 Slide from L. Lazebnik

  15. Example 1 Recovered Recovered normal Recovered surface albedo field model F&P 2 nd ed., sec. 2.2.4 Slide from L. Lazebnik

  16. Example 2 Input … Recovered Recovered surface model albedo Recovered normal field x y z Slide from L. Lazebnik

  17. Image model • Known: source vectors S j and pixel values I j ( x , y ) • Unknown: surface normal N ( x , y ) and albedo ρ ( x , y ) F&P 2 nd ed., sec. 2.2.4 Slide from L. Lazebnik

  18. Image model • Known: source vectors S j and pixel values I j ( x , y ) • Unknown: surface normal N ( x , y ) and albedo ρ ( x , y ) • Assume that the response function of the camera is a linear scaling by a factor of k • Lambert’s law: ( ) ( ) ( ) = r × I ( x , y ) k x , y N x , y S j j ( ( ) ( ) ) = r × x , y N x , y ( k S ) j = × g ( x , y ) V j F&P 2 nd ed., sec. 2.2.4 Slide from L. Lazebnik

  19. Least squares problem • For each pixel, set up a linear system: ! $ ! $ T V I 1 ( x , y ) # & 1 # & # & T I 2 ( x , y ) # & V 2 g ( x , y ) = # & # & ! ! # & # & # & I n ( x , y ) T # & V " % " % n ( n × 1) ( n × 3) (3 × 1) known known unknown • Obtain least-squares solution for g ( x,y ) (which we defined as N ( x , y ) r ( x,y ) ) • Since N ( x,y ) is the unit normal, r ( x,y ) is given by the magnitude of g ( x,y ) Slide from L. Lazebnik • Finally, N ( x,y ) = g ( x,y ) / r ( x,y ) F&P 2 nd ed., sec. 2.2.4

  20. Synthetic example Recovered albedo Recovered normal field F&P 2 nd ed., sec. 2.2.4 Slide from L. Lazebnik

  21. Recovering a surface from normals Recall the surface is If we write the estimated written as vector g as æ ö g ( x , y ) ( x , y , f ( x , y )) ç 1 ÷ = g ( x , y ) g ( x , y ) ç ÷ 2 ç ÷ This means the normal g ( x , y ) è ø 3 has the form: Then we obtain values for the partial derivatives of æ ö f ç x ÷ the surface: 1 = N ( x , y ) f ç ÷ y + + 2 2 f f 1 = ç ÷ f ( x , y ) g ( x , y ) / g ( x , y ) 1 x y è ø x 1 3 = f ( x , y ) g ( x , y ) / g ( x , y ) y 2 3 F&P 2 nd ed., sec. 2.2.4 Slide from L. Lazebnik

  22. Recovering a surface from normals We can now recover the Integrability : for the surface height at any point surface f to exist, the by integration along some mixed second partial path, e.g. derivatives must be equal: ¶ x = ∫ ( g ( x , y ) / g ( x , y )) f ( x , y ) = f x ( s ,0) ds + 1 3 ¶ y 0 ¶ y ∫ ( g ( x , y ) / g ( x , y )) f y ( x , t ) dt + C 2 3 ¶ x 0 (for robustness, should (in practice, they should take integrals over many at least be similar) different paths and average the results) F&P 2 nd ed., sec. 2.2.4 Slide from L. Lazebnik

  23. Surface recovered by integration F&P 2 nd ed., sec. 2.2.4 Slide from L. Lazebnik

  24. Limitations • Orthographic camera model • Simplistic reflectance and lighting model • No shadows • No interreflections • No missing data • Integration is tricky Slide from L. Lazebnik

  25. Finding the direction of the light source I ( x,y ) = N ( x,y ) · S ( x,y ) Full 3D case: N S P. Nillius and J.-O. Eklundh, “Automatic estimation of the projected light source direction,” CVPR 2001 Slide by L. Lazebnik

  26. Finding the direction of the light source Consider points on the occluding contour : N z = 0 N z positive N z negative Image Projection direction ( z ) P. Nillius and J.-O. Eklundh, “Automatic estimation of the projected light source direction,” CVPR 2001 Slide by L. Lazebnik

  27. Finding the direction of the light source I ( x,y ) = N ( x,y ) · S ( x,y ) Full 3D case: N S For points on the occluding contour, N z = 0: P. Nillius and J.-O. Eklundh, “Automatic estimation of the projected light source direction,” CVPR 2001 Slide by L. Lazebnik

  28. Finding the direction of the light source P. Nillius and J.-O. Eklundh, “Automatic estimation of the projected light source direction,” CVPR 2001 Slide by L. Lazebnik

  29. Application: Detecting composite photos Real photo Fake photo M. K. Johnson and H. Farid, Exposing Digital Forgeries by Detecting Inconsistencies in Lighting, ACM Multimedia and Security Workshop, 2005. Slide by L. Lazebnik

  30. Overview • Lambertian reflection model • Shape from shading • Color
