L bster The Enhanced So Solu lutio ion for r Fla lange - PowerPoint PPT Presentation

Feb 17, 2023 •164 likes •355 views

L bster The Enhanced So Solu lutio ion for r Fla lange Gasket In Insertio ion GP-L01/V1.7 Presentation Content Company Introduction Gasket Insertion Tools Current Solutions & Disadvantages The Unique Solution The

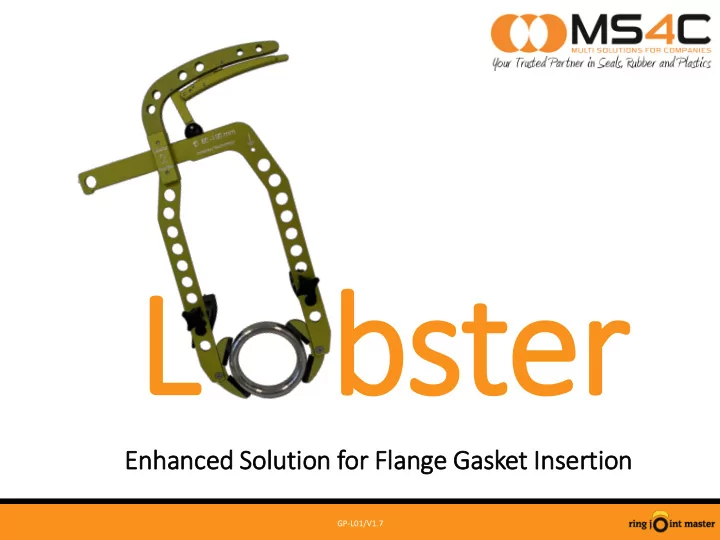

  1. L bster The Enhanced So Solu lutio ion for r Fla lange Gasket In Insertio ion GP-L01/V1.7

  2. Presentation Content • Company Introduction • Gasket Insertion Tools Current Solutions & Disadvantages • The Unique Solution • The Advantages of using the Lobster Gasket Insertion Tool • The Lobster material specification • The Lobster GIT tool details • Ring Type Joint Lobster Chart • Industries Served • Reference List • Lobster Video GP-L01/V1.7

  3. Company Introduction MS4C is a Dutch company based in Papendrecht, The Netherlands specialising in a range of seals, in various shapes and sizes satisfying any applications and supplying a range of industries. MS4C’s product portfolio comprises of: Static & dynamic seals • Mechanical seals • Moulded products (rubber & engineering plastics) • Gaskets • Membranes • Vulcanisation • Lobster Gasket insertion tools • GP-L01/V1.7

  4. Gasket Insertion Tools Current Solutions & Disadvantages… The range of methods are currently being used to install gaskets, range from hands, simple tooling and a ‘one time’ gasket insertion tool: Some of today disadvantages for using current methods: • Safety - this continues to be key to most industries and improvement must be made • Only one gasket size per tool • Many tools are required for long distance pipelines • Tools can only be used once (‘one - time‘ usage) • Current tools are time consuming due to lengthy handling time • Current tools can only be used on RTJ‘s (Ring Joints) • Complex Logistics... GP-L01/V1.7

  5. The Unique Solution…. MS4C introduces the superior quality ‘Lobster’ Gasket Insertion Tools ensures a safer , faster , cost effective and more accurate method of installing gaskets between two mating flanges. L bster GP-L01/V1.7

  6. The Advantages The ‘Lobster’ range of gasket insertion tools has many benefits: • Increased Safety (being paramount in today’s industry) Safe and quick Installation, reduced handling time • Easy to handle, one-hand operating process • Some companies operate with a hand free protocol , Protocol the use of the ‘Lobster holding device means that the operator can work hands free offering significant advantages Increased Safety, Cost Reductions and a positive Business Case guaranteed GP-L01/V1.7

  7. The Advantages • Can be used on a variety of gaskets (from OD 50mm to OD 800mm ) o RTJ’s - (R/BX/RX/SBX/SRX) o Spiral Wound Gaskets o Kammprofile Gaskets o Metal Jacketed Gaskets o Solid Gaskets o Non Asbestos Gaskets etc • Gasket installation in any flange position Increased Safety, Cost Reductions and a positive Business Case guaranteed GP-L01/V1.7

  8. The Advantages • Cost Saving - durability and repetitive usage means ROI after just 10 gasket installations • Multiple gasket dimensions per Lobster Tool (see Lobster details and RTJ charts) • Improved logistics • Used in a range of industries – Onshore, Offshore and Subsea • Global Distribution Channel • Patented Solution GP-L01/V1.7

  9. The Lobster Material Specification The Lobster Gasket Insertion Tool is manufacturer in Europe using high quality materials. • The body of Gasket Insertion Tool, is high tensile aluminium with anodic treatment, resistant against seawater, the same material as used in the aerospace, aviation and offshore industry. • The clamp is produced from steel with a special treatment ensuring resistant against seawater. • The screws and nuts are stainless steel seawater resistant. Meaning, we are on the safe side for the offshore usage, too! GP-L01/V1.7

  10. Lobster Holding Devices Specification The Lobster holding devices are highly recommended especially working subsea, this enables the driver to work hand free Materials: Fixed part is Aluminium with anodic treatment black Moving parts are stainless steel natural Fixing bolt is stainless steel natural All the materials are seawater resistant. GP-L01/V1.7

  11. The Lobster Details The Lobster Gasket Insertion Tool is available in 7 different tool sizes G Working Subsea we strongly recommend the use of the Holding Devices GP-L01/V1.7

  12. RTJ Lobster ‘GIT’ Chart GP-L01/V1.7

  13. Industries Served FPSO’s Oil & Gas Subsea Pipelines Process Dredging Marine E.P.C’s / Contractors Utilities Steel Rolling Mills Solar Power Wind Farms OEMs Aluminium Plants Oil Tanking Aerospace/Automotive GP-L01/V1.7

  14. DISTRIBUTORS • DENSIQ NORWAY • NOVUS SEALING AUSTRALIA NEW ZEALAND • NOVUS SEALING SOUTH AFRICA • PHOENIX GROUP UNITED KINGDOM CHINA MIDDLE EAST SUBSEA • TNITECH SOUTH KOREA GP-L01/V1.7

  15. Reference List • SHELL UK UNITED KINGDOM • SHELL RHEINLAND RAFFINERIE GERMANY • EXXON MOBILE NORWAY • STAPEM OFFSHORE FRANCE • LINDE GAS USA • CONOCOPHILLIPS ALASKA • KREMSMÜLLER ANLAGENBAU AUSTRIA • RAG AUSTRIA • MIDCONTINENT ABERDEEN LTD UNITED KINGDOM • SASOL CHEMICAL INDUSTRIES SOUTH AFRICA • DUXVALVES B.V. THE NETHERLANDS • ABU ILLYAS TRADING LLC OMAN • ROSNEFT VIETNAM • KHAN CO LTD. SOUTH KOREA • AND MORE …… GP-L01/V1.7

  16. Lobster Website & Video https://www.git-lobster.eu/ The Lobster ‘GIT’ without a holding device https://youtu.be/RdNhLstITUc The Lobster ‘GIT’ with a holding device https://youtu.be/o2-oX7vIWTg GP-L01/V1.7

  17. MS4C B.V. Buitendijks 35 3356 LX PAPENDRECHT The Netherlands +31 180 74 60 18 sales@MS4C.eu www.MS4C.eu GP-L01/V1.7

  18. Thank you GP-L01/V1.7
