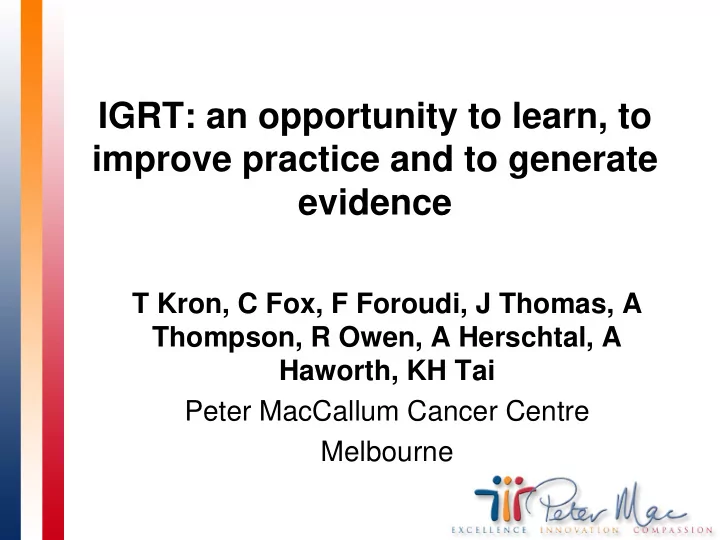

IGRT: an opportunity to learn, to improve practice and to generate evidence T Kron, C Fox, F Foroudi, J Thomas, A Thompson, R Owen, A Herschtal, A Haworth, KH Tai Peter MacCallum Cancer Centre Melbourne Image Guidance First X-ray in


  1. IGRT: an opportunity to learn, to improve practice and to generate evidence T Kron, C Fox, F Foroudi, J Thomas, A Thompson, R Owen, A Herschtal, A Haworth, KH Tai Peter MacCallum Cancer Centre Melbourne

  2. Image Guidance • First X-ray in Australia (July 25, 1896) • Bathurst: Father Slattery takes image of Eric Thomson’s hand. • Eric Thomson had accidentally be wounded by a spring gun

  3. Local control Identification Delivery of of the target radiation Excellent dose Verifying distribution delivery IMRT IGRT

  4. Objectives of the presentation • Introduce the concept of image guided radiotherapy • Illustrate the opportunities arising from prospectively collecting relevant information • Discuss some examples in the context of using daily IGRT for urological malignancies

  5. Attempt a definition for radiotherapy • IGRT consensus workshop Melbourne February 2008 • “Radiotherapy based on data pertaining to spatial geometry acquired at the point of treatment delivery with the intent to ensure accuracy of radiation delivery appropriate to the clinical scenario ”

  6. The problem • Linac co-ordinate system fixed in the room (about 1mm accuracy!) Radiation Patient Isocentre Tumour

  7. Imaging for MV RT units • X-rays: Varian Trilogy • MV Portal Imaging • kV imaging • Cone Beam CT • Other CT • Ultrasound • MRI? • Fiducial markers kV on-board EPI imaging

  8. AP Fiducial markers • Once implanted very easy to localize daily • Since March 2007 all prostate cancer patients treated with radical intend have three fiducial gold seeds implanted • Daily imaging for patient positioning: • 2 orthogonal EPI or • 2 orthogonal kV image with OBI lateral

  9. 2D/2D match • Two orthogonal (or non-orthogonal) MV or kV images • Good software • Provides necessary 3D couch shifts • Used routinely at Peter Mac

  10. Image guidance process Treatment Planning Reference Image Image Guidance Move patient Action protocol Treatment Delivery

  11. Image guidance process Treatment Planning Reference Image Image Guidance Action protocol Data collection Treatment Delivery

  12. Database For illustration purposes only Not our database… • All data recorded in Impac Record and Verify system • To date: • >500 prostate cancer patients • 4 different sites (all Varian equipment but different imaging) • > 12000 image sets

  13. Multistep process to extract data (no SQL database) • Crystal reports (x3) • MS Excel (x3) • In-house software Chris Fox (x3) • Access database – all information combined

  14. Imaging pre- and post- treatment Patient set-up to external marks Outcome 1: Imaging 1 Set-up difference Adjust patient Time position by set-up between difference images Treatment Outcome 2/3: Quality Assurance and Imaging 2 Intra-fraction variation

  15. Outcomes? • Quality assurance - has patient position been adjusted correctly? • Research/learning • EPI vs OBI • Intrafraction motion • Predictive patient parameters: • BMI • Rectal filling at planning • Change of clinical practice: • Patient selection • Margins

  16. Outcomes? • Quality assurance - has patient position been adjusted correctly? • Research/learning Quality Assurance for Individual Patients and • EPI vs OBI Groups/Processes • Intrafraction motion • Predictive patient parameters: • BMI • Rectal filling at planning • Change of clinical practice: • Patient selection • Margins

  17. How long does it take? kV imaging is faster than EPI 800 EPI - 40 patients: 1125 image pairs OBI - 102 patients: 2809 600 image pairs number of images median OBI = 6.3min 400 median EPI = 8.4min 200 0 1 2 3 4 5 6 7 8 9 0 1 2 5 0 5 0 e 1 1 1 1 2 2 3 r o M time between images (min)

  18. Time savings • Typical treatment time slot 15 min - saving creates about 4 to 5 more patient treatment appointments per day… • In Australian context kV on-board imaging is borderline cost effective over 8 years (even if we ignore better treatment outcomes)

  19. Consider OBI only (all displacements are corrected) Two orthogonal kV Two orthogonal kV Treatment (eg. 5 fields) images pre-treatment images post-treatment Image time analysis and action Time between images

  20. Distribution of Time between images intra-fraction dislocations (QA measure in itself) 3D displacements

  21. Is there any preferential direction (systematic error)? 0

  22. Is there a relationship between directions of intra-fraction displacement? AP SI

  23. Is daily imaging useful? Patient set-up to external marks Outcome 1: OBI imaging 1 Set-up difference Adjust patient Time position by set-up between difference images Treatment Outcome 2: OBI imaging 2 Intrafraction variation

  24. Is daily imaging useful? Patient set-up to external marks Outcome 1: OBI imaging 1 Set-up difference Mean set-up vector: 4.9 +/- 3.0mm Adjust patient Time position by set-up between difference images Treatment Outcome 2: OBI imaging 2 Intrafraction variation Mean displacement: 2.2 +/- 2.0mm

  25. Relationship bet. Time and 3D Displacement .5 2 Increase of displacement with time between image sets .0 2 ) m t (c .5 1 n e m e c la p is .0 D 1 D 3 .5 0 .0 0 5 10 15 20 25 30 Time between images (minutes)

  26. Distribution of displacements for times between images of < 7 mins 7 - 14 mins > 14 mins 7 to 14 min > 14 min 40 < 7 min 30 Percent of time group 20 10 0 0.0 0.5 1.0 1.5 2.0 2.5 0.0 0.5 1.0 1.5 2.0 2.5 0.0 0.5 1.0 1.5 2.0 2.5 3D Displacement (cm)

  27. With treatment times of 15 minutes a 5mm 3D margin does not cover all prostate movements in a 30 fraction treatment

  28. “Real” prostate motion (Calypso 4D tracking system, Kupelian et al 2007)

  29. Impact/Significance of IGRT • Clinical practice • Better patient set-up • Quality assurance • Margin design - use margin recipe • Workflow/resources • Hypo-fractionation (PROFIT trial) • Patient selection • Adaptive radiotherapy

  30. Examples of variations between patients 1.20 patient A Large intra-fraction motion patient B 1.00 patient C patient D movement (cm) 0.80 0.60 0.40 0.20 Very stable 0.00 0.00 2.00 4.00 6.00 8.00 10.00 12.00 14.00 time between pre- and post-treatment image (min)

  31. Number of patients with a certain average 3D displacement Individual M eans of 3D D isplacement Should these patients 100 have the same margin or the same 80 optimisation? Frequency 60 40 20 0 0 1 2 3 4 5 6 Individual means (mm)

  32. large displacement 0.25 Mean standard deviation (cm) 0.20 medium displacement 0.15 0.10 Classification from 1st Five Fractions: Small Medium 0.05 Large small displacement 0.1 0.2 0.3 0.4 0.5 Mean 3D displacement (cm)

  33. Classification of patients based on the first five large displacement fractions appears to be 0.25 possible…. Mean standard deviation (cm) 0.20 medium displacement 0.15 0.10 Classification from 1st Five Fractions: Small Medium 0.05 Large small displacement 0.1 0.2 0.3 0.4 0.5 Hope for adaptive radiotherapy Mean 3D displacement (cm)

  34. Patient selection? • No association of systematic and random prostate motion with • Body mass index • Rectal filling at time of treatment planning

  35. Conclusion • Image guidance provides us with a lot of data (that should be Subclinical prospectively collected) involvement Internal and set-up margin combined as independent • Evaluation of the data allows Internal margin improvement of individual patient’s treatment as well as Set-up margin improvement of departmental GTV protocols CTV PTV • A margin for prostate cancer patients smaller than 5mm appears to be not compatible with intrafraction motion patterns

  36. Acknowledgements • Carolyn Bedi, Boon Chua, Jim Cramb, Penny Fogg, Chris Fox, Annette Haworth, Farshad Foroudi, Eric Nguyen, Rebecca Owen, Paul Roxby, Andrea Paneghel, May Whitaker, Scott Williams, Trevor Leong, Kellie Knight, Kate Love, Claire Fitzpatrick, Trish Hubbard, David Willis, Aldo Rolfo, Gill Duchesne and many more

  37. Cone beam CT • Each OBI is one ‘multi’ slice CT projection • Slow scan – motion artefacts • Field of View limited • Scatter affects accuracy of CT numbers

  38. On-line adaptive RT for bladder cancer patients • Could be easy or hard: • Send patient to void • Choose the best from several plans • Replan daily • Challenges: • Interpretation of complex images in limited time • Selection of appropriate actions • Training requirements • Documentation

  39. Creation of Conventional and 3 Adaptive Plans Conventional Planning CT Small Average Large 5 Daily CBCTs Week 1 Pe Peter Ma ter MacCallum C m Cancer Centre ancer Centre Au Austra stralia’s Fo ’s Foremo remost Ca Cancer Centre ncer Centre

  40. Online Bladder Protocol Process Week Week Week Week Week Week Week 1 2 3 4 5 6 7 CBCT Conventional Plan Adaptive Plan* *Adaptive Plan based on Planning CT and first 5 CBCT

  41. Axial CBCT Showing first 5 bladder contours from CBCTs
