hydropower using OpenFOAM (Foam-extend 4.0) Bercelay Niebles - PowerPoint PPT Presentation

Heat transfer studies in electric generators for hydropower using OpenFOAM (Foam-extend 4.0) Bercelay Niebles Atencio Department of Mechanics and Maritime Sciences CHALMERS UNIVERSITY OF TECHNOLOGY Gothenburg, Sweden, 2017 Current status -

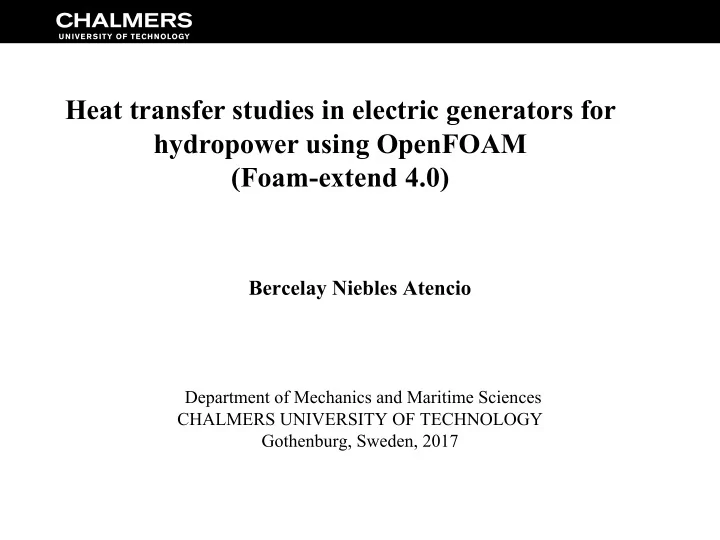

  1. Heat transfer studies in electric generators for hydropower using OpenFOAM (Foam-extend 4.0) Bercelay Niebles Atencio Department of Mechanics and Maritime Sciences CHALMERS UNIVERSITY OF TECHNOLOGY Gothenburg, Sweden, 2017

  2. Current status - Design phase of electric generatos relies on empirical correlations (network models). - Large uncertainties. - Flow of cooling air have been studied in the past. - Many studies focused on flow, thermal models, few experiments. - To the best of knowledge, nothing done in openFOAM regarding heat transfer in hydrogenerators.

  3. Electric Generators for Hydropower Sketch of an electric generator for hydropower. Source: http://www.eternoohydro.com/hydro-generator/

  4. Solvers in openFOAM - Conjugate heat transfer processes: - Rotation of fluid: chtMultiRegionSimpleFoam MRFSimpleFoam We want them to be merged!

  5. ch chtMR tMRFS FSimpleFo impleFoam am Having chtMultiRegionSimpleFoam as the base solver In the .C file In the createFluidFields file

  6. In the Ueqn. In the pEqn.

  7. Testing chtMRFSimpleFoam Heat Solid region

  8. ch chtSo tSourc urceMRFS eMRFSimpleFo impleFoam am Having chtMRFSimpleFoam as the base solver In the solveSolids.H file In the setSolidFields file In the createSolidFields file

  9. Heat generation Solid region

  10. Network Models Stator Core Rotor Outer Inner -One slot -Heat generation (coil, core) -No rotation -Periodicity and symmetry -kOmegaSST

  11. CFD for Network Model Case Nusselt Number Re CFD Gnielinksi Dittus-Boelter 3152 15.7 7.9 12 3520 16.8 9.1 13 3960 17.5 10.4 14.3

  12. Hydro-generator model experimental rig

  13. Heat transfer simulations

  14. Simulations for the hydro-generator model Inlet Rotor -Inlet, rotor, stator cellZones -kOmegaSST – low Re Stator -MRFSimpleFoam + heat -Periodic -Mixing Plane -Flow field -Heat transfer in stator channels

  15. Simulations Preliminary U field @ 10000 iterations (still running)

  16. Experiments - Oil visualizations

  17. Experiments - Naphthalene Sublimation

  18. Thank you!
