Grandstreams GDS3710 Hemispheric HD IP Video Door System WWW.GRANDSTREAM.COM AGENDA 1 PRODUCT OVERVIEW 2 SPECIFICATIONS/DETAILS 3 DEPLOYMENT SCENARIOS 4 INSTALLATION OVERVIEW The GDS3710 is Grandstreams new hemispheric HD IP Video


  1. Grandstream’s GDS3710 Hemispheric HD IP Video Door System WWW.GRANDSTREAM.COM

  2. AGENDA 1 PRODUCT OVERVIEW 2 SPECIFICATIONS/DETAILS 3 DEPLOYMENT SCENARIOS 4 INSTALLATION OVERVIEW

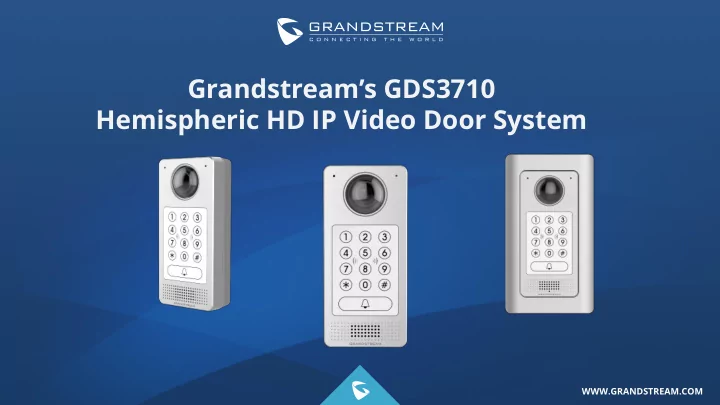

  3. The GDS3710 is Grandstream’s new hemispheric HD IP Video Door System. The hemispheric lens is ideal for monitoring from wall to wall without blind spots for optimum security. 3 WWW.GRANDSTREAM.COM

  4. About the GDS3710  Hemispheric IP Video Door System with 180-degree wall-to-wall coverage.  Serves as a high-definition IP surveillance camera and IP intercom to offer facility access control and security monitoring.  Integrates with Grandstream devices to provide a complete end-to-end solution for access control, video intercom, and security recording needs. 4 WWW.GRANDSTREAM.COM 4

  5. Technical Highlights: Supports SIP, door control using IP video phones, IP phones or mobile phones  Built-in capacitive touch keys and RFID 125KHz (EM4100)  Built-in digital microphone (1.5m range), and HD loudspeaker (3m range)  Full duplex audio with advanced AEC, Background Noise Suppression  PoE (IEEE802.3af, class 3), or 12VDC/2A connection  2 alarm inputs, 2 alarm outputs  RS-485, Wiegand input and output  Hostage Code alarm, Tamper alarm, Multi-Keypad-Input-Error alarm  5 WWW.GRANDSTREAM.COM

  6. Installation Environment Specifications  The GDS3710 can be in-wall mounted (with accessories purchased separately) or surface mounted.  Indoor/Outdoor  IPV66 Weatherproof  IK09 Vandal Resistant  Can operate in the following temperature ranges:  Operation: -30 ° C to 60 ° C (-22 ° F to 140 ° F)  Storage: -35 ° C to 60 ° C (-31 ° F to 140 ° F)  Humidity: 10% to 90% Non-condensing 6 WWW.GRANDSTREAM.COM

  7. Hemispheric View  Hemispheric HD lens  180 ° (W) x 150 ° (H)  2M pixel imaging sensor  H.264 High Profile  3+1 concurrent video streams:  1080p to NVR recording  720p to PC/video phones  QVGA to mobile Apps  720p still image capturing  Wide Dynamic Range (WDR)  Built-in white LEDs for face illumination  Lens Distortion Correction (LDC) 7 WWW.GRANDSTREAM.COM 7

  8. Viewing Modes: Hemispheric vs. Lens Distortion Correction 8 WWW.GRANDSTREAM.COM

  9. GDS Management Utility Software GDSManager is the free management  software for the GDS3710 Provides RFID card management, reports for  door entrance and attendance management. Available for download on Grandstream.com  under the GDS3710 “Resources” page http://www.grandstream.com/sites/default/files/Resources/G DSManager_User_Guide.pdf 9 WWW.GRANDSTREAM.COM

  10. Facility Access and Security Monitoring  Intercom  Built-in digital microphone, up to 1.5m range  Built-in HD loudspeaker, up to 3m range  Full duplex audio with advanced AEC, Background Noise Suppression  Alarm-in and alarm-out support  2 alarm inputs for door sensor or other devices  2 alarm outputs for electric lock, light switch or other devices 10 10 WWW.GRANDSTREAM.COM

  11. Access Options Independent Access: RFID cards or fobs  Custom numeric codes  Guest codes (with time settings)  Dual authentication (RFID & code combination)  Controlled Access: Ring doorbell  Dial an extension  Motion detection  11 11 WWW.GRANDSTREAM.COM

  12. Alarm Options Hostage Code alarm  Tamper alarm  Multi-Keypad-Input-Error alarm  12 12 WWW.GRANDSTREAM.COM

  13. Complete Facility Access and IP Surveillance Solution IP Video Phones  Integrates with the GXV3275 and GXV3240  Motion detection configuration to store video feeds  Open/close door  Store snapshots  Watch live video feeds  Intercom functionality 13 13 WWW.GRANDSTREAM.COM

  14. Complete Facility Access and IP Surveillance Solution IP Phones  Integrates with all GXP2100 series  Open/close door  Store snapshots  Watch live video feeds  Intercom functionality  Integrates with GXP1600, GXP1700 series and DP DECT series  Intercom functionality (voice only) 14 14 WWW.GRANDSTREAM.COM

  15. Complete Facility Access and IP Surveillance Solution NVRs and Recording  Integrates with Network Video Recorders  GVR3552 and GVR3550  Records and stores live video feeds 15 15 WWW.GRANDSTREAM.COM

  16. Deployment Scenarios SMBs Residential Facility Complex Multi- Location Company 16 16 WWW.GRANDSTREAM.COM

  17. Residential WWW.GRANDSTREAM.COM 1 17 17

  18. SMBs WWW.GRANDSTREAM.COM 1 18 18

  19. Multiple Locations WWW.GRANDSTREAM.COM 1 19 19

  20. Facility Complex WWW.GRANDSTREAM.COM 2 20 20

  21. Deployment Scenarios: One-Touch Entry using GXV3275 21 21 WWW.GRANDSTREAM.COM

  22. Deployment Scenarios: Video Stream via GXP2100 Series Integrates with all GXP2100 series  Store snapshots  Watch live video feeds  Open/Close door (with code or without) 22 22 WWW.GRANDSTREAM.COM

  23. Deployment Scenarios: Housing Complex, Office, School 192.168.1.100 192.168.1.200 GXV3275 GDS3710 Data + Power PoE Switch 23 23 WWW.GRANDSTREAM.COM

  24. Deployment Scenario: Full Solution GDS3710 GXV3XXX DP7XX GXV2XXX SIP/VoIP Open Door Electric Door Strike UCM6xxx Alarm_Out Internet IP-PBX (Direct wiring) or LAN Siren Lighting Control GS Wave Alarm_In Infrared Sensor Door/Window O/C Sensor Data + Power Data PoE Only Injector/Splitter GVR355X PoE Switch Recorder GDS Manager (Computer) 24 24 WWW.GRANDSTREAM.COM

  25. INSTALLATION Wall-Surface Mounting: There are two main installation methods for the GDS3710: Wall-Surface Mounting • (default) In-Wall Mounting • (separate accessories required ) In-Wall Mounting: 25 25 WWW.GRANDSTREAM.COM

  26. Wall-Surface Mounting Example: GDS3710 bottom line around 50 inches above the ground level to meet US Building Code (minimum 48 inches required) 26 26 WWW.GRANDSTREAM.COM

  27. In-Wall Mounting (separate accessories required): All 3 in-wall options: The same final appearance with Cover Frame 27 27 WWW.GRANDSTREAM.COM

  28. Electric lock types For safety purposes, electric locks and electric strikes can be designed to operate in one of two modes: Electric Strikes Electric Bolt Lock Fail-safe – to protect people: The lock is released if power cuts off. Fail-secure – to protect property: The lock remains closed if power cuts off. This type of lock has a cylinder, similar to those found in conventional locks. The cylinder makes it possible for the lock to remain secure, even if the power supply is cut off. Magnetic Lock 28 28 WWW.GRANDSTREAM.COM

  29. 5. COMP OMPARISO ARISON Model GDS3710 2N Helios IP Force Mobotix T25 Fanvil i31 Dimension 173mm(H) x 80mm(W) x 36mm(D) 217mm(H) x 109mm(W) x 83mm(D) 233mm(H) x 131mm(W) x 52mm(D) 223mm(H) x 130mm(W) x 74mm(D) Lens Type 180° x 150° 135° x 109° 180° x 160° 120° PoE Yes Yes Yes, Optional Yes SIP/VoIP Support Yes, broad interoperability Yes Yes Yes, broad interoperability G.711a/u, G.722, G.723.1, G.726-32K, Voice Codecs G.711μ/a -law, G.722 G.711, G.729, G.722, L16/16kHz G.711u/a-law G.729AB, iLBC, AMR Video Codecs H.264 High Profile, Motion JPEG H.264, H.263, H.263+,Motion JPEG H.264 for SIP, Motion JPEG H.264, Motion JPEG Video Resolution 1920 x 1080p 1280 x 960p 2048 x 1536p 1280 x 720p Max Frame Rate 30fps 30fps 30fps 30fps RFID Yes Yes, Optional Yes, Optional Yes Built-in Key Pad Yes, capacitive touch keys Yes, Optional, mechanical keys Yes, Optional, mechanical keys Yes, mechanical keys Audio Input Integrated microphone 2 integrated microphones Integrated microphone Integrated microphone Audio Output HD loudspeaker up to 3m Loudspeaker up to 1 m Loudspeaker Loudspeaker Day & Night Mode Yes, white LEDs for face illumination Yes, infrared light Yes, Optional Yes, infrared light No. of Alarm In & Out 2 channels Yes, Optional Yes, Optional 2 channels Waterproof Cert. IP66 IP65 IP65 IP65 Vandal Resistance IK09 IK10 N/A IK10 Mounting Wall-Surface, In-Wall (Flushing) Wall-Surface, In-Wall (Flushing) In-Wall (Flushing) Wall-Surface, In-Wall (Flushing) Temperature Range -30°C to 60°C -40 to 55 ºC -30 to 50°C -40 to 70°C 29 29 Retail Price $449.00 $875.00 $758.00 WWW.GRANDSTREAM.COM $880.00
