FDOT District 6 Interstate I-75/SR 826 Managed Lanes From SR 836 to - PowerPoint PPT Presentation

FDOT District 6 Interstate I-75/SR 826 Managed Lanes From SR 836 to I 75 in Miami Dade County F.M. No.: 418423 3 Presentation to Miami-Dade Metropolitan Planning Organization Citizens Transportation Advisory Committee (CTAC)

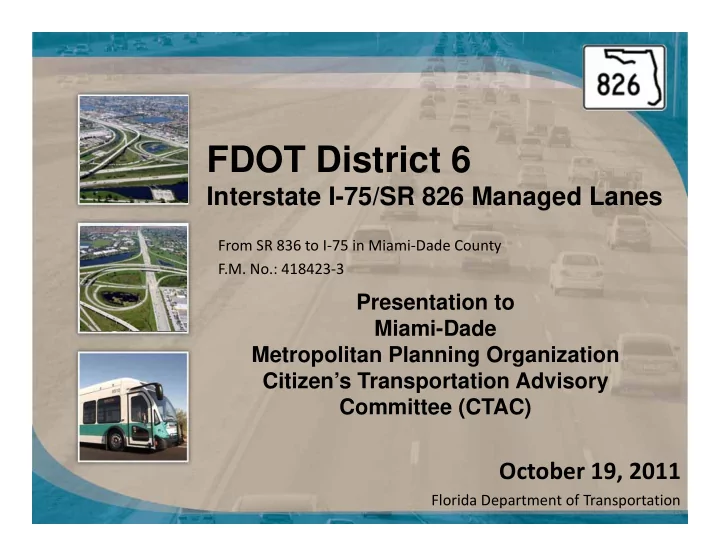

  1. FDOT District 6 Interstate I-75/SR 826 Managed Lanes From SR 836 to I ‐ 75 in Miami ‐ Dade County F.M. No.: 418423 ‐ 3 Presentation to Miami-Dade Metropolitan Planning Organization Citizen’s Transportation Advisory Committee (CTAC) October 19, 2011 Florida Department of Transportation

  2. Background  Florida Transportation Vision for the 21 st Century  Creative financing alternatives  Transportation choices  Faster project delivery  Develop a system of managed lanes  2007 USDOT UPA Partnership  Successful implementation of 95 Express SR 826 Managed Lanes 2

  3. 95 Express Performance  95 Express lanes are safer and more reliable  95 Express improved mobility for transit users (22% increase in bus ridership) SR 826 Managed Lanes 3

  4. 95 Express Performance FY’11 Operational Analysis ‐ Speed  Goal: Maintain Speed > 45 MPH 90% of Time  Average AM Peak Period Speeds (Southbound)  2008 HOV – 20 MPH; GPL ‐ 15 MPH  2011 EL – 62 MPH; GPL – 50 MPH  Average PM Peak Period Speeds (Northbound)  2008 HOV ‐ 18 MPH; GPL – 18 MPH  2011 EL – 56 MPH : GPL ‐ 41 MPH SR 826 Managed Lanes 4

  5. Background  I ‐ 75 PD&E Location Design Concept Approval anticipated in December 2011  Major project components:  Provision of Express Bus Service & Park ‐ n ‐ Ride lots  Two Managed Lanes in each direction utilizing I ‐ 75 median  Operational Improvements proposed at major interchanges  Direct connection at HEFT interchange SR 826 Managed Lanes 5

  6. Background  October LRTP and TIP Amendment proposed:  To advance SR 826 PD&E and extend limits to SR 836  I ‐ 75 re ‐ evaluation and RFP development  Funding for I ‐ 75 from NW 170 th Street to Miami ‐ Dade County line to be managed by FDOT District 4  SR 826 Location Design Concept Approval anticipated in Feb/March 2012  Major project components include:  Evaluation of Express Bus Service on SR 826 Managed Lanes  Two Managed Lanes proposed in each direction NB/SB via conversion of SR 826 HOV lane  Operation of SR 826 general purpose lanes to be evaluated  Direct managed lane ramp connector at I ‐ 75/SR 826 Interchange SR 826 Managed Lanes 6

  7. Objective  Expedite implementation of managed lanes on SR 826 and I ‐ 75  Determine viability of advancing both projects as Design/Build, Design/Build/Finance or as a P3 SR 826 Managed Lanes 7

  8. Next Steps  PD&E Study  Traffic & Revenue and financial evaluation  Project feasibility determination  Preparation of RFP package SR 826 Managed Lanes 8

  9. Key Components SR 826 Section  Managed Lanes on SR 826 from SR AM AM PM PM 836 to I ‐ 75  Approximately 8 miles of four (4) managed lanes  Direct ramp connection from SR 826 to I ‐ 75 (two managed lanes) I ‐ 75 Section  Managed Lanes on I ‐ 75 from SR 826 to south of Miami Gardens Drive  Approximately 4 miles of four (4) managed lanes  District 4 project will provide managed lanes from Miami Gardens I ‐ 75 Express Lanes Potential Ingress Drive to I ‐ 595 Potential Egress Reversible Ramp SR 826 Managed Lanes 9

  10. Typical Sections Miami ‐ Dade SR 826 Managed Lanes 10

  11. Typical Sections Miami ‐ Dade SR 826 Managed Lanes 11

  12. SR 826 Managed Lanes PD&E Study SR 826 Managed Lanes 12

  13. I ‐ 75 PD&E Study SR 826 Managed Lanes 13

  14. 95 Express Phase 1 SR 826 Managed Lanes 14

  15. 95 Express Phase 2 SR 826 Managed Lanes 15

  16. 595 Express SR 826 Managed Lanes 16

  17. SR 924 West Extension PD&E Study SR 826 Managed Lanes 17

  18. SR 826 East/West PD&E Study SR 826 Managed Lanes 18

  19. Closing Questions? SR 826 Managed Lanes 19

  20. SAFETY FIRST Damaged vehicles can be replaced, But You can't! Drive Safe! SR 826 Managed Lanes 20
