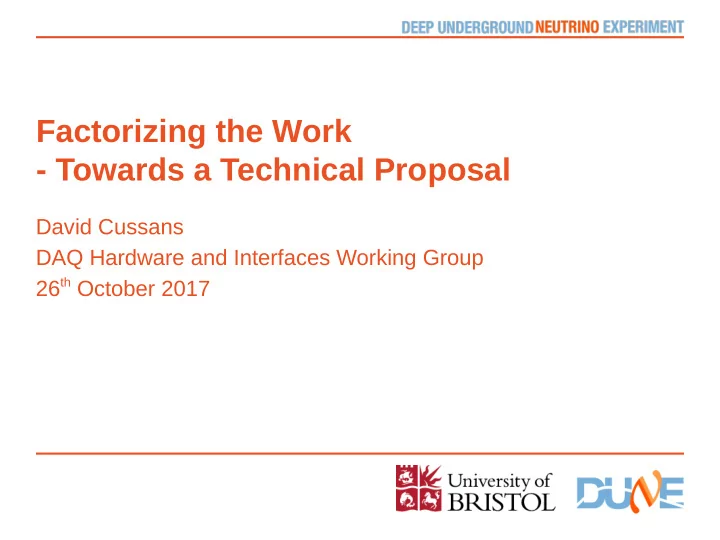

Factorizing the Work - Towards a Technical Proposal David Cussans DAQ Hardware and Interfaces Working Group 26 th October 2017
Introduction • Define and Document interfaces to SP and DP sub detectors Where no currently agreed interface exists, work to define one — e.g. TPC readout This discussion has started, but let us concentrate on the DAQ side of the interface • Research and document unit costs for hardware components FPGAs, links, memory, boards / crates / power / cooling, network equipment Lead to the initial system costing in Technical Proposal ( early ) 2018 • Explore suitable modularity of DAQ hardware How many boards, where, how much power, how many links → informed by architecture options 2 David Cussans | DAQ Hardware & Interfaces WG
Introduction • We now have some “straw man” architectures. • How do we move towards the DAQ Technical Report? • How do we distribute the work? • One group per architecture? • E.g. SLAC with RCE-like architecture , Columbia/Nevis with Deep learning approach • Advantage – greater coherency within each concept. • Disadvantage – difficult to keep details of benchmark the same and compare like-with-like ? • Different groups investigate different aspects. • E.g. FPGA vs. GPU, memory bandwidth, network • …. Or combine both approaches. 3 David Cussans | DAQ Hardware & Interfaces WG
Factorizing the work
FPGA Questions • Compression algorithms ● Started by J.J. Russell, SLAC • Noise Filtering ● Compare with GPU approach ( started by Philip Rodrigues ) • Memory bandwidth ● If using latency buffer ( rolling buffer ) to allow trigger decision what is the maximum I/O rate? ● Sets the limit on the number of channels per FPGA ? ● FPGA resources needed for filtering and compression? ● Build on existing work. 5 David Cussans | DAQ Hardware & Interfaces WG
GPU Questions • “Conventional” feature recognition + triggering: ● Total system requirements. • Deep Learning / image recognition: ● Coping with “moving picture” rather than static images. ● Triggering? ● Quantifying systematic uncertainties. 6 David Cussans | DAQ Hardware & Interfaces WG
“System Level” • Optimum size FPGA • Links: Very simple WIB has just electrical to optical converters. ● (preferred by Cold Electronics) ● Formatting onto 10GBit/s links happens off detector. ● Cost? • Optimum number of input channels per board ? ● Babak Ali showed “straw man” with 8 channels of 1 Gbit/s on a small board. ● Correlated with I/O to buffer memory ● … if using trigger latency rolling buffer 7 David Cussans | DAQ Hardware & Interfaces WG
Buffer Memory • What are the implications of a trigger latency buffer? ● 5ms, 1s , 10s ? • Long buffer for SN triggers? ● Record O(100s) of losslessly compressed data for a SN trigger. ● Feasible? ● Trivial exercise assuming “MMC” modules. ● 9.2 TB/s from one SP TPC, compression factor 2 ● 150s buffer. ~ 20k flash memory modules (bandwidth). ~ US$ 1M 8 David Cussans | DAQ Hardware & Interfaces WG
Summary • Need to provide raw ingredients for Technical Proposal • Need to enable new groups to contribute • → Factorize a few “straw men” designs and evaluate the individual pieces ( processing, algorithms, I/O , …. ) • See you in NYC 9 David Cussans | DAQ General Meeting
