EXTERIOR FRONT ELEVATION CLAY AVE LOCATION OF PREMISES (60' WIDE ) - PowerPoint PPT Presentation

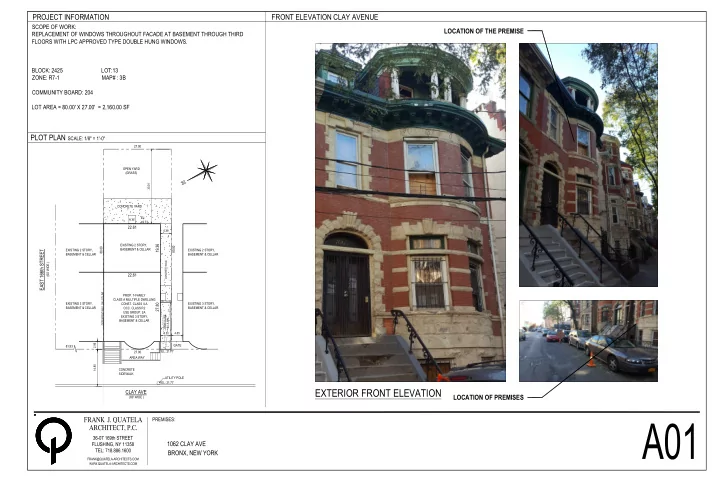

PROJECT INFORMATION FRONT ELEVATION CLAY AVENUE SCOPE OF WORK: LOCATION OF THE PREMISE REPLACEMENT OF WINDOWS THROUGHOUT FACADE AT BASEMENT THROUGH THIRD FLOORS WITH LPC APPROVED TYPE DOUBLE HUNG WINDOWS. BLOCK: 2425 LOT:13 ZONE: R7-1 MAP# : 3B COMMUNITY BOARD: 204 LOT AREA = 80.00' X 27.00' = 2,160.00 SF PLOT PLAN SCALE: 1/8" = 1'-0" 27.00 OPEN YARD (GRASS) 30.01 CONCRETE YARD EL: A.W. 19.72 22.61 4.39 EXISTING 2 STORY, 19.36 80.00 80.00 BASEMENT & CELLAR EXISTING 2 STORY, EXISTING 2 STORY, EAST 166th STREET BASEMENT & CELLAR BASEMENT & CELLAR CONCRETE WALK (60' WIDE ) 22.61 E N PROP. 7-FAMILY I L T CLASS A MULTIPLE DWELLING O EL: 19.72 L EXISTING 3 STORY, EXISTING 3 STORY, N CONST. CLASS II-A 27.80 O BASEMENT & CELLAR L BASEMENT & CELLAR OCC. CLASS R2 L A W USE GROUP: 2A T N EXISTING 3 STORY, RAMP SLOPE E D @ 1:8 MAX N BASEMENT & CELLAR E P E D 4.31 4.65 2.96 GATE 81.93 EL: 21.77 27.00 AREA WAY 14.80 CONCRETE SIDEWALK UTILITY POLE EL: 21.77 EXTERIOR FRONT ELEVATION CLAY AVE LOCATION OF PREMISES (60' WIDE )

TYPE "M" TYPE "N" WINDOW WINDOW PHOTO # 13 TYPE "C" "Q" TYPE "B" TYPE "I" PHOTOS # 14 ,14A WINDOW WINDOW WINDOW PHOTOS # 6,6A PHOTO # 3 PHOTO # 10 DN. TYPE "H" WINDOW PHOTO # 9 UP DN. UP EXISTING FIRST FLOOR PLAN EXISTING SECOND FLOOR PLAN EXISTING THIRD FLOOR PLAN EXISTING BASEMENT FLOOR PLAN SCALE: 1/4" = 1'-0" SCALE: 1/4" = 1'-0" SCALE: 1/4" = 1'-0" SCALE: 1/4" = 1'-0" M N 2'-6" 2'-6" 2'-6" 2'-6" 2'-6" 2'-6" EXISTING PROP. NEW WINDOWS TO ALUMINUM ALUMINUM ALUMINUM ALUMINUM WINDOWS ON BE REPLACED ALUMINUM ALUMINUM EXISTING OPENING ON EXISTING 3'-0" 5'-0" 5'-0" 3'-0" 5'-0" 5'-0" H H I OPENING M N N M N N I Q S S 3'-6" 3'-2" 3'-2" 3'-6" 3'-2" 3'-2" C Q EXISTING PROP. NEW ALUMINUM WOOD WOOD ALUMINUM WOOD WOOD WINDOWS TO WINDOWS ON C BE REPLACED EXISTING OPENING ON EXISTING 7'-0" 7'-0" 7'-0" 7'-0" 7'-0" 7'-0" B OPENING H I I H I I NEW CAMERA ON BRICK AREA. COLOR MUST CLOSELY MACH COLOR OF FACADES 3'-2" 3'-2" 3'-2" 3'-2" EXISTING EXISTING WINDOWS K WINDOWS TO REMAIN S Q Q Q Q Q 1'-6" 1'-6" 1'-6" 1'-6" S PROP. NEW EXISTING CURVED WOOD WOOD WOOD WOOD WINDOWS ON WINDOWS TO BE N EXISTING OPENING REPLACED ON 5'-0" 5'-0" 5'-0" 5'-0" PROP. NEW DOOR ON EXISTING OPENING M C S 1 1 6'-8" 6'-8" C C C C EXISTING OPENING EXISTING DOOR TO BE REPLACED NEW EXTERIOR ON EXISTING LIGHTING SEE DETAIL 4'-0" 4'-0" 4'-0" 4'-0" OPENING 5'-0" ON LM-007.00 5'-0" I WOOD WOOD H WOOD WOOD B B B B 5'-0" 5'-0" 5'-0" 5'-0" B Q S EXISTING FRONT ELEVATION( CLAY AVE) PROP. FRONT ELEVATION( CLAY AVE) C SCALE: 1/4" = 1'-0" SCALE: 1/4" = 1'-0"

SCALE: 1/2" = 1'-0" SCALE: 1/2" = 1'-0" PHOTO #1 TYPE "B" WINDOW 3'-2" 3'-2" EXISTING WOOD CASEMENT WINDOW IN BASEMENT, FRONT ELEVATION TO BE REPLACED BY NEW WOOD DOUBLE-HUNG WINDOW ������������������������������������������ 5'-0" 5'-0" 3'-5" 3'-5" FINISH FLOOR FINISH FLOOR EXIST. WINDOW "B" (WOOD) PROP. WINDOW "B" (WOOD) SCALE: 1/2" = 1'-0" SCALE: 1/2" = 1'-0" 3'-2" 3'-2" PHOTO #2 TYPE "C" "Q" WINDOWS 3'-2" 3'-2" EXISTING WOOD CASEMENT WINDOW ON FIRST EXISTING "C" 1'-6" 1'-6" FLOOR, FRONT ELEVATION TO BE REPLACED BY WINDOW (NO WORK) NEW WOOD DOUBLE-HUNG WINDOW ARCHITECT �������������������������������� 5'-0" 5'-0" 7'-6" 7'-6" 2'-0" 2'-0" FINISH FLOOR FINISH FLOOR EXIST. WINDOW "C" "Q"(WOOD) PROP. WINDOW "C" (WOOD) SCALE: 1/2" = 1'-0" SCALE: 1/2" = 1'-0" PHOTO #3 TYPE "H" WINDOW 3'-6" 3'-4" EXISTING WOOD CASEMENT WINDOW ON SECOND FLOOR, FRONT ELEVATION TO BE REPLACED BY NEW WOOD DOUBLE-HUNG WINDOW ARCHITECT PROPOSED WOOD �������������������������������� DOUBLE HUNG ON EXTERIOR WALL 7'-0" 7'-0" 2'-6" 2'-6" FINISH FLOOR FINISH FLOOR EXIST. WINDOW "H"(ALUMINUM) PROP. WINDOW "H"(ALUMINUM) SCALE: 1/2" = 1'-0" SCALE: 1/2" = 1'-0"

PHOTO #4 TYPE "I" WINDOW 3'-2" 3'-2" EXISTING WOOD WINDOW ON SECOND FLOOR, FRONT ELEVATION TO BE REPLACED BY NEW WOOD DOUBLE-HUNG WINDOW ARCHITECT �������������������������������� 7'-0" 7'-0" 2'-6" 2'-6" FINISH FLOOR FINISH FLOOR EXIST. WINDOW "I" (WOOD) PROP. WINDOW "I" (WOOD) SCALE: 1/2" = 1'-0" SCALE: 1/2" = 1'-0" PHOTO #5 TYPE "M" WINDOW EXISTING WOOD WINDOW ON THIRD FLOOR, 2'-6" 2'-6" FRONT ELEVATION TO BE REPLACED BY NEW WOOD DOUBLE-HUNG WINDOW ARCHITECT PROPOSED WOOD DOUBLE HUNG ON �������������������������������� 3'-0" 3'-0" EXTERIOR WALL 4'-0" 4'-0" FINISH FLOOR FINISH FLOOR EXIST. WINDOW "M"(ALUMINUM) PROP. WINDOW "M"(ALUMINUM) SCALE: 1/2" = 1'-0" SCALE: 1/2" = 1'-0" PHOTO # 6 TYPE "N" WINDOWS 2'-6" 2'-6" EXISTING WOOD WINDOW ON THIRD FLOOR , FRONT ELEVATION TO BE REPLACED BY NEW WOOD DOUBLE-HUNG WINDOW ARCHITECT PROPOSED WOOD �������������������������������� DOUBLE HUNG ON 5'-0" 5'-0" EXTERIOR WALL 2'-0" 2'-0" FINISH FLOOR FINISH FLOOR EXIST. WINDOW "N"(ALUMINUM) PROP. WINDOW "N"(ALUMINUM) SCALE: 1/2" = 1'-0" SCALE: 1/2" = 1'-0"
