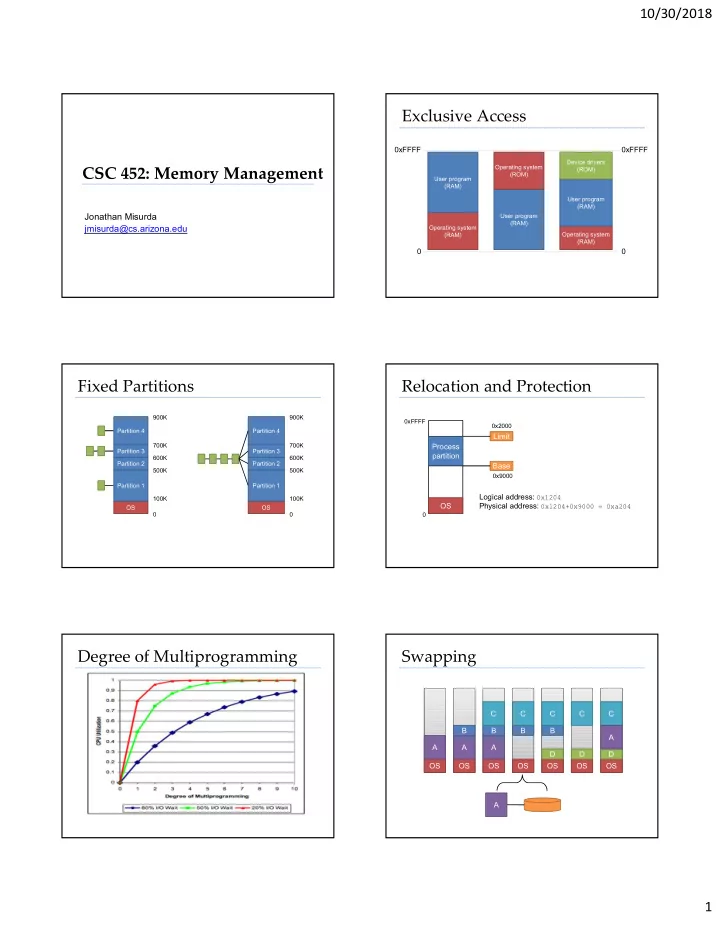

CSC 452: Memory Management

Jonathan Misurda jmisurda@cs.arizona.edu

Exclusive Access

Operating system (RAM) User program (RAM)

0xFFFF 0xFFFF

User program (RAM) Operating system (ROM) Operating system (RAM) User program (RAM) Device drivers (ROM)

Fixed Partitions

OS Partition 1 Partition 2 Partition 3 Partition 4 100K 500K 600K 700K 900K OS Partition 1 Partition 2 Partition 3 Partition 4 100K 500K 600K 700K 900K

Relocation and Protection

Process partition OS

0xFFFF

Limit Base

0x2000 0x9000

Logical address: 0x1204 Physical address: 0x1204+0x9000 = 0xa204

Degree of Multiprogramming Swapping

OS OS OS OS OS OS OS A A B A B C B C B C D C D C D A A

SLIDE 2

10/30/2018 2

Room to Grow

OS Code Data Stack Code Data Stack Process B Process A Room for B to grow Room for A to grow

Allocation Management

Bitmaps

A B C D

11111100 00111000 01111111 11111000

8 16 24 32

Memory regions Bitmap

Linked Lists

A B C D Memory regions

A 6

4 B 10 3

13 4

C 17 9

29 3

D 26 3

8 16 24 32

Allocation Strategies

First fit

– Find the first free block, starting from the beginning, that can accommodate the request

Next fit

– Find the first free block, starting where the last search left off, that can accommodate the request

Best fit

– Find the free block that is closest in size to the request

Allocation Strategies Continued

Worst fit

– Find the free block with the most left over after fulfilling the allocation request

Quick fit

– Keep several lists of free blocks of common sizes, allocate from the list that nearest matches the request

SLIDE 3

10/30/2018 3

Reclaiming Freed Memory

A X B A X X B X A B A B

malloc() and free()

_end brk $sp Stack Heap Globals Unallocated Space

Overlays

Hand-written dynamic loading of subsets

f a program’s code and data.

Virtual Memory

Attempt to simulate more memory than exists on the system through automatic “overlays”

Page Table

0–4K 4–8K 8–12K 12–16K 16–20K 20–24K 24–28K 28–32K 7 0–4K 4 4–8K 8–12K 12–16K 16–20K 20–24K 24–28K 3 28–32K 32–36K 36–40K 1 40–44K 5 44–48K 6 48–52K

52–56K

56–60K

60–64K

Virtual address space Physical memory

Translation

p Page Number d Page Offset f

1 p-1 p+1

f d Page Frame Number

. . .

Physical Memory

. . .

f-1 f f+1 f+2

. . .

Page Frame Number

CPU
