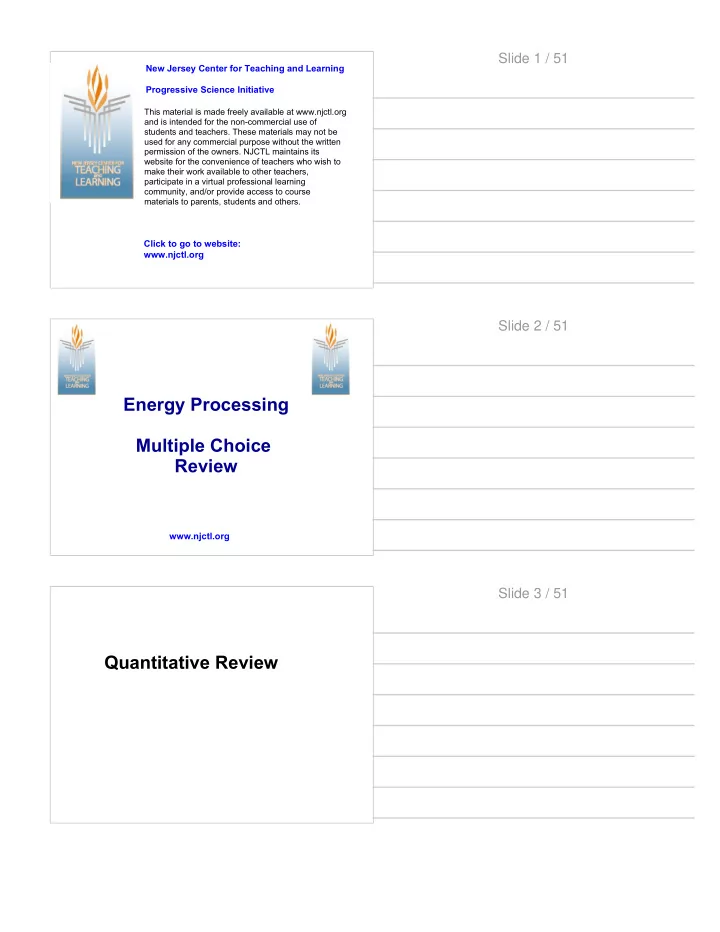

Slide 1 / 51 New Jersey Center for Teaching and Learning Progressive Science Initiative This material is made freely available at www.njctl.org and is intended for the non-commercial use of students and teachers. These materials may not be used for any commercial purpose without the written permission of the owners. NJCTL maintains its website for the convenience of teachers who wish to make their work available to other teachers, participate in a virtual professional learning community, and/or provide access to course materials to parents, students and others. Click to go to website: www.njctl.org Slide 2 / 51 Energy Processing Multiple Choice Review www.njctl.org Slide 3 / 51 Quantitative Review
Slide 4 / 51 1 The wavelength and frequency of a photon determines the energy level of that photon. The wavelength of a photon is directly proportional to velocity and indirectly proportional to frequency as shown in the following equation: λ = v/f. What Answer is the frequency, in seconds, of a photon with a wavelength of 525 nm and a velocity of 3.00 x 108 m/s? Slide 4 (Answer) / 51 1 The wavelength and frequency of a photon determines the energy level of that photon. The wavelength of a photon is directly proportional to velocity and indirectly proportional to frequency as shown in the following equation: λ = v/f. What Answer is the frequency, in seconds, of a photon with a 5.71 x 10 14 s wavelength of 525 nm and a velocity of 3.00 x 108 m/s? [This object is a pull tab] Slide 5 / 51 2 In cellular respiration, NADH AND FADH2 donate electrons to the electron transport chain in an effort to create ATP. FADH2 donates electrons at a different location on the chain than NADH and, therefore, results in the creation of less ATP than Answer NADH. In fact, every FADH2 molecule creates 1.5 ATP while every NADH molecule creates 2.5 ATP. In a catabolic process that results in 11 NADH and 3 FADH2, how many ATP can be created from the electron transport chain?
Slide 5 (Answer) / 51 2 In cellular respiration, NADH AND FADH2 donate electrons to the electron transport chain in an effort to create ATP. FADH2 donates electrons at a different location on the chain than NADH and, therefore, results in the creation of less ATP than Answer NADH. In fact, every FADH2 molecule creates 1.5 32 ATP ATP while every NADH molecule creates 2.5 ATP. In a catabolic process that results in 11 NADH and 3 FADH2, how many ATP can be created from the electron transport chain? [This object is a pull tab] Slide 6 / 51 3 During the process of cellular respiration, glucose is broken down to release energy. A byproduct of the process is heat, which endotherms use to maintain a constant body temperature. The efficiency of respiration is a calculation that Answer determines what percentage of glucose is actually converted to ATP, as opposed to being released as heat. Efficiency is expressed as a percentage. Use the following information to calculate the percentage of the oxidation of glucose that is stored in ATP. The oxidation of one mole of glucose under standard conditions releases 686 kcal/mol. The phosphorylation of ADP to ATP stores 7.3 kcal/mol and, under best conditions, cellular respiration creates 32 ATP. Slide 6 (Answer) / 51 3 During the process of cellular respiration, glucose is broken down to release energy. A byproduct of the process is heat, which endotherms use to maintain a constant body temperature. The efficiency of respiration is a calculation that Answer determines what percentage of glucose is actually 34% converted to ATP, as opposed to being released as heat. Efficiency is expressed as a percentage. Use the following information to calculate the percentage of the oxidation of glucose that is stored in ATP. The oxidation of one mole of [This object is a pull tab] glucose under standard conditions releases 686 kcal/mol. The phosphorylation of ADP to ATP stores 7.3 kcal/mol and, under best conditions, cellular respiration creates 32 ATP.
Slide 7 / 51 4 Phycobilins are light-capturing molecules found in cyanobacteria. For phycobilin photons with a speed of 3.00 x 108 m/s and a frequency of 4.62 x 1014 s, what is the wavelength of the phycobilin photon, in nm? Answer Slide 7 (Answer) / 51 4 Phycobilins are light-capturing molecules found in cyanobacteria. For phycobilin photons with a speed of 3.00 x 108 m/s and a frequency of 4.62 x 1014 s, what is the wavelength of the phycobilin Answer photon, in nm? 651 nm [This object is a pull tab] Slide 8 / 51 5 A scientist is testing new equipment that detects ATP creation during cellular respiration. During the first test, 23 molecules of ATP are detected from the breakdown of 1 molecule of glucose. Knowing that the optimal amount of ATP possible Answer is 32, what is the percent error of the experiment?
Slide 8 (Answer) / 51 5 A scientist is testing new equipment that detects ATP creation during cellular respiration. During the first test, 23 molecules of ATP are detected from the breakdown of 1 molecule of glucose. Knowing that the optimal amount of ATP possible Answer is 32, what is the percent error of the experiment? 28% [This object is a pull tab] Slide 9 / 51 6 A microrespirometer was used to collect data on the respiration of germinating peas. Calculate the rate of cellular respiration, in cm/min, during first five minutes of the experiment. Total Time (min) Total distance fluid has moved (cm) Change in fluid position (cm) Answer 0 0.04 0.04 5 0.06 0.02 10 0.09 0.03 15 0.11 0.02 Slide 10 / 51 1 Stomata play an important role in the homeostasis of a plant. Which statement regarding stomata is true? Answer A Stomata control the concentration of gases in the plant. B When water concentrations are low in the plant, stomata will open. C Gases are moved through the stomata via active transport. D Gibberellins control the opening and closing of the stomata.
Slide 10 (Answer) / 51 1 Stomata play an important role in the homeostasis of a plant. Which statement regarding stomata is true? Answer A A Stomata control the concentration of gases in the plant. B When water concentrations are low in the plant, stomata will open. C Gases are moved through the stomata via active transport. [This object is a pull tab] D Gibberellins control the opening and closing of the stomata. Slide 11 / 51 2 Two different methods of thermoregulation have evolved in animals: endothermy and ectothermy. Which of the following statements is incorrect regarding endotherms? Answer A Endotherms burn more calories than ectotherms of the same mass. B Endotherms are able to be at maximum metabolism whenever necessary. C Endotherms are able to maintain an internal temperature within a range of about 1 # C. D Warm-blooded animals may go long periods without eating. Slide 11 (Answer) / 51 2 Two different methods of thermoregulation have evolved in animals: endothermy and ectothermy. Which of the following statements is incorrect regarding endotherms? Answer A Endotherms burn more calories than ectotherms of the D same mass. B Endotherms are able to be at maximum metabolism whenever necessary. [This object is a pull tab] C Endotherms are able to maintain an internal temperature within a range of about 1 # C. D Warm-blooded animals may go long periods without eating.
Slide 12 / 51 3 Many poisons act by disrupting metabolism. Oligomycin inhibits the production of ATP in cellular respiration. This means that oligomycin most likely disrupts the action of: Answer A Oxidative phosphorylation B The Krebs cycle Oxidation of pyruvate C Glycolysis D Slide 12 (Answer) / 51 3 Many poisons act by disrupting metabolism. Oligomycin inhibits the production of ATP in cellular respiration. This means that oligomycin most likely disrupts the action of: Answer A A Oxidative phosphorylation The Krebs cycle B Oxidation of pyruvate C Glycolysis [This object is a pull tab] D Slide 13 / 51 4 Orchids belong to one of the largest families of flowering plants. With colorful blooms, they can be found in almost all habitats. What plant behavior is being exhibited by the orchid shown below? Answer A Phototropism Photosynthesis B Gravitropism C D Apical dominance
