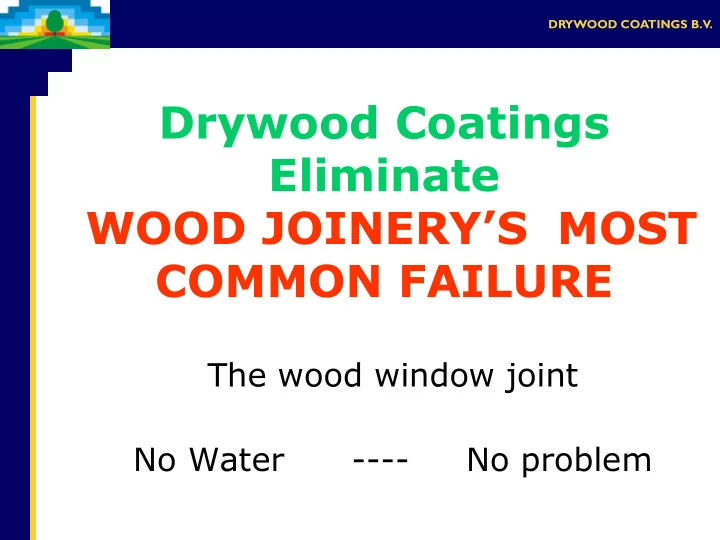

DRYWOOD COATINGS B.V. Drywood Coatings Eliminate WOOD JOINERY’S MOST COMMON FAILURE The wood window joint No Water ---- No problem

DRYWOOD COATINGS B.V. A Breakthrough Drywood Coatings announces the launch of a much welcomed tool to Joinery Manufacturers. Following continued International study on wood joinery failures Drywood Coatings have made a breakthrough on the protection of the Wood Joinery weak link ----- The Leaking Joint

DRYWOOD COATINGS B.V. FO OR R A A C CL LO OS SE ED D W WA AT TE ER R T TI IG GH HT T F WI IN ND DO OW W J JO OI IN NT T W DR RY YW WO OO OD D O Op pt ti i- -J Jo oi in nt t X XP P D A joint leap to perfection

DRYWOOD COATINGS B.V. Drywood Opti-Joint XP • Drywood addresses the weakest link, the joint • Specifically developed to keep Wood Joinery joints protected from moisture ingress. • Beside its gluing properties, Opti-Joint XP protects end grains and joint-lines from water uptake. • 100 % product (no water or organic solvent) • No dangerous / toxic substances (safe for worker and environment)

DRYWOOD COATINGS B.V. Main Advantages of Opti-Joint XP: • Stays flexible to absorb movements in the joint • Fills gaps up to 2 mm • Suitable for common (tropical) hard- and softwoods plus chemically or thermally modified wood. • Product fills capillaries without foaming • No long pressing times or high pressure required. • Overpaintable with common waterborne coatings

DRYWOOD COATINGS B.V. DECIDE BY VISUAL INSPECTION :- An open fitting requires the application of Opti-Joint XP. In case of a very wide fitting: apply Opti-Joint XP on both sides.

DRYWOOD COATINGS B.V. Application Options : - Opti-Joint XP by gun

DRYWOOD COATINGS B.V. Application to dowel-holes : - Take care when fitting the dowel.

DRYWOOD COATINGS B.V. Application of Opti-Joint XP by spray-gun.

DRYWOOD COATINGS B.V. Application of Opti-Joint XP with a roller-spatula which feeds from a pressure-vessel.

DRYWOOD COATINGS B.V. Application of Opti-Joint XP : - The manual way ,cover all surfaces.

DRYWOOD COATINGS B.V. Opti-Joint XP : - On profiled surfaces and in dowel-holes. Apply Opti-joint XP in dowel-holes of the rail.Followed by assembly of the window frame .

DRYWOOD COATINGS B.V. Assemble the parts with low pressure and short assembly times until Opti-joint XP flows out of joint. Do not increase pressure if no material flows out but apply more Opti-joint XP. Fix the joint of larger elements with a nail or screw.

DRYWOOD COATINGS B.V. A j joi oint nt i is on s only y go good od whe hen n Opt pti-joi oint nt XP flow ows s ou out t on on al all j joi oint nt l line nes

DRYWOOD COATINGS B.V. Remove ove excess ss Opti ti-joint joint XP P with th a sp spatula tula with th round nd edges to ensure ure a mo moistur sture tight ht joint. nt.

DRYWOOD COATINGS B.V. Use excess amount of Opti-joint XP as end-grain sealer.

DRYWOOD COATINGS B.V. Dry overnight to ensure a good adhesion of the coating applied afterwards .

DRYWOOD COATINGS B.V. Moisture protection spruce 6000 Opti-Joint XP 5000 PVAC wateruptake end-grain g/m2 untreated 4000 3000 2000 1000 0 1 day 2 days 3 days 7 days 10 days 14 days immersion in water

DRYWOOD COATINGS B.V. Moisture protection meranti 12000 Opti-Joint XP 10000 PVAC wateruptake end-grain g/m2 untreated 8000 6000 4000 2000 0 1 day 2 days 3 days 7 days 10 days 14 days immersion in water

DRYWOOD COATINGS B.V. CHANGES WOOD MOISTURE DURING ARTIFICIAL WEATHERING LOCK CORNER JOINTS MERANTI 18,0% PVAC 16,0% Opti-Joint XP 14,0% 12,0% WOOD MOISTURE % 10,0% 8,0% 6,0% 4,0% 2,0% 0,0% START wet dry wet dry wet dry wet dry wet dry wet dry wet dry

DRYWOOD COATINGS B.V. Keeping glue line closed (= no water ingress) % of the glue line showing capillaries Opti-Joint XP on Opti-Joint XP on PVAC on meranti Accoya meranti 3 cycles 6 cycles 3 cycles 6 cycles 3 cycles 6 cycles Sample 1 0 0 0 0 0 11 Sample 2 0 0 0 0 73 76 Sample 3 0 0 3 3 50 66 Average 0 0 1 1 41 51 Results from independent test performed by SHR Timber Research

DRYWOOD COATINGS B.V. PVAC glue (D4 type) on Opti-Joint XP on meranti meranti after 6 wks artificial after 6 wks artificial weathering and stain test weathering and stain test

DRYWOOD COATINGS B.V. DRYW YWOO OOD D OP OPTI TI-JOINT JOINT XP + DRYWOO OOD D SURF URFACE E COATING TING GI GIVES VES COMPLE OMPLETE TE MO MOISTUR STURE E TIGHT GHT JO JOINT NT AND ND A STABLE ABLE TROU OUBLE BLE FR FREE EE WINDO NDOW W FRAME RAME
