New Methods and Technologies for Collecting Origin-Destination (O-D) Data Ed Hard Byron Chigoy Praprut Songchitruksa, Ph.D., P.E. Steve Farnsworth Darrell Borchardt, P.E. 15 th National Tools of the Trade Conference Charleston, South

slide-1
SLIDE 1

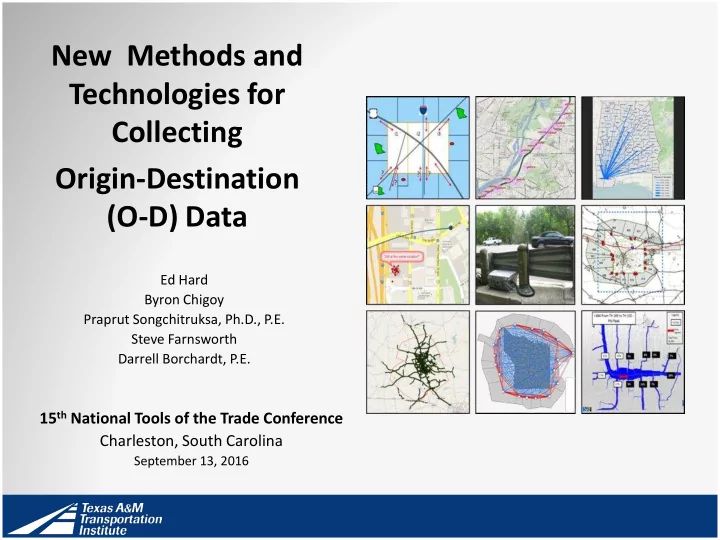

New Methods and Technologies for Collecting Origin-Destination (O-D) Data

15th National Tools of the Trade Conference Charleston, South Carolina

September 13, 2016

Ed Hard Byron Chigoy Praprut Songchitruksa, Ph.D., P.E. Steve Farnsworth Darrell Borchardt, P.E.

slide-2
SLIDE 2

Presentation Overview

  • Overview of cell, GPS, and Bluetooth O-D data
  • Takeaways and lessons-learned from prior

studies

  • Capabilities and limitations by technology
  • Comparisons of O-D data between technologies
  • O-D data suitability by study type

2

slide-3
SLIDE 3

New Technology in Travel Surveys

3

Trip Tables Trip Length Freq. Corridor Studies Select Link and Zone Analyses Residency Status

Bluetooth Cellular Data GPS

Validation Tools

  • classification

counts and travel time

slide-4
SLIDE 4

Cell Data Overview

4

slide-5
SLIDE 5

Cell O-D Data

What it Represents

  • Estimated device movements/flows
  • Spatio-temporal analysis of device over

weeks/months

  • Algorithms used to

‒ ID activity points and trip ends based on dwell times, speed, proximity ‒ Impute/derive estimated device trips based on patterns between home, work, other activity locations

  • Each sampled device computed individually, then

expanded, then aggregated with others

5

slide-6
SLIDE 6

Cell O-D Data

What it Represents

  • Data from 1 cell provider and 1 carrier (currently)
  • Possibly a combination of linked and unlinked trips
  • Analysis of activity points, clusters

6

slide-7
SLIDE 7

Cell Data Examples

  • Mobile Bay Bridge

7

Source: Airsagepopulationmovements_v9

Select Zone Analysis External Surveys

slide-8
SLIDE 8

Cell O-D Data Example

Source: Fussel R, Gresham, C. No Horsing Around, A Hole in One with Mobile Phone Data, TRB TPAC Conference, 2015.

Regional Corridor Study

8

Through Trips Between Counties Surrounding Moore County

slide-9
SLIDE 9

Takeaways from Cell O-D Studies

Beginning in about 2010, at least 30+

9

  • Majority of studies for trip matrices, modelling
  • Cell data acceptable, lower cost option for O-D
  • Total cell derived trips compare well to total model trips,

differences surface when disaggregated

  • Accuracy increases as size of analysis geography

increases

  • Important attributes; larges sample size, basic trip

purposes, residents, visitors, commuters

  • Inability to discern vehicle type or mode
slide-10
SLIDE 10

Takeaways from Cell O-D Studies

Beginning in about 2010, at least 30+

10

  • Not well suited for small urban TAZs due to poor

accuracy

  • Uncertainty on how much to aggregate internal TAZs
  • Challenges in configuring external cell capture areas
  • Misses short trips (proportion unknown)
  • Mixed results on trip purpose (research needed)
  • Are commercial vehicles under-represented?
slide-11
SLIDE 11

GPS O-D Data Overview

11

slide-12
SLIDE 12

Types of GPS Data

  • Primary GPS Data

– You collect and own raw GPS data – Resource intensive – Limited sample size – Customized algorithm R&D possible

 Third Party GPS Data (focus of this presentation)

– Obtained from private data providers – Raw data are protected due to privacy – Larger sample size – More economical – Work with data providers for specific customizations

12

slide-13
SLIDE 13

Third Party GPS Data Providers, Sources

  • INRIX – ‘Insights Trips’ O-D product
  • HERE – ‘Trip Data’ O-D product
  • TomTom – No O-D product, but case-by-case
  • Data continuously collected, compiled; processed for O-D

and anonymity

13

Providers Data Sources

  • In-vehicle navigation systems, fleet/freight, mobile

devices, mobile apps, portable navigation devices

slide-14
SLIDE 14

Caveats for Third-Party GPS Data

  • GPS traces are available only when users turn on

navigation session .

  • Non-commercial GPS users may not immediately

activate navigation session

  • GPS data sources can be biased towards specific user

groups.

  • Data providers generally apply anonymization

techniques in time and/or space to ensure privacy

14

slide-15
SLIDE 15

Data Products from GPS Data Providers

  • O-D table
  • Trip records
  • Trip records with waypoints

15

slide-16
SLIDE 16

Takeaways from GPS O-D Studies

Recent Studies with New O-D Products

16

  • New O-D products in 2015/2016 a major advancement
  • Ability to provide routing between O-Ds using waypoints and/or

Traffic Message Channels (TMCs)

  • Enhanced ability to assess route choices and patterns
  • Ability to analyze travel patterns of different GPS sources/vehicle

categories

  • Low sample penetration, but improving
  • Commercial bias, but data can be segregated by sources so can

segregate

  • Driver habits of using (consumer) GPS major influence on data
slide-17
SLIDE 17

GPS O-D Data Example – Select Link Analysis

17 Source: Paul Morris, SRF Consulting Group, I-94/TH 62 Study, 1/20/16 presentation to Met Council

slide-18
SLIDE 18

Bluetooth O-D Data Overview

18

slide-19
SLIDE 19

Bluetooth O-D Data

What is it?

  • Wireless technology for exchanging data over

short distances

  • BT embedded in mobile phones, GPS, in-

vehicle navigation systems

  • Each BT device has a unique Media Access

Control (MAC) ID

  • Permanent or portable sensors along roads

detect MAC IDs

  • MAC ID’s matched between sensor locations

19

slide-20
SLIDE 20

Bluetooth Data

What it represents

  • Expanded to counts when data collected
  • Unlike cell and GPS, does not detect trip ends
  • Not feasible for E-I/I-E trips
  • Caveat – ability to change MAC address, reducing

detection rates

20

  • Samples of ‘portions’ of trips

detected by roadside sensors

  • Does not detect trip ends
slide-21
SLIDE 21

Takeaways from Bluetooth O-D Studies

21

  • Vetted source for travel movement data for small scale

studies (does not provide true O’s or D’s)

  • Detection rates by study area about 5-10 percent
  • Detection rates by roadway about 3-12 percent

Area Sites

  • Avg. Daily

Count

  • Avg. Daily

Reads Percent Match Tyler, TX (2014) 20 175,343 12,975 7.4% Austin, TX (2013) 14* 2,219,908 118,365 5.3% Omaha, NE (2013) 22 235,526 10,470 4.4% Corpus Christi, TX (2013) 9 226,098 20,059 8.9% Bryan/College Statiton, TX (2011) 13 92,076 7,003 7.6%

slide-22
SLIDE 22

Technology Comparisons

22

slide-23
SLIDE 23

Comparison of Characteristics by Technology

O-D Data Element Technology Cell GPS Bluetooth Data unit

Cell sighting based on event or network hand-over GPS ping MAC address

Positional accuracy

  • Ave. 300 meters

1-10 meters About a 100 meter range

Data saturation/ penetration

Good, but varies Relatively low Varies from about 3 percent to 10 percent

Sample frequency

Varies widely, in minutes to hours In seconds or minutes In seconds

Continuous data stream?

No, random events Sometimes, but typically pieces of trips captures Yes, but only in about 100 meters range of reader

How trips estimated and defined

Based on activity clusters Trip based on GPS data stream MAC address matches between

  • readers. Trip ends cannot be

determined.

Anonymization

Encrypted to anonymize individual device IDs IDs scrambled and time/distance offsets

  • applied. Actual trip ends

not provided Removal of digits from MAC address, aggregating data prior to O-D table creation

23

slide-24
SLIDE 24

Comparison of Cell and GPS Data Points

24

  • Small green dots

= GPS points

  • Pink circles = cell

device on the move

  • 5 mile stretch of

SH 295 in DC

  • 16 cell data

points

Source: airsagepopulationmovements_v9 powerpoint

slide-25
SLIDE 25

Comparison of Characteristics by Technology

25 Suitability by Geographic Scale Cell Data Third-Party GPS Data Comments External Surveys E-E trips limited  GPS more comparable to Bluetooth. Limited ability to apply E-E travel time constraints with cell. E-I/I-E trips   For large regions cell may be best at this time due to good sample penetration. However, GPS may be better at urban TAZ and smaller geographies. Trip purpose   Cell estimates basic trip purposes based primarily on device’s home and work locations. Research needed here. Residency   Resident vs. non-resident splits needed for some models Commercial/ Freight   GPS can split O-D data into freight and non-freight sources (cars, apps, and freight categories). Route information   GPS can determine route between O-Ds using waypoints and TMCs. Ability to apply travel time constraint   Typically needed to develop E-E trips/matrices.

slide-26
SLIDE 26

Comparison of E-E Trips By Technology

26

  • 2014 Tyler External Study Comparing Cell, GPS, and Bluetooth O-D
  • Bluetooth used to estimate E-E movements
  • Bluetooth E-E’s used as benchmark against cell and GPS E-E’s
slide-27
SLIDE 27

Comparison: Cell and GPS Data for Corridor Studies

27

Suitability by Geographic Scale Cell Data Third-Party GPS Data Comments Corridor Studies

Within Urban Areas (operational)   Cell not well suited doe to data lack of positional accuracy Within urban areas (planning, select link analysis) limited  GPS has better accuracy and can provide

  • routing. GPS has ability to constrain data to

corridors in urban settings County to county   Cell sample size makes it best for total traffic, plus it can inform on residents, visitors, commuters, etc. However, GPS needed for freight. Depends on study

  • bjectives

Multi-county metro regions   Statewide  

slide-28
SLIDE 28

Comparison: Cell and GPS Data by Time Periods

28

Suitability by Geographic Scale Cell Data Third-Party GPS Data Comments Time Period Options

Hourly or Peak Hour   Cell sightings not frequent enough to provide data in hourly

  • increments. GPS sample size may

be low for this short of duration. Peak Period   GPS better suited since it is collected in more frequent time increments. 15 min. bins   Sample frequency and size probably too small to provide cell

  • r GPS data in this time increment
  • Ave. weekday,

weekend, etc.   Either is fine.

slide-29
SLIDE 29

Data Collection/Capture Time Periods

29

Bluetooth - 2 weeks Cell - 4 weeks GPS - 3 months

  • Varies by Technology due to sample

penetration

  • Example from Tyler, TX study (below)
slide-30
SLIDE 30

Final Thoughts and Conclusions

30

  • Understanding of each O-D technology important in making

decision on what source or sources to use

  • Which to use depends on O-D study type, objectives, budget,

spatial and temporal resolution needed, attributes desired, etc.

  • Combination of technologies and providers is ‘ideal’ approach to

capture all type and categories of O-D, plus extra attributes

  • If one technology will not work, explore possibility of acquiring just

the portions or aspects of data needed from each source

  • New technology O-D data still evolving and will continue to change
slide-31
SLIDE 31

See TMIP Report FHWA-HEP-16-083 for More Details

31

http://www.fhwa.dot.gov/ planning/tmip/publication s/other_reports/origin- destination/index.cfm

slide-32
SLIDE 32

Acknowledgments and Special Thanks!

32

Bill Knowles Janie Temple Jordan Helwagen Vijay Sivaraman Rick Schuman Ted Trepanier Joe Guthridge Finn Swingley Terri Johnson Paul Morris Paul Czech Sarah Sun

slide-33
SLIDE 33

For more Information:

Ed Hard e-hard@tamu.edu (979)845-8539 Byron Chigoy b-chigoy@ttimail.tamu.edu (512)407-1156 Praprut Songchitruksa praprut@tamu.edu (979)862-3559 Steve Farnsworth s-farnsworth44@tamu.edu (979)862-4927

Thanks for Listening!

33
