Door Closer DORMA TS72 DORMA TS 72 Door Closer The ideal solution for doors Data and features TS 72 up to 1100 mm wide tested Spring strength Size EN adjustable 2 4 and approved to EN 1154 Standard doors 1100 mm 1) 2 The

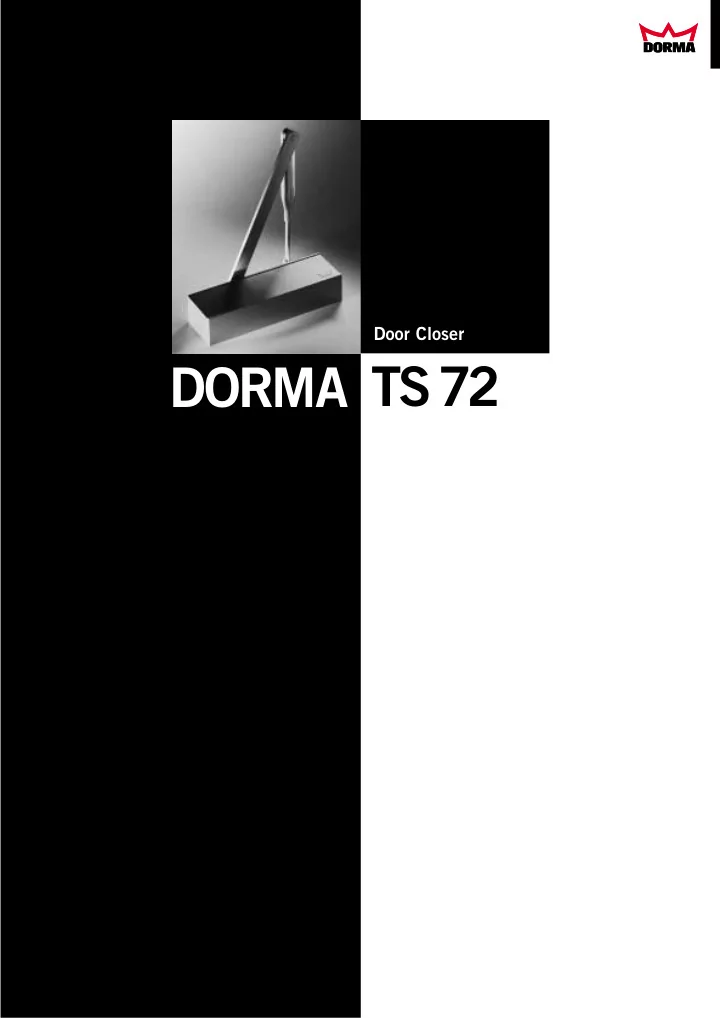

  1. Door Closer DORMA TS72

  2. DORMA TS 72 Door Closer The ideal solution for doors Data and features TS 72 up to 1100 mm wide – tested Spring strength Size EN adjustable 2 – 4 and approved to EN 1154 Standard doors ≤ 1100 mm 1) 2 The DORMA TS 72 is the door size by means of an External doors, outward opening – ideal multi-purpose door adjusting screw. Fire doors – closer for all standard door Non-handed 2 designs and constructions. Quality assured manufacture Arm type Standard Without a backplate, it is 2 to DIN ISO 9001, particularly easy and quick EN 29001, Slide channel – BS 5750. to fix. Certified and verified by Closing speed 180° – 15° 2 The spring strength can be BSI Quality Assurance adjustable at 2 separate valves 115° – 10° Reg.-No. Q 6423, FM 10756 individually adapted to the Latching action adjustable (by arm) 2 Backcheck – Delayed action – Hold-open " Weight in kg 1.2 Dimensions in mm Length 232 Benefits Overall depth 45 Height 68 For the trade For the architect/specifier 2 Just one model for all 2 Outstanding value for Door closer tested and approved to EN 1154 2 standard doors. money. 2 Yes – No " Option 2 Increased stocking 2 Compact construction 1) With parallel-arm fixing, the closing force is approx. flexibility thanks to use of combined with timeless 20 Nm (for doors up to 950 mm) the standard ClassicLine design. series arm. For the user For the installer/fabricator 2 Constant closing action 2 Non-handed design. virtually unaffected by 2 Closing force, closing temperature fluctuations. speed and latching action 2 Optimum closing speed adjustable in just a few adjustment with two movements. regulating valves. 2 Reliable closing with adjustable latching action. ca. 280 43 45 16 38 105 68 45 67 50 22 45 50 76,5 232 2 TS 72, GB

  3. Door leaf fixing, pull side (Example refers to left-hand [ISO 6] door; mirror image applies to right-hand [ISO 5] door) 222 max. 9 45 31 38 15 74 45 117 22 193,5 50 50 Transom fixing (overhead frame installation), push side (Example refers to left-hand [ISO 6] door; mirror image applies to right-hand [ISO 5] door) 22 50 50 193,5 max. 95 117 45 74 15 38 31 45 222 Parallel-arm fixing, push side (Example refers to left-hand [ISO 6] door; mirror image applies to right-hand [ISO 5] door). Parallel-arm bracket (accessory) necessary 130 58 32 62 62 121 45 45 64,5 22 98 50 50 220 With this fixing method, the closing force is approx. 20 Nm (for doors up to 950 mm) 3 TS 72, GB

  4. DORMA TS 72 Accessories Mounting backplate 232 For fixing to doors on which 25 160 the closer cannot be directly 65 10 installed. Drilled hole 42 16 pattern as per EN 1154, 16 Ø 5,5 27 43 11 68 Supplement 1. 16 77 56 Upstand hinge bracket For fixing the arm to particularly narrow door 58 frames. 45 Ø 5,5 26 12 6 Fixing bracket 80 For the parallel-arm 62 configuration. 38 7 11 Ø 6,5 86 4 TS 72, GB

  5. Standard and optional functions The closing speed of the In addition, the latching DORMA TS 72 is variable in action can be adjusted at two independent ranges by the closer arm. separate valves. The closing force (size) Closing force settings setting for the door width Door width Setting 2 1 concerned is variable at the ≤ 850 EN 2 EN 2 adjustment screw located ≤ 950 EN 3 at the end face of the TS 72 ≤ 1100 EN 4 4 closer body. EN 4 1 Closing speed adjustable 3 in the range 180° – 15°. 2 15 ° 2 Closing speed adjustable in the range 15° – 0°. E 4 N 2 - 1 3 Latching action (variable at arm). 4 4 Adjustable closing force. If the DORMA TS 72 is installed with a hold-open arm , the doors can be held open at any desired point (up to approx. 150°). 1 Hold-open range 1 5 0 ° 1 5 TS 72, GB

  6. DORMA TS 72 Standard equipment and accessories Closer body Standard arm Hold-open arm Mounting Hinge plate Parallel-arm TS 72 backplate bracket Y y 220023xx Y y 220025xx 220021xx 830014xx 280066xx Y Y Size EN 2 – 4 # # # 222321xx yy yy Order No.: yy = Closer separate Y = Arm assembly separate # = Accessory Colour xx Silver 01 Dark brown 03 White (sim. to RAL 9010) 10 White (sim. to RAL 9016) 11 Special colour 09 Specification text Rack-and-pinion door closer Model Colour Make DORMA TS 72 with adjustable closing Y with standard arm Y Silver force, size EN 2 – 4, closing Y with hold-open arm Y Dark brown speed adjustable in two Y White (sim. to RAL 9010) independent ranges, with Accessories Y White (sim. to RAL 9016) adjustable latching action. Y Mounting backplate Y Special colour ––––– WN 051 813, 04/01, TS 72, GB, 5. Dom/CtP, 05/01 Subject to change without notice Non-handed. Y Upstand hinge plate (sim. to RAL –––) Tested and approved to Y Fixing bracket for EN 1154. parallel-arm assembly DORMA GmbH + Co. KG DORMA Door Controls Pte. Ltd. DORMA Gulf Door Controls FZE No. 2, Jalan Terusan, Jurong Jebel Ali Free Zone, Roundabout 8, P.O. Box 40 09 Singapore 619285 Unit VC 02 58247 Ennepetal Rep. of Singapore P.O. Box 17268 Breckerfelder Straße 42-48 Tel. 0065 2687633 Jebel Ali, Dubai 58256 Ennepetal Fax 0065 2657914 United Arab Emirates Tel. 00971 48 /83 90 14 Germany DORMA Door Controls Pty. Ltd. Fax 00971 48 /83 90 15 Tel. +49(0)23 33/793-0 P.O. Box 1092 Fax +49(0)23 33/79 34 95 Narre Warren Vic 3805 DORMA Door Controls (Pty.) Ltd. 52 Abbott Road Kings Court Hallam Victoria 3803 P.O. Box 82182 The address of a subsidiary/ Australia 2135 Southdale · South Africa representation in your area you Tel. 0061 3/97 96 35 55 Tel. 0027 11/8 30 02 80 can find at the DORMA-website: Fax 0061 3/97 96 39 55 Fax 0027 11/8 30 02 91 www.dorma.com
