DEEPEGS COORDINATOR DEEPEGS COORDINATOR DEEPEGS DEPLOYMENT OF DEEP ENHANCED GEOTHERMAL SYSTEMS FOR SUSTAINABLE ENERGY BUSINESS GEORG DRG -Open Conference 18-19 February 2016 Gumundur mar Frileifsson The DEEPEGS project has received

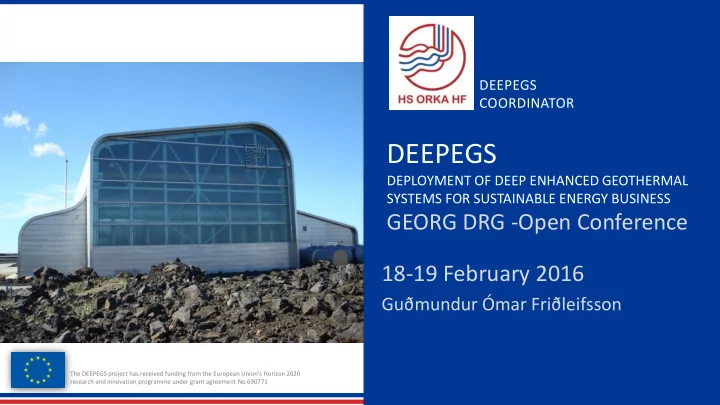

  1. DEEPEGS COORDINATOR DEEPEGS COORDINATOR DEEPEGS DEPLOYMENT OF DEEP ENHANCED GEOTHERMAL SYSTEMS FOR SUSTAINABLE ENERGY BUSINESS GEORG DRG -Open Conference 18-19 February 2016 Guðmundur Ómar Friðleifsson The DEEPEGS project has received funding from the European Union’s Horizon 2020 research and innovation programme under grant agreement No 690771

  2. DEEPEGS Project description DEEPEGS COORDINATOR DEPLOYMENT OF DEEP E NHANCED G EOTHERMAL S YSTEMS FOR SUSTAINABLE ENERGY BUSINESS • The DEEPEGS project is a demonstration project, supported by the European Commission, Horizon 2020. • The goal is to demonstrate the feasibility of enhanced geothermal systems (EGS) for delivering energy from renewable resources in Europe. • It is a 4 year project coordinated by HS Orka, Iceland, in cooperation with partners from Iceland, France, Germany, Italy, and Norway. Starting date was 1st December 2015. • The project will be testing stimulation technologies for EGS in deep wells in different geological settings, and intends to deliver new innovative solutions and models for wider deployments of EGS reservoirs with sufficient permeability to delivering significant amounts of geothermal power across Europe. • The project will demonstrate advanced technologies in three types of geothermal reservoirs, (i) in high enthalpy resource beneath existing hydrothermal field at Reykjanes with T up to 550°C and (ii) two very deep hydrothermal reservoirs in southern France with temperatures up to 220°C.

  3. DEEPEGS – DEEPEGS COORDINATOR partners and demo sites Partners Demo-site Iceland: • Iceland: RN-15 at Reykjanes – HS Orka ISOR GEORG Landsvirkjun • Demo-site France: France: Valence and Vistrenque – BRGM – Fonroch Geothermie • Germany – Herrenknecht Vertical – Karlsruher Institut fuer Technologie • Italy – Enel Green Power • Norway – Statoil Petrolium

  4. Industry driven consortium DEEPEGS COORDINATOR

  5. DEEPEGS – objectives DEEPEGS COORDINATOR • To enhance understanding and accessibility of the deep geothermal potential • To improve and further develop methodologies and technologies • To apply the “ tool bag ” (methodologies and technologies), in partnership with industry to develop and/or enhance production at selected field locations. • To demonstrate the “ business case ” • To disseminate and communicate of the technology

  6. DEEPEGS COORDINATOR

  7. DEEPEGS background experience DEEPEGS COORDINATOR

  8. DEEPEGS Technology Readiness Level DEEPEGS COORDINATOR

  9. DEEPEGS - Timeline DEEPEGS COORDINATOR

  10. DEEPEGS background experience DEEPEGS COORDINATOR Iceland Deep Drilling Project – IDDP Krafla central volcano Magma chambers at 3-8 km depth detected by S-wave attenuation during the 1975 - 1984 Krafla fires

  11. DEEPEGS background experience DEEPEGS COORDINATOR Iceland Deep Drilling Project – IDDP IDDP-1 Why did we not see the magma at 2100 ? Earthquake hypocenters : Green dots: Krafla fires 1975-1984 Blue dots: micro-seismic 2004-2007 K-36 MT-landscape 2008 2100 m 3 km magma surface IDDP-1 target at 4.5 km

  12. DEEPEGS background experience DEEPEGS COORDINATOR Iceland Deep Drilling Project – IDDP Drilling Plan for IDDP-1 and actual drilling Tyr Rig in 2009: - Planned 800 - 2400 - 3500 - 4500 m March-July 2009: - Actual: 800 - 1950 - 2100 m Tyr Rig: - Planned 800-2400-3500-4500 m • Anchor Casing : 16 ” drillbit, 13 3/8 ” casing - Actual: 800-1950-2100 m • Production Casing : 12-1/4 ” drillbit , 9 5/8 ” casing • Production Zone : 8-1/2 ” drillbit, 7 ” slotted liner 12-1/4 ” bit into magma at 2104 m depth to magma Inserted 9-5/8 ” slotted liner at the bottom and 9-5/8 ” sacrificial casing cemented to the top

  13. DEEPEGS background experience DEEPEGS COORDINATOR Iceland Deep Drilling Project – IDDP Heating up after drilling Micro seismicity during drilling Schematic - off scale

  14. DEEPEGS background experience DEEPEGS COORDINATOR Iceland Deep Drilling Project – IDDP Flow test 2010-2012 Superheated dry steam: 452°C, 140 bar, 3200 KJ/Kg – power output ~ 36 MW e Video clips at www.iddp.is Flow test continued 17. May 2011 – but needed to be stopped few days later. Continued 9.August 2011 but stopped 11. August for further modification. Opened again 27 th September 2011 for wet scrubbing and heat exchange test. From November 2011 to July 2012 flowing at 10-12 kg/sec

  15. DEEPEGS background experience DEEPEGS COORDINATOR Iceland Deep Drilling Project – IDDP Connection between IDDP-1 and K-36 ?

  16. DEEPEGS background experience DEEPEGS COORDINATOR Iceland Deep Drilling Project – IDDP Sequence of events: Apparently IDDP created a magmatic EGS system Thermally cracked the metamorphic contact aureole rocks by cold water drilling- and injection fluid Attracted 350 ° C two phase reservoir fluid from above – downwards - heating it up to 450 ° C Flowing the 450 ° C hot superheated steam - needing chemical mitigation for production By wet scrubbing Cl, S and SiO 2 were driven into the fluid phase – leaving pure steam for power production CO 2 proved to be lower than in atmosphere

  17. RN-15: Production well: offered for deepening as IDDP-2 DEEPEGS COORDINATOR REYKJANES DEMO SITE IDDP-2 Reykjanes power plant: 100 MW e RN-15 production well: 2.5 km deep RN-15 defined as Well of opportunity for IDDP-2 It will be directionally drilled to 5 km depth in 2016 Flow tested in both directions – down and up Pilot tested for power production Scientifically studied as a black smoker analog Reservoir fluid is of seawater origin

  18. DEEPEGS demonstration site - well design DEEPEGS COORDINATOR Immediate tasks ahead: Finalize design – 2 months Purchase all needed materials: Casings, wellhead valves, expansion spool, cement and drilling mud - 4 to 6 months Monitoring: add to existing surface monitoring equipment prior to drilling – 3 to 4 months Detailed Drilling Plan Detailed Stimulation Plan Detailed Testing plan DRILLING: June to October 2016

  19. DEEPEGS - Reykjanes demonstration site DEEPEGS COORDINATOR NEAR FUTURE VISION: Our expectation is that by DEEPEGS 29 16 type drilling we will see more efficient power production from high- 13 temperature geothermal systems 10 worldwide 14 11 Thank you ! 24 21 12 Preparation for the IDDP-2/DEEPEGS well at Reykjanes has been in progress since 2012
